Homelite UT49103 Log Splitter Parts

Other tools in Homelite Log Splitter Parts category

About these parts

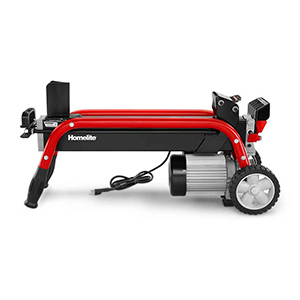

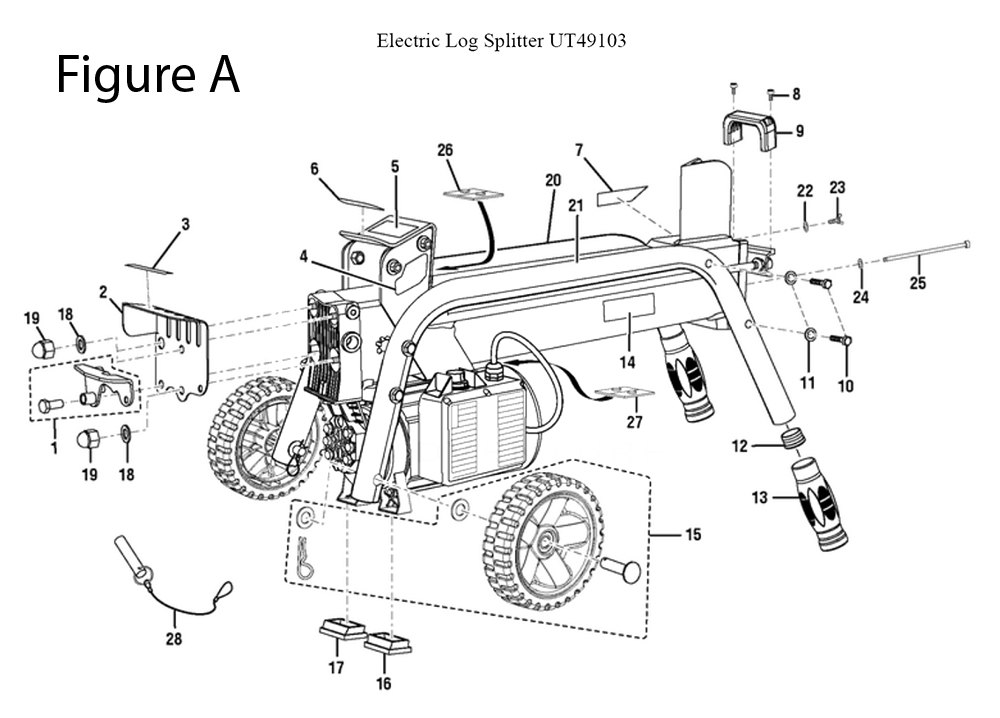

This page lists all 56 parts for the Homelite UT49103 log splitter, with the schematic diagram and each part's diagram number. 37 parts are available to order today.Parts marked "Discontinued by manufacturer" are no longer made and can't be ordered. Can't find your part? Email sales@toolpartspro.com and we'll look for it.

Fig-0

Fig-1

Reference Filter: Filter parts list by name or model number:

Homelite UT49103 Replacement Parts List

A-1

Hydraulic Control Lever Part # 099077001510

$5.41
Add to Cart
A-2

Control Lever Guard Part # 099007001131 Discontinued by manufacturer

N/A
A-3

Icon Strip Part # 099077006901 Discontinued by manufacturer

N/A
A-4

Data Label Part # 099077006900 Discontinued by manufacturer

N/A
A-5

Bleed Screw Instruction Label Part # 099077001101

$2.51
Add to Cart
A-6

Moving Parts Danger Label Part # 099077006902 Discontinued by manufacturer

N/A
A-7

Bleed Screw Label Part # 099077001102 Discontinued by manufacturer

N/A
A-8

Screw (M5 X 16 Mm) Part # 099077001018

$2.51
Add to Cart
A-9

Handle Part # 099077001019

$2.51
Add to Cart
A-10

Bolt (M8 X 55 Mm) Part # 099077001088

$2.51
Add to Cart
A-11

Washer Part # 099077001087 Discontinued by manufacturer

N/A
A-12

Plug Part # 099077001031

$2.51
Add to Cart
A-13

Rubber Grip Part # 099077001032

$3.37
Add to Cart
A-14

Logo Label Part # 099077001099 Discontinued by manufacturer

N/A
A-15

Wheel Assembly Part # 099077001502

$11.56
Add to Cart
A-16

Rubber Foot (r) Part # 099077001049

$2.51
Add to Cart
A-17

Rubber Foot (l) Part # 099077001051

$2.51
Add to Cart
A-18

Washer Part # 099077001070 Discontinued by manufacturer

N/A
A-19

Nut Part # 099077001071 Discontinued by manufacturer

N/A
A-20

Leg Frame (r) Part # 099007001132

$34.14
Add to Cart
A-21

Leg Frame (l) Part # 099007001133

$32.59
Add to Cart
A-22

O-ring Part # 099077001025

$2.51
Add to Cart
A-23

Wing Bolt Part # 099077001026

$2.51
Add to Cart
A-24

O-ring Part # 099077001029

$2.51
Add to Cart
A-25

Dipstick Part # 099007001134

$2.51
Add to Cart
A-26

Upper Wear Pad Part # 099077001010

$2.51
Add to Cart
A-27

Lower Wear Pad Part # 099077001091

$2.51
Add to Cart
A-28

Lock-out Pin with Lanyard Part # 099007001135

$2.54
Add to Cart
A-00

Operator's Manual Part # 988000154 Discontinued by manufacturer

N/A
B-1

Ram Valve Assembly Part # 099077001503

$17.11
Add to Cart
B-2

Main Body Assembly Part # 099077001511 Discontinued by manufacturer

N/A
B-3

Bolt Assembly Part # 099077001063

$3.40
Add to Cart
B-4

O-ring Part # 099077001065

$2.51
Add to Cart
B-5

Gear Housing Plate Part # 099077001053

$6.62
Add to Cart
B-6

Bolt Assembly Part # 099077001506

$2.51
Add to Cart
B-7

Gear Assembly Part # 099077001507 Discontinued by manufacturer

N/A
B-8

Sleeve Part # 099077001058 Discontinued by manufacturer

N/A
B-9

Pin Part # 099077001052

$2.51
Add to Cart
B-10

Nut and Bolt Assembly Part # 099077001508

$2.51
Add to Cart
B-11

Motor Assembly Part # 099077001509 Discontinued by manufacturer

N/A
B-12

Switch Box Assembly Part # 099077001036

$65.34
Add to Cart
B-13

Fan Part # 099077001121

$2.68
Add to Cart
B-14

Retaining Ring Part # 099077001122

$2.51
Add to Cart
B-15

Shroud Part # 099077001123

$2.55
Add to Cart
B-16

Screw (4 X 10 Mm) W/washers Part # 099077001124

$2.51
Add to Cart
B-17

Bolt Part # 099077001090

$2.51
Add to Cart
B-18

Switch Part # 099077001037

$18.15
Add to Cart
B-19

Connection Terminal Part # 099077001039 Discontinued by manufacturer

N/A
B-20

Circuit Breaker Part # 099077001042

$5.95
Add to Cart
B-21

Power Cord Part # 099077001044

$11.36
Add to Cart
B-22

Screw (M2.9 X 12 Mm) Part # 099077001043 Discontinued by manufacturer

N/A
B-23

Switch Box Assembly Part # 099077001040 Discontinued by manufacturer

N/A
B-24

Capacitor Part # 099077001038

$15.97
Add to Cart
B-25

Strain Relief Part # 099077001125 Discontinued by manufacturer

N/A
B-26

O-ring Part # 099077001059

$2.51
Add to Cart
B-27

Gear Pump Cover Part # 099077001064 Discontinued by manufacturer

N/A
