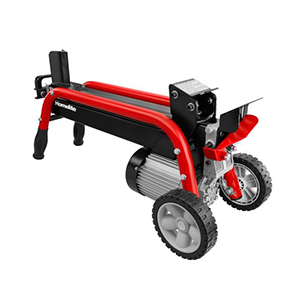

Homelite UT49102 Log Splitter Parts

Other tools in Homelite Log Splitter Parts category

About these parts

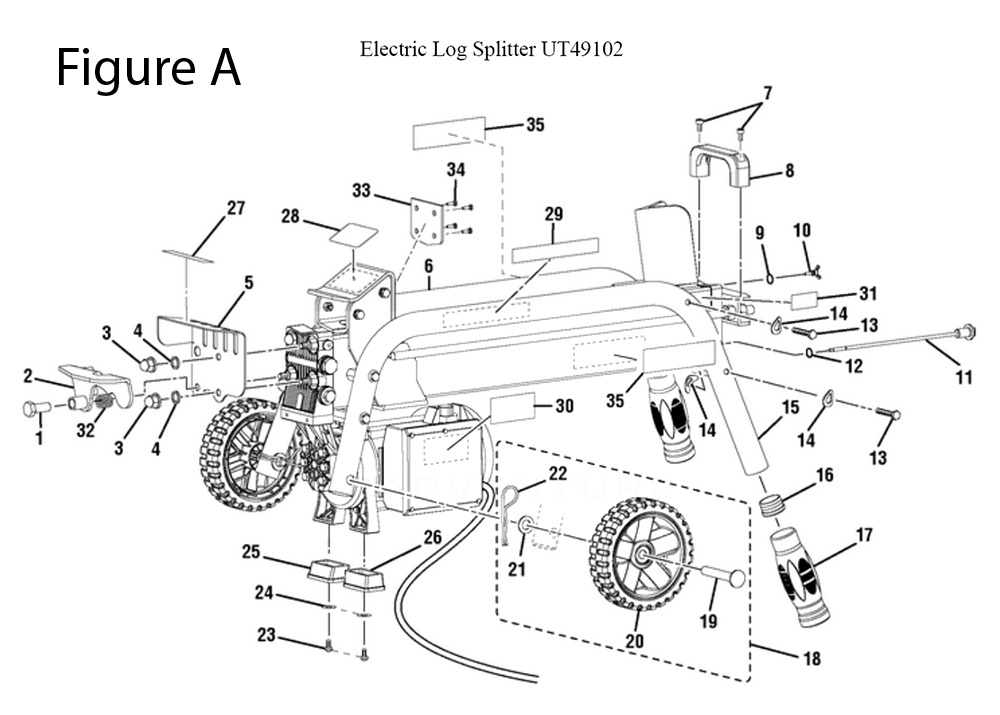

This page lists all 92 parts for the Homelite UT49102 log splitter, with the schematic diagram and each part's diagram number. 1 part is available to order today.Parts marked "Discontinued by manufacturer" are no longer made and can't be ordered. Can't find your part? Email sales@toolpartspro.com and we'll look for it.

Fig-0

Fig-1

Fig-2

Reference Filter: Filter parts list by name or model number:

Homelite UT49102 Replacement Parts List

A-1

Lever Bushing Part # 33212131G Discontinued by manufacturer

N/A
A-2

Lever Part # 33301132G Discontinued by manufacturer

N/A
A-3

Nut Part # 33213131G Discontinued by manufacturer

N/A
A-4

Lock Washer Part # 32910132G Discontinued by manufacturer

N/A
A-5

Guard Part # 33304132G Discontinued by manufacturer

N/A
A-6

Leg Frame (l) Part # 33303132G Discontinued by manufacturer

N/A
A-7

Screw (M6 X 15 Mm) Part # 32203132G Discontinued by manufacturer

N/A
A-8

Handle Part # 34103132G Discontinued by manufacturer

N/A
A-9

O-ring Part # 34202131G Discontinued by manufacturer

N/A
A-10

Bleed Screw Part # 34104131G Discontinued by manufacturer

N/A
A-11

Dipstick Part # 31104131G Discontinued by manufacturer

N/A
A-12

O-ring Part # 34211131G Discontinued by manufacturer

N/A
A-13

Bolt (M8 X 50 Mm) Part # 32202132G Discontinued by manufacturer

N/A
A-14

Spacer Part # 33306132G Discontinued by manufacturer

N/A
A-15

Leg Frame (r) Part # 33309132G Discontinued by manufacturer

N/A
A-16

Plug Part # 34102132G Discontinued by manufacturer

N/A
A-17

Rubber Grip Part # 34101132G Discontinued by manufacturer

N/A
A-18

Wheel Assembly Part # 31105132G Discontinued by manufacturer

N/A
A-19

Axle Part # 33201132G Discontinued by manufacturer

N/A
A-20

Wheel Part # 31103234G Discontinued by manufacturer

N/A
A-21

Washer Part # 32918131G Discontinued by manufacturer

N/A
A-22

Hitch Pin Part # 33901132G Discontinued by manufacturer

N/A
A-23

Screw (M6 X 20 Mm) Part # 3220350G Discontinued by manufacturer

N/A
A-24

Washer Part # 33316131G Discontinued by manufacturer

N/A
A-25

Rubber Foot (l) Part # 34221131G Discontinued by manufacturer

N/A
A-26

Rubber Foot (r) Part # 34220131G Discontinued by manufacturer

N/A
A-27

Danger Label Part # 099077001103 Discontinued by manufacturer

N/A
A-28

Bleed Screw Instruction Label Part # 099077001101

$2.51
Add to Cart
A-29

Warning Label Part # 099077001100 Discontinued by manufacturer

N/A
A-30

Data Label Part # 099077005900 Discontinued by manufacturer

N/A
A-31

Bleed Screw Location Label Part # 099077005902 Discontinued by manufacturer

N/A
A-32

Torsion Spring Part # 33906132G Discontinued by manufacturer

N/A
A-33

Ram Plate Part # 33308131G Discontinued by manufacturer

N/A
A-34

Screw (M5 X 12mm) Part # 32208131G Discontinued by manufacturer

N/A
A-35

Homelite Logo Label Part # 099077005906 Discontinued by manufacturer

N/A
A-00

Operator's Manual Part # 987000509 Discontinued by manufacturer

N/A
B-1

Main Body Assembly Part # 31101132G Discontinued by manufacturer

N/A
B-2

Upper Wear Pad Part # 34107131G Discontinued by manufacturer

N/A
B-3

Lower Wear Pad Part # 34110131G Discontinued by manufacturer

N/A
B-4

Valve Plug Assembly Part # 31111132G Discontinued by manufacturer

N/A
B-5

Compression Spring Part # 33903131G Discontinued by manufacturer

N/A
B-6

O-ring Kit Part # 31112132G Discontinued by manufacturer

N/A
B-7

Valve Body Assembly Part # 31113132G Discontinued by manufacturer

N/A
B-8

Valve Body Retainer Part # 33231131G Discontinued by manufacturer

N/A
B-9

Valve Assembly Part # 31114132G Discontinued by manufacturer

N/A
B-10

Compression Spring Part # 33902131G Discontinued by manufacturer

N/A
B-11

Retaining Ring Part # 32901131G Discontinued by manufacturer

N/A
B-12

Pressure Relief Valve Cover Part # 34101131G Discontinued by manufacturer

N/A
B-13

Nut (M6) Part # 3290205G Discontinued by manufacturer

N/A
B-14

Pressure Relief Screw (M6 X 20 Mm) Part # 32212131G Discontinued by manufacturer

N/A
B-15

Relief Valve Bushing Assembly Part # 31115132G Discontinued by manufacturer

N/A
B-16

Adjustment Pin Assembly Part # 31116132G Discontinued by manufacturer

N/A
B-17

Compression Spring Part # 33901131G Discontinued by manufacturer

N/A
B-18

Pressure Relief Valve Part # 33202131G Discontinued by manufacturer

N/A
B-19

Relief Valve Seat Part # 33201131G Discontinued by manufacturer

N/A
B-20

Pressure Relief Valve O-ring Kit Part # 31118132G Discontinued by manufacturer

N/A
B-21

Valve Seat Retainer Part # 32213131G Discontinued by manufacturer

N/A
B-22

Pressure Relief Valve Plug Assembly Part # 31119132G Discontinued by manufacturer

N/A
C-1

Bolt Assembly Part # 31106132G Discontinued by manufacturer

N/A
C-2

Bolt Assembly Part # 31107132G Discontinued by manufacturer

N/A
C-3

O-ring Part # 34213131G Discontinued by manufacturer

N/A
C-4

Gear Pump Housing Assembly Part # 31120132G Discontinued by manufacturer

N/A
C-5

O-ring Part # 34226131G Discontinued by manufacturer

N/A
C-6

Ball Key Part # 32902131G Discontinued by manufacturer

N/A
C-7

Pin Key Part # 33227131G Discontinued by manufacturer

N/A
C-8

Gear Pump Assembly Part # 31108132G Discontinued by manufacturer

N/A
C-9

Gear Pump Plate Part # 33226131AG Discontinued by manufacturer

N/A
C-10

Nut and Bolt Assembly Part # 31109132G Discontinued by manufacturer

N/A
C-11

Motor Assembly Part # 31103132G Discontinued by manufacturer

N/A
C-12

Switch Box Assembly Part # 31110132G Discontinued by manufacturer

N/A
C-13

Fan Part # 34110132G Discontinued by manufacturer

N/A
C-14

Shroud Part # 33314132G Discontinued by manufacturer

N/A
C-15

Retaining Ring Part # 33910132G Discontinued by manufacturer

N/A
C-16

Screw (M4 X 10 Mm) W/washer Part # 32210132G Discontinued by manufacturer

N/A
C-17

Strain Relief Part # 36501131G Discontinued by manufacturer

N/A
C-18

Screw (M4 X 8 Mm) Part # 3220515G Discontinued by manufacturer

N/A
C-19

Screw (M5 X 12 Mm) Part # 3220337G Discontinued by manufacturer

N/A
C-20

Lead Wire Assembly Part # 31105131G Discontinued by manufacturer

N/A
C-21

Power Cord Assembly Part # 31103131G Discontinued by manufacturer

N/A
C-22

Screw (M4 X 16 Mm) Part # 3220505G Discontinued by manufacturer

N/A
C-23

Cord Clip Part # 3410403G Discontinued by manufacturer

N/A
C-24

Switch Box Cover Part # 34109131G Discontinued by manufacturer

N/A
C-25

Screw (M4.2 X 14 Mm) Part # 322010G Discontinued by manufacturer

N/A
C-26

Cover Gasket Part # 34218131G Discontinued by manufacturer

N/A
C-27

Capacitor Part # 36901131AG Discontinued by manufacturer

N/A
C-28

Wire Nut Part # 36511154G Discontinued by manufacturer

N/A
C-29

Switch Part # 36301131G Discontinued by manufacturer

N/A
C-30

Switch Box Gasket Part # 34219131G Discontinued by manufacturer

N/A
C-31

Circuit Breaker Part # 36302131G Discontinued by manufacturer

N/A
C-32

Switch Box Part # 34108131G Discontinued by manufacturer

N/A
C-33

Circuit Breaker Label Part # 099077005905 Discontinued by manufacturer

N/A
C-34

Washer Part # 3290408G Discontinued by manufacturer

N/A
