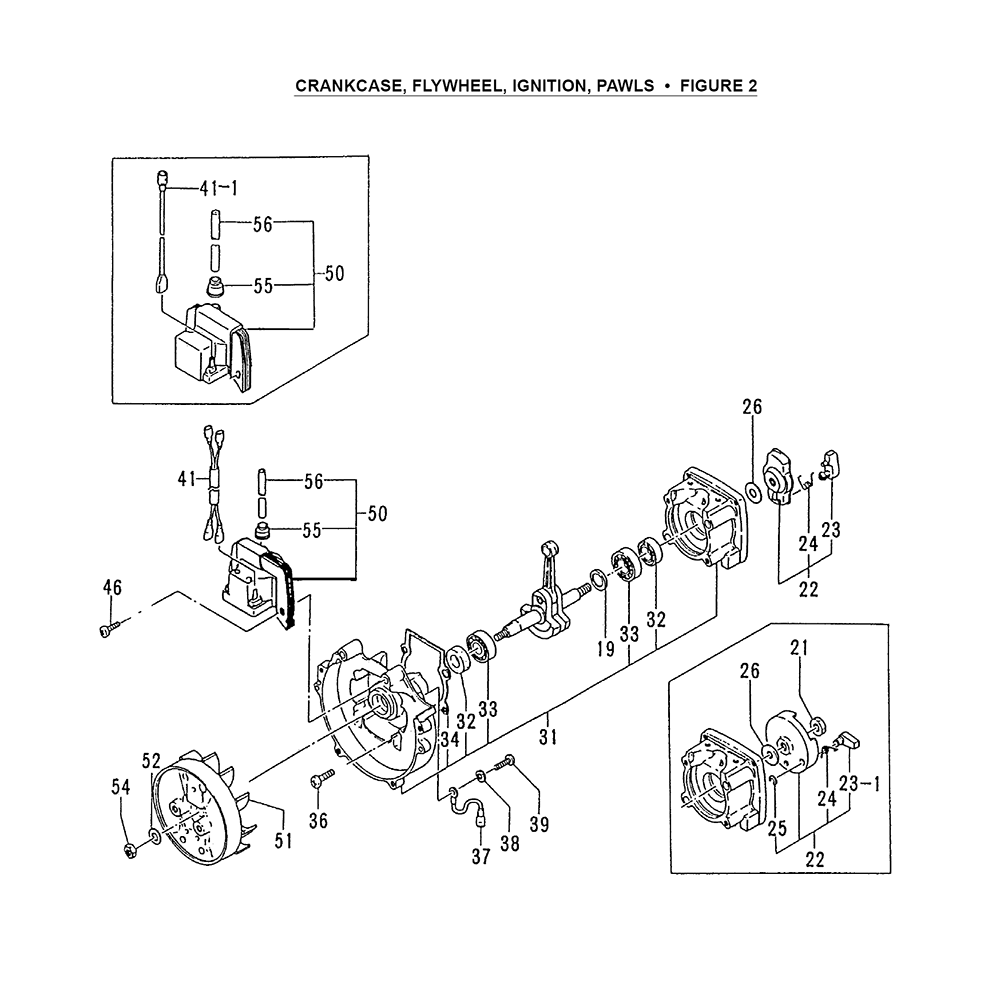

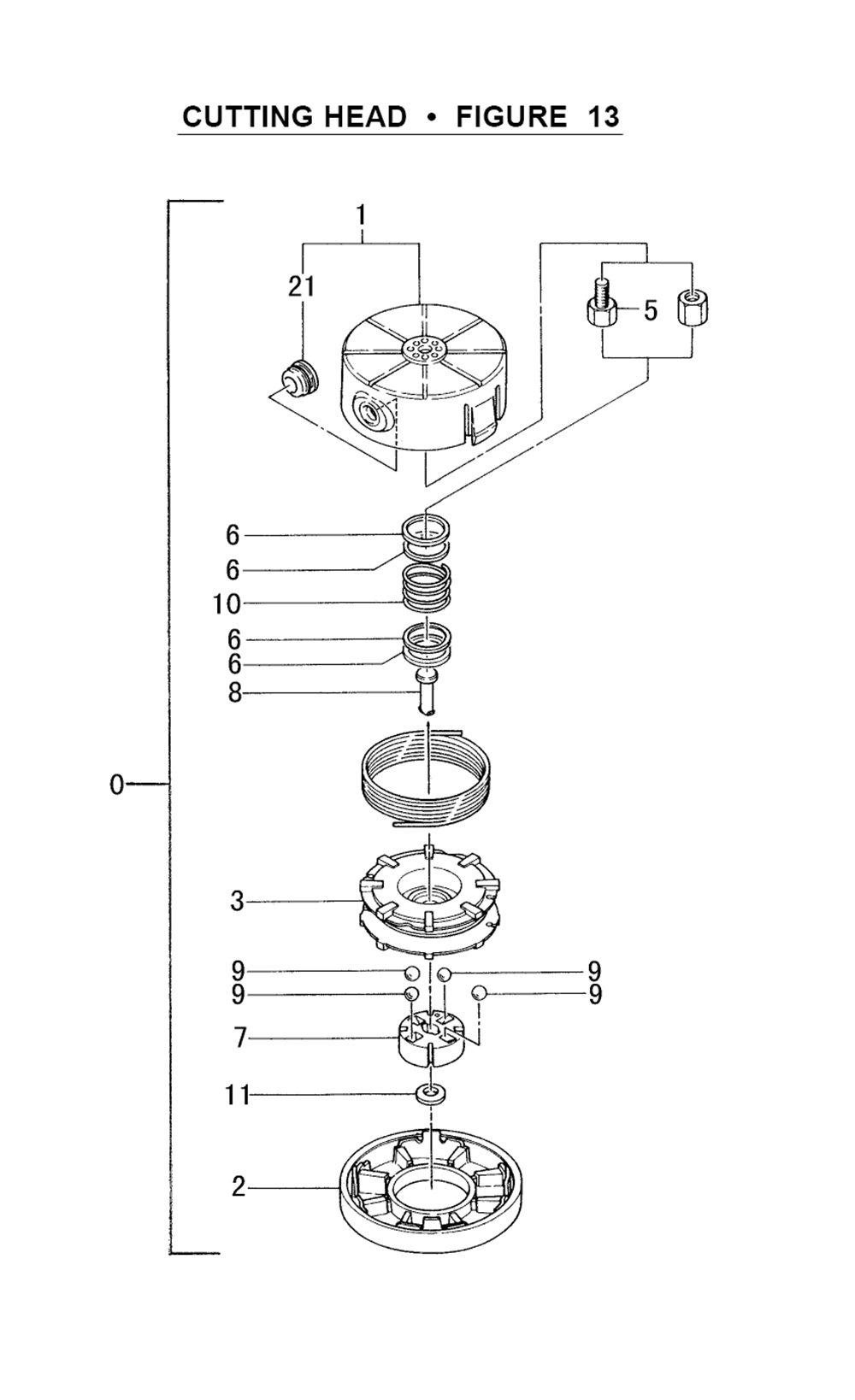

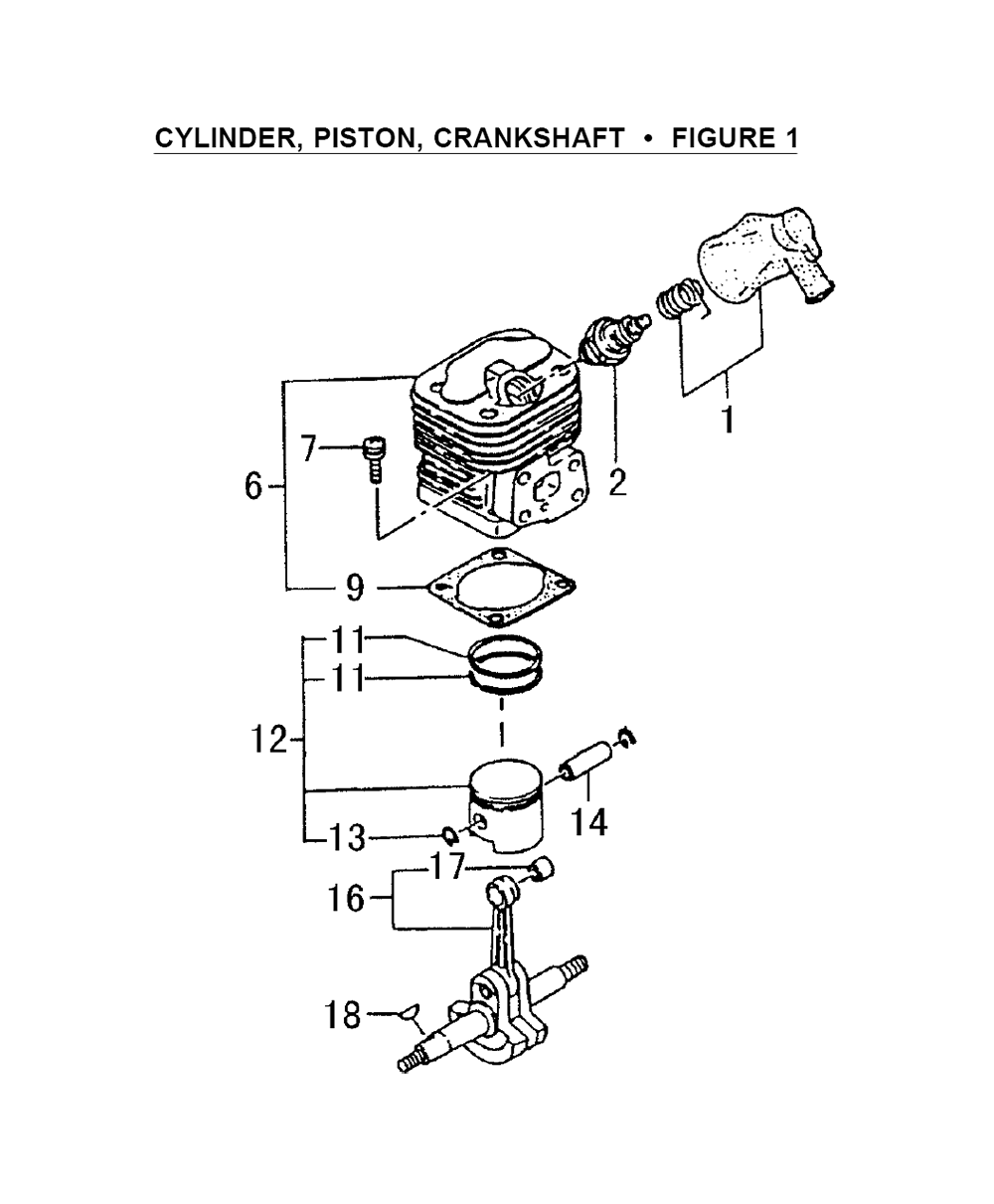

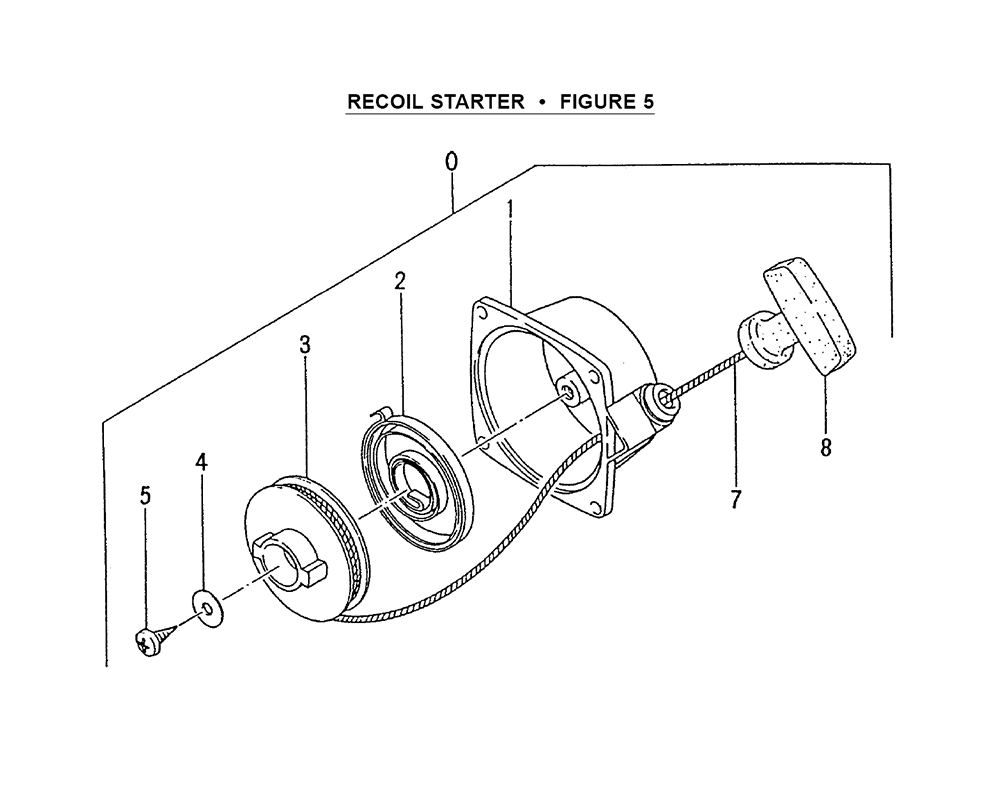

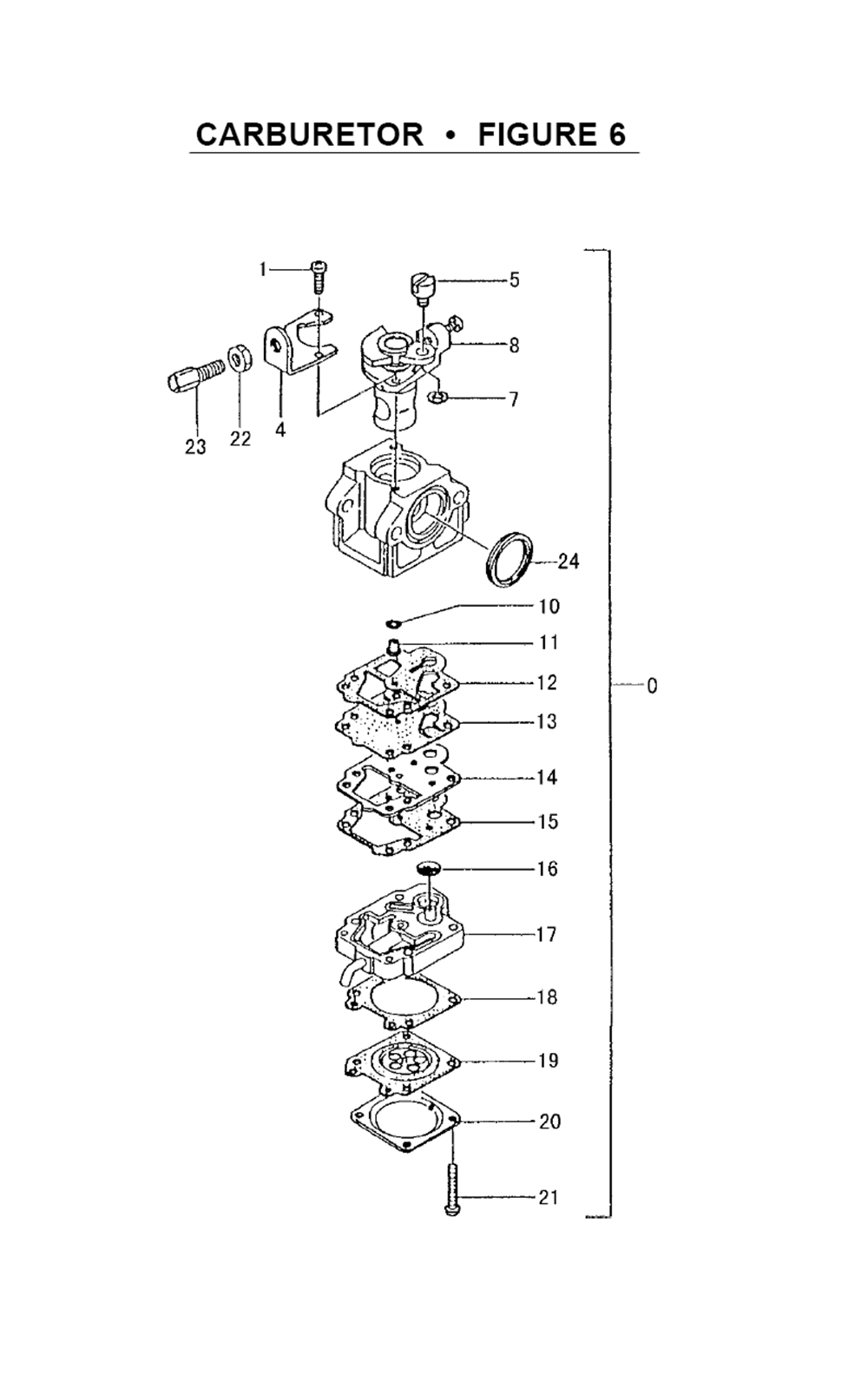

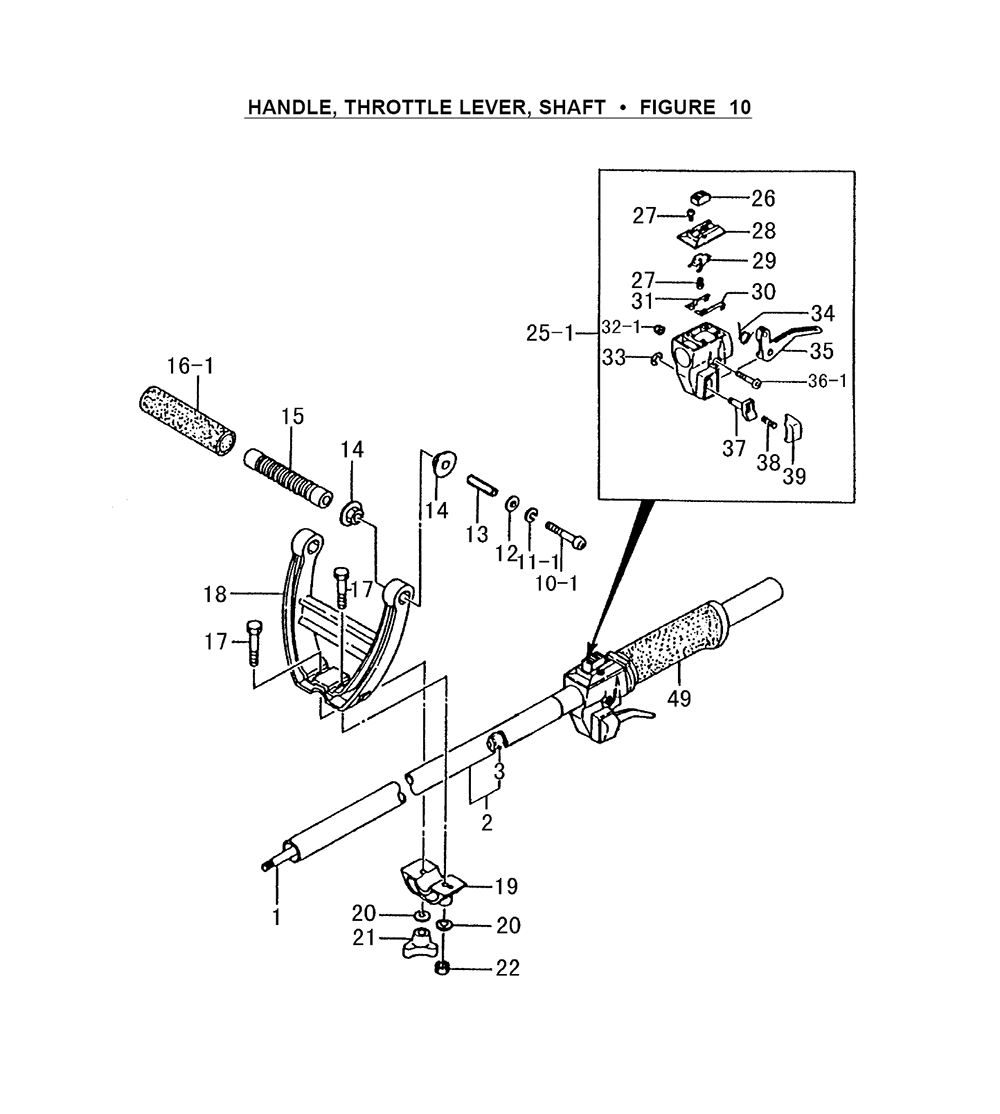

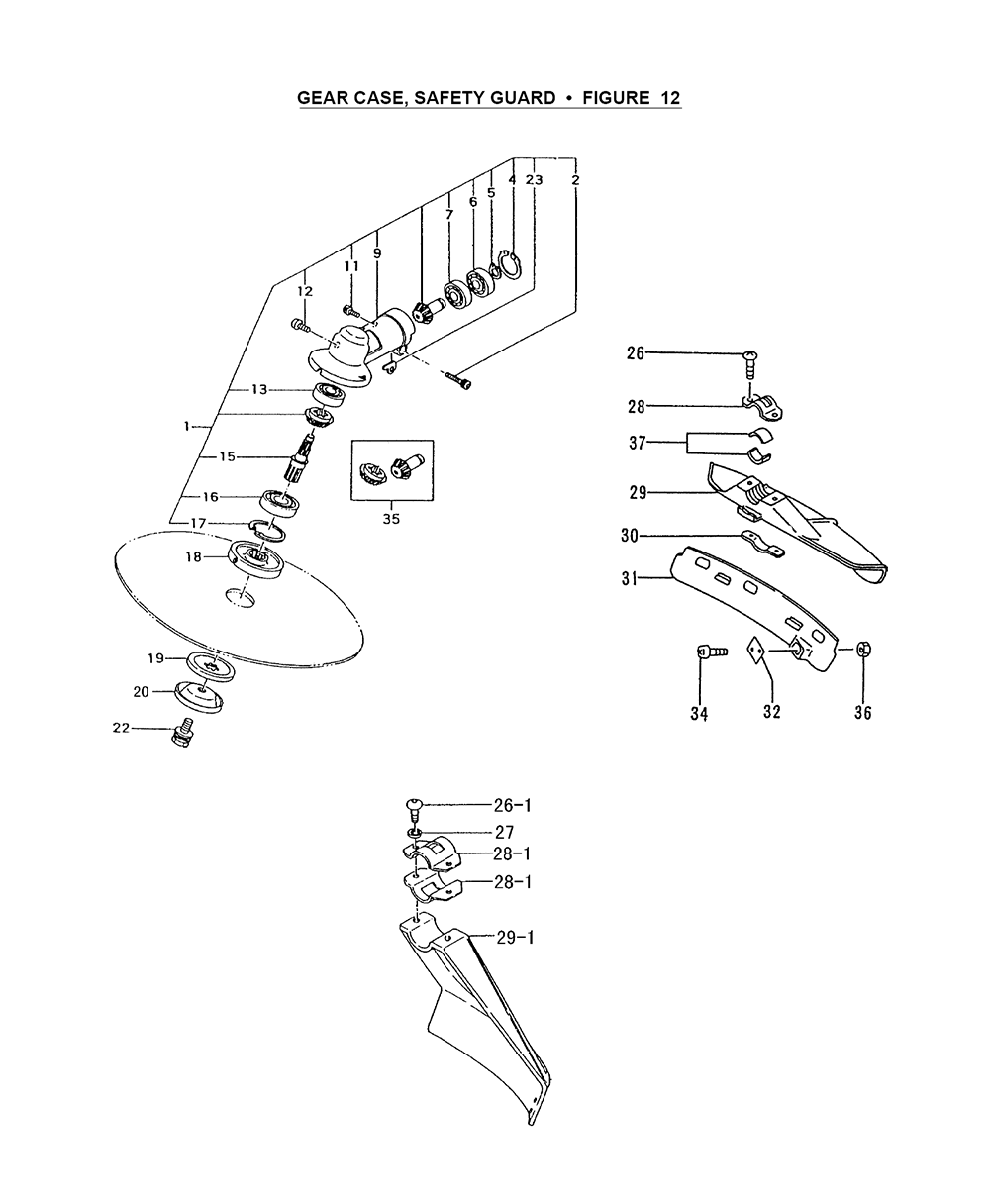

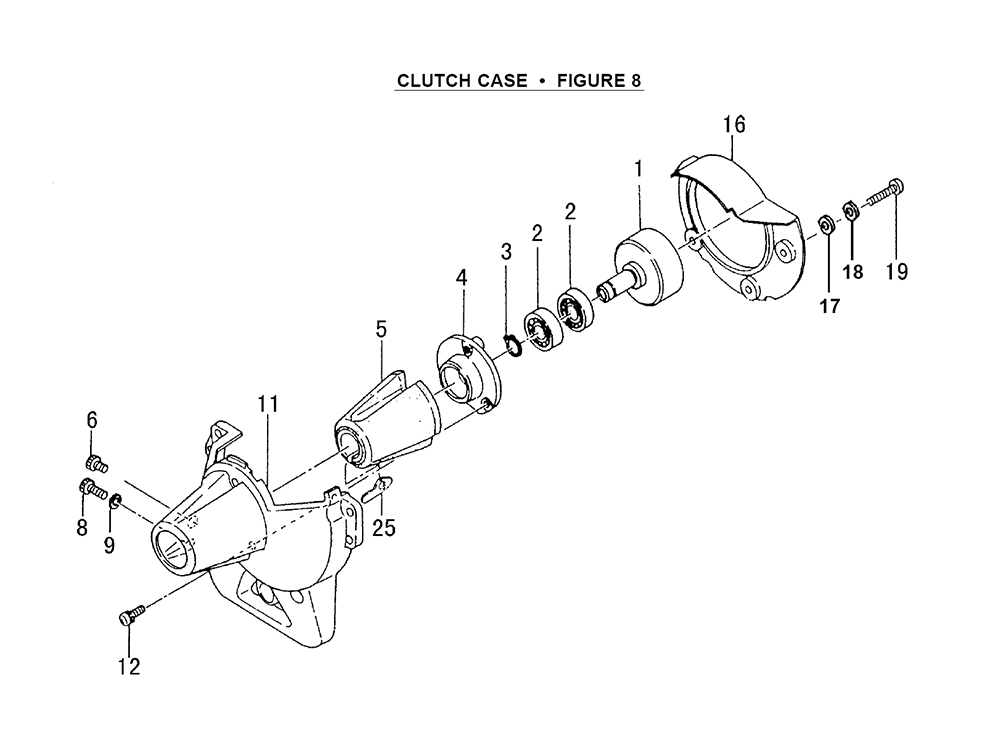

Tanaka TBC-250 Parts Schematic
  • Fig-0
  • Fig-1

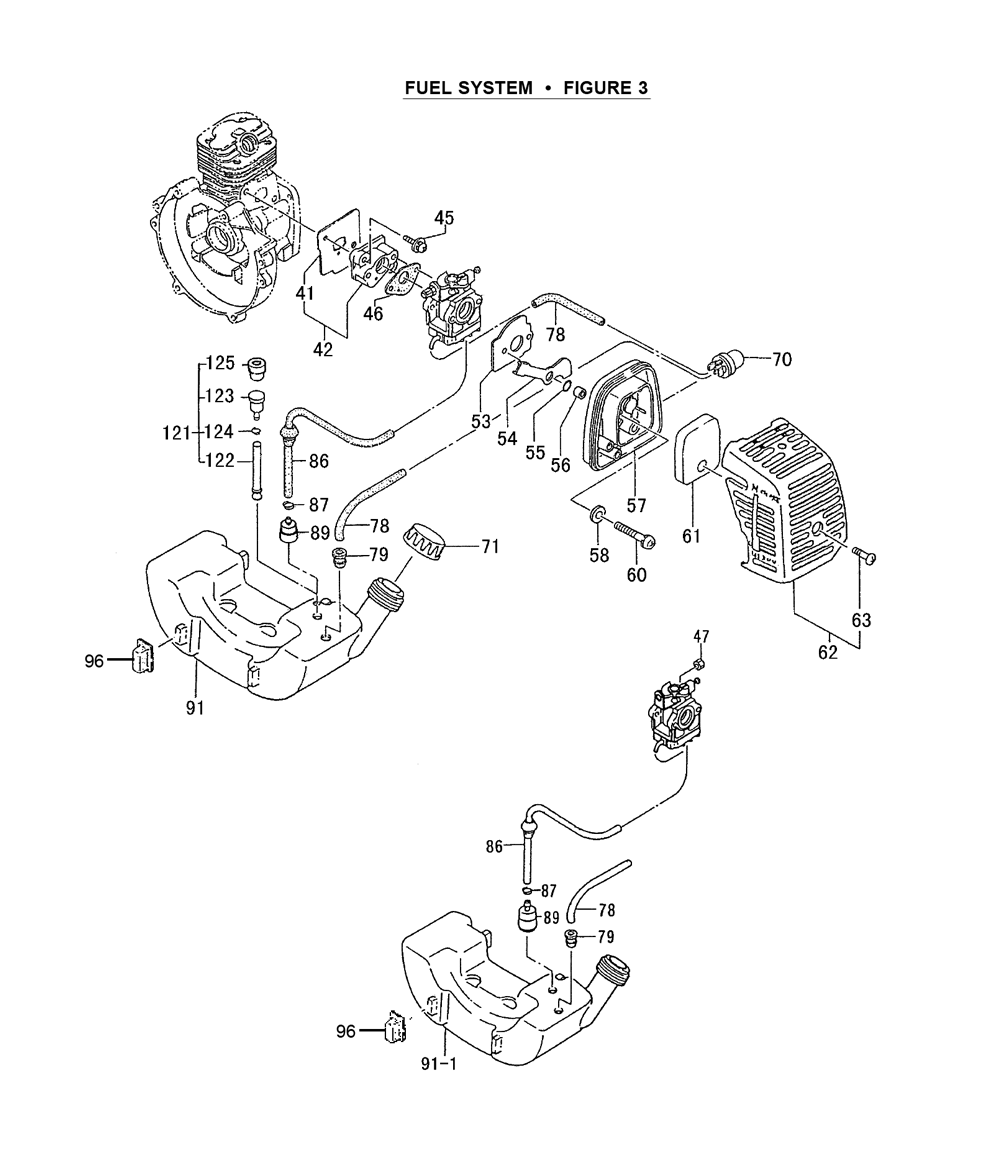

  • Fig-2

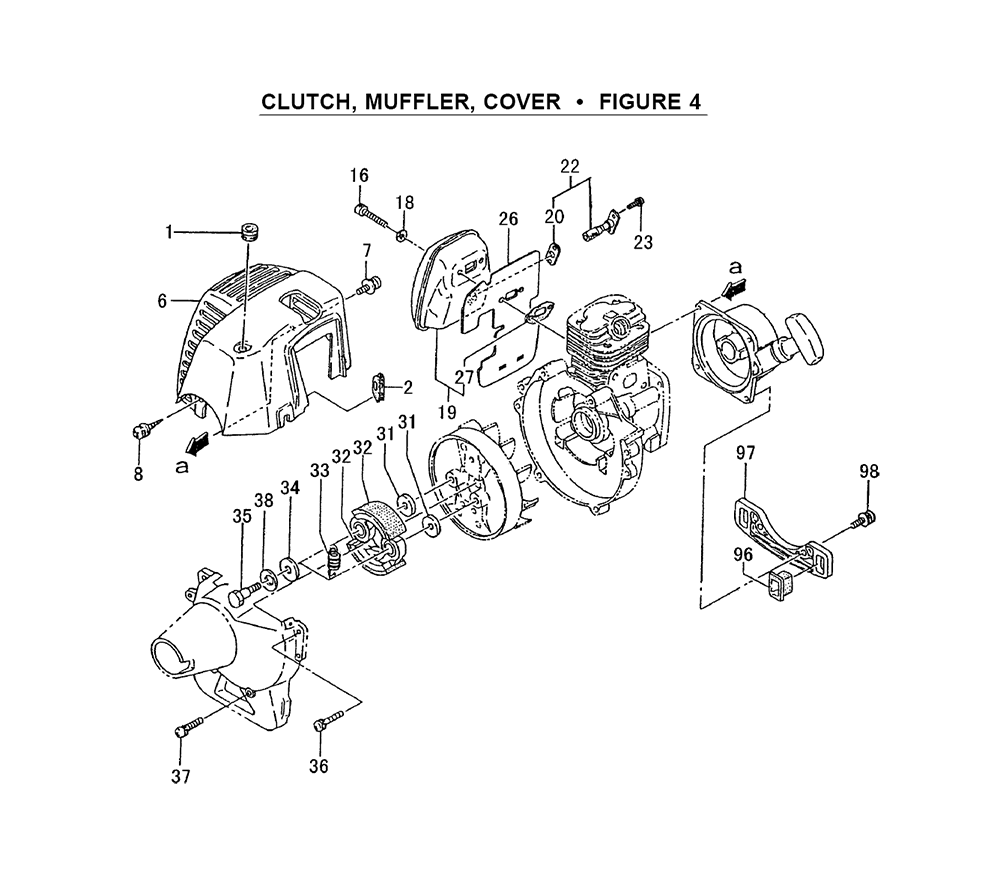

  • Fig-3
  • Fig-4
  • Fig-5

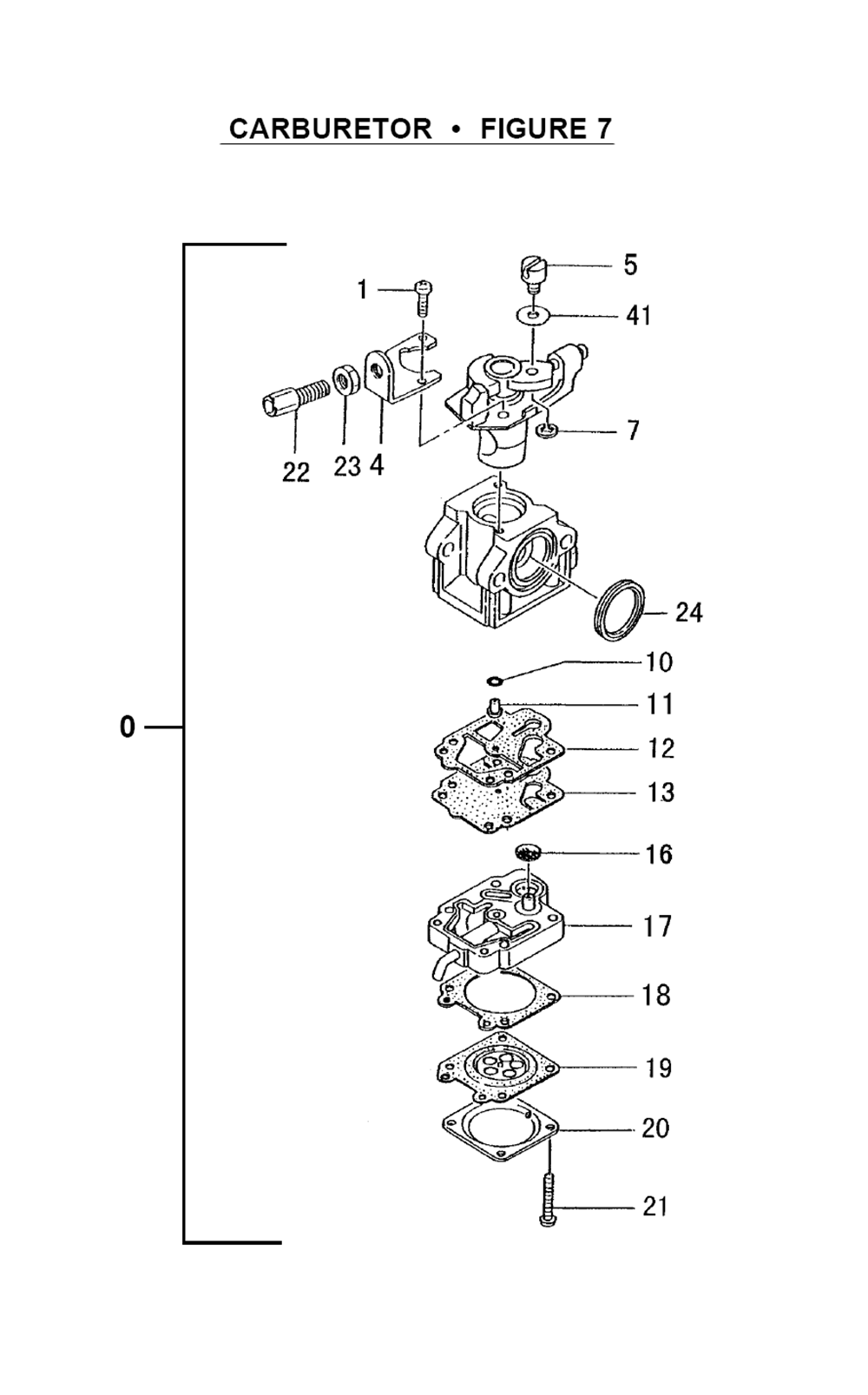

  • Fig-6
  • Fig-7

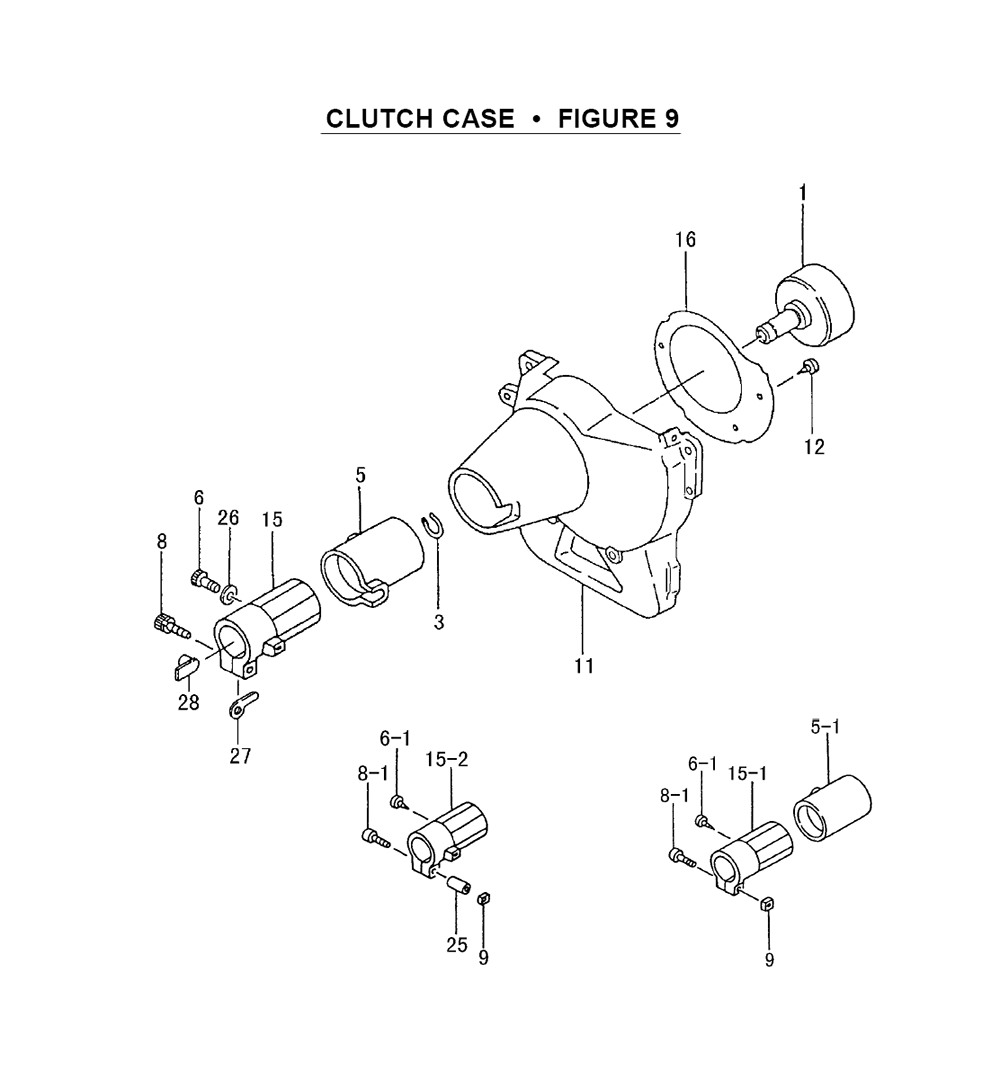

  • Fig-8
  • Fig-9

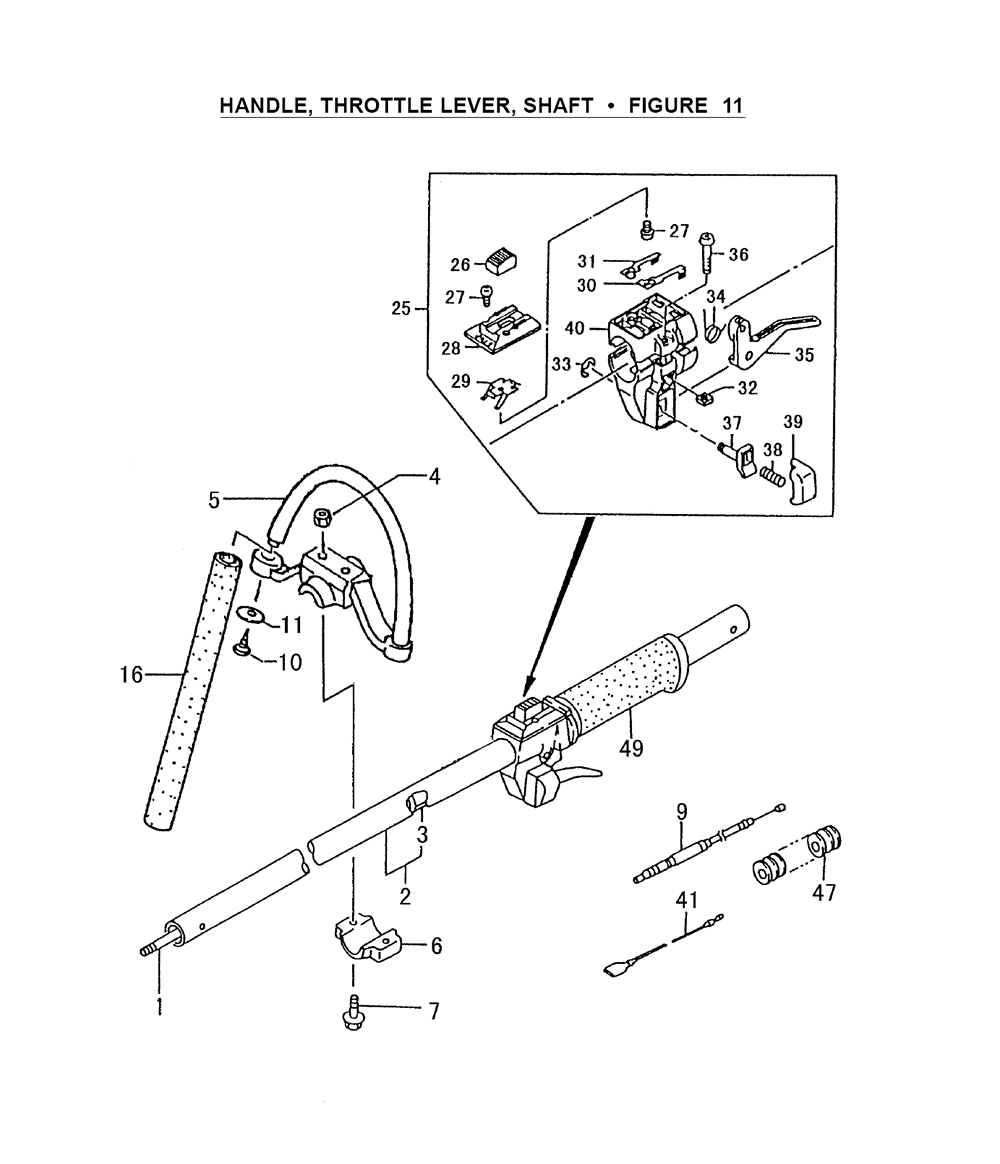

  • Fig-10
  • Fig-11
  • Fig-12

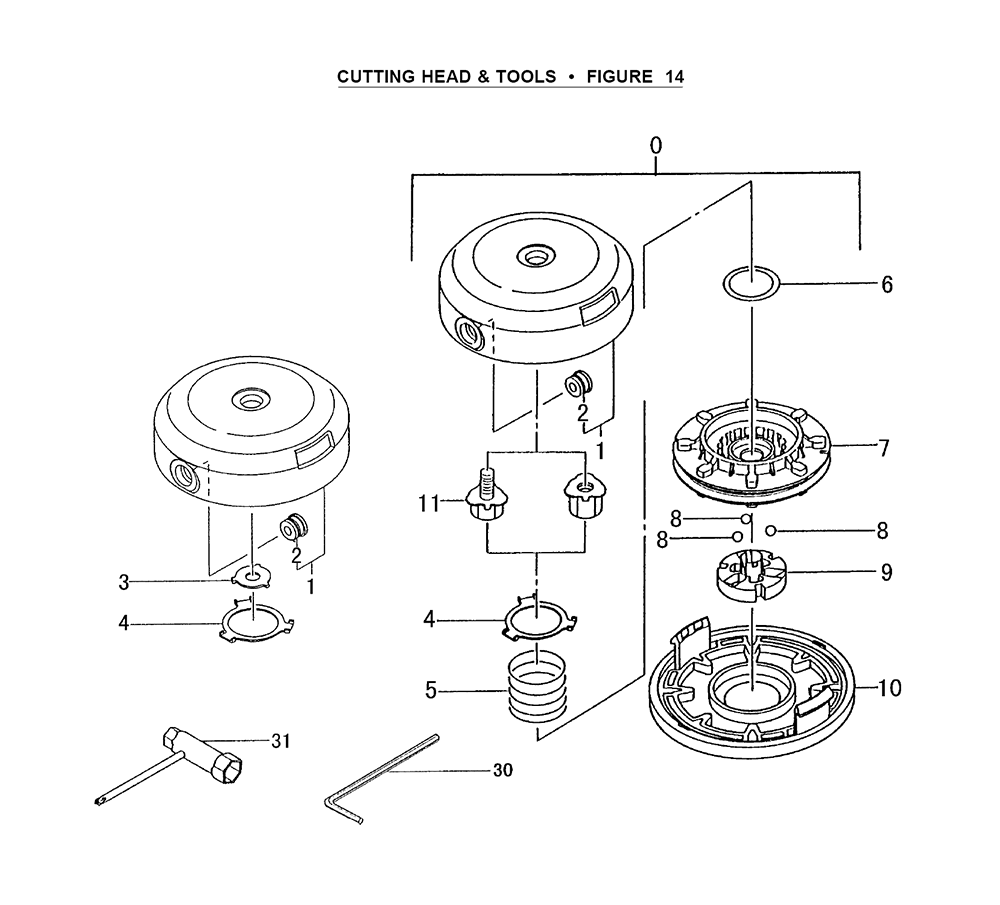

  • Fig-13

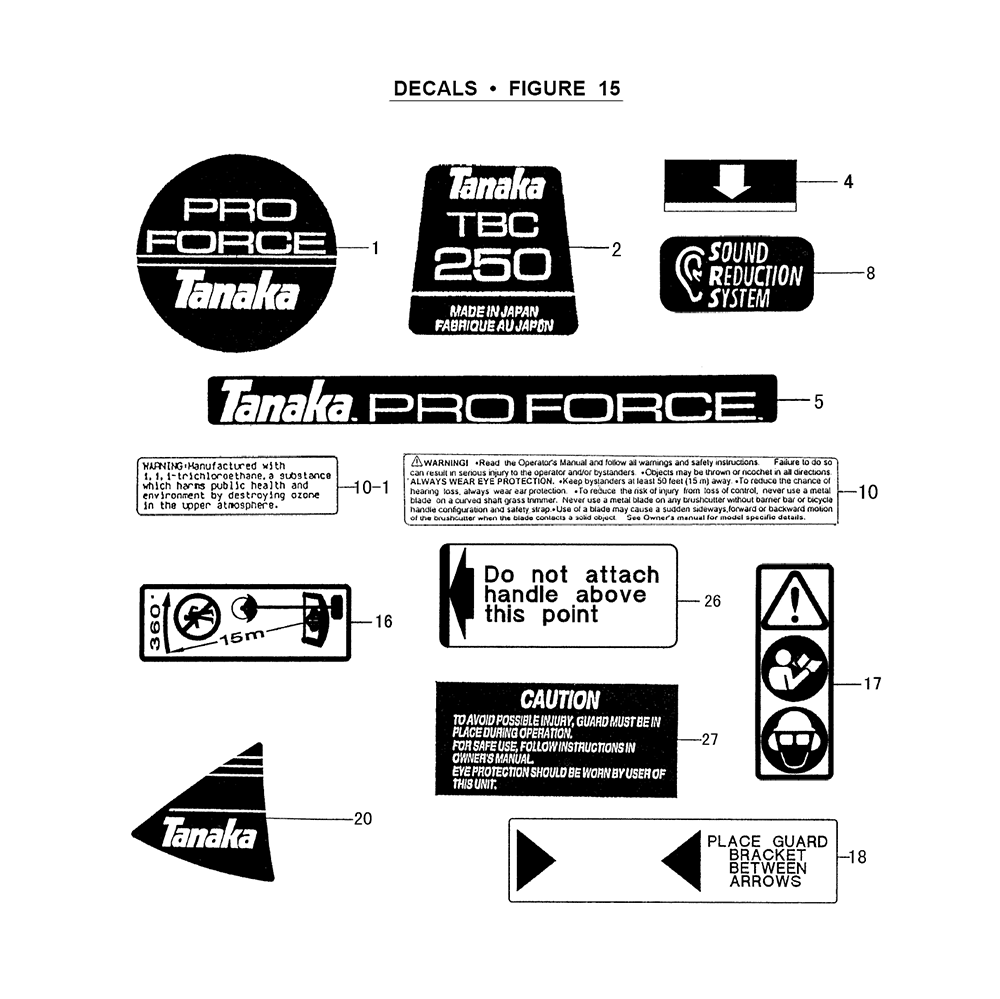

  • Fig-14

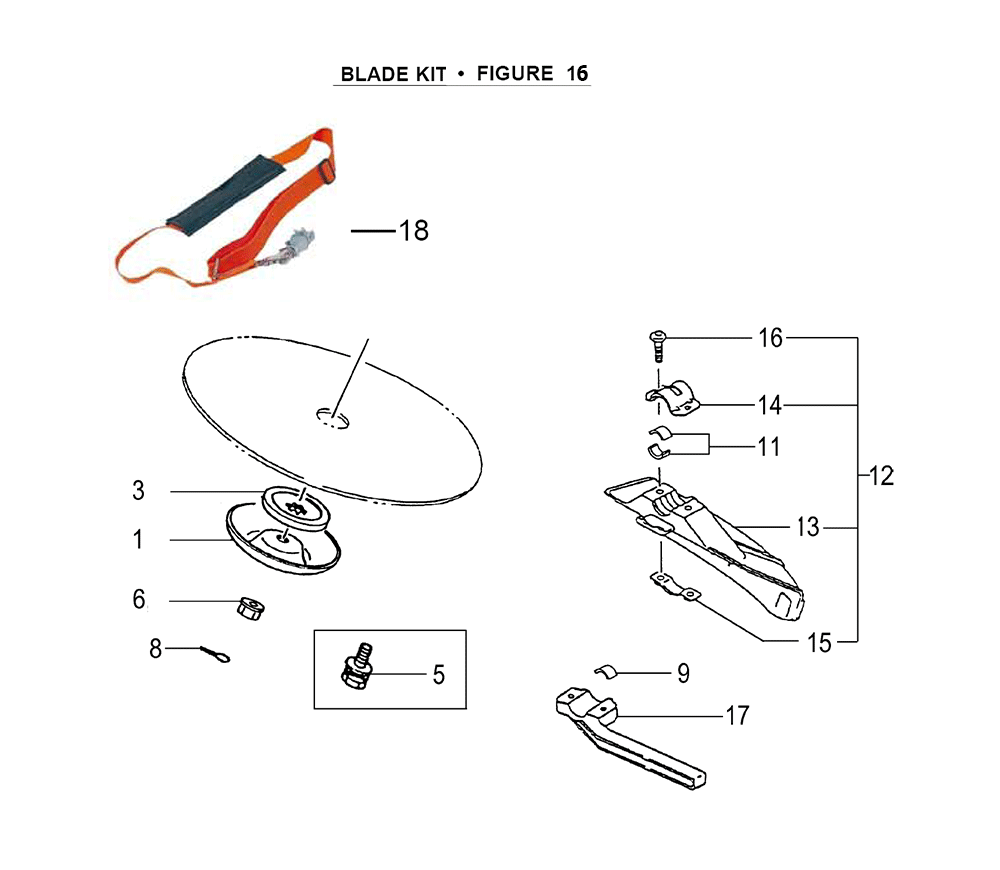

  • Fig-15

Download Tanaka TBC-250 Parts Diagram!

Tanaka TBC-250 Replacement Parts List  Other tools in Tanaka Trimmers & Brush Cutters Parts category

Fig# Image Part No Part Name Price Add To Cart
1-1. 1570097A900 CAP,SPARK PLUG,ASS'Y $8.88
1-1. 6687466 CAP,SPARK PLUG,ASS'Y $4.80
1-11. 4101601200 RING,PISTON $8.82
1-12. 6685899 SET,PISTON (replaces 0300099F90) $31.39
1-12. 0300099F90 SET,PISTON $46.04
1-13. 3901620200 CIRCLIP,PISTON PIN $1.63
1-14. 3701601200 PIN,PISTON $6.87
1-16. 0460631A81 CRANKSHAFT $119.36
1-16. 6686200 CRANKSHAFT (replaces 0460631A81) $41.07
1-17. 99962081225 BEARING,NEEDLE,F-810 $23.64
1-17. 6695589 BEARING,NEEDLE F-810 THB-2510 $6.88
1-18. 6810100200 KEY,WOODRUFF,3X13X4.5 $1.74
1-2. 181166021 PLUG,SPARK $7.28
1-6. 6685446 SET,CYLINDER $66.86
1-6. 0010099F90 SET,CYLINDER $107.10
1-7. 6695339 SCREW,S,5X18 $1.72
1-7. 99414050181 SCREW,S,5X18 $1.15
1-9. 1700980200 GASKET,CYLINDER $2.60
10-1. 34337300200 SHAFT,DRIVE $2.80
10-1. 6689465 SHAFT,DRIVE,1504mm $23.43
10-10-1. 99011060554 SCREW,6X55 $1.44
10-10-1. 6694945 SCREW,6X55 $1.72
10-11-1. 99210060062 WASHER,S,6 $1.24
10-11-1. 6684826 S. WASHER 6 (replaces 99210060062) $1.72
10-12. 6692961 WASHER,A 2.3 UP-08621 $1.72
10-12. 76137400200 WASHER,A 2.3 $1.87
10-13. 51337400200 HOLDER,HANDLE $11.52
10-13. 6691215 HOLDER,HANDLE $2.80
10-14. 31937400200 CUSHION $0.96
10-14. 6689127 CUSHION $1.29
10-15. 49037400800 HANDLE,INNER $85.58
10-15. 6690975 HANDLE,INNER $7.64
10-16-1. 50337400200 GRIP,HANDLE $16.70
10-16-1. 6691099 GRIP,HANDLE $4.06
10-17. 668-4824 HEX. BOLT 6 X 50 $1.72
10-17. 99021060504 BOLT,6X50 $1.44
10-18. 50037600200 HANDLE $4.06
10-19. 6691141 BRACKET,HANDLE,A $4.06
10-19. 50637600200 BRACKET,HANDLE,A $2.80
10-2. 3413762381 PIPE,DRIVE SHAFT $60.98
10-2. 6689386 PIPE,SHAFT,24x1450x1.6 $45.53
10-20. 6684642 WASHER,CLUTCH,B $1.72
10-20. 35902103200 WASHER,CLUTCH,B $1.36
10-21. 5123781080 KNOB,HANDLE $78.16
10-21. 6696096 KNOB,HANDLE $2.64
10-22. 6684835 NUT,6 $1.72
10-22. 991-01060-041 NUT,6 $1.15
10-25-1. 6693737 LEVER,THROTTLE ASSY $22.22
10-25-1. 87037300900 LEVER,THROTTLE ASSY $6.76
10-26. 1623710120 SWITCH,STOP $4.89
10-26. 6687515 SWITCH,STOP $3.28
10-27. 99342030081 SCREW,TAPPING,3X8 $1.15
10-27. 6695274 SCREW,TAPPING,3X8 $1.72
10-28. 6688374 BASE,STOP SWITCH (replaces 25937101200) $2.64
10-28. 25937101200 BASE,STOP SWITCH $1.92
10-29. 6688385 SPRING,STOP SWITCH (replaces 26237101200) $2.64
10-29. 262-37 1 01-200 SPRING,STOP SWITCH $3.60
10-3. 6689521 BUSHING $3.28
10-3. 34737601900 BUSHING,ASS’Y $117.85
10-30. 17737101200 TERMINAL,EARTH B $5.19
10-30. 6687805 TERMINAL,EARTH B $3.28
10-31. 17637101200 TERMINAL,EARTH A $5.19
10-31. 6687801 TERMINAL,EARTH A $3.28
10-32-1. 99186050000 NUT,LOCK,5 $1.44
10-32-1. 6695173 NUT,LOCK,5 $1.78
10-33. 6695311 RING,STOP,6 $1.72
10-33. 99355060001 RING,STOP,6 $1.48
10-34. 83237101200 SPRING,RETURN $3.69
10-34. 6693601 SPRING,RETURN $1.72
10-35. 6693803 LEVER,THROTTLE $7.22
10-35. 880-37101-200 LEVER,THROTTLE $1.12
10-36-1. 6695455 SCREW,S,5X25 $1.78
10-36-1. 994-31050-251 SCREW,S.,5X25 $1.29
10-37. 6693653 SHAFT,LOCK BUTTON $1.40
10-37. 85337101200 SHAFT,LOCK BUTTON $3.64
10-38. 95837101200 SPRING,LOCK,BUTTON $3.30
10-38. 6694834 SPRING,LOCK,BUTTON (replaces 95837101200) $1.33
10-39. 95637101200 BUTTON,LOCK $5.19
10-39. 6694829 BUTTON,LOCK $2.80
10-49. 50437300200 GRIP,SHAFT $0.44
10-49. 6691111 GRIP,SHAFT $7.14
11-1. 34337300200 SHAFT,DRIVE $2.80
11-1. 6689465 SHAFT,DRIVE,1504mm $23.43
11-10. 99311052012 SCREW,TAPPING 5X20 $1.16
11-10. 669-5255 TAPPING SCREW 5 X 20 $1.72
11-11. 6689681 WASHER,BRAKE SHAFT $1.72
11-11. 36832350200 WASHER,BRAKE SHAFT $1.29
11-16. 5.03E+26 GRIP,HANDLE $0.00

Discontinued

11-2. 6689386 PIPE,SHAFT,24x1450x1.6 $45.53
11-2. 3413762381 PIPE,DRIVE SHAFT $60.98
11-25. 6693736 LEVER,THROTTLE ASS'Y $25.25
11-25. 8703728690 LEVER,THROTTLE ASS’Y $2.80
11-26. 1623710120 SWITCH,STOP $4.89
11-26. 6687515 SWITCH,STOP $3.28
11-27. 99342030081 SCREW,TAPPING,3X8 $1.15
11-27. 6695274 SCREW,TAPPING,3X8 $1.72
11-28. 6688374 BASE,STOP SWITCH (replaces 25937101200) $2.64
11-28. 25937101200 BASE,STOP SWITCH $1.92
11-29. 6688385 SPRING,STOP SWITCH (replaces 26237101200) $2.64
11-29. 262-37 1 01-200 SPRING,STOP SWITCH $3.60
11-3. 6689521 BUSHING $3.28
11-3. 34737601900 BUSHING,ASS’Y $117.85
11-30. 17737101200 TERMINAL,EARTH B $5.19
11-30. 6687805 TERMINAL,EARTH B $3.28
11-31. 17637101200 TERMINAL,EARTH A $5.19
11-31. 6687801 TERMINAL,EARTH A $3.28
11-32. 668-5000 SPECIAL NUT M5 $1.72
11-32. 3153334020 NUT,SPECIAL 5MM $2.33
11-33. 99355060001 RING,STOP,6 $1.48
11-33. 6695311 RING,STOP,6 $1.72
11-34. 83237101200 SPRING,RETURN $3.69
11-34. 6693601 SPRING,RETURN $1.72
11-35. 6693803 LEVER,THROTTLE $7.22
11-35. 880-37101-200 LEVER,THROTTLE $1.12
11-36. 9943105020 SCREW,5X20 $0.94
11-37. 6693653 SHAFT,LOCK BUTTON $1.40
11-37. 85337101200 SHAFT,LOCK BUTTON $3.64
11-38. 95837101200 SPRING,LOCK,BUTTON $3.30
11-38. 6694834 SPRING,LOCK,BUTTON (replaces 95837101200) $1.33
11-39. 95637101200 BUTTON,LOCK $5.19
11-39. 6694829 BUTTON,LOCK $2.80
11-4. 6684835 NUT,6 $1.72
11-4. 991-01060-041 NUT,6 $1.15
11-40. 2603331720 BODY,STOP BUTTON,B $22.82
11-40. 6688378 BODY,STOP BUTTON,B $5.34
11-41. 6687915 CORD,STOP 430mm N199201 $3.28
11-41. 6687913 CORD,STOP 230mm (replaces 17837300801) $2.64
11-41. 1783739480 CORD,STOP 430mm $5.43
11-41. 17837300801 CORD,STOP 230mm $5.43
11-47. 6687576 TUBE,PROTECTION,10X380 $1.72
11-47. 6687601 TUBE,PROTECTION,13X140 $1.78
11-47. 1641001900 TUBE,PROTECTION $4.01
11-47. 16413014010 TUBE,PROTECTION $2.28
11-49. 50437300200 GRIP,SHAFT $0.44
11-49. 6691111 GRIP,SHAFT $7.14
11-5. 5003728620 HANDLE $70.36
11-5. 6691046 HANDLE $8.13
11-6. 6691134 BRACKET,HANDLE,A $3.28
11-6. 506-37300-200 BRACKET,HANDLE,A $2.80
11-7. 6684838 BOLT,6X43 $1.72
11-7. 99423060432 BOLT,6X43 $1.15
11-9. 6693899 WIRE,THROTTLE (replaces 8850631A802) $7.53
11-9. 8850631A802 WIRE,THROTTLE $18.22
11-9. 6693963 WIRE,THROTTLE N199201 $4.80
11-9. 8853739480 WIRE,THROTTLE $20.55
12-1. 3003741791 CASE,GEAR ASS’Y $65.69
12-1. 6688766 CASE,GEAR ASS'Y $94.64
12-11. 99051050103 BOLT,HEX.HOLE,5X10 $1.15
12-11. 6695042 HEX. HOLE BOLT 5X10 (replaces 99051050103) $1.72
12-12. 99423080100 BOLT,8X10 $2.06
12-12. 6695437 BOLT,8X10 $0.55
12-13. 99961626000 BEARING,BALL,#626 $47.92
12-13. 6695567 BEARING,BALL,#626 19mm/OD $6.32
12-15. 3043730720 SHAFT,GEAR $1.12
12-15. 6688936 SHAFT,GEAR $11.76
12-16. 6001DD BALL BEARING 6001DDCNPS2L $8.98
12-16. 99961600104 BALL BEARING,6001DD $2.16
12-17. 99351028002 RING,STOP,IN,C-28 $1.59
12-17. 6684741 RING,STOP,IN,C-28 $1.72
12-18. 3103810020 HOLDER,CUTTER $2.80
12-18. 6689031 HOLDER,CUTTER $16.11
12-19. 31137300203 CAP,CUTTER HOLDER $2.80
12-19. 6689048 CUTTER HOLDER CAP $6.32
12-2. 99461050254 BOLT,HEX HOLE,5X25S $1.09
12-2. 6684709 BOLT,HEX HOLE,5X25S CG22EAD $1.72
12-20. 31633410200 PROTECTOR,BOLT $1.30
12-20. 6689108 PROTECTOR,BOLT 780400 $1.72
12-22. 6689062 BOLT,FLANGED,8x1.25,LH $3.28
12-22. 3123338620 BOLT,FIXING,L.H.,FLANGED $4.11
12-22. 6689066 BOLT,FIXING,W/WASHERS J074660 $1.72
12-22. 31237623200 BOLT,FIXING,W/WASHERS $3.85
12-23. 6689159 WASHER,GEAR CASE H255661 $1.72
12-23. 3243735020 WASHER,GEAR CASE $1.44
12-26. 99481060254 SCREW,HEX HOLE 6X25 $1.86
12-26. 668-4714 HEX. HOLE BUTTON SCREW 6 X 25S $1.72
12-26-1. 6695019 Alternative for 6695017: BOLT,6X16 PLUS $1.72
12-26-1. 6695081 BOLT,HEX,6x25 H255661 $2.68
12-26-1. 99053060253 BOLT,HEX,6X25 $2.06
12-26-1. 99023060161 BOLT,6X16 PLUS $1.15
12-27. 99210060012 WASHER,S,6 $1.24
12-27. 6695219 WASHER,S,6 $1.72
12-28. 4423369921 BRACKET,SAFETY GUARD $3.54
12-28. 6690294 COVER BRACKET, 26 DIA. $1.72
12-28-1. 4423741720 BRACKET,SAFETY GUARD $14.18
12-28-1. 44233905201 BRACKET,SAFETY GUARD $1.60
12-28-1. 6685065 BRACKET,SAFETY GUARD $3.28
12-29. 6690242 BLADE GUARD 26 CE S257151; ANSI $25.25
12-29. 4413738020 GUARD,SAFETY $26.33
12-29-1. 6696375 SAFETY GUARD KIT $55.75
12-29-1. 44133905800 GUARD,SAFETY $6.18
12-30. 6684748 HOLDER,GUARD S257151 $2.80
12-30. 4453738020 HOLDER,GUARD $5.34
12-31. 4473738020 EXTENSION,GUARD $1.48
12-31. 6690372 EXTENSION,GUARD $13.33
12-32. 7973738021 LIMITER,LINE $8.53
12-32. 6693386 LIMITER,LINE $6.32
12-34. 99414050121 SCREW,S,5X12 $1.15
12-34. 6695334 SCREW,S,5X12 $1.37
12-35. 6695989 SET,GEAR/PINION $47.92
12-35. 3013730001 SET,GEAR/PINION $10.78
12-36. 99101050011 NUT,5 $1.15
12-36. 6684965 NUT,5 TBC-240PF $1.72
12-37. 6690332 BRACKET SPACER $1.72
12-37. 44437609200 SPACER,BRACKET $5.34
12-4. 6684781 RING,STOP,R22 IN $1.78
12-4. 993-53022-002 RING,STOP,R22 IN $2.09
12-5. 99350010002 RING,STOP,C-10 EX $1.15
12-5. 6684821 RING,STOP,C-10 EX UP-08647 $1.72
12-6. 6695578 BEARING,BALL,#6900ZZ 22mm/OD J230751 $8.96
12-6. 99961690001 BEARING,BALL,#6900ZZ $25.16
12-7. 6695577 BEARING,BALL,#6900 22mm/OD $9.40
12-7. 99961690000 BEARING,BALL,#6900 $18.72
12-9. 3003762320 CASE,GEAR $97.43
12-9. 6695978 CASE,GEAR $14.86
13-0. 746251 HEAD,BRAIN (TH-95) $0.00

Discontinued

13-1. 78633004900 BODY,CUTTING,ASS'Y $0.00

Discontinued

13-10. 6693370 SPRING,REEL,GOLD $1.72
13-10. 79333440200 SPRING,REEL,GOLD $4.06
13-11. 35802103200 WASHER,CLUTCH A $1.48
13-11. 6689637 WASHER,CLUTCH A $1.72
13-2. 7893300421 CAP,BODY $1.48
13-2. 6693332 CAP,BODY $9.48
13-21. 7883307120 EYELET $80.02
13-21. 6693327 EYELET $1.72
13-3. 6693282 REEL,(R S M X) $10.61
13-3. 78733004202 REEL,(R S M X) $83.76
13-5. 3143367020 BOLT,8X1.25 LH GOLD $8.03
13-5. 6689081 BOLT,8X1.25 LH GOLD $5.34
13-6. 79233004200 WASHER,REEL $1.54
13-6. 6693362 WASHER,REEL $1.72
13-7. 6693357 SLIDER,REEL $3.28
13-7. 79033004200 SLIDER,REEL $9.48
13-8. 6693360 HOOK,REEL SLIDER $1.72
13-8. 79133004200 HOOK,REEL SLIDER $56.33
13-9. 6733560020 BALL,STEEL $20.26
13-9. 6692271 BALL,STEEL $1.72
14-0. 746751 HEAD, BRAIN $101.83
14-1. 7863381091 CUTTING BODY ASS'Y $56.33
14-1. 6693269 BODY,CUTTING $23.12
14-10. 7893381020 CAP,BODY $1.48
14-10. 6693337 CAP,BODY $10.61
14-11. 3143381280 MOUNTING BOLT $9.79
14-11. 6689082 BOLT,8x1.25,LHM S257151; Can be used in TH-96 head $7.38
14-2. 6693327 EYELET $1.72
14-2. 7883307120 EYELET $80.02
14-3. 6692953 WASHER,MOUNTING $1.78
14-3. 7603381020 WASHER,MOUNTING $4.03
14-30. 81320000200 WRENCH,HEX,4 $2.83
14-31. 8292000080 SPANNER,COMBI,13X19 $6.89
14-31. 826-20000-80 17 x 19mm Spanner $8.83
14-31. 6693588 SPANNER,COMBI 13x19 TBC-240PF $4.06
14-4. 6693246 BASE,ADJUSTMENT $1.72
14-4. 7853381020 BASE,ADJUSTMENT $3.64
14-5. 6693373 SPRING,REEL,YELLOW $3.28
14-5. 7933381022 SPRING,REEL,YELLOW $1.48
14-6. 7923381020 WASHER,ADJUSTMENT $1.44
14-6. 6693363 WASHER,ADJUSTMENT $1.72
14-7. 6693290 REEL,TH-97B/RB $13.33
14-7. 787-33821-20 REEL,TH-97B/RB $88.27
14-8. 6692271 BALL,STEEL $1.72
14-8. 6733560020 BALL,STEEL $20.26
14-9. 7903381020 SLIDER,REEL $9.48
14-9. 6693358 SLIDER,REEL $1.72
15-1. 95037503200 DECAL,PRO-FORCE A $3.48
15-1. 6694818 DECAL,PRO-FORCE A H255661 $1.37
15-10. 668-5056 CAUTION MARK $2.80
15-10. 9193738F20 DECAL,CAUTION,A $4.55
15-10-1. 9200650A20 DECAL,WARNING $2.24
15-10-1. 6694558 DECAL,WARNING (replaces 9200650A20) $1.40
15-16. 9193728620 DECAL,CAUTION $3.05
15-16. 6694546 DECAL,CAUTION $1.78
15-17. 9203246620 DECAL,CAUTION $3.17
15-17. 6694564 DECAL,CAUTION $1.72
15-18. 668-5061 LEVEL MARK $2.80
15-18. 923-37286-20 DECAL,LEVEL $6.59
15-2. 9063726420 DECAL,TBC-250 $3.25
15-2. 6694312 DECAL,TBC-250 $1.78
15-20. 6694776 DECAL,SYMBOL J074661 $2.80
15-20. 93337301200 DECAL,SYMBOL $5.19
15-26. 668-4852 LEVEL MARK $1.72
15-26. 9233738F20 DECAL,LEVEL $4.02
15-27. 91937701200 CAUTION MARK J074661 $3.08
15-4. 6694580 DECAL,LEVEL (replaces 92337400200) $1.72
15-4. 923-37400-200 DECAL,LEVEL $4.55
15-5. 95131310200 DECAL,PRO-FORCE B $8.03
15-5. 95137503200 DECAL,PRO-FORCE B $3.62
15-5. 6694823 DECAL,PRO-FORCE B (replaces 95131310200) $2.64
15-8. 91106500200 DECAL,SRS $1.64
15-8. 6694455 DECAL,SRS K254881 $1.63
16-1. 6688990 COVER,PROTECTION,B $3.28
16-1. 3083786120 COVER,BOLT PROTECTOR,10mm $7.22
16-1. 6688994 COVER,BOLT PROTECTOR $3.28
16-1. 30833410200 COVER,PROTECTION,B,8mm $5.34
16-11. 6690332 BRACKET SPACER $1.72
16-11. 44437609200 SPACER,BRACKET $5.34
16-12. 30060 KIT,BLADE GUARD $0.00

Discontinued

16-13. 6690242 BLADE GUARD 26 CE S257151; ANSI $25.25
16-13. 4413738020 GUARD,SAFETY $26.33
16-14. 4423369921 BRACKET,SAFETY GUARD $3.54
16-14. 6690294 COVER BRACKET, 26 DIA. $1.72
16-15. 4453738020 HOLDER,GUARD $5.34
16-15. 6684748 HOLDER,GUARD S257151 $2.80
16-16. 668-4714 HEX. HOLE BUTTON SCREW 6 X 25S $1.72
16-16. 99481060254 SCREW,HEX HOLE 6X25 $1.86
16-17. 5203339820 BAR,BARRIER 26mm $11.52
16-17. 6691231 BAR,BARRIER 26mm $6.62
16-18. 746191 STRAP,SHOULDER,SINGLE $23.08
16-3. 3113754720 CAP,CUTTER HOLDER,8mm $2.80
16-3. 6689055 CAP,CUTTER HOLDER $7.22
16-3. 6689049 CAP,CUTTER HOLDER $6.32
16-3. 3113815020 CAP,CUTTER HOLDER $1.12
16-5. 3123338620 BOLT,FIXING,L.H.,FLANGED $4.11
16-5. 6689062 BOLT,FLANGED,8x1.25,LH $3.28
16-6. 3133833220 NUT,FIXING L.H.,10X1.25 $4.85
16-6. 6689074 NUT,FIXING L.H.,10x1.25 $7.53
16-6. 6689075 NUT,FIXING L.H. 8x1.25 $1.72
16-6. 3133754720 NUT,FIXING L.H. 8X1.25 $3.28
16-8. 6689168 PIN,COTTER 2X20 (10 PACK) $1.72
16-8. 3273718090 PIN,COTTER 2X20 (10 PACK) $1.48
16-9. 6690332 BRACKET SPACER $1.72
16-9. 44437609200 SPACER,BRACKET $5.34
2-19. 6689178 SHIM,12.2X19X.15 (replaces 33000200220) $0.29
2-19. 6684604 SHIM,12.2X19X0.20 $1.72
2-19. 33000200220 SHIM,12.2X19X.15 $1.29
2-19. 33000200210 SHIM,12.2X19X.10 $1.29
2-19. 33000200240 SHIM,12.2X19X.30 $0.00

Discontinued

2-19. 668-4605 GEAR SHAFT SHIM 0.30 $1.72
2-19. 33000200230 SHIM,12.2X19X.20 $0.00

Discontinued

2-19. 6689177 SHIM,12.2X19X.10 G059234 $1.72
2-21. 99101080011 NUT,8 $1.15
2-21. 6684612 HEX. NUT 8 (replaces 99101080011) $1.72
2-22. 798-06500-900 PULLEY,STARTER,ASS’Y $17.98
2-22. 6693405 PULLEY,STARTER,ASS'Y (replaces 79806500900) $6.32
2-23. 6693319 PAWL,STARTER $3.28
2-23. 788-06500-20 PAWL,STARTER $6.12
2-23-1. 78806097200 PAWL,STARTER $6.12
2-23-1. 6693312 PAWL,STARTER $1.72
2-24. 79006097200 SPRING,STARTER PAWL $3.48
2-24. 6684684 SPRING,STARTER PAWL CG24EASPSL $3.28
2-25. 6684683 Alternative for 6695308: RING,STOP,5 T/CG24EASPSL $1.72
2-25. 99355005000 RING,STOP,5 $1.15
2-26. 6689645 WASHER,CLUTCH B $1.72
2-26. 35910112203 WASHER,CLUTCH B $1.36
2-31. 7200980900 CRANKCASE,ASS'Y $98.16
2-32. 6684607 SEAL,OIL,#TC12227 CG22EAB/D/S $3.28
2-32. 99966122206 SEAL,OIL,#TC12227 $7.26
2-33. 99961600100 BEARING,BALL,#6001 $8.44
2-33. 6695535 Replaced by 600-1VV - BEARING,BALL,#6001C3 THB-260PF $6.32
2-34. 9006097200 GASKET,CRANKCASE $3.12
2-36. 994-14050-251 SCREW,5X25 $1.15
2-36. 6695343 SCREW,5X25 (replaces 99414050251) $0.28
2-37. 2740631A800 CORD,EARTH $12.30
2-38. 6695211 WASHER,S,4 $1.37
2-38. 99210040012 WASHER,S,4 $1.15
2-39. 6694861 SCREW,4X8 $1.72
2-39. 990-11040-081 SCREW,4X8 $1.15
2-41. 1780655080 CORD,STOP,180mm $6.62
2-41. 6687867 CORD,STOP,180mm $4.80
2-41-1. 6687864 CORD,STOP,360mm $2.64
2-41-1. 1780631A800 CORD,STOP,360mm $6.48
2-41-1. 1780128080 CORD,STOP,380mm $5.74
2-46. 99416050201 SCREW,5X20/WS $1.29
2-46. 6695420 SCREW,5X20/WS $1.40
2-50. 6687642 COIL,IGNITION (replaces 16720508800) $48.38
2-50. 16720516900 IGNITION COIL ASS'Y J147781 $84.05
2-50. 167-20521-90 COIL,IGNITION $123.05
2-51. 6687361 ROTOR,MAGNETO (replaces 15520508800) $28.72
2-51. 1552050880 ROTOR,MAGNETO $64.12
2-52. 6685103 Alternative for 6686437: WASHER,7 $0.76
2-52. 99201070011 WASHER,7 $1.15
2-54. 6600000200 NUT,FLYWHEEL $1.29
2-55. 560-20517-200 CAP,RUBBER $1.15
2-55. 6684602 CAP,RUBBER (replaces 56020517200) $1.38
2-56. 6688398 LEAD,HIGH TENSION (replaces 26420516200) $3.28
2-56. 26420516200 LEAD,HIGH TENSION $3.69
3-121. 6691389 VENT,AIR ASS'Y THB-2510 | T245221~ $14.24
3-121. 5640661190 VENT,AIR ASS'Y $21.89
3-122. 6696100 PIPE,AIR VENT $4.80
3-122. 5650503220 PIPE,AIR VENT $0.00

Discontinued

3-123. 6692171 VALVE $6.92
3-123. 6460661290 VALVE $7.71
3-124. 68000731201 CLIP 6.3 $1.45
3-124. 6684619 CLIP 6.3 $1.72
3-125. 6691369 COVER,AIR VENT $2.80
3-125. 5610007020 COVER,AIR VENT $4.74
3-41. 6689890 GASKET,INLET MANIFOLD $1.72
3-41. 4030631A20 GASKET,INLET MANIFOLD $2.54
3-42. 4040099F90 SET,CARB INSULATOR $17.44
3-42. 6689914 SET,CARB INSULATOR $8.43
3-45. 6695422 SCREW,5X22/WS $1.72
3-45. 99416050221 SCREW,5X22/WS $1.29
3-46. 6684615 GASKET,CARBURETOR WYL139A J064551 $1.72
3-46. 4020602K21 GASKET,CARBURETOR $2.72
3-47. 99101060013 NUT,6 $1.15
3-47. 6684872 NUT,6 $1.34
3-53. 436-0162V-20 BASE,CLEANER $4.28
3-53. 6690197 BASE,CLEANER $1.72
3-54. 52800980200 PLATE,CHOKE $8.44
3-54. 6691255 PLATE,CHOKE $1.72
3-55. 6695667 O-RING,S-8 $1.72
3-55. 999-67008-012 O-RING,S-8 $1.29
3-56. 6690803 COLLAR,CLEANER $1.72
3-56. 4700602N200 COLLAR,CLEANER $6.62
3-57. 6690117 BODY,CLEANER $6.32
3-57. 4230637C800 BODY,CLEANER $11.31
3-58. 992-00050-011 WASHER,SMALL,5 $1.16
3-58. 6684864 WASHER,SMALL,5 $1.72
3-60. 99414050571 SCREW,5X57,S $1.09
3-60. 6695353 SCREW,5X57 (replaces 99011050571) $1.72
3-61. 446-0637C-200 ELEMENT,CLEANER $4.38
3-61. 6690362 ELEMENT,CLEANER $1.72
3-62. 0510099F90 SET,CLEANER COVER $17.44
3-62. 6686281 SET,CLEANER COVER $6.32
3-63. 6689737 BOLT,CLEANER COVER $1.72
3-63. 3800637C200 BOLT,CLEANER COVER $1.48
3-70. 6685139 PUMP,PRIMING ASS'Y (replaces 44225143800) $5.76
3-70. 44225143800 PUMP,PRIMING ASS’Y $5.76
3-71. 6691768 CAP,FUEL BLACK,NON VENT THB-25 $3.28
3-71. 5950656B90 CAP,FUEL BLACK,NON VENT $9.31
3-71. 6691716 TANK CAP ASS'Y. ORANGE (replaces of 5950062A910) $10.61
3-71. 595-0650A-90 CAP,TANK $14.01
3-78. 6692353 PIPE,FUEL,2.5x4x210 $1.72
3-78. 7000250408 PIPE,FUEL,2.5x4x80 $1.29
3-79. 6697846 Replaces 669-6970 - Alternative for 4554132200: RETURN GROMMET $1.78
3-79. 53432710200 GROMMET,FUEL PIPE $1.29
3-86. 6688169 PIPE,FUEL,ASS'Y (replaces 2230162V900) $3.28
3-86. 2230162V900 PIPE,FUEL,ASS’Y $8.03
3-87. 6684619 CLIP 6.3 $1.72
3-87. 68000731201 CLIP 6.3 $1.45
3-89. 6684620 PUMP FILTER BODY T/CG24EASPSL $6.32
3-89. 6750404280 FUEL FILTER $6.32
3-91. 5910099520 TANK,FUEL $26.72
3-91. 6691485 TANK,FUEL $7.20
3-91-1. 5910645D20 TANK,FUEL $25.05
3-96. 6692221 CUSHION,FUEL TANK (replaces 65500940201) $1.72
3-96. 655-00940-201 CUSHION,FUEL TANK $2.96
4-1. 20201003201 GROMMET,SECONDARY CORD $1.29
4-1. 6688037 GROMMET,SECONDARY CORD | ~C190852 $1.37
4-16. 990-51050-503 BOLT,HEX,5X50 $1.15
4-16. 6685114 BOLT,HEX,5X50 $1.72
4-18. 6684661 WASHER,5 $1.72
4-18. 99201050011 WASHER,5 $1.24
4-19. 7040652A90 SET, MUFFLER $0.00

Discontinued

4-19. 6692485 SET,MUFFLER $26.48
4-2. 6688052 GROMMET $1.78
4-2. 2030631A200 GROMMET $1.48
4-20. 75104200201 GASKET,MUFFLER $2.06
4-20. 6692883 GASKET,MUFFLER THB-2510 H243520 $1.72
4-22. 6692664 PIPE,TAIL (replaces 7210659090) $11.00
4-22. 7210659090 PIPE,TAIL $26.57
4-23. 6685109 SCREW,4X8/S $1.72
4-23. 99434040081 SCREW,4X8/S $1.15
4-26. 6687251 SHIELD,HEAT (replaces 1330631A201) $3.28
4-26. 1330631A201 SHIELD,HEAT $3.85
4-27. 6692745 GASKET,MUFFLER THB-2510 $1.72
4-27. 737-06100-21 GASKET,MUFFLER $2.11
4-31. 35902103200 WASHER,CLUTCH,B $1.36
4-31. 6684642 WASHER,CLUTCH,B $1.72
4-32. 29001620800 SHOE,CLUTCH $37.78
4-32. 6684643 SHOE,CLUTCH $8.43
4-33. 668-4644 CLUTCH SPRING $1.72
4-33. 3420630B200 SPRING,CLUTCH $1.48
4-34. 6689528 WASHER,CLUTCH A $1.72
4-34. 3480602R200 WASHER,CLUTCH A $2.50
4-35. 6684646 BOLT,STEP $1.72
4-35. 3570075T200 BOLT,STEP $11.89
4-36. 6695421 SCREW,5X20/WS $0.32
4-36. 99416050202 SCREW,5X20/WS $1.15
4-37. 99416050422 SCREW,5X42/WS $1.15
4-37. 6695428 SCREW,5X42/WS J035361 $0.35
4-38. 99205080030 WASHER,8 $1.15
4-38. 668-4648 BENT WASHER 8 $1.72
4-6. 7380631A201 PROTECTOR,MUFFLER $30.09
4-7. 99415040222 SCREW,PS,4X22 $1.24
4-7. 6695376 SCREW,PS,4X22 $1.72
4-8. 99072045164 SCREW,TAPPING,4.5X16 $1.15
4-8. 99415040122 SCREW,4X12/PS $1.15
4-8. 668-4636 TAPPING SCREW D4.5 X 16 $1.72
4-8. 6695371 SCREW,4X12/PS (replaces 99415040122) $1.72
4-96. 6692221 CUSHION,FUEL TANK (replaces 65500940201) $1.72
4-96. 655-00940-201 CUSHION,FUEL TANK $2.96
4-97. 6530631A200 BRACKET,TANK $1.48
4-98. 6695376 SCREW,PS,4X22 $1.72
4-98. 99415040222 SCREW,PS,4X22 $1.24
5-0. 6692978 STARTER,RECOIL ASS'Y (replaces 76206097902) $28.54
5-0. 76206097902 STARTER,RECOIL ASS'Y $50.53
5-1. 6693032 BODY,RECOIL STARTER (replaces 7720609780) $10.90
5-1. 7720609700 SET,STARTER BODY $36.39
5-2. 6684675 SPRING,RECOIL T/CG24EASPSL $8.43
5-2. 780-06097-200 SPRING,RECOIL $18.23
5-3. 77406097200 PULLEY,STARTER $22.42
5-3. 6693066 PULLEY,STARTER $4.80
5-4. 80106091200 WASHER,ROPE REEL $1.29
5-4. 6693422 WASHER,ROPE REEL $1.72
5-5. 8390201020 SCREW,SET $1.19
5-5. 6693633 SCREW,SET (replaces 8390201020) $1.72
5-5. 6694966 SCREW,5X12 $1.37
5-5. 990-15050-121 SCREW,SX12 $1.15
5-7. 6693168 ROPE,STARTER (replaces 78306097200) $3.28
5-7. 78306097200 ROPE,STARTER $6.12
5-8. 78506097200 HANDLE,STARTER $6.12
5-8. 6693224 HANDLE,STARTER $3.28
6-0. 4552516090 CARBURETOR,ASS'Y $117.27
6-0. 455-25144-900 CARBURETOR,ASS'Y $0.00

Discontinued

6-0. 6696065 CARBURETOR,ASS'Y WYJ-216 K254881 $72.49
6-1. 6684870 SCREW,THROTTLE SET (replaces 51425100200) $1.62
6-1. 51425100200 SCREW,THROTTLE SET $1.86
6-10. 6684695 O-RING WYA-64 CG22EAB/D $3.28
6-10. 55025100200 O-RING $3.48
6-11. 6691848 JET,MAIN,#43 $2.64
6-11. 5992000W430 JET,MAIN,#43 $2.30
6-12. ~ ~ ~ GASKET,PUMP $0.00

Discontinued

6-13. ~ ~ ~ GASKET,PUMP $0.00

Discontinued

6-14. 669-1242 PUMP PLATE $3.28
6-14. 523-25100-201 PLATE,PUMP $12.28
6-15. 6691234 PLATE,CIRCUIT CG22EAB/D $4.80
6-15. 522-25100-200 PLATE,CIRCUIT $11.24
6-16. 57825007200 SCREEN,INLET $1.04
6-16. 6684700 INLET SCREEN (replaces 57825007200) $4.50
6-17. 6691430 BODY,PUMP ASS'Y $43.13
6-17. 575-25130-800 BODY,PUMP $52.43
6-18. ~ ~ ~ GASKET,PUMP $0.00

Discontinued

6-19. ~ ~ ~ GASKET,PUMP $0.00

Discontinued

6-20. 47625004200 COVER,DIAPHRAGM $9.86
6-20. 668-5222 DIAPHRAGM COVER $5.34
6-21. 548-25101-200 SCREW,SET $2.99
6-21. 6691312 SCREW,SET CG22EAB/D $1.37
6-22. 6684872 NUT,6 $1.34
6-22. 99101060013 NUT,6 $1.15
6-23. 6684871 CABLE ADJUSTER (5PC/PK) $7.98
6-23. 614-25137-200 ADJUSTER,CABLE $1.76
6-24. 6684875 PACKING,CLEANER (replaces 4310634C200) $3.28
6-24. 4310634C200 GASKET,CLEANER $4.12
6-4. 54425120200 STAY,ADJUST,CABLE $10.74
6-4. 6691301 STAY,ADJUST,CABLE $1.95
6-5. 53925120200 SWIVEL $7.57
6-5. 668-4697 SWIVEL $1.65
6-7. 489-25100-200 RING,STOP $0.00

Discontinued

6-7. 668-4696 STOP RING $1.72
6-8. 488-25129-800 VALVE,THROTTLE $16.24
6-8. 6690933 VALVE,THROTTLE $16.70
7-0. 6690448 CARBURETOR,ASS'Y WYJ-189A $107.97
7-0. 4550099M90 CARBURETOR,ASS'Y $97.05
7-1. 51425100200 SCREW,THROTTLE SET $1.86
7-1. 6684870 SCREW,THROTTLE SET (replaces 51425100200) $1.62
7-10. 6684695 O-RING WYA-64 CG22EAB/D $3.28
7-10. 55025100200 O-RING $3.48
7-11. 6691848 JET,MAIN,#43 $2.64
7-11. 5992000W430 JET,MAIN,#43 $2.30
7-12. ~ ~ ~ GASKET,PUMP $0.00

Discontinued

7-13. ~ ~ ~ GASKET,PUMP $0.00

Discontinued

7-16. 57825007200 SCREEN,INLET $1.04
7-16. 6684700 INLET SCREEN (replaces 57825007200) $4.50
7-17. 5752514780 BODY,PUMP ASS’Y $52.43
7-17. 6691430 BODY,PUMP ASS'Y $43.13
7-18. ~ ~ ~ GASKET,PUMP $0.00

Discontinued

7-19. ~ ~ ~ GASKET,PUMP $0.00

Discontinued

7-20. 47625004200 COVER,DIAPHRAGM $9.86
7-20. 668-5222 DIAPHRAGM COVER $5.34
7-21. 548-25101-200 SCREW,SET $2.99
7-21. 6691312 SCREW,SET CG22EAB/D $1.37
7-22. 6684871 CABLE ADJUSTER (5PC/PK) $7.98
7-22. 614-25137-200 ADJUSTER,CABLE $1.76
7-23. 6684872 NUT,6 $1.34
7-23. 99101060013 NUT,6 $1.15
7-24. 4310634C200 GASKET,CLEANER $4.12
7-24. 6684875 PACKING,CLEANER (replaces 4310634C200) $3.28
7-4. 54425164200 STAY,ADJUST,CABLE $12.80
7-4. 6684873 STAY,ADJUST,CABLE (replaces 54425164200) $1.67
7-41. 6684874 WASHER,THRUST (replaces 5492516520) $1.72
7-41. 5492516520 WASHER,THRUST $2.29
7-5. 668-4697 SWIVEL $1.65
7-5. 53925120200 SWIVEL $7.57
7-7. 668-4696 STOP RING $1.72
7-7. 489-25100-200 RING,STOP $0.00

Discontinued

8-1. 6688590 DRUM,CLUTCH $18.24
8-1. 2890631A802 DRUM,CLUTCH $65.69
8-11. 6686993 CASE,FAN (replaces 1120631A201) $33.58
8-11. 112-0631 A-201 CASE,FAN $1.12
8-12. 6695335 SCREW,S,5X12 $1.72
8-12. 994-14050-122 SCREW,S,5X12 $1.15
8-16. 0910631A200 SHIELD,HEAT $9.18
8-16. 6686741 SHIELD,HEAT $2.80
8-17. 99201040011 WASHER 4 $1.15
8-17. 6685070 WASHER,4 | C064123~ $1.72
8-18. 99210040012 WASHER,S,4 $1.15
8-18. 6695211 WASHER,S,4 $1.37
8-19. 99011040121 SCREW,4X12 $1.15
8-19. 6694865 SCREW,4X12 C155401 $0.23
8-2. 99961600102 BEARING,BALL,#6001Z $6.88
8-2. 6695532 BEARING,BALL,#6001Z 28mm/OD $9.40
8-25. 2490165A21 SPACER $45.56
8-25. 6688307 SPACER (replaces 2490165A21) $1.78
8-3. 99350012002 RING,STOP,C-12 EX $1.24
8-3. 6684664 STOP RING C-12 EX (replaces 99350012002) $1.72
8-4. 3740631A20 FLANGE,CLUTCH $1.98
8-4. 6689696 FLANGE,CLUTCH (replaces 3740631A20) $7.53
8-5. 599-0631 A-802 CUSHION $6.12
8-5. 6691831 CUSHION (replaces 5990631A802) $6.18
8-6. 6695042 HEX. HOLE BOLT 5X10 (replaces 99051050103) $1.72
8-6. 99051050103 BOLT,HEX.HOLE,5X10 $1.15
8-8. 99051050203 BOLT,HEX.HOLE,5X20 $1.15
8-8. 6695048 BOLT,HEX.HOLE,5X20 J010351 $1.23
8-9. 6684834 WASHER,S,5 (replaces 99210050062) $1.72
8-9. 99210050062 WASHER,S,5 $1.15
9-1. 6688574 DRUM,CLUTCH,23mm $20.96
9-1. 2890098080 DRUM,CLUTCH $93.76
9-11. 6686900 CASE,FAN TBC-2510/250 TPH-2510 $26.48
9-11. 1120098081 CASE,FAN $2.80
9-12. 668-4636 TAPPING SCREW D4.5 X 16 $1.72
9-12. 99072045164 SCREW,TAPPING,4.5X16 $1.15
9-15. 6689651 PIPE HOLDER $7.90
9-15. 3600099020 HOLDER,PIPE $11.61
9-15-1. 3600098020 HOLDER,PIPE(~R288067) $0.00

Discontinued

9-15-2. 6696014 HOLDER,PIPE (replaces 3600098021) $10.50
9-15-2. 3600098021 HOLDER,PIPE $9.67
9-16. 910098020 SHIELD,HEAT $3.21
9-25. 99191050001 NUT,5 $1.15
9-25. 6695176 NUT,5 (replaces 99191050001) $1.72
9-26. 6684918 WASHER,5 $1.72
9-26. 99201050061 WASHER,5 $1.24
9-27. 6689159 WASHER,GEAR CASE H255661
