Powermatic HPS126 7-1/2 HP 3PH 230 Volt Panel Saw Parts

Brand: Powermatic

Model: 1791288K

Powermatic 1791288K Parts Schematic

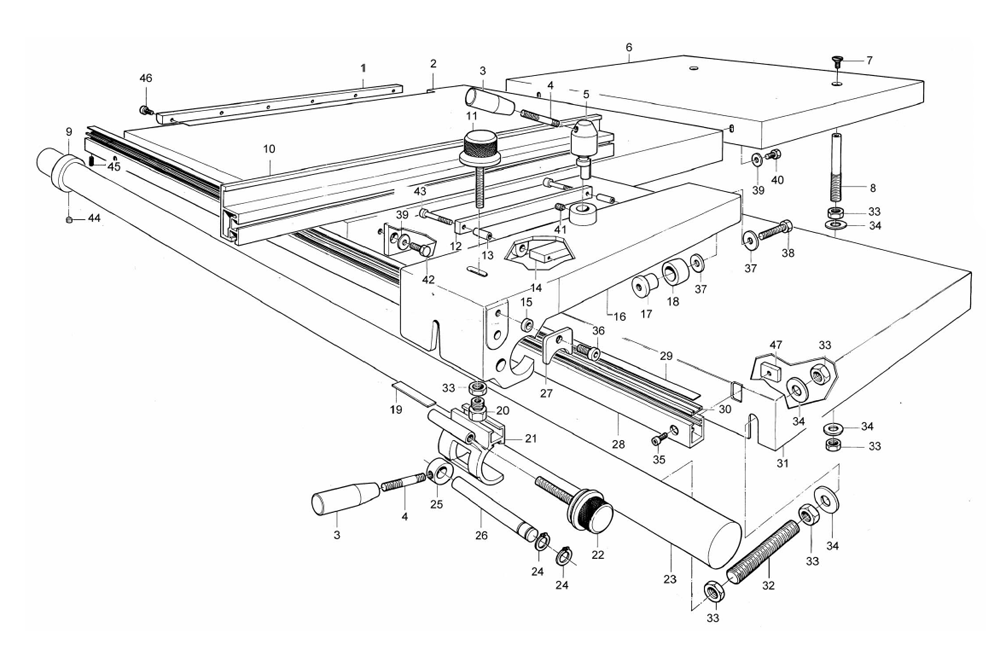

  • Fig-0

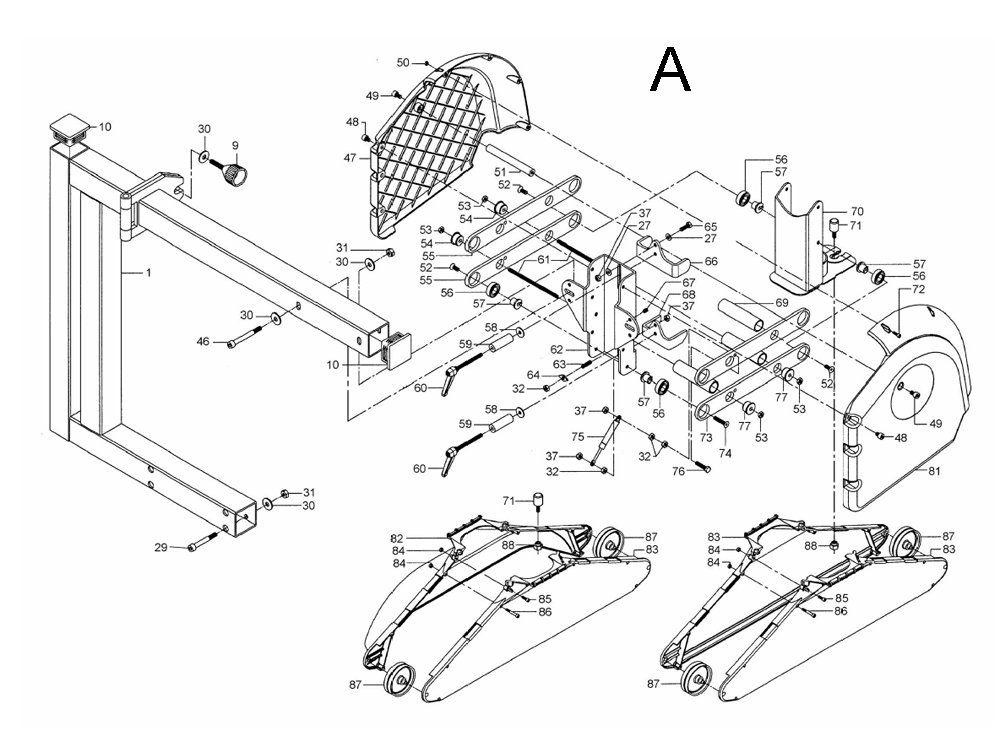

  • Fig-1

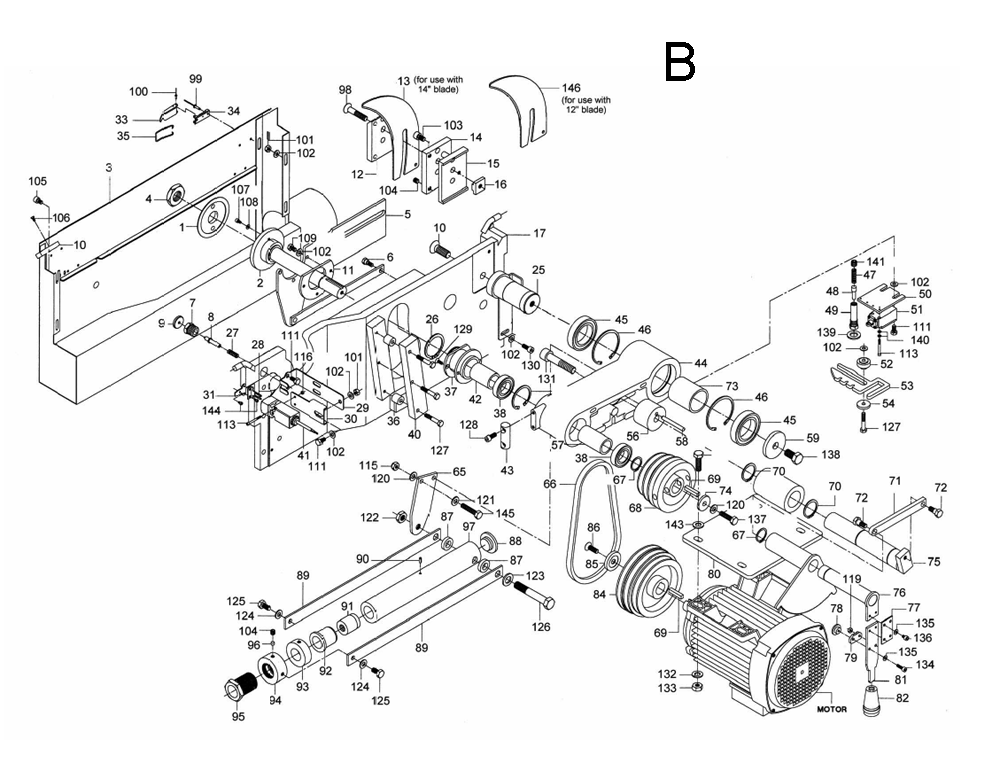

  • Fig-2

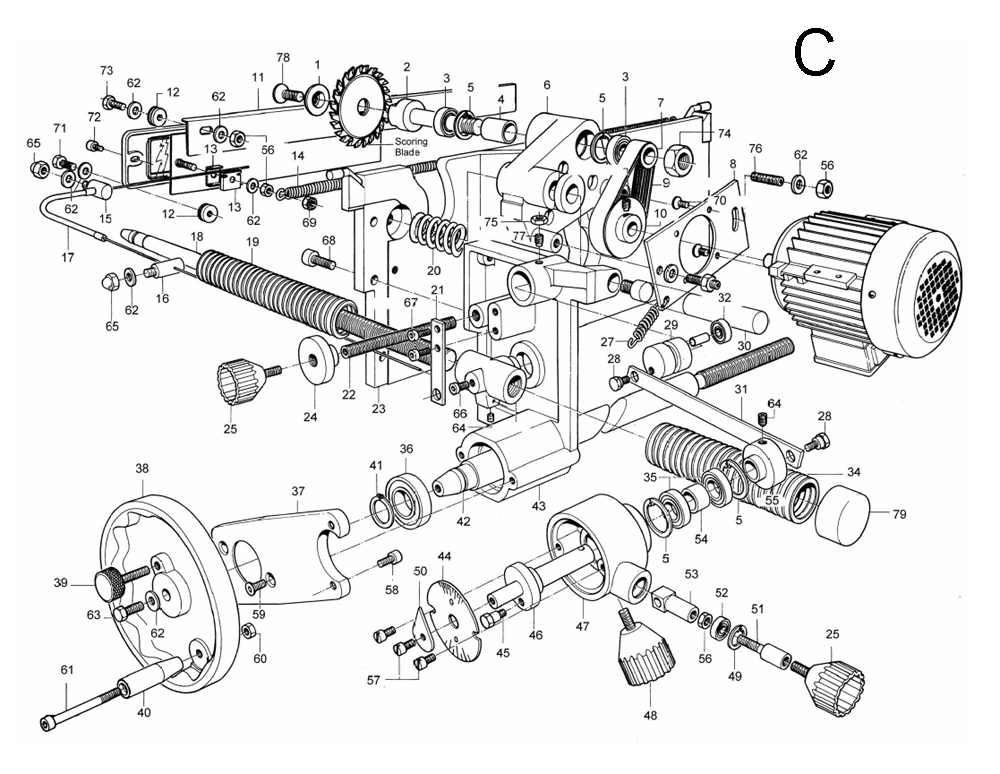

  • Fig-3

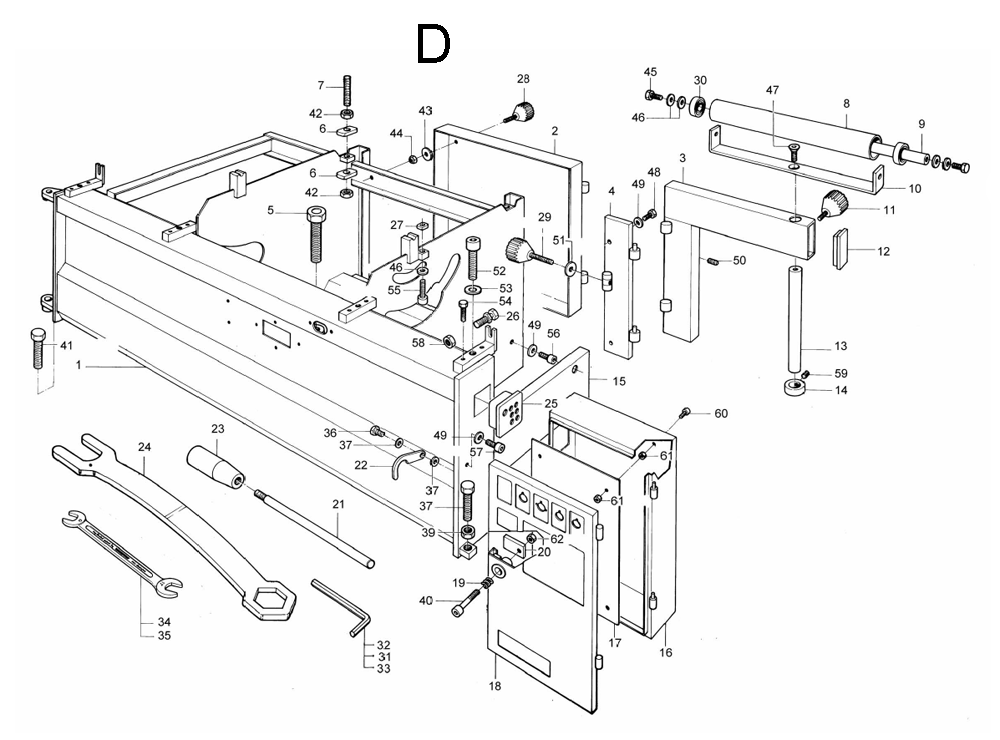

  • Fig-4

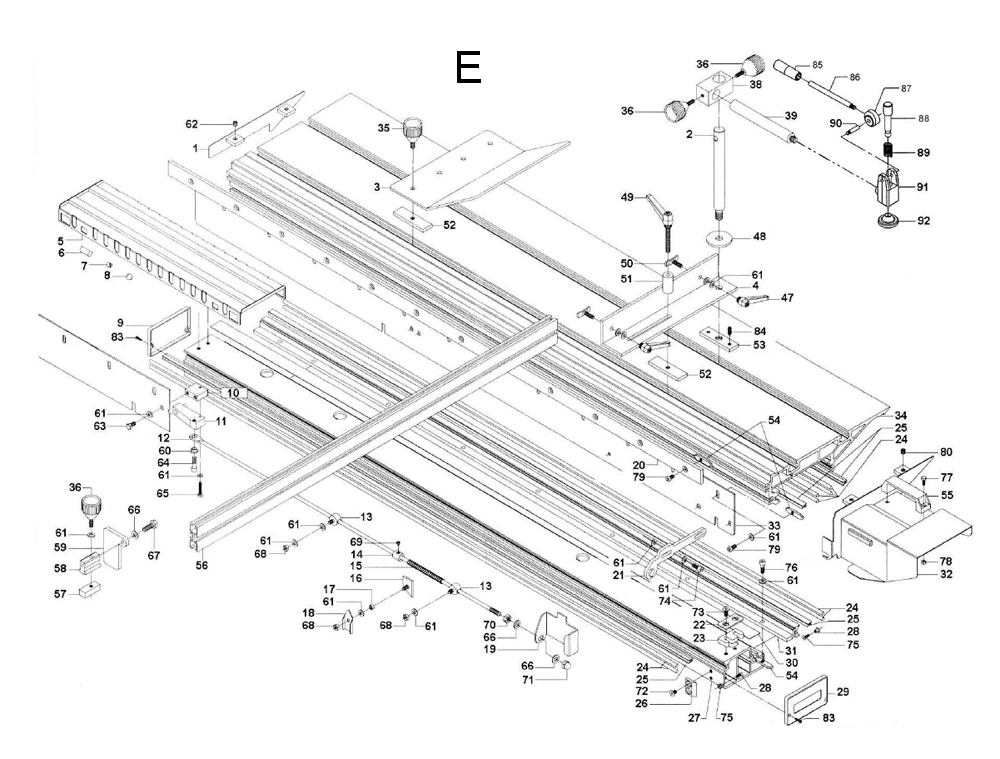

  • Fig-5

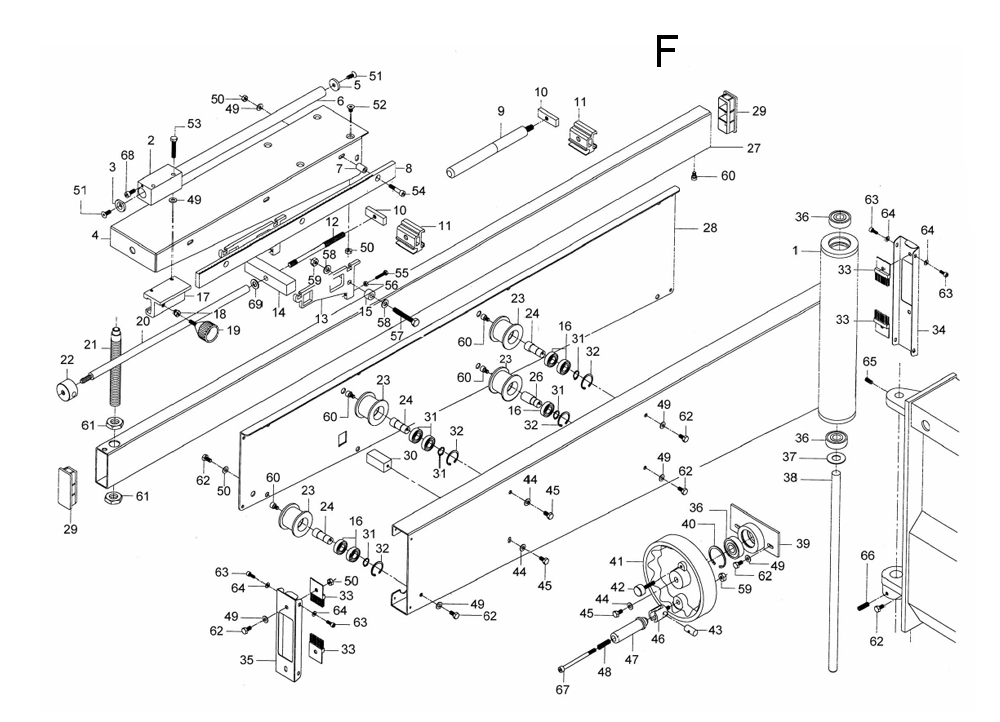

  • Fig-6

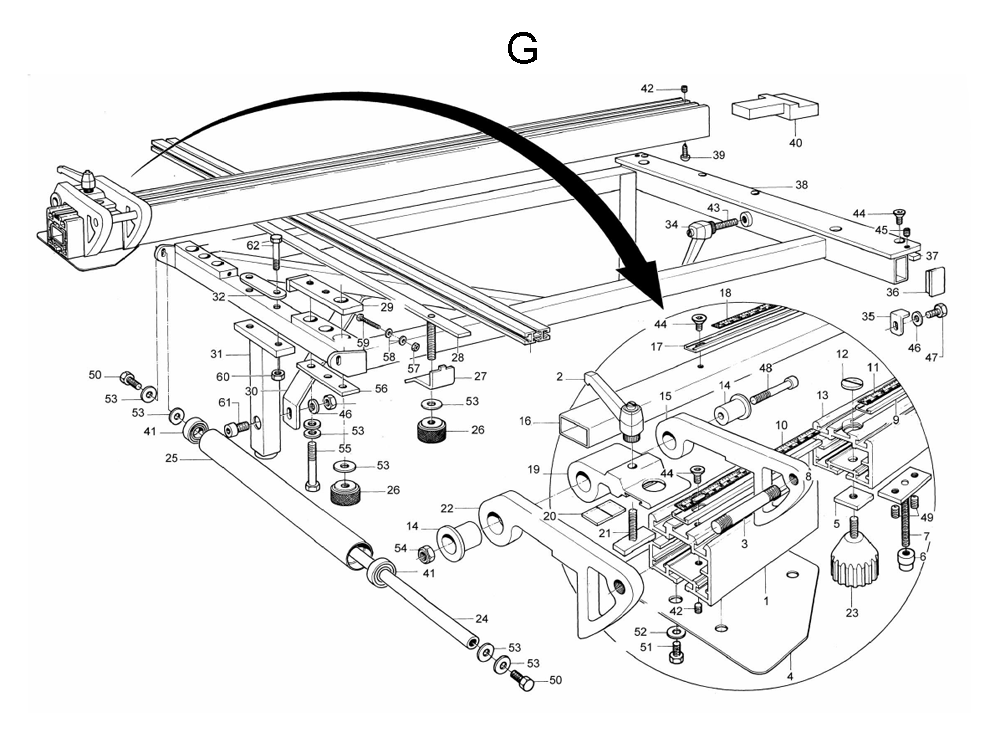

  • Fig-7

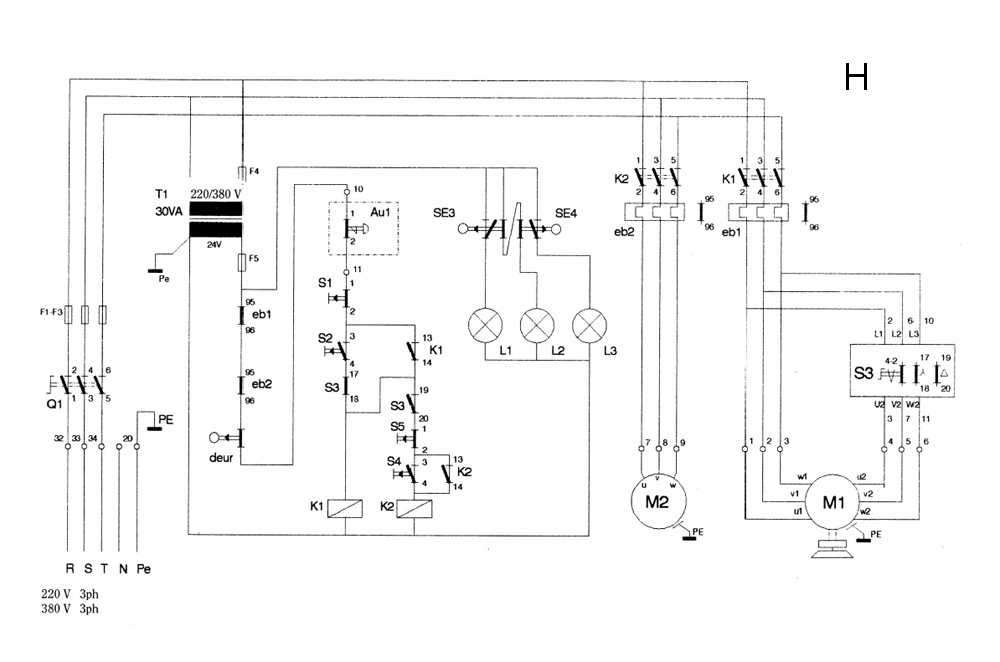

  • Fig-8

Download Powermatic 1791288K Parts Diagram!

Powermatic 1791288K Replacement Parts List  Other tools in Powermatic Saw Parts category

Fig# Image Part No Part Name Price Add To Cart
00. HPS67-982A "Blade Guard Assembly (tilted arbor) (items 71 $394.91
00. HPS67-983A "Blade Guard Assembly (items 71 $258.96
1. HPS126-701 Wood Inlay $0.00

Discontinued

2. HPS126-702 Table $1,105.99
3. HPS67-445 Handle $36.27
4. HPS67-448 Handle Rod $51.28
5. HPS67-703 Lock Bushing $82.95
6. HPS126-706 Table Extension $353.02
7. HPS126-707 Machine Screw $6.25
8. HPS126-708 Shaft $60.23
9. HPS126-709 Stop Collar $47.81
10. HPS126-710 Fence Guide $317.70
11. HPS126-711 Adjustment Screw $56.88
12. HPS126-712 Mount Plate $47.81
13. HPS126-713 Bushing $80.23
14. HPS126-714 Lock Plate $73.56
15. HPS67-723 Bushing $33.86
16. HPS126-716 Body $522.36
17. HPS126-717 Bushing $29.05
18. HPS126-718 Wheel $47.81
19. HPS126-719 Lock Plate $26.11
20. HPS126-720 Lock Plate $56.78
21. HPS126-721 Lock Housing $83.57
22. HPS126-722 Adjustment Screw $83.57
23. HPS126-723 Guide Bar $525.97
24. HPS67-729 Retainer Ring $10.70
25. HPS67-731 Lock Collar $59.13
26. HPS126-726 Shaft $29.05
27. HPS67-727 Handle Plate $43.48
28. HPS126-728 Scale Base $161.93
29. HPS126-729 Scale $56.88
30. HPS126-730 Scale Plate $56.88
31. HPS67-305 Extension Saw Table Right Z $708.59
32. HPS126-732 Stud $16.54
33. TS-2311161 Full Hex Nut $3.54
34. TS-155010 Flat Washer $4.28
35. TS-1503041 Socket Head Cap Screw $3.54
36. TS-1504041 Socket Head Cap Screw $3.54
37. TS-1550071 Flat Washer $0.00

Discontinued

37. 5051911 Washer, M10 Flat $3.54
38. TS-1491041 Hex Cap Screw $3.54
39. TS-1550061 Flat Washer $3.54
40. TS-1490021 Hex Cap Screw $3.54
41. TS-1524031 Socket Set Screw $4.28
42. TS-1490041 Hex Cap Screw $3.54
43. TS-1503131 Socket Head Cap Screw $3.54
44. TS-1524011 Set Screw $3.54
45. TS-1522061 Socket Set Screw $3.54
46. TS-1504061 Socket Head Cap Screw $3.54
47. HPS126-747 Nut $26.11
1-A. HPS126-901 Frame $258.96
1-B. HPS126-101 Flange Collar $106.94
1-C. HPS67-201 Flange Collar $43.48
1-D. HPS126-301 Stand $1,696.63
1-E. HPS126-401 Plate $60.23
1-F. HPS126-501 Support Arm $258.96
1-G. HPS126-601 Cross Cut Fence (Short) $96.90
10-A. HPS67-910 End Cap $10.70
10-B. HPS126-110 Cam $26.13
10-C. HPS67-226 Motor Pulley $60.23
10-D. HPS126-310 Roll Support Bracket $60.23
10-E. HPS126-410 Block $48.25
10-F. HPS126-510 Support Nut $10.70
10-G. HPS126-610 Scale (Short) $52.07
100-B. HPS126-200 Screw $6.25
101-B. TS-2311081 Hex Nut $0.00

Discontinued

101-B. TS-1540061 Hex Nut $3.54
102-B. TS-1550061 Flat Washer $3.54
103-B. TS-1505011 Socket Head Cap Screw $3.54
104-B. TS-1525011 Socket Screw Screw $3.54
105-B. TS-1504021 Socket Head Cap Screw $3.54
106-B. TS-1481021 Hex Cap Screw $3.54
107-B. TS-1502011 Socket Head Cap Screw $3.54
108-B. TS-1550031 Flat washer $3.54
109-B. TS-1490011 Hex Cap Screw $3.54
11-B. HPS126-111 Flange $90.23
11-C. HPS126-211 Corner Plate $29.05
11-D. HPS67-409 Adjustment Knob $0.00

Discontinued

11-D. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
11-E. HPS126-411 Bracket $66.89
11-F. HPS126-511 Lock Block $29.05
11-G. HPS126-611 Scale (Long) $66.89
110-B. HPS126-201 Flat Head Socket Cap Screw $10.70
111-B. TS-1490021 Hex Cap Screw $3.54
113-B. TS-1501081 Socket Head Cap Screw $3.54
115-B. TS-2342101 Lock Nut $3.54
116-B. TS-1540021 Hex Nut $3.54
12-B. HPS126-112 Locking Plate $93.57
12-C. HPS126-212 Guide $33.86
12-D. HPS126-312 End Cap $10.70
12-E. HPS126-412 Rod $66.89
12-F. HPS126-512 Threaded Rod $43.48
12-G. HPS126-612 Lens $22.68
120-B. TS-2361101 Lock Washer $3.54
121-B. TS-1550071 Flat Washer $0.00

Discontinued

121-B. 5051911 Washer, M10 Flat $3.54
122-B. TS-2311161 Full Hex Nut $3.54
123-B. TS-155010 Flat Washer $4.28
124-B. 5051911 Washer, M10 Flat $3.54
124-B. TS-1550071 Flat Washer $0.00

Discontinued

125-B. TS-2210161 Hex Cap Screw $3.54
126-B. TS-149B16 Hex Cap Screw $11.87
127-B. TS-1490081 Hex Cap Screw $3.54
128-B. TS-1504041 Socket Head Cap Screw $3.54
129-B. TS-1514021 Flat Head Socket Screw $3.54
13-B. HPS126-113 "Riving Knife (for use with 14"" blade) " $144.27
13-C. HPS126-213 Cable Clamp $33.86
13-D. HPS126-313 Support Shaft $93.57
13-E. HPS126-413 Coupling $48.25
13-F. HPS126-513 Fixed Plate $73.56
13-G. HPS126-613 Cross Cut Fence (Long) $578.12
130-B. TS-1504041 Socket Head Cap Screw $3.54
131-B. TS-223C801 Socket Head Cap Screw $0.00

Discontinued

132-B. TS-2361121 Spring Washer (not shown) $3.54
133-B. TS-1540081 Hex Nut $3.54
134-B. TS-1503041 Socket Head Cap Screw $3.54
135-B. TS-1550041 Flat Washer $3.54
136-B. TS-1503011 Socket Head Cap Screw $3.54
137-B. TS-1491061 Hex Cap Screw $3.54
138-B. TS-222C301 Hex Cap Screw $0.00

Discontinued

139-B. TS-155010 Flat Washer $4.28
14-B. HPS126-114 Adjustment Block $93.57
14-C. HPS126-214 Spring $33.86
14-D. HPS126-314 Collar $48.25
14-E. HPS126-414 Coupling $38.68
14-F. HPS126-514 Guide Block $70.23
14-G. HPS126-614 Bushing $52.07
140-B. HPS126-203 Washer $3.99
141-B. TS-1526011 Socket Set Screw $3.54
144-B. TS-1501011 Socket Head Cap Screw $3.54
145-B. TS-1491081 Hex Cap Screw $0.00

Discontinued

146-B. HPS126-118 "Riving Knife (for use with 12"" blade) " $149.25
15-B. HPS126-115 Plate $97.23
15-C. HPS126-215 Cable Guide $50.22
15-D. HPS126-315 Cover Plate $136.05
15-E. HPS126-415 Spring $10.70
15-F. HPS126-515 Idle Bushing $15.37
15-G. HPS126-615 Left Stop $100.47
16-B. HPS126-116 Nut $66.89
16-C. HPS126-216 Cable Guide $61.49
16-D. HPS126-316 Electrical Cabinet $323.65
16-E. HPS126-416 Plate $161.93
16-F. BB-6003ZZ Bearing $27.64
16-G. HPS126-616 Guide Tube $106.94
17-B. HPS126-117 Cradle $533.56
17-C. HPS126-217 Cable Sleeve $33.86
17-D. HPS126-317 Mount Plate $48.25
17-E. HPS126-417 Bushing $26.11
17-F. HPS126-517 Guide Block $70.23
17-G. HPS126-617 Scale Plate $50.22
18-C. HPS126-218 Threaded Rod $106.94
18-D. HPS126-318 Door $97.23
18-E. HPS126-418 Position Indicator $33.86
18-F. HPS126-518 Bushing $56.78
18-G. HPS126-618 Scale $70.23
19-C. HPS67-145 Cover Tube $52.07
19-D. HPS67-324 Spring $10.70
19-E. HPS126-419 Bracket $48.25
19-F. HPS67-613 Hand Knob $14.97
19-G. HPS126-619 Bracket $70.23
2-B. HPS126-102 Arbor Shaft $284.83
2-C. HPS67-203 Arbor Shaft $161.93
2-D. HPS126-302 Door $291.30
2-E. HPS126-402 Clamp Rod $73.05
2-F. HPS126-502 Stop Block $126.34
2-G. HPS67-430 Handle $44.83
20-C. HPS67-225 Spring $29.05
20-D. HPS126-320 Lock Plate $15.37
20-E. HPS126-420 Mount Plate $309.34
20-F. HPS126-520 Pivot Shaft $76.89
20-G. HPS126-620 Lens $22.68
21-C. HPS126-221 Strap Bracket $47.81
21-D. HPS126-321 Lock Pin $26.11
21-E. HPS126-421 Lock Plate $106.94
21-F. HPS126-521 Threaded Rod $70.23
21-G. HPS67-609 T-Bolt $16.54
22-C. HPS126-222 Threaded Rod $56.88
22-D. HPS67-311 Hook $10.70
22-E. HPS126-422 Stop Plate $56.78
22-F. HPS126-522 Support Nut $73.56
22-G. HPS126-622 Right Stop $100.47
23-C. HPS126-117 Cradle $533.56
23-D. HPS67-445 Handle $36.27
23-E. HPS126-423 Stop Block $44.29
23-F. HPS126-523 Spool Cylinder $93.57
23-G. HPS126-248 Hand Knob $14.97
24-C. HPS126-224 Locking Knob $56.88
24-D. HPS126-324 Wrench $68.43
24-E. HPS126-424 Rod $161.93
24-F. HPS126-524 Shaft $10.70
24-G. HPS126-624 Roll Shaft $73.56
25-B. HPS126-125 Pivot Unit $142.52
25-C. HPS126-225 Hand Knob $10.27
25-D. HPS126-325 Stop Block $33.86
25-E. HPS126-425 Guide $38.68
25-G. HPS126-625 Roller $83.57
26-B. HPS126-126 Retainer Ring $10.70
26-C. HPS126-226 Threaded Rod Housing $161.93
26-D. HPS126-326 Adjustment Block $38.68
26-E. HPS126-426 Plate $60.23
26-F. HPS126-526 Shaft $43.48
26-G. HPS67-619 Lock Knob $50.28
27-A. TS-1550061 Flat Washer $3.54
27-B. HPS126-127 Spring $8.37
27-C. HPS126-227 Spring $29.05
27-D. HPS126-327 Ring $10.70
27-E. HPS126-427 Support $1,073.37
27-F. HPS126-527 Arm Tube $284.83
27-G. HPS67-620 Clamp $47.43
28-B. HPS126-128 Micro Switch $319.75
28-C. HPS126-106 Bolt $15.37
28-D. HPS126-248 Hand Knob $14.97
28-E. HPS126-428 Nut $10.70
28-F. HPS126-528 Side Plate $161.93
28-G. HPS126-628 Strap $68.43
29-A. TS-1505041 Socket Head Cap Screw $3.54
29-B. HPS126-129 Bracket $22.68
29-C. HPS126-229 Bushing $56.78
29-D. HPS126-329 Hand Knob $14.97
29-E. HPS126-429 Cover Plate $10.70
29-F. HPS126-312 End Cap $10.70
29-G. HPS126-629 Bracket $56.88
3-B. HPS126-103 Cover $296.05
3-C. BB-6003ZZ Bearing $27.64
3-D. HPS126-303 Support Arm $252.49
3-E. HPS126-403 Stop Plate $77.65
3-F. HPS126-503 Washer $56.88
3-G. HPS126-603 Shaft $33.86
30-A. 5051911 Washer, M10 Flat $3.54
30-A. TS-1550071 Flat Washer $0.00

Discontinued

30-B. HPS126-130 Bracket $26.11
30-C. HPS126-230 Pivot Shaft $93.57
30-D. BB-6003ZZ Bearing $27.64
30-E. HPS126-430 Plate $38.68
30-F. HPS126-530 Arm Stop $43.48
30-G. HPS126-630 Bracket $50.22
31-A. TS-2311101 Hex Nut $3.54
31-B. HPS126-131 Bracket $10.70
31-C. HPS126-231 Strap Bracket $56.88
31-D. TS-152707 Hex Wrench $5.74
31-E. HPS126-431 Guide $258.96
31-F. HPS67-516 Retainer Ring $10.70
31-G. HPS126-631 Support $142.52
32-A. TS-2311081 Hex Nut $0.00

Discontinued

32-A. TS-1540061 Hex Nut $3.54
32-C. BB-608ZZ Ball Bearing $21.21
32-D. TS-227D081 Hex Ke $6.61
32-E. HPS126-432 Bracket $135.40
32-F. HPS126-205 Retainer Ring $10.70
32-G. HPS126-632 Plate $126.34
33-B. HPS126-133 Bracket $3.54
33-C. HPS67-233 Scoring Motor $437.76
33-D. TS-227D061 Hex Key $0.00

Discontinued

33-E. HPS126-433 Plate $343.12
33-F. HPS126-533 Brush $61.49
33-G. HPS67-627 Cross Tube $233.08
34-B. HPS126-134 Bracket $3.54
34-C. HPS126-232 Hose $38.68
34-D. HPS126-334 Wrench $3.54
34-E. HPS126-434 Support Table $1,215.51
34-F. HPS126-534 Cover $47.81
34-G. HPS126-419 Bracket $48.25
35-B. HPS126-135 Spring $4.28
35-C. BB-6003ZZ Bearing $27.64
35-D. HPS67-328 Wrench $33.86
35-E. HPS126-435 Adjustment Knob $15.37
35-F. HPS126-535 Cover $47.81
35-G. HPS126-635 Table Bracket $22.68
36-B. HPS126-136 Glide Bushing $29.05
36-C. BB-6304ZZ Ball Bearing $26.17
36-D. TS-1490021 Hex Cap Screw $3.54
36-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
36-E. HPS67-409 Adjustment Knob $0.00

Discontinued

36-F. BB-6304ZZ Ball Bearing $26.17
36-G. HPS126-636 End Cap $10.70
37-A. TS-1541031 Nylon Lock Hex Nut $3.54
37-B. HPS126-137 Flanged Riving Knife $194.27
37-C. HPS126-237 Support Plate $76.89
37-D. TS-1550061 Flat Washer $3.54
37-F. HPS126-537 Washer $15.37
37-G. HPS126-637 Strap Bracket $47.81
38-B. BB-6006-ZZ Ball Bearing $0.00

Discontinued

38-C. HPS126-238 Handwheel $320.42
38-D. TS-2213401 Hex Cap Screw $0.00

Discontinued

38-E. HPS67-442 Post Block $0.00

Discontinued

38-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
38-F. HPS126-538 Pivot Shaft $56.88
38-G. HPS126-638 Support Plate $533.56
39-B. HPS126-139 Retainer Ring $10.70
39-C. HPS126-239 Locking Knob $56.78
39-D. TS-2311161 Full Hex Nut $3.54
39-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
39-E. HPS67-443 Rod $0.00

Discontinued

39-F. HPS126-539 Bearing Housing $158.69
39-G. HPS126-639 Self Tapping Screw $3.54
4-B. HPS126-104 Arbor Nut $52.07
4-C. HPS126-204 Bushing $38.68
4-D. HPS126-304 Support Plate $161.93
4-E. HPS126-404 Bracket $161.93
4-F. HPS126-504 Table $161.93
4-G. HPS126-604 Support Guide $50.22
40-B. HPS126-140 Bracket $50.22
40-C. HPS126-240 Handle $53.55
40-D. TS-1504071 Socket Head Cap Screw $3.54
40-F. HPS126-540 Retainer Ring $10.70
40-G. HPS126-640 Bracket $76.58
41-B. HPS126-141 Switch $303.78
41-C. HPS126-241 Retainer Ring $10.70
41-D. TS-2215901 Hex Cap Screw $0.00

Discontinued

41-F. HPS126-541 Handwheel $296.75
41-G. BB-6003ZZ Bearing $27.64
42-B. HPS126-142 Flange Bushing $47.81
42-C. HPS126-242 Height Setting Shaft $291.60
42-D. TS-154010 Hex Nut $3.54
42-F. HPS126-239 Locking Knob $56.78
42-G. TS-2276081 Socket Set Screw $3.54
43-B. HPS126-143 Sliding Pin $53.55
43-C. HPS126-243 Shaft Housing $323.65
43-D. TS-2361081 Lock Washer $3.70
43-F. HPS126-543 Nut $38.68
43-G. HPS126-643 Stud $10.70
44-B. HPS126-144 Body $398.92
44-C. HPS126-244 Dial Plate $61.49
44-D. TS-1541031 Nylon Lock Hex Nut $3.54
44-F. HPS126-544 Washer $3.54
44-G. TS-1514011 Socket Head Flat Screw $3.54
45-B. BB-6010VV Ball Bearing $127.81
45-C. HPS126-245 Adjustment Bolt $29.05
45-D. TS-1491021 Hex Cap Screw $3.54
45-F. HPS126-545 Bolt $6.25
45-G. TS-1524011 Set Screw $3.54
46-A. TS-1505131 Socket Head Cap Screw $3.99
46-B. HPS126-146 Retainer Ring $10.70
46-C. HPS126-246 Adjustment Shaft $80.23
46-D. TS-1550071 Flat Washer $0.00

Discontinued

46-D. 5051911 Washer, M10 Flat $3.54
46-F. HPS126-546 Bushing $73.56
46-G. TS-1550061 Flat Washer $3.54
47-A. HPS67-947 Upper Guard (LH) $66.89
47-B. HPS126-147 Spring $10.70
47-C. HPS126-247 Gear Housing $93.57
47-D. TS-1516021 Socket Head Flat Screw $3.99
47-E. HPS67-430 Handle $44.83
47-F. HPS126-547 Handle $56.78
47-G. TS-1490021 Hex Cap Screw $3.54
48-A. TS-1504011 Socket Head Cap Screw $3.54
48-B. HPS126-148 Pin $10.70
48-C. HPS126-248 Hand Knob $14.97
48-D. TS-1490071 Hex Cap Screw $3.54
48-E. HPS67-453 Washer $51.28
48-F. HPS126-548 Spring $10.70
48-G. TS-1504121 Socket Head Cap Screw $3.54
49-A. TS-1504031 Socket Head Cap Screw $3.54
49-B. HPS126-149 Holder $48.25
49-C. HPS126-249 Retainer Ring $10.27
49-D. TS-1550061 Flat Washer $3.54
49-E. HPS67-440 Handle $44.29
49-F. TS-1550061 Flat Washer $3.54
49-G. TS-1525011 Socket Screw Screw $3.54
5-B. HPS126-105 Riving Knife $56.88
5-C. HPS126-205 Retainer Ring $10.70
5-D. HPS126-305 Adjustment Screw $80.23
5-E. HPS126-405 Mount Plate $291.30
5-F. HPS126-505 Washer $48.25
5-G. HPS67-614 Square Nut $36.16
50-A. TS-1540031 Hex Nut $3.54
50-B. HPS126-150 Bracket $29.05
50-C. HPS126-250 Pointer $15.37
50-D. HPS67-51 Stud $0.00

Discontinued

50-E. HPS67-438 Handle Bolt $29.05
50-F. TS-2311081 Hex Nut $0.00

Discontinued

50-F. TS-1540061 Hex Nut $3.54
50-G. TS-1491021 Hex Cap Screw $3.54
51-A. HPS67-951 Stand Off $66.89
51-B. HPS126-151 Micro Switch $142.52
51-C. HPS126-251 Adjustment Rod $52.07
51-D. TS-1550071 Flat Washer $0.00

Discontinued

51-D. 5051911 Washer, M10 Flat $3.54
51-E. HPS67-439 Bushing $0.00

Discontinued

51-F. TS-1515021 Flat Head Socket Set Screw $3.54
51-G. TS-1503021 Socket Head Cap Screw $3.54
52-A. TS-1515031 Socket Head Flat Screw $3.54
52-B. HPS126-152 Bushing $29.05
52-C. HPS126-252 Bearing $56.88
52-D. TS-223C501 Socket Head Cap Screw $0.00

Discontinued

52-E. HPS67-434 Nut Plate $61.49
52-F. TS-2248121 Flat Head Socket Cap Screw $0.00

Discontinued

52-G. TS-1550041 Flat Washer $3.54
53-A. TS-1540061 Hex Nut $3.54
53-A. TS-2311081 Hex Nut $0.00

Discontinued

53-B. HPS126-153 Fork $56.88
53-C. HPS126-253 Adjustment Rod $56.78
53-D. TS-155010 Flat Washer $4.28
53-E. HPS67-435 Clamp $31.94
53-F. TS-1490101 Hex Cap Screw $3.54
53-G. TS-1550071 Flat Washer $0.00

Discontinued

53-G. 5051911 Washer, M10 Flat $3.54
54-A. HPS67-954 Bushing $10.70
54-B. HPS126-154 Washer $22.68
54-C. HPS126-254 Bushing $38.68
54-D. TS-1490061 Hex Cap Screw $3.54
54-E. HPS67-429 Nut Plate $30.81
54-F. TS-1504081 Socket Head Cap Screw $3.54
54-G. TS-1541031 Nylon Lock Hex Nut $3.54
55-A. HPS67-955 Link Bar $48.25
55-C. HPS126-255 Adjustment Plate $50.22
55-D. TS-2239451 Socket Head Cap Screw $0.00

Discontinued

55-E. HPS67-415 Handle $52.07
55-F. TS-1482061 Hex Cap Screw $3.54
55-G. TS-1491121 Hex Cap Screw $4.67
56-A. HPS67-956 Ball Bearing $47.81
56-B. HPS126-156 Bushing $48.25
56-C. TS-2311081 Hex Nut $0.00

Discontinued

56-C. TS-1540061 Hex Nut $3.54
56-D. TS-1504021 Socket Head Cap Screw $3.54
56-E. HPS67-413 Profile Tube $229.53
56-F. TS-2311101 Hex Nut $3.54
56-G. HPS126-656 Support Bracket $50.22
57-A. HPS67-957 Bushing $10.70
57-B. HPS126-157 Bushing Saw Arbor $66.89
57-C. TS-1503011 Socket Head Cap Screw $3.54
57-D. TS-1504031 Socket Head Cap Screw $3.54
57-E. HPS67-411 Lock Plate $52.07
57-F. TS-1491121 Hex Cap Screw $4.67
57-G. TS-2311061 Hex Nut $3.54
58-A. TS-1550061 Flat Washer $3.54
58-B. HPS126-158 Pin $10.70
58-C. TS-1504021 Socket Head Cap Screw $3.54
58-D. TS-1540081 Hex Nut $3.54
58-E. HPS67-410 Adjustment Block $146.67
58-F. 5051911 Washer, M10 Flat $3.54
58-F. TS-1550071 Flat Washer $0.00

Discontinued

58-G. TS-1550041 Flat Washer $3.54
59-A. HPS67-959 Spacer $22.68
59-B. HPS126-159 Flange $10.70
59-C. TS-1515031 Socket Head Flat Screw $3.54
59-D. TS-1525011 Socket Screw Screw $3.54
59-E. HPS67-412 Mitre Guide Stop $52.07
59-F. TS-2311101 Hex Nut $3.54
59-G. TS-1482081 Hex Head Cap Screw $3.54
6-B. HPS126-106 Bolt $15.37
6-C. HPS126-206 Bearing Housing $229.85
6-D. HPS126-306 Washer $6.25
6-E. HPS126-406 Wiper $63.56
6-F. HPS126-506 Stop Shaft $97.23
6-G. HPS126-606 Bushing $43.48
60-A. HPS67-960 Handle $47.81
60-C. TS-2311081 Hex Nut $0.00

Discontinued

60-C. TS-1540061 Hex Nut $3.54
60-D. TS-1503071 Socket Head Cap Screw $3.54
60-E. HPS67-906 Bushing $26.11
60-F. TS-1504021 Socket Head Cap Screw $3.54
60-G. TS-1540061 Hex Nut $3.54
60-G. TS-2311081 Hex Nut $0.00

Discontinued

61-A. HPS67-961 Threaded Rod $22.68
61-C. TS-1505141 Socket Head Cap Screw $5.16
61-D. TS-2311061 Hex Nut $3.54
61-E. TS-1550061 Flat Washer $3.54
61-F. TS-2312241 Hex Jam Nut $0.00

Discontinued

61-G. TS-1504041 Socket Head Cap Screw $3.54
62-A. HPS67-962 Guard Column (LH) $66.89
62-C. TS-1550061 Flat Washer $3.54
62-D. TS-1540061 Hex Nut $3.54
62-D. TS-2311081 Hex Nut $0.00

Discontinued

62-E. TS-1525011 Socket Screw Screw $3.54
62-F. TS-1490021 Hex Cap Screw $3.54
62-G. TS-1490101 Hex Cap Screw $3.54
63-A. HPS67-963 Socket Set Screw $3.54
63-C. TS-1490021 Hex Cap Screw $3.54
63-E. TS-1490021 Hex Cap Screw $3.54
63-F. TS-1503041 Socket Head Cap Screw $3.54
64-A. HPS67-964 Pointer $3.54
64-C. TS-1524011 Set Screw $3.54
64-E. TS-1504061 Socket Head Cap Screw $3.54
64-F. TS-1550041 Flat Washer $3.54
65-A. TS-1490041 Hex Cap Screw $3.54
65-B. HPS126-165 Connection Plate $32.65
65-C. TS-2331081 Cap Nut $4.58
65-E. TS-1482081 Hex Head Cap Screw $3.54
65-F. TS-1524051 Socket Set Screw $3.54
66-A. HPS67-966 Upper Bracket $22.68
66-B. HPS126-166 V-Belt $98.33
66-C. TS-1503031 Socket Head Cap Screw $3.54
66-E. TS-1550071 Flat Washer $0.00

Discontinued

66-E. 5051911 Washer, M10 Flat $3.54
66-F. TS-2279351 Socket Set Screw $3.99
67-A. TS-1524021 Socket Set Screw $3.54
67-B. HPS126-167 Retainer Ring $10.70
67-C. TS-1504041 Socket Head Cap Screw $3.54
67-E. TS-1491041 Hex Cap Screw $3.54
67-F. TS-2239911 Socket Head Cap Screw $0.00

Discontinued

68-A. HPS67-968 Lower Bracket $22.68
68-B. HPS126-168 Arbor Pulley $194.27
68-C. TS-1505041 Socket Head Cap Screw $3.54
68-E. TS-1540061 Hex Nut $3.54
68-E. TS-2311081 Hex Nut $0.00

Discontinued

68-F. TS-1504041 Socket Head Cap Screw $3.54
69-A. HPS67-969 Support Shaft $10.70
69-B. HPS126-169 Key $15.37
69-C. TS-1541031 Nylon Lock Hex Nut $3.54
69-E. TS-1524011 Set Screw $3.54
69-F. TS-2360121 Flat Washer $3.54
7-B. HPS126-107 Hub $22.81
7-C. HPS67-207 Arbor Pulley $51.28
7-D. HPS67-312 Threaded Rod $29.05
7-E. HPS126-407 Plug $9.54
7-F. HPS126-507 Bushing $43.48
7-G. HPS126-607 T-Bolt $47.81
70-A. HPS67-970 Guard Column (RH) $97.23
70-B. HPS126-170 Retainer Ring $10.70
70-C. TS-1514011 Socket Head Flat Screw $3.54
70-E. TS-2311101 Hex Nut $3.54
71-A. HPS67-971 Bolt $10.70
71-B. HPS126-171 Tensioner Strap $43.48
71-C. TS-1490021 Hex Cap Screw $3.54
71-E. TS-2331101 Cap Nut $3.54
72-A. TS-1502041 Socket Head Cap Screw $3.54
72-B. HPS126-172 Tensioner Bolt $15.37
72-C. TS-1503021 Socket Head Cap Screw $3.54
72-E. TS-2248121 Flat Head Socket Cap Screw $0.00

Discontinued

73-A. HPS67-973 Link Bar $97.23
73-B. HPS126-173 Pivot Bushing $194.27
73-C. TS-1490041 Hex Cap Screw $3.54
73-E. TS-1515021 Flat Head Socket Set Screw $3.54
74-A. HPS67-974 Socket Head Flat Screw $3.54
74-B. HPS126-174 Washer $29.05
74-C. TS-2310162 Hex Nut $5.16
74-E. TS-1504041 Socket Head Cap Screw $3.54
75-A. HPS67-975 Cylinder $97.23
75-B. HPS126-175 Belt Spanner $43.48
75-C. TS-2312101 Jam Nut $0.00

Discontinued

75-E. TS-1513031 Socket Head Flat Screw $3.54
76-A. TS-149006 Hex Cap Screw $0.00

Discontinued

76-B. HPS126-176 Belt Spanner $43.48
76-C. TS-29-198 Socket Set Screw $0.00

Discontinued

76-E. TS-1504051 Socket Head Cap Screw $4.28
77-A. HPS67-977 Bushing $3.54
77-B. HPS126-177 Handle Plate $26.11
77-C. HPS126-277 Half Dog Point Socket Set Screw $6.25
77-E. TS-1482031 Hex Cap Screw $3.54
78-B. HPS126-178 Handle Nut $6.25
78-C. TS-1515021 Flat Head Socket Set Screw $3.54
78-E. TS-2311061 Hex Nut $3.54
79-B. HPS126-179 Segment Gear $6.25
79-C. HPS126-279 End Cap $10.70
79-E. TS-2288202 Phillips Pan Head Machine Screw $3.54
8-B. HPS126-108 Shaft $22.00
8-C. HPS126-208 Motor Mount $76.89
8-D. HPS126-308 Pivot Roll Support $66.89
8-E. HPS126-408 Steel Ball $10.70
8-F. HPS126-508 Scale Plate $106.94
8-G. HPS126-608 Scale Plate (Short) $26.11
80-B. HPS126-180 Motor Base $265.43
80-E. TS-1525011 Socket Screw Screw $3.54
81-A. HPS67-981 Upper Guard (RH) $0.00

Discontinued

81-B. HPS126-181 Handle Plate $22.68
82-A. HPS67-982 Blade Guard (tilted arbor) $0.00

Discontinued

82-B. HPS126-182 Handle $22.68
83-A. HPS67-983 Blade Guard $0.00

Discontinued

83-B. HPS126-183 Motor $1,395.24
83-E. HPS126-436 Self Tapping Screw $0.00

Discontinued

84-A. TS-1540021 Hex Nut $3.54
84-B. HPS126-184 Motor Pulley $296.03
84-E. HPS67-451 Stud $3.99
85-A. TS-1501051 Socket Head Cap Screw $3.54
85-B. HPS126-185 Washer $26.11
85-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
85-E. HPS67-480 Handle $0.00

Discontinued

86-A. TS-1501091 Socket Head Cap Screw $3.54
86-B. HPS126-186 Screw $6.25
86-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
86-E. HPS67-481 Handle Shaft $0.00

Discontinued

87-A. HPS67-987 Roller $0.00

Discontinued

87-B. HPS126-187 Medium Washer $22.68
87-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
87-E. HPS67-482 Cam $0.00

Discontinued

88-A. HPS67-988 Lock Nut $6.03
88-B. HPS126-188 Plug $38.68
88-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
88-E. HPS67-483 Clamp Pin $0.00

Discontinued

89-B. HPS126-189 Strap Bracket $56.88
89-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
89-E. HPS67-484 Spring $0.00

Discontinued

9-A. HPS67-909 Hand Knob $8.37
9-B. HPS126-109 Nut $9.54
9-C. HPS126-209 V-Belt $71.00
9-D. HPS126-309 Pivot Roll Shaft $60.23
9-E. HPS126-409 Cover Plate $10.70
9-F. HPS126-509 Handle $52.07
9-G. HPS126-609 Scale Plate (Long) $106.94
90-B. HPS126-190 Pin $10.70
90-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
90-E. HPS67-485 Pin $0.00

Discontinued

91-B. HPS126-191 Nut $66.89
91-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
91-E. HPS67-486 Clamp Block $0.00

Discontinued

92-B. HPS126-192 Stop Bushing $53.55
92-E. 1791281 HPS-67HDA: HLD DWN ASSY FOR HPS67/126 $398.00
92-E. HPS67-487 Clamp $0.00

Discontinued

93-B. HPS126-193 Height Stop Collar $48.25
94-B. HPS126-194 Height Adjustment Collar $80.23
95-B. HPS126-195 Height Adjustment Bushing $50.22
96-B. HPS126-196 Insert Pad $10.70
97-B. HPS126-197 Adjustment Shaft $66.89
98-B. TS-224A601 Flat Head Socket Cap Screw $0.00

Discontinued

99-B. HPS126-199 Screw $6.25
HPS126-801-H. HPS126-801 Main Fuse $22.68
HPS126-802-H. HPS126-802 Primary Transformer Fuse $10.70
HPS126-803-H. HPS126-803 Secondary Transformer Fuse $10.70
HPS126-804-H. HPS126-804 Fuse Holder $56.78
HPS126-805-H. HPS126-805 Thermal Overload Main Motor $185.41
HPS126-806-H. HPS126-806 Thermal Overload Scoring Motor $196.62
HPS126-807-H. HPS126-807 Micro Switch (for Door) $142.52
HPS126-808-H. HPS126-808 Emergency Stop Switch $70.92
HPS126-809-H. HPS126-809 Magnetic Starter Main Motor $288.00
HPS126-810-H. HPS126-810 Magnetic Starter Scoring Motor $276.98
HPS126-811-H. HPS126-811 Micro Switch (RPM Indicator) $142.52
HPS126-812-H. HPS126-812 Micro Switch (Saw Blade Cover) $307.83
HPS126-813-H. HPS126-813 RPM Indicator Lights $47.81
HPS67-801-H. HPS67-801 Main Switch $250.23
HPS67-808-H. HPS67-808 Transformer $171.54
HPS67-811-H. HPS67-811 Emergency Stop Switch $61.24
HPS67-812-H. HPS67-812 Emergency Stop Electrical Cabinet $64.48
HPS67-814-H. HPS67-814 Start (Saw Motor) $74.86
HPS67-815-H.
