Porter Cable PC850RSOK Electric Saw Parts

Porter Cable PC850RSOK Parts

Download Schematic

Time to buy a new tool?

Porter Cable PC850RSOK

8.5 Amp Tradesman Or...

$81.99

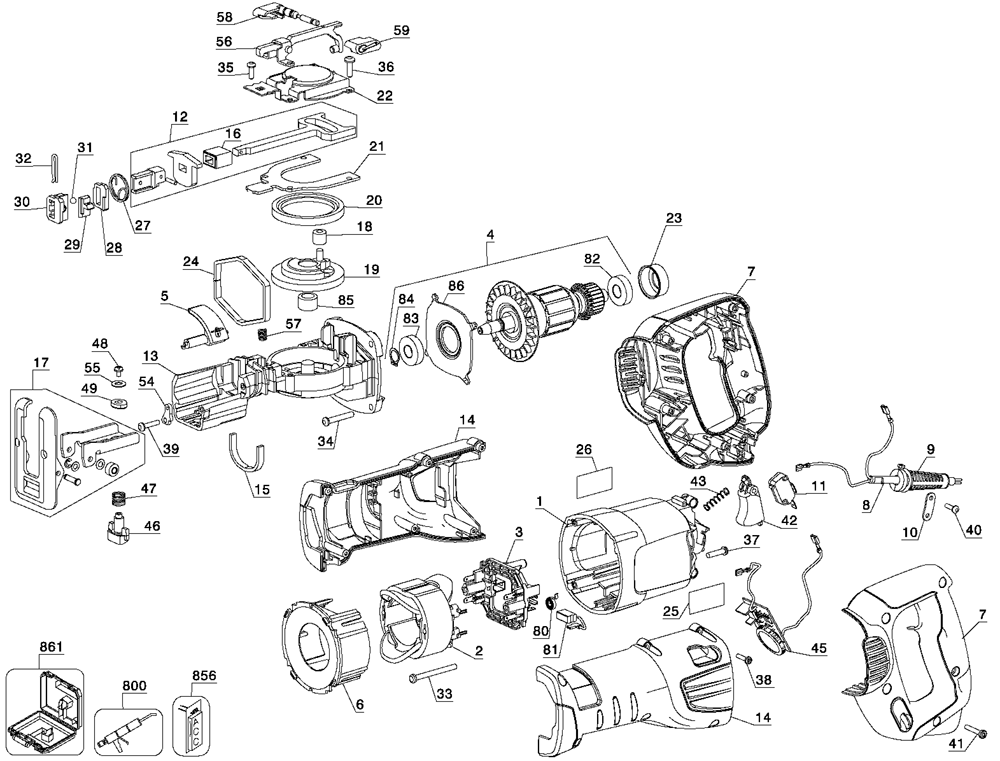

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	448719-79	FIELD	$27.07
3	383597-04	BRUSH RING	$14.10
4	615581-06SV	ARMATURE&BRGS.	$68.20
5	90536752	LEVER	$2.72
6	606522-00	FAN BAFFLE	$1.87
7	90536125	HANDLE SET	$11.02
8	90536723-02	CORDSET	$9.61
9	330005-01	PROTECTOR, CORD	$4.63
9	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
10	329301-00	CLAMP, CORD	$1.24
11	588037-00	SWITCH	$3.32
12	629649-00	SHAFT ASSY.	$18.65
13	629631-00	GEARCASE	$23.63
14	90536122	HOUSING	$17.21
15	609469-00	FELT SEAL	$1.18
16	627747-00	BEARING, RECIP.	$2.25
18	385238-00	NEEDLE BEARING	$3.72
19	629624-00S	GEAR	$25.23
20	627757-00	THRUST RING	$2.06
21	627746-00	PLATE,YOKE	$1.40
22	627749-00	COVER PLATE	$3.51
23	137382-02	SLEEVE	$1.21
24	609479-00	FELT SEAL	$1.18
27	615628-00	SPRING	$1.18
28	612863-00	COLLAR	$2.85
29	606590-00	SLIDER	$2.40
30	612805-00	COLLAR	$3.61
31	000903-00	BALL	$1.24
32	613204-00	CLAMP PIN	$1.18
33	330019-15	SCREW	$1.24
34	330019-15	SCREW	$1.24
35	616037-00	SCREW	$1.18
36	158472-00	SCREW	$1.24
37	330019-13	SCREW, M4X19	$1.24
38	330019-03	SCREW	$1.24
39	330045-07	SCREW M4X20 T20	$1.24
40	562097-00	SCREW	$1.24
41	330019-32	SCREW	$1.23
43	629647-00	SPRING	$1.28
45	90536731	MODULE	$17.88
46	90536756	BUTTON	$3.61
47	627741-00	SPRING	$1.28
48	330024-04	SCREW	$1.24
49	627738-00	LOCK PLATE	$1.28
54	627698-00	BRACKET	$1.28
55	98197-03	WASHER	$1.23
57	627748-00	COMPRESSION SPRING	$1.75
58	90536757	ORBIT SHAFT	$1.48
59	90536758	BUTTON	$1.48
80	383387-00	SPRING, BRUSH	$4.28
81	384719-04	BRUSH	$3.16
82	606290-00	BALL BEARING	$5.67
83	606290-00	BALL BEARING	$5.67
84	696060-00	SNAP RING	$1.24
85	135531-00	BEARING, NEEDLE	$4.09
86	383476-00	PLATE, BEARING	$3.16
800	429698-00	GREASE:4 LB CAN	$72.67
856	610795-00	BLADE PACK	$6.61
