Porter Cable BN200B Air Nailer Parts

Porter Cable BN200B Air Nailer Parts Image

Porter Cable BN200B Parts

Download Schematic

Time to buy a new tool?

Porter Cable BN200B

18 Guage 5/8 Inch to...

$88.99

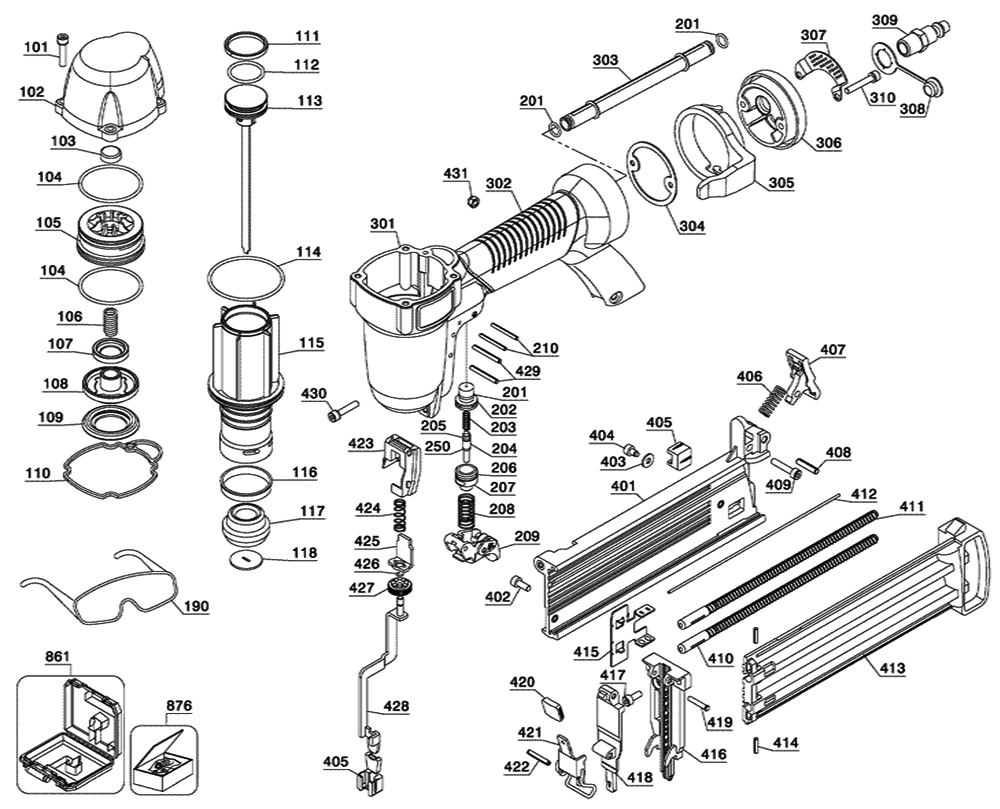

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
101	5140052-17	BOLT	$1.36
102	5140052-18	CAP	$24.33
103	891469	SEAL	$4.13
104	5140052-19	O-RING	$1.09
105	5140052-20	COLLAR	$2.52
106	A02160	SPRING	$2.84
107	894737	HEAD VALVE SEAL	$13.00
108	5140052-21	HD.VALVE PISTON	$1.71
109	5140052-22	SEAL	$2.65
110	5140052-23	CYLINDER CAP SEAL	$1.62
111	894734	PISTON RING	$6.02
112	894746	O-RING	$1.77
113	5140052-80	DRIVER UNIT	$32.55
114	883924	O-RING	$1.59
115	5140052-25	CYLINDER	$5.04
116	894735	CYL CHECK SEAL	$3.01
117	898483	BUMPER	$10.64
118	5140052-81	DRIVER GUIDE	$1.36
190	634065-01	SAFETY GLASSES	$6.94
201	5140052-26	O-RING	$1.09
202	5140052-27	TRIGGER VALVE HEAD	$1.36
203	888890	SPRING	$1.36
204	913374	TRIGGER VALVE STEM	$3.65
205	883848	O-RING	$1.36
206	5140052-28	O-RING	$1.09
207	5140052-29	PLUNGER CAP	$1.36
208	894758	SPRING	$1.18
209	911685	SELECTIVE TRIGG	$15.71
209	5140056-67	TRIGGER	$5.70
210	5140052-30	SPRING PIN	$1.09
250	903621	O-RING	$1.69
301	5140052-31	GUN BODY	$84.29
302	5140052-32	HANDLE GRIP	$4.62
303	5140052-33	LINK ROD	$2.30
304	5140052-34	GASKET	$1.96
305	5140052-35	SPRING RETAINER	$2.92
306	5140056-68	END CAP	$12.23
307	5140052-37	GUIDE PLATE	$1.91
308	884443	PROTECTIVE COVER	$1.69
309	883859	MALE QUICK COUPLER	$8.59
310	5140052-38	BOLT	$1.36
401	5140052-82	MAGAZINE A	$22.10
402	884532	BOLT	$3.01
403	5140052-83	FLAT WASHER	$1.09
404	5140052-84	SCREW	$1.36
405	5140056-69	CUSHION	$2.38
406	886140	LOCK SPRING	$2.00
407	5140056-70	LATCH	$1.50
408	5140052-50	SPRING PIN	$1.09
409	5140052-56	HEX.SOC.HD.BOLT	$3.13
410	5140056-71	SHAFT	$1.09
411	894774	SPRING	$1.18
412	5140052-87	FLAT BAR	$1.36
413	5140052-88	MAGAZINE B	$18.90
414	883897	ROLLED PIN	$1.36
415	5140052-89	PUSHER	$5.78
416	5140052-90	DRIVER GUIDE	$40.12
417	884592	BOLT	$1.36
418	5140052-91	DRIVER GUIDE COVER	$23.32
419	5140052-92	FIXED PIN	$2.30
420	5140056-72	CUSHION	$1.71
421	5140052-94	LOCK HANDLE UNIT	$5.65
422	5140052-95	SPIRAL PIN	$1.09
423	5140052-44	SAFETY GUIDE	$1.76
424	904722	SPRING-SAFETY	$1.69
425	5140052-43	SAFETY	$2.44
426	886218	RING	$1.28
427	894775	THUMB WHEEL	$14.90
428	5140052-96	SAFETY A	$7.89
429	883884	ROLLED PIN	$1.36
430	5140052-97	BOLT ASSY	$1.36
431	5140052-57	LOCK NUT	$1.09
861	N001877	KIT BOX	$39.94
876	N016135	O-RING KIT	$19.27
