Porter Cable 7814

15 Gallon Wet/Dry Va...

$362.99

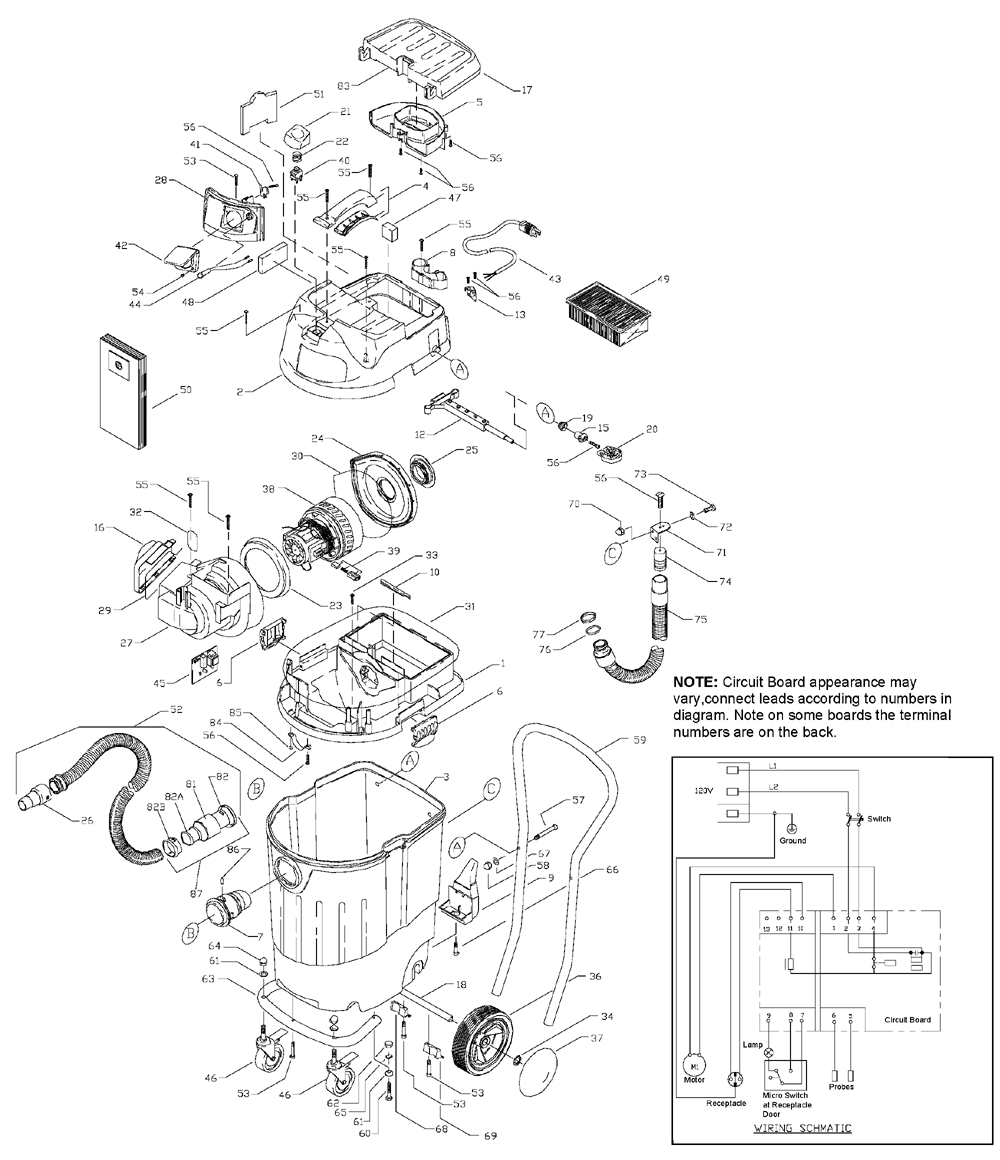

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	897914	LOWER HOUSING	$62.17
2	897898	UPPER HOUSING	$60.51
3	897921	TANK	$109.35
4	897865	HANDLE	$10.03
5	897919	PLATE	$11.88
6	897858	LOCKING STRIP	$9.36
7	897923	CONNECTOR	$17.14
8	897866	ACCESSORY HOLDER	$6.02
9	897864	BRACKET	$7.96
10	897971	SEAL	$7.34
12	904058	SHAKER	$27.24
13	897896	CORD CLAMP	$4.79
15	897877	BRACKET	$4.79
16	897905	COVER	$8.78
17	897884	FILTER COVER	$24.57
18	897922	AXLE	$11.28
19	897880	SOCKET	$3.72
20	897878	HANDLE	$6.78
21	897893	BUTTON	$7.34
22	897894	SPRING	$3.72
23	897909	SEAL	$10.22
24	897911	COVER	$11.28
25	897912	SEAL	$7.34
26	1258825	HOSE END(CONN TO ACC	$25.91
27	897907	MOTOR HOUSING	$34.14
28	897897	PANEL	$12.27
29	897906	GASKET	$6.49
30	897910	GASKET	$8.80
31	897917	GASKET	$6.01
32	897918	GASKET	$6.45
33	897915	SCREW	$3.41
34	897888	WASHER	$3.42
36	897863	WHEEL	$15.93
37	897885	CAP	$8.43
38	897908	MOTOR	$143.65
39	897913	BRUSH	$25.30
40	897895	SWITCH	$8.91
41	897901	MICRO SWITCH	$11.28
42	897900	SOCKET	$54.90
43	897857	CORD	$47.36
44	897899	LIGHT	$9.36
45	897868	CIRCUIT BOARD	$106.78
46	897970	CASTER	$31.96
47	897859	FILTER	$4.79
48	897925	FILTER	$17.94
51	897887	FILTER	$5.41
52	1258808	HOSE ASSEMBLY	$76.33
53	897903	SCREW	$3.72
54	897904	SCREW	$3.41
55	897882	SCREW	$3.00
56	897879	SCREW	$2.25
57	897883	SCREW	$3.45
58	897937	NUT	$6.86
59	897938	HANDLE	$56.95
60	897939	SCREW	$4.96
61	897940	SPACER	$4.96
62	897941	BUSH	$3.72
63	897942	TUBE	$33.05
64	897943	NUT	$6.86
65	897944	O-RING	$4.79
66	897945	SCREW	$3.41
67	897946	WASHER	$1.18
68	897947	L. HANDLE BRACKET	$8.78
69	897948	R. HANDLE BRACKET	$8.78
70	897949	NUT	$7.81
71	897950	BRACKET	$17.44
72	897951	WASHER	$1.18
73	897952	SCREW	$3.41
74	897972	HOSE HOLDER	$8.91
75	897953	DRAIN HOSE	$20.55
76	897954	RING	$7.96
77	897973	NUT	$9.25
81	1258821	BAYONET COUPLING	$11.09
82	1258822	SEAL	$7.60
82	1258823	THREADED RING	$7.90
82	1258824	SLEEVE	$6.81
83	897745	PLATE-WARNING	$12.53
84	898536	SPRING	$9.85
85	898537	RETAINER	$2.02
86	898538	ELECTRODE	$4.13
87	898539	CONNECTOR	$32.03
