Porter Cable 75192-Type-4 Router Parts

Porter Cable 75192-Type-4 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

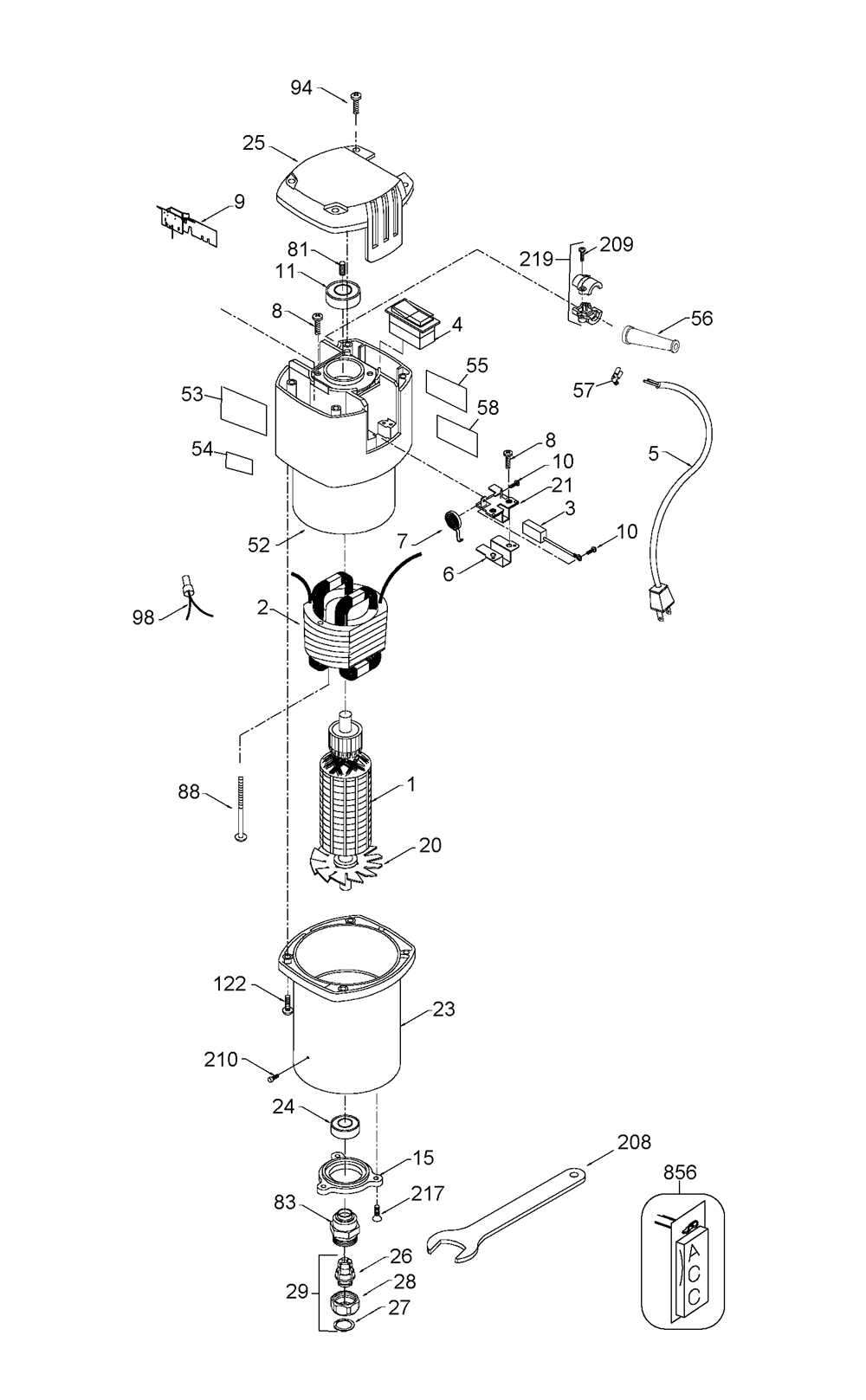

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
57	450213-00	TERMINAL, FEMALE	$1.24
1	873638	ARMATURE	$136.56
2	873637	FIELD	$100.83
3	N031634	BRUSH	$3.38
4	A22805	ROCKER SWITCH	$27.27
5	N017151	CORDSET	$14.98
5	N017151	CORDSET	$14.98
6	698874	BRUSH INSULATOR	$1.36
7	698872	SPRING	$7.92
8	882703	SCREW	$1.36
9	N034800	MODULE	$33.21
10	852310	SCREW	$1.36
11	330003-75	BEARING, BALL	$9.12
15	698811	BRG RETAINER	$4.13
20	875931	FAN	$9.88
21	698844	BRUSH HOLDER	$4.13
23	A23246	LOWER HOUSING ASSY	$46.55
24	146555-01	BEARING, BALL	$16.32
25	A22442	TOP CAP	$10.64
26	876671	COLLET 1/2 INCH	$15.62
27	823030	SNAP-RING	$1.36
28	875893	COLLET NUT	$11.35
52	A22556	HOUSING	$35.56
53	N089396	NAMEPLATE	$1.20
54	A15179	WARNING LABEL	$1.12
55	A22976	WARNING LABEL	$1.41
56	330005-02	PROTECTOR, CORD	$4.37
58	A24391	WARNING LABEL	$1.12
81	859069	PLUG	$3.49
83	698807	CHUCK	$39.37
88	892778	SCREW	$1.84
94	899411	SCREW	$1.09
98	689032	CONNECTOR	$1.36
122	872520	SCREW	$1.36
208	A22709	OPEN-END WRENCH	$3.96
209	874514	SCREW	$1.36
210	800980	PIN	$1.36
217	849819	SCREW	$1.36
219	A23261SV	CORD CLAMP	$7.83
