Porter Cable 691-Type-2 Router Parts

Porter Cable 691-Type-2 Router Parts Image

Porter Cable 691-Type-2 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 691-Type-2

11 Amp 1-3/4 Horsepo...

$181.74

Page-1

Page-2

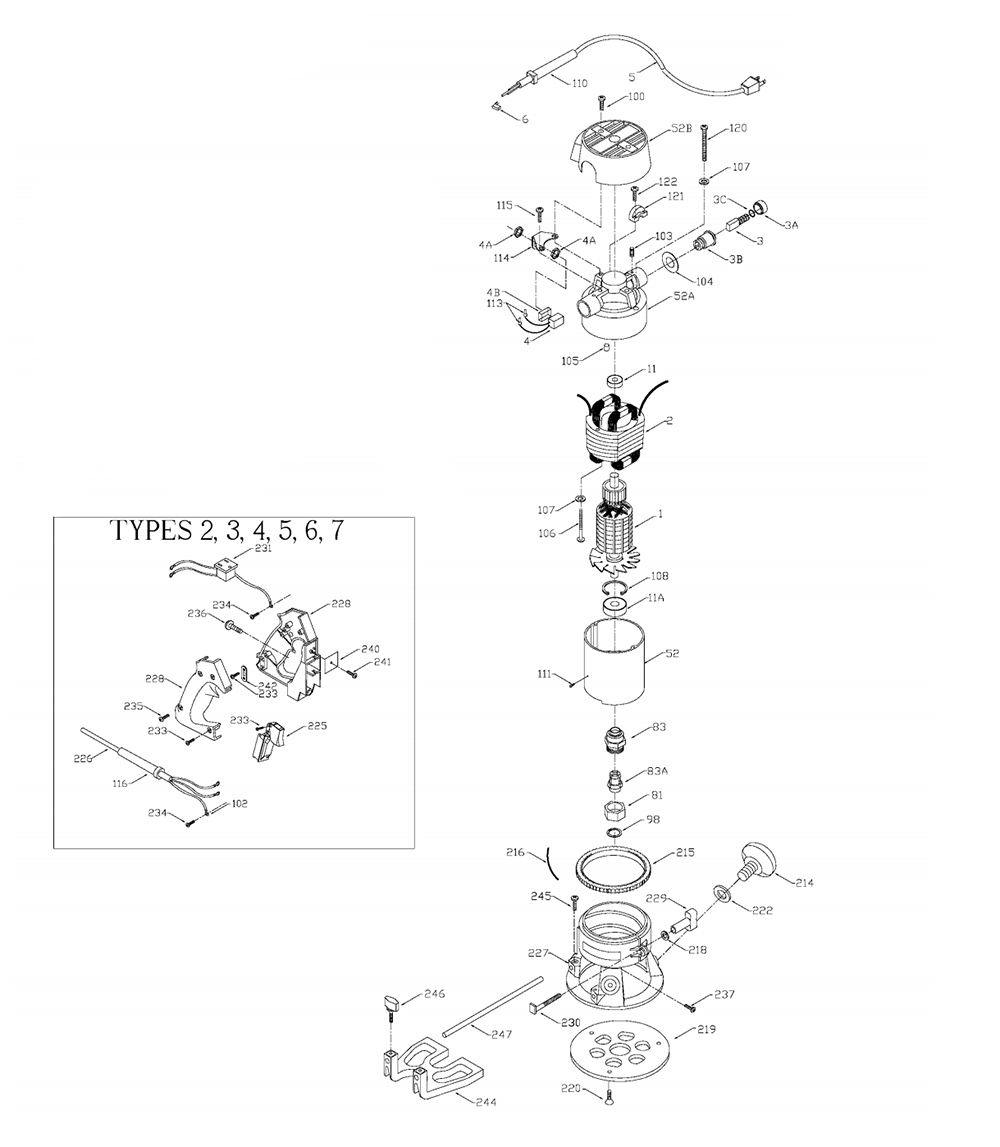

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	903660	ARMATURE	$126.49
2	699326	FIELD	$98.51
2	803104	LEAD	$5.62
3	N031652	BRUSH	$9.10
3	803483	BRUSH CAP	$2.25
3	873497	BRUSH HOLDER	$10.64
4	842606SV	SWITCH	$20.64
4	694771	HEX NUT	$1.36
5	873716	CORD	$14.40
5	873717	CORD	$18.89
11	855284	BEARING	$11.21
11	878064SV	BEARING	$11.35
52	903967SV	CASING & PINS FRONT	$26.19
52	899192SV	REAR HOUSING	$24.81
52	888727	MOTOR HOUSING CAP	$14.29
81	875893	COLLET NUT	$11.35
83	872793	CHUCK	$37.27
83	876671	COLLET 1/2 INCH	$15.62
83	876669	COLLET 1/4 INCH	$15.62
83	876670	COLLET 3/8 INCH	$18.12
98	823030	SNAP-RING	$1.36
100	878813	SCREW	$1.28
102	849314	TERM	$1.36
103	804360	SCREW	$1.36
104	803496	WASHER	$1.36
105	842597	PLUG	$1.36
106	838312	SCREW	$1.28
108	802426	RING	$2.17
110	901266	STRAIN RELIEVER	$1.77
111	800835	PIN	$1.36
113	682063	CONNECTOR VS	$1.36
114	842598	BRACKET SWITCH	$2.74
115	802764	SCREW	$1.36
116	810716	RELIEVER	$4.13
120	681260	SCREW & WASHER	$1.09
121	874137	CORD CLAMP	$5.96
122	877817	SCREW	$1.36
125	A22709	OPEN-END WRENCH	$3.96
125	A22709	OPEN-END WRENCH	$3.96
126	683157	WRENCH OPEN END	$18.91
126	683157	WRENCH OPEN END	$18.91
214	839279	KNOB	$8.33
215	872998	DEPTH RING	$9.64
216	800869	Spring (Sold individually 3 on model)	$1.36
218	823374	WASHER	$1.36
219	875807	SUB BASE	$5.12
220	874117	SCREW	$4.34
220	688860	SCREW	$1.36
222	801821	WASHER	$2.71
225	876770	SWITCH	$20.73
226	802787	115V CORD	$22.43
227	879348	BASE KIT	$140.33
228	876335	HANDLE SET	$14.16
229	874582	CLAMP KNOB	$8.40
230	685526	SCREW	$1.43
231	694125	OUTLET	$8.67
233	882703	SCREW	$1.36
234	892780	SCREW	$1.09
235	859384	SCREW	$1.36
236	803004	SCREW	$1.36
237	694115	SCREW	$1.36
240	694681	COVER	$3.89
241	882183	SCREW	$1.36
242	861434	CORD CLAMP	$1.36
245	803160	SCREW	$1.36
246	882810	KNOB	$2.00
247	824588	ROD GUIDE	$5.69
