Porter Cable 353 Electric Sander & Polisher Parts

Porter Cable 353 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 353

5 Inch Random Orbit ...

$71.99

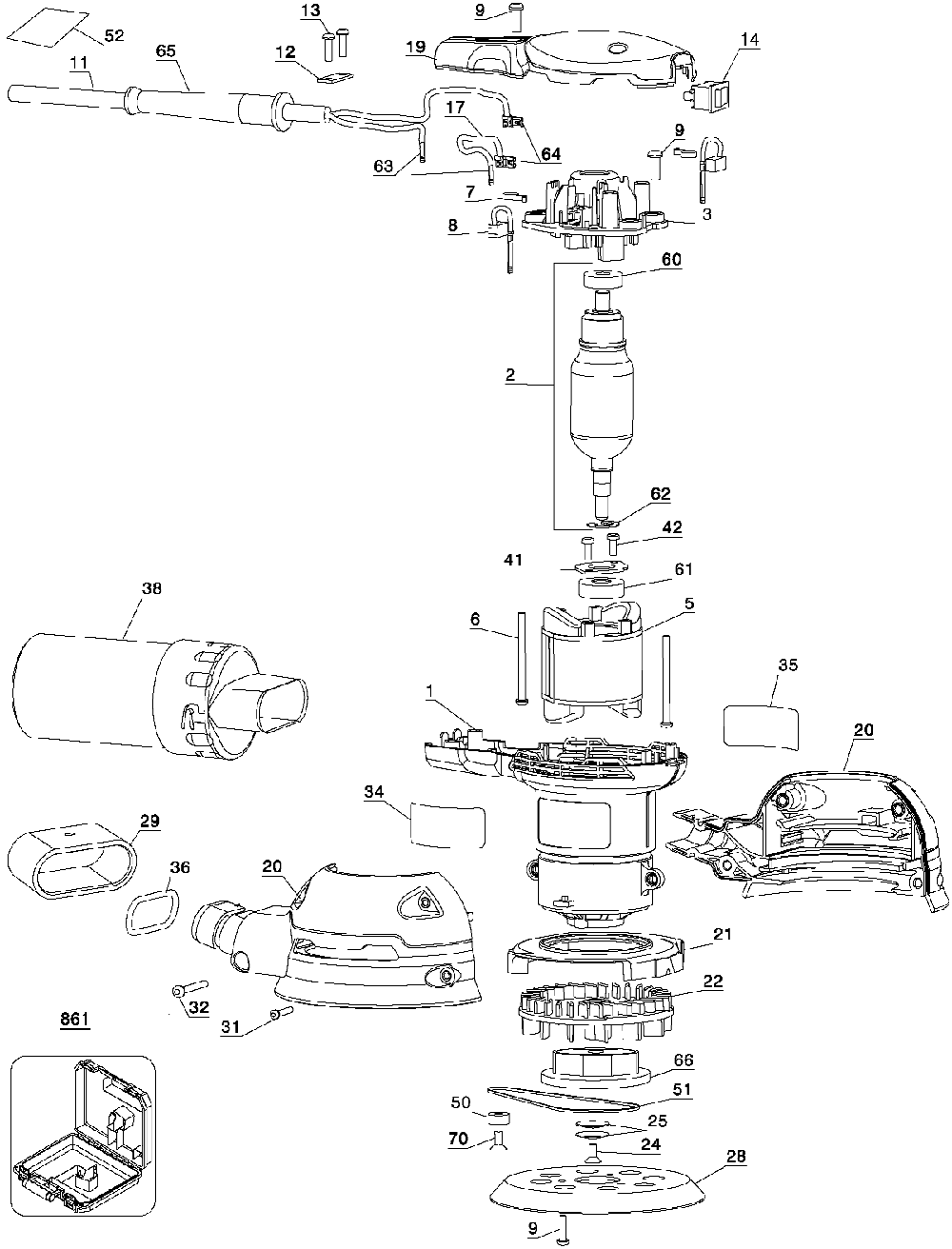

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A22666	FIELD CASE	$5.41
2	624309-00SV	ARMATURE & BRGS	$27.37
3	627401-00SV	BEARING SUPPORT	$3.97
5	624277-00SV	FIELD	$13.38
6	330019-09	SCREW	$1.24
7	445860-00	SPRING, BRUSH	$3.01
8	445861-20	BRUSH	$4.64
9	330019-11	SCREW	$1.24
11	330072-98	CORD/8FT/18-2SJ	$11.53
11	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
12	329301-00	CLAMP, CORD	$1.24
13	330019-02	SCREW, PLASTITE	$1.23
14	A22667	SWITCH	$3.78
17	144989-00	LEAD ASSEMBLY	$1.24
19	A22662	CAP	$5.57
20	A22930	SHROUD	$11.06
21	624240-00	FAN BAFFLE	$1.84
22	A10942	FAN	$6.39
24	098012-11	MACH SCREW	$1.24
25	151652-00	WASHER, CONE	$1.40
28	151662-00	PAD,PSA(MED)5IN	$16.67
29	A21540	CAP	$3.73
31	882185	SCREW MACHINE STEEL	$1.36
32	900548	SCREW	$1.28
34	A22686	ID LABEL	$1.12
35	A23609	NAMEPLATE	$1.21
36	56194-00	RING, O	$1.24
38	A22897SV	DUST BAG ASSY	$18.05
41	632116-00	BEARING RETAINER	$1.10
42	330019-01	SCREW, TORX HD	$1.23
50	878884	FIXED PULLEY	$4.05
51	903373	BELT	$2.69
52	A22981	WARNING LABEL	$1.18
60	330003-03	BEARING, BALL	$4.96
61	330003-17	BEARING, BALL	$9.84
62	151669-00	RING, RETAINING	$1.40
63	825209-00	TERMINAL	$1.23
64	445964-00	RECEPTACLE	$1.24
65	330005-01	PROTECTOR, CORD	$4.63
65	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
66	A10943	BRG.RETAINER	$7.08
70	878197	SCREW	$1.28
861	A22901	KITBOX	$25.90
