Porter Cable 325MAG-Type-1 Electric Saw Parts

Porter Cable 325MAG-Type-1 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

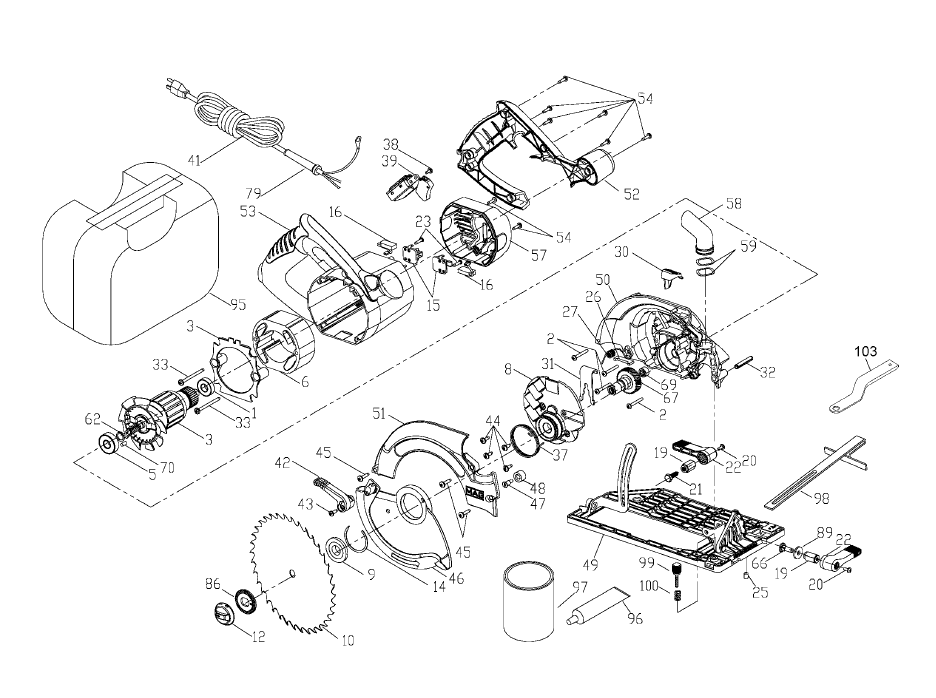

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	886333SV	BALL BEARING	$5.12
6	A01952	SS/A-FIELD (BRAKE)	$48.88
2	864721	SCREW	$1.36
39	A01954	SS/A-SWITCH 20A (BRA	$19.89
3	A01950	ARMATURE W/BAFFLE	$62.65
5	879010	BEARING	$21.21
8	A10507	COVER	$13.98
9	880253	INNER BLADE FLANGE	$2.74
12	876053	BLADE BOLT	$4.65
12	648112-00	BOLT ASSY	$35.14
14	879289	SNAP RING	$1.21
15	A03069	BRUSH HOLDER	$7.41
16	A05003	BRUSH	$3.49
19	910048	NUT	$2.35
20	802764	SCREW	$1.36
21	907829	HEX BOLT	$1.58
22	907828	ADJUSTING LEVER	$1.59
23	893792	SCREW	$1.18
25	876016	SET SCREW	$1.28
26	909936	FELT SEAL	$1.58
27	911907	SPRING	$1.58
30	907815	SPINDLE LOCK BUTTON	$1.58
31	A03141	LOCK PLATE	$2.17
32	A05556	ROLL PIN	$1.21
33	872906	FIELD SCREW	$1.36
37	A03693	SPRING	$2.84
38	882185	SCREW MACHINE STEEL	$1.36
41	N017151	CORDSET	$14.98
42	910374	LEVER	$1.59
44	886538	SCREW	$1.18
45	890753	SCREW	$1.18
46	A12988	LOWER GUARD	$19.97
47	879548	SCREW	$1.36
48	845359	BUMPER	$1.91
49	A01956	SS/A-BASE ASSEMBLY	$36.72
50	A05804	GEAR HSG ASSY	$59.86
51	A07282	UPPER GUARD	$23.50
53	907820	MOTOR HSG	$24.31
54	879678	SCREW	$1.18
57	907822	MOTOR CAP	$5.12
58	908792-01	DUST TUBE	$5.58
59	881171	LOAD WASHER	$1.36
62	684179	RETAINING RING	$1.10
66	913224	SCREW	$1.58
67	654843-00	SS/A-JACKSHAFT ASSEM	$65.12
69	684188	BEARING	$5.69
70	810425	PLUG	$1.36
79	901266	STRAIN RELIEVER	$1.77
86	908895	WASHER	$2.36
89	859359	WASHER	$1.36
96	878499	TUBE GREASE	$9.00
97	879751	LUBRICANT 4 LBS	$52.48
99	842935	SCREW	$3.49
100	823383	SPRING	$1.36
103	145378-01	WRENCH	$2.68
