Porter Cable 100-Type-1 Router Parts

Porter Cable 100-Type-1 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

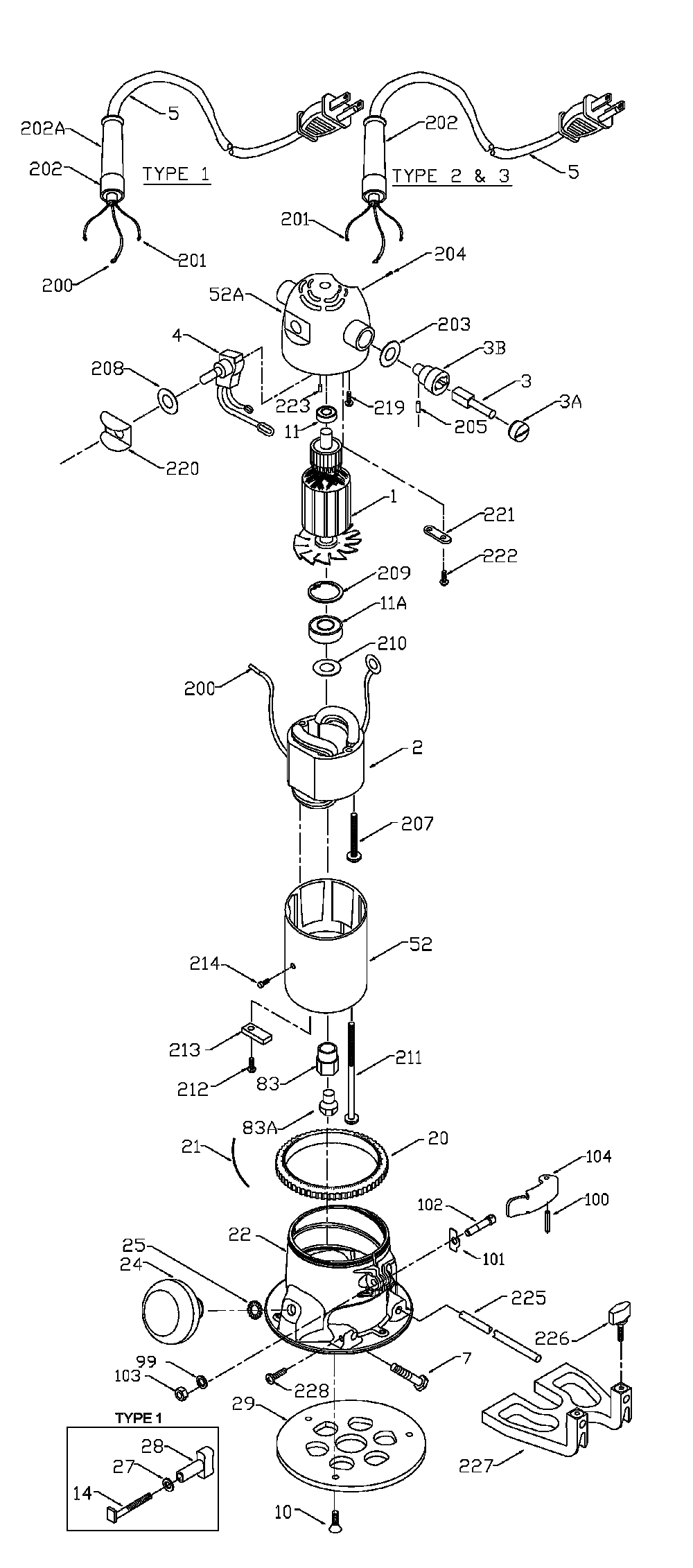

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	680978SV	ARMATURE 115V	$90.45
1	874568	FAN	$9.22
3	800838	BRUSH	$7.50
3	801538	BRUSH CAP	$2.18
3	691858	BRUSH HLDR ASSY	$11.68
3	803105	LEAD	$6.02
4	842606SV	SWITCH	$20.64
5	879182	CORD	$11.68
7	802306	HEX HEAD SCREW	$1.36
10	874117	SCREW	$4.34
10	688860	SCREW	$1.36
11	33000-85	BEARING replaces 855216SV	$15.39
11	802311	BEARING	$10.03
14	685526	SCREW	$1.43
20	872998	DEPTH RING	$9.64
21	800869	SPRING	$1.36
22	5140096-05	SUB BASE	$55.67
24	803674	KNOB	$9.06
24	800995	BASE KNOB	$9.22
25	801821	WASHER	$2.71
27	823374	WASHER	$1.36
28	874582	CLAMP KNOB	$8.40
29	875807	SUB BASE	$5.12
52	800836SV	CASING & PINS FRONT	$30.64
52	695427	REAR MOTOR CASE	$55.69
83	800857	COLLET	$28.15
83	800879	CHUCK	$31.17
99	802417	WASHER	$1.36
100	903118	PIN	$1.69
101	A00323	WEAR PLATE	$1.28
102	903120	SHAFT	$5.78
103	903693	NUT	$1.09
104	903114	BUCKLE	$7.60
200	802303	CONNECTOR	$1.95
201	849314	TERM	$1.36
202	802202	RELIEVER	$1.36
202	872766	SPRING-STRAIN RELVR	$1.36
203	802223	WASHER	$1.36
204	801896	SCREW	$1.36
205	802388	SCREW	$1.18
207	857566	SCREW	$2.39
208	695419	WASHER	$1.36
209	802302	RING	$1.36
210	800865	DUSTSHIELD	$1.92
211	876110	SCREW	$2.50
212	884892	SCREW	$1.28
214	800835	PIN	$1.36
219	852310	SCREW	$1.36
225	824588	ROD GUIDE	$5.69
226	882810	KNOB	$2.00
228	803160	SCREW	$1.36
231	683511	WRENCH	$5.30
219	844107	SCREW	$1.36
