Milwaukee 8965 Electric Blower & Vacuum Parts

Milwaukee 8965 Parts

Download Schematic

Time to buy a new tool?

Milwaukee 8965

1 Stage Wet/Dry Vacu...

$344.99

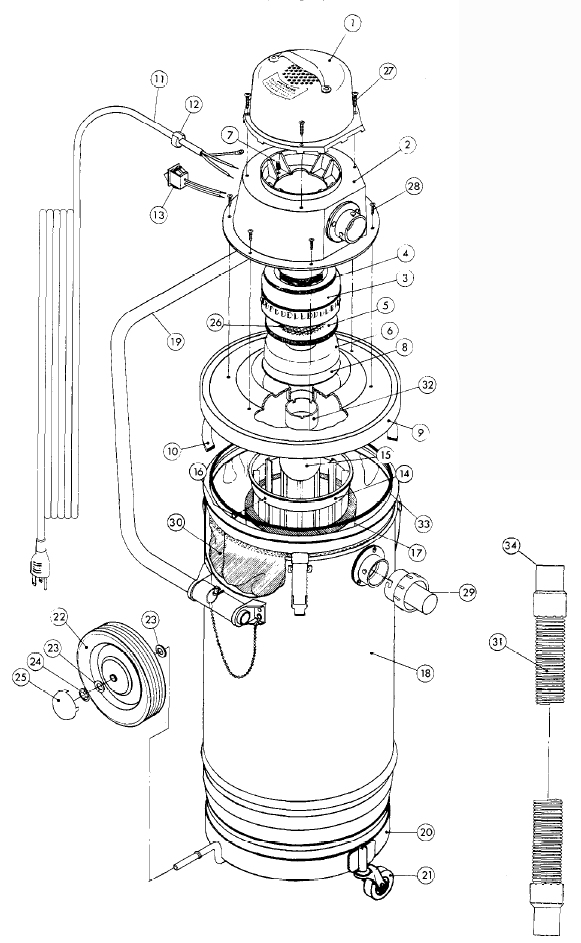

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	31-50-0720	Upper Dome Assembly	$26.60
2	31-50-0730	Lower Dome Assembly	$32.02
4	43-44-0850	Upper Motor Gasket	$4.71
5	43-44-0860	Lower Motor Gasket	$1.69
7	06-95-5338	#10x7/8” Thrdcut Hex Hd. Screw	$0.86
9	42-92-0740	Cover	$30.24
10	43-44-0880	Cover Gasket	$5.26
11	22-64-0695	Cord Set	$26.60
13	23-66-1700	Switch	$5.20
14	42-46-0160	Float Cage	$6.97
15	42-46-0170	Float Ball	$5.15
16	06-95-0060	6x3/8” Slot Hex Hd.	$0.86
18	42-51-0420	Can Assembly	$189.93
19	43-62-1010	Push Handle	$31.16
20	43-08-0200	Dolly Ring	$47.27
21	45-94-0140	Swivel Bearing Caster	$7.02
22	45-94-0285	8 Inch Wheel	$18.35
23	45-88-5253	Washer	$0.86
24	06-57-7505	Pal Locknut	$1.19
25	42-52-0220	Hub Cap	$2.24
26	45-03-0140	Screen	$4.44
27	06-95-3320	8 x 1 Inch Self Tap. Phillips Truss Head	$0.86
28	06-95-0223	8 X 3/4 Inch Self Tap. Phillips Truss Head	$0.86
32	43-44-0890	Float Ball Gasket	$2.79
33	42-68-0620	Filter Ring	$3.61
34	42-76-0220	Molded Vat Hose Cuff End	$5.26
