Milwaukee 6792-20 Electric Screwdriver Parts

Milwaukee 6792-20 Parts

Download Schematic

Time to buy a new tool?

Milwaukee 6792-20

0-2500 RPM Power Uni...

$119.99

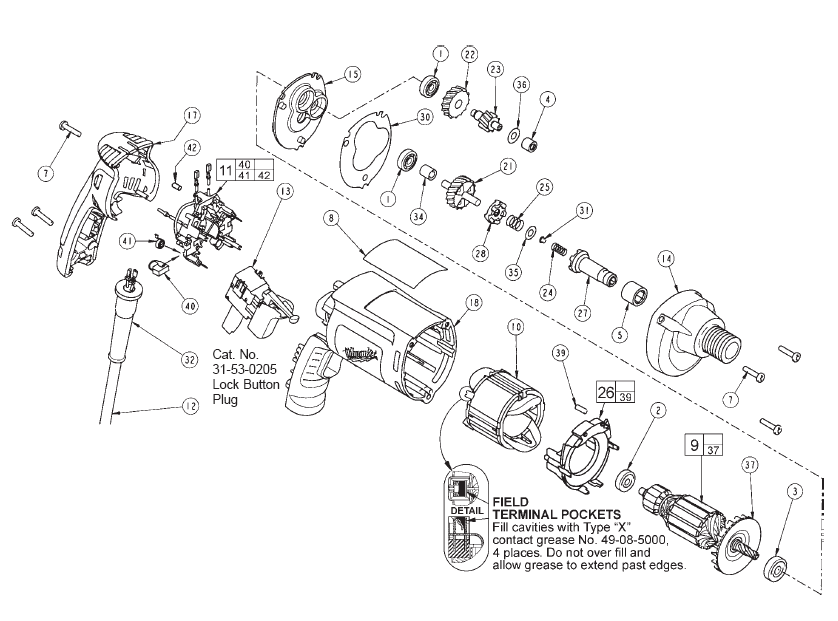

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	02-04-0640	Ball Bearing	$3.94
2	02-04-0645	Ball Bearing	$3.28
3	02-04-0852	Ball Bearing	$3.34
4	02-50-2400	Needle Bearing	$1.52
5	02-50-3245	Needle Bearing	$23.30
7	06-82-7275	7-18 x 3/4 Slotted Plastite T-20	$0.86
8	12-99-2665	Service Nameplate	$6.14
9	16-10-2205	Armature	$57.30
10	18-07-2200	Field	$29.12
11	22-18-1210	Brush Card Assembly	$11.81
12	22-64-6510	Cord Assembly	$11.31
12	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
13	23-66-2585	Switch	$25.78
14	28-14-2395	Gearcase	$27.59
15	28-28-2315	Diaphragm	$5.59
17	31-15-2010	Handle Halve	$4.27
18	31-50-2010	Motor Housing	$9.83
21	32-10-0525	Clutch Gear Assembly	$8.62
22	32-40-0100	Intermediate Gear	$10.98
23	36-66-0120	Intermediate Shaft	$9.88
24	40-50-0095	Separator Spring	$0.97
25	40-50-8515	Bias Spring	$0.86
26	42-14-0460	Baffle Assembly	$1.19
27	42-66-0715	Clutch Chuck Assembly	$17.80
28	42-70-0310	Drive Clutch	$6.25
30	43-44-0985	Gasket	$0.86
31	44-60-0505	Thrust Pin	$2.29
32	44-76-0210	Cord Protector	$1.63
32	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
34	45-36-1280	Spacer	$0.86
35	45-88-0555	Clutch Thrust Washer	$0.86
36	45-88-7990	Thrust Washer	$0.86
37	22-84-0845	Fan	$6.31
39	45-30-0030	Slug	$0.86
40	22-18-1310	Brush Assembly	$6.80
41	23-52-1610	Brush Spring	$0.92
42	45-30-0035	Slug	$0.86
