Milwaukee 6116-30 Electric Grinder Parts

Milwaukee 6116-30 Electric Grinder Parts Image

Milwaukee 6116-30 Parts
"4/5"" 12A SAG - PADDLE W/LOCK-ON"

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 6116-30
4-1/2 Inch 5 Inch 12...
$124.99
Tool Diagram    (Click image to Zoom in) View larger Image

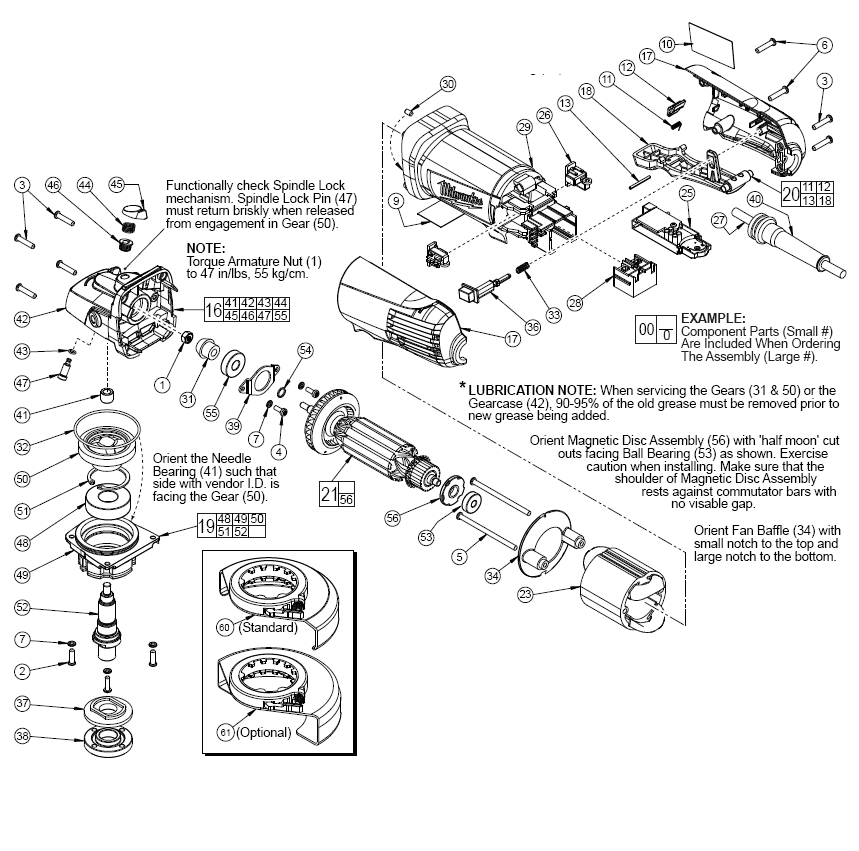

Milwaukee 6116-30 Electric Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 05-55-0620 M5 Hex Nut $0.86
2 05-88-1210 M4 x 14mm Pan Hd. T-20 Screw $0.86
3 05-88-1250 M4 x 20 Pan Hd. T-20 Screw $0.86
4 05-88-1280 M4 x 10 Pan Hd. T-20 Screw $0.86
5 05-88-1290 M4 x 76 T-20 Screw $0.86
6 05-88-1300 M4 x 28 T-20 Screw $0.86
7 05-90-0225 Split Washer $0.86
11 40-50-1480 Spring $0.86
12 42-42-0620 Lock-Off Lever $0.86
16 14-29-0310 Gearcase Assembly $21.93
17 14-34-0725 Rear Handle Assembly $2.51
18 31-92-0420 Paddle $0.97
19 14-73-0410 Spindle/Hub Assembly $29.02
20 14-78-0500 Paddle Assembly $1.24
21 16-10-7010 Service Armature Assembly $48.50
23 18-07-2305 Service Field $25.90
25 22-09-1725 Module Assembly $26.57
26 22-22-1560 Carbon Brush Assembly $3.17
27 22-64-2020 Cord $8.73
27 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
28 23-66-2665 Switch $5.54
29 31-50-2420 Motor Housing $4.38
30 31-53-0240 Bearing Retaining Plug $0.86
31 32-60-1310 Bevel Pinion $9.72
32 34-40-0180 O-Ring $0.86
33 40-50-1625 Lock-On Spring $0.86
34 42-14-0490 Fan Baffl e $0.86
36 42-42-0660 Lock-On Shaft $0.86
37 43-34-0036 Disk Flange $3.23
38 44-40-0035 Flange Nut $2.95
39 44-66-0450 Bearing Retainer $0.86
40 44-76-0210 Cord Protector $1.63
40 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
41 02-50-0025 Needle Bearing $2.84
43 34-40-0450 O-Ring $0.86
44 40-50-1330 Spring $0.86
45 42-42-0590 Spindle Lock Button $0.86
46 42-42-0580 Spindle Lock Tube $1.36
47 42-60-1660 Spindle Lock Pin $0.86
48 02-04-1150 Ball Bearing $3.23
49 28-53-0410 Lower Gearcase Hub $7.74
50 32-05-1310 Bevel Gear $10.32
51 34-80-2275 Internal Snap Ring $0.86
52 38-50-1280 Spindle $7.90
54 45-88-0406 Washer $0.86
55 02-04-0620 Ball Bearing $1.58
56 23-27-0110 Magnetic Disc Assembly $1.80
60 43-54-1070 "4.5"" T27 Guard Assembly" $7.35
61 43-54-1090 "4.5"" T1 Guard Assembly" $10.71
1001 43-54-1095 "5"" T1 Guard Assembly (Optional)" $11.15
1002 42-62-0100 Side Handle (Not Shown) $7.02
1003 49-96-7205 Spanner Wrench (Not Shown) $5.32
1004 43-54-1075 "5"" T27 Guard Assembly (Standard)" $7.24
