Milwaukee 6078 Sanders & Polishers Parts

Milwaukee 6078 Parts

"7/9"" DIAL SP 13A DI SANDER "

Download Schematic

Time to buy a new tool?

Milwaukee 6078

7/9 Inch 13 Amp Sand...

$194.99

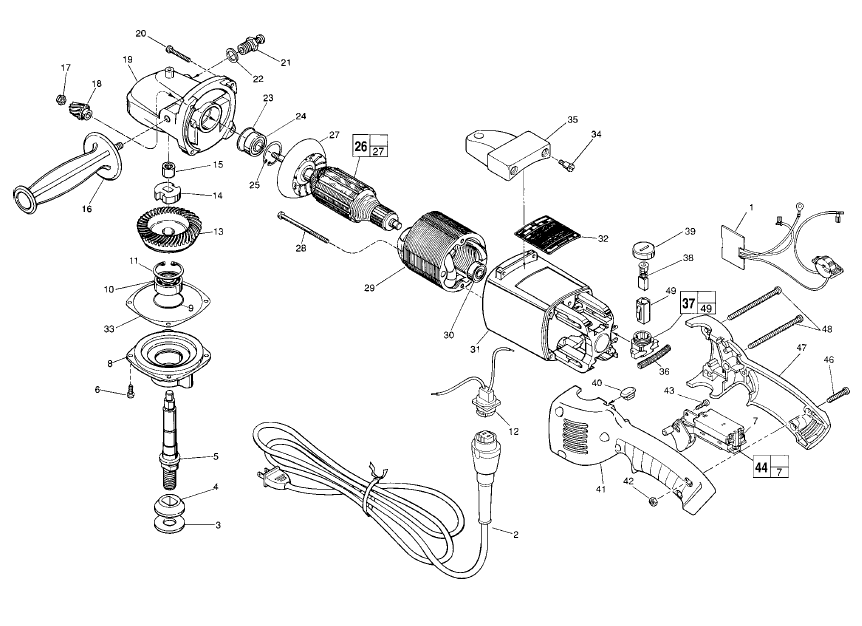

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
3	45-88-8465	Spindle Washer	$0.86
4	49-05-0060	Spindle Washer - Flange	$2.62
5	38-50-5645	Spindle Shaft	$25.56
6	06-82-8864	"10-24 x 1/2"" Pan Hd. Sems T-25 Screw"	$0.86
7	05-89-0045	Terminal Screw	$1.46
8	28-14-1900	Lower Gear Case	$21.38
11	34-80-2960	Retaining Ring	$1.03
13	32-05-2191	Spiral Bevel Gear	$26.60
14	42-74-0080	Spindle Locking Cog	$3.12
15	02-50-2423	Needle Bearing	$1.19
18	32-60-1286	Spiral Bevel Pinion	$14.06
19	28-14-2090	Upper Gear Case	$31.00
20	06-82-7224	"10-14 x 1"" Pan Hd. Plastite T-25 Screw"	$0.86
21	44-20-0235	Spindle Lock Assembly	$5.04
22	45-88-5320	Flat Washer	$0.86
23	34-40-1375	O-Ring	$0.86
24	02-04-1229	Ball Bearing	$4.71
25	34-80-2600	Retaining Ring - Internal	$0.86
27	22-84-0710	Fan	$5.43
28	06-82-7375	8-16 x 2.50 Slotted Plastite T-20	$0.86
29	18-50-0170	120 V. Field	$56.10
30	02-04-0845	Ball Bearing	$5.26
32	12-20-0625	Service Nameplate Kit	$6.36
33	45-14-0185	Shim .005 Thick	$0.86
34	45-04-0720	Shoulder Screw	$0.86
35	31-70-0140	Tool Rest	$3.94
36	40-50-7770	Brush Holder Spring	$0.86
37	22-22-1325	Brush Holder Assembly	$2.29
38	22-18-0680	Carbon Brush Assembly	$8.99
38	N09	Carbon Brush Set	$8.50
39	23-44-0210	Brush Retaining Screw	$2.18
40	42-38-0190	Bumper	$1.46
41	31-44-1771	Left Handle Half	$6.31
42	06-55-1050	10-24 Hex Nut	$0.86
43	06-82-7409	"8-16 x 1/2"" Slot. Pan Hd. T-20 Screw"	$0.86
44	23-66-1940	Switch	$26.62
46	06-82-2568	"10-24 x 7/8"" Slot. Pan Hd. T-25 Screw"	$0.86
47	31-44-1776	Right Handle Half	$6.31
48	06-82-2598	"10-24 x 2-3/4"" Slot. Pan Hd. T-25 Screw"	$0.86
49	22-20-0660	Brush Tube	$0.86
