Milwaukee 5616-20 Router Parts

Milwaukee 5616-20 Parts

ROUTER 2-1/4 MAX HP

Download Schematic

Time to buy a new tool?

Milwaukee 5616-20

2-1/4 Max HP EVS Bod...

$179.00

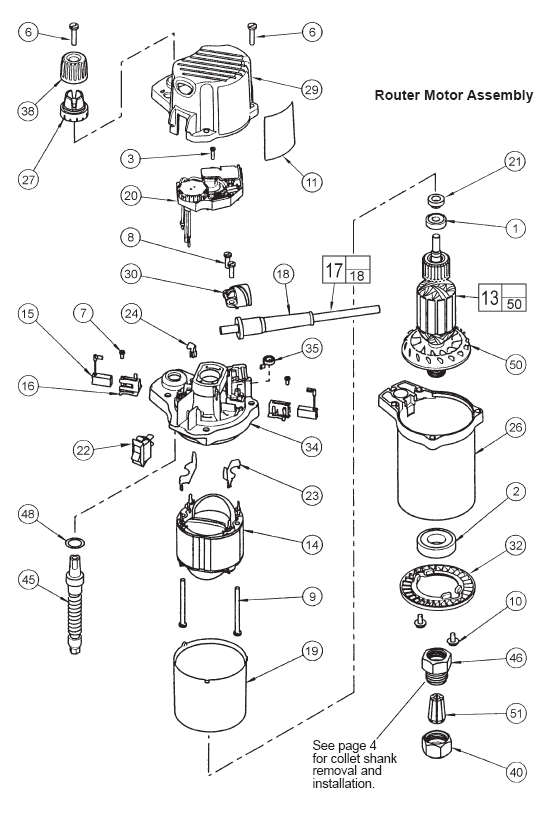

Page-1

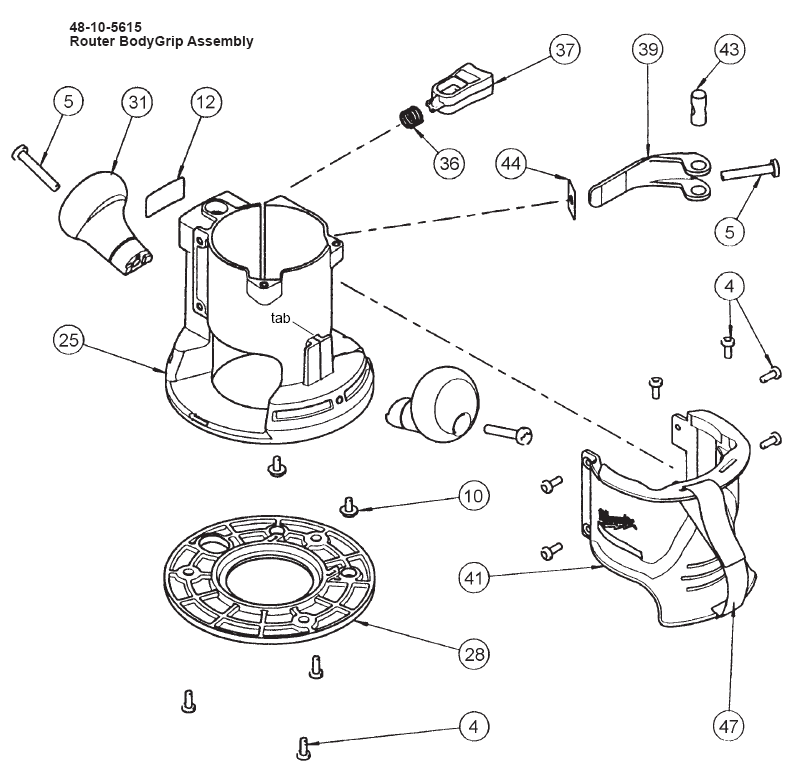

Page-2

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	02-04-0852	Ball Bearing	$3.34
3	06-82-7225	"4-20 x 1/2"" Pan Hd. Plastite T-10"	$0.86
6	06-82-5574	"10-24 x 7/8"" Pan Hd. Tapt. T-25 Screw"	$0.86
7	06-82-7212	4-20x1/4” Pan Hd. Plastite T-10	$0.86
8	06-82-7270	"8-16 x 5/8"" Slt. Pan Hd. Plast. T-20"	$0.86
9	06-82-7455	"8-16 x 2.38"" Pan Hd. Slt. Plast. T-20"	$0.86
11	12-20-0255	Service Nameplate Kit	$3.94
13	16-30-0015	Armature	$62.95
14	18-30-1015	Field	$38.96
15	22-16-0410	Carbon Brush	$1.85
16	22-22-0165	Brush Tube	$8.01
17	22-64-0320	Cord Set Assembly	$14.94
18	44-76-0210	Cord Protector	$1.63
18	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
19	23-16-0405	Field Insulator	$2.95
20	14-20-0055	Electronic Feedback Module	$36.46
21	23-38-0200	Tachometer	$7.52
22	23-66-2280	Rocker Switch	$10.27
23	23-74-0025	Field Terminal	$0.97
24	23-74-0055	Connector Terminal	$0.97
26	28-50-0105	Motor Housing	$22.75
27	31-01-0025	Depth Scale	$2.79
29	31-15-0095	Motor Cover	$5.65
30	31-17-0070	Cord Clamp	$1.19
32	31-55-0025	Contamination Shield	$2.68
34	31-50-0106	Motor Frame	$10.98
35	40-50-0190	Brush Spring	$0.86
38	43-98-0531	Depth Knob	$1.41
40	44-40-0095	Collet Nut	$4.38
45	45-08-0030	Depth Shaft Assembly	$11.97
46	45-10-0081	Collet Shank (See reverse side for servicing)	$8.62
48	45-88-0045	Washer	$0.97
50	22-84-0380	Fan Assembly	$6.08
51	48-66-0985	"1/4"" Collet"	$28.50
51	48-66-1010	"1/2"" Collet"	$28.50
1001	49-96-0365	"1-1/8"" Open End Wrench (Not Shown)"	$5.54
4	06-82-5314	10-24 x .5 Pan Hd. Tapt. T-25	$0.86
5	06-82-5514	"1/4-20 x 1.50"" Slt. Pan Hd. Tapt. T-30"	$1.03
10	06-82-8865	"10-32 x .43"" Pan Hd. Tapt. Sems T-25"	$1.24
12	12-25-0235	Nameplate	$0.86
25	26-06-0100	Base	$35.75
31	31-44-0130	Knob Handle	$5.81
36	40-50-4005	Compression Spring	$0.86
37	42-42-0126	Release Button	$1.96
39	44-10-0435	Base Clamp Lever	$2.73
41	44-52-0020	Body Grip	$7.41
43	44-60-0095	Thru Pin	$2.02
44	44-66-0035	Wear Plate	$0.92
47	45-56-0225	Handle Strap Assembly	$1.46
