Milwaukee 5387-22 Electric Drill & Driver Parts

Milwaukee 5387-22 Electric Drill & Driver Parts Image

Milwaukee 5387-22 Parts
DRILL HMR 1/2 8.5 AMP DUAL SPD KIT

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 5387-22
1/2 Inch Dual Speed ...
$189.99
Tool Diagram    (Click image to Zoom in) View larger Image

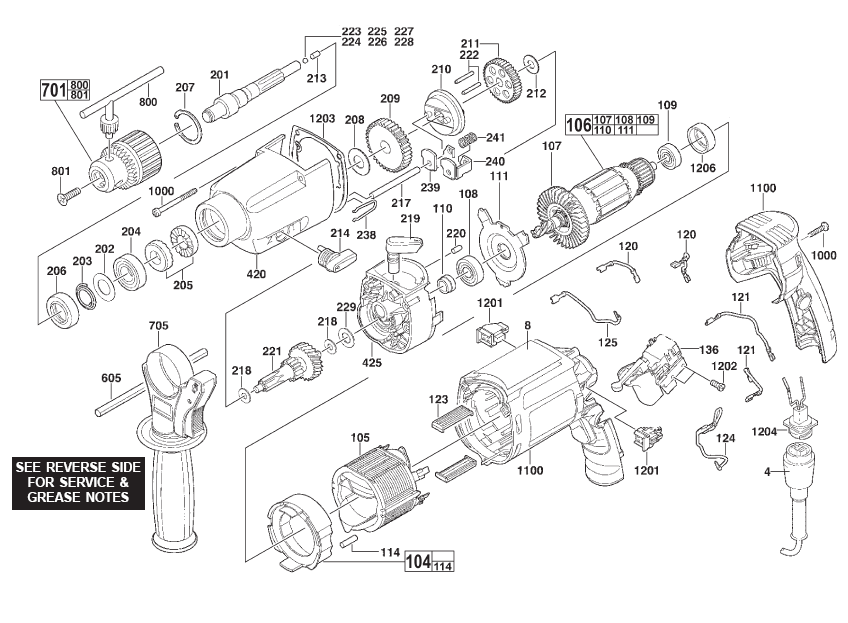

Milwaukee 5387-22 Electric Drill & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
4 48-76-5010 QUIK-LOK CORD SET $27.50
8 12-99-5381 SERVICE NAMEPLATE $4.27
104 42-14-0115 AIR DEFLECTION RING $1.80
105 18-07-0121 FIELD $29.22
106 16-07-0124 ARMATURE ASSEMBLY $62.10
107 22-84-0940 FAN $0.86
108 02-04-0063 BALL BEARING $5.32
109 02-04-0064 BALL BEARING $3.45
110 45-22-0055 SLEEVE $0.97
111 42-92-0145 BEARING COVER $1.24
114 45-30-0210 VINYL SLUG $0.86
120 23-94-0041 WIRE ASSEMBLY - BLACK $0.86
121 23-94-0042 WIRE ASSEMBLY - BLACK $0.86
123 42-70-1100 FIELD CENTERING CLIP $0.86
124 23-94-0043 WIRE ASSEMBLY - RED $0.86
125 23-94-0044 WIRE ASSEMBLY - RED $0.97
136 23-66-0034 SWITCH $30.29
201 38-50-0100 SPINDLE $22.59
202 45-88-8295 WASHER $0.86
203 40-50-8890 VIBRATION SPRING $0.86
204 02-04-1830 BALL BEARING $7.13
205 44-84-0295 RATCHET (SET OF 2) $2.45
206 44-90-0004 SEAL RING $2.45
207 44-90-0019 RETAINING RING $0.86
208 45-88-1300 WASHER $0.86
209 32-75-0045 SPINDLE GEAR $13.95
210 44-90-0065 SHIFT RING $9.49
211 32-75-0055 SPINDLE GEAR $11.04
212 45-88-0335 WASHER $0.86
213 44-60-1490 PIN $0.86
214 44-10-0025 SHIFT LEVER $1.63
217 44-60-1470 PIN $0.97
218 45-88-8345 THRUST WASHER $0.86
219 44-10-0035 SHIFT LEVER $9.44
220 44-60-1480 PIN $0.86
221 32-60-0065 REDUCTION GEAR $37.48
222 44-60-1475 PIN $0.86
223 02-02-0105 BALL - 3.4mm $0.86
224 02-02-0125 BALL - 3.6mm $0.86
225 02-02-0155 BALL - 3.7mm $0.86
226 02-02-0115 BALL - 3.8mm $0.86
227 02-02-0160 BALL - 3.9mm $0.86
228 02-02-0110 BALL - 4.0mm $0.86
229 45-88-0315 WASHER $0.86
238 40-50-0150 RETAINING SPRING $0.86
239 42-70-0085 SHIFTING CLIP $1.69
240 42-70-0090 SHIFTING CLIP $3.39
241 40-50-0335 PRESSURE SPRING $0.86
420 31-40-0095 GEARCASE $27.94
425 28-28-0025 DIAPHRAGM ASSEMBLY $27.08
605 43-46-0172 DEPTH GAGE $3.12
701 48-66-0087 "1/2"" CHUCK (INCLUDES #800)" $29.98
800 49-15-5300 SIDE HANDLE $11.75
1000 05-80-0430 6MM LH SCREW $3.28
1100 14-46-0030 BOLT KIT (3 BOLTS REQUIRED) $4.93
1200 14-38-0145 HOUSING w/BACK HANDLE $19.61
1201 14-46-0020 MAINTENANCE SET (NOT SHOWN) (INCLUDES TUBE TYPE ... $35.24
1202 22-16-0065 CARBON BRUSH SET (2 PER PKG) $17.47
1203 05-81-0932 SCREW $0.86
1204 45-06-0025 SEAL $1.96
1206 22-56-0050 BLADE HOUSING ASSEMBLY $4.27
10001 45-22-0540 RUBBER SLEEVE $0.86
