Milwaukee 4297-1 Coring Drill Motor Parts

Milwaukee 4297-1 Parts

DRILL 1-1/4 MAG MOT 11.5A

Download Schematic

Time to buy a new tool?

Milwaukee 4297-1

No. 3 MT Motor for E...

$679.99

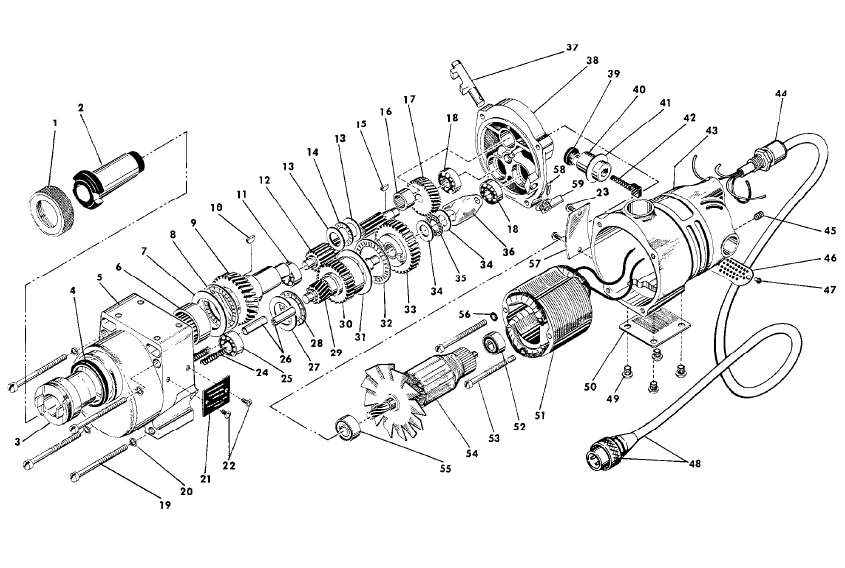

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	42-52-0050	Taper Socket Cap	$31.87
7	45-88-0530	Thrust Bearing Washer	$1.63
8	02-80-5000	Thrust Bearing	$2.18
9	32-75-2581	Spindle Gear	$51.85
10	06-42-2400	Woodruff Key	$0.86
12	36-66-3751	Pinion Shaft Assembly	$60.10
14	02-80-1525	Thrust Bearing	$2.02
15	06-42-1600	Woodruff Key	$0.86
16	02-50-4830	Needle Bearing	$3.61
17	32-40-1581	Intermediate Gear	$23.58
18	02-04-1205	Ball Bearing	$4.38
21	12-98-2105	Instruction Plate	$1.14
24	40-50-6300	Shifting Spring	$0.86
26	44-70-0100	Shifting Plunger	$2.13
27	45-88-0520	Thrust Washer	$1.14
28	02-80-1800	Thrust Bearing	$1.41
31	45-88-0530	Thrust Bearing Washer	$1.63
32	02-80-5000	Thrust Bearing	$2.18
33	32-10-0051	Clutch Gear Assembly	$43.19
34	45-88-0510	Thrust Bearing Washer	$0.86
35	02-80-1200	Thrust Bearing	$1.58
36	45-98-0090	Shifting Yoke	$2.95
39	23-44-0030	Brush Retaining Screw	$2.07
45	06-83-2650	1/4-20x3/8 Knrl. Set Screw	$0.86
47	06-81-8650	6-32x1/4 Rd. Hd. Sem	$0.86
52	02-04-1070	Ball Bearing	$15.82
55	02-04-1265	Ball Bearing	$21.93
56	06-97-2200	Lockwasher	$0.86
58	06-65-0840	1/8x3/4 Groove Pin	$0.86
