Milwaukee 4292-1 Coring Drill Motor Parts

Milwaukee 4292-1 Parts

DRILL 1-1/4 MAG MOT 11.5A

Download Schematic

Time to buy a new tool?

Milwaukee 4292-1

No. 3 MT Motor for E...

$679.99

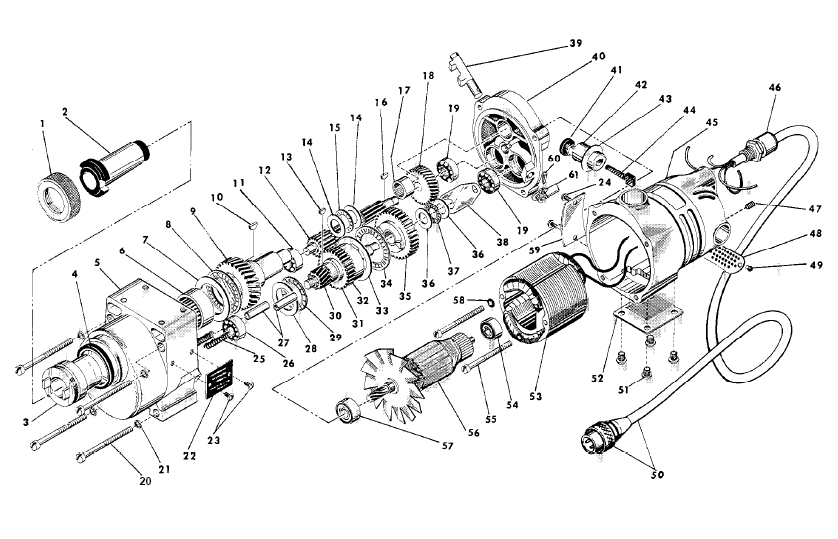

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	42-52-0050	Taper Socket Cap	$31.87
7	45-88-0530	Thrust Bearing Washer	$1.63
8	02-80-5000	Thrust Bearing	$2.18
9	32-75-2561	Spindle Gear	$47.43
10	06-42-2400	Woodruff Key	$0.86
12	36-66-3751	Pinion Shaft Assembly	$60.10
13	06-42-2000	Woodruff Key	$0.86
15	02-80-1525	Thrust Bearing	$2.02
16	06-42-1600	Woodruff Key	$0.86
17	02-50-4830	Needle Bearing	$3.61
18	32-40-1581	Intermediate Gear	$23.58
19	02-04-1205	Ball Bearing	$4.38
22	12-98-2105	Instruction Plate	$1.14
25	40-50-6300	Shifting Spring	$0.86
27	44-70-0100	Shifting Plunger	$2.13
28	45-88-0520	Thrust Washer	$1.14
29	02-80-1800	Thrust Bearing	$1.41
30	32-60-1041	Pinion Gear	$17.58
31	36-14-0061	Clutch Shaft	$47.17
33	45-88-0530	Thrust Bearing Washer	$1.63
34	02-80-5000	Thrust Bearing	$2.18
35	32-10-0051	Clutch Gear Assembly	$43.19
36	45-88-0510	Thrust Bearing Washer	$0.86
37	02-80-1200	Thrust Bearing	$1.58
38	45-98-0090	Shifting Yoke	$2.95
41	23-44-0030	Brush Retaining Screw	$2.07
47	06-83-2650	1/4-20x3/8 Knrl. Set Screw	$0.86
49	06-81-8650	6-32x1/4 Rd. Hd. Sem	$0.86
54	02-04-1070	Ball Bearing	$15.82
57	02-04-1265	Ball Bearing	$21.93
58	06-97-2200	Lockwasher	$0.86
60	06-65-0840	1/8x3/4 Groove Pin	$0.86
