Milwaukee 4253-1 Coring Drill Motor Parts

Milwaukee 4253-1 Parts

DRILL 1/2 MAG MOTOR 6.2A

Download Schematic

Time to buy a new tool?

Milwaukee 4253-1

1/2 Inch Motor for E...

$314.99

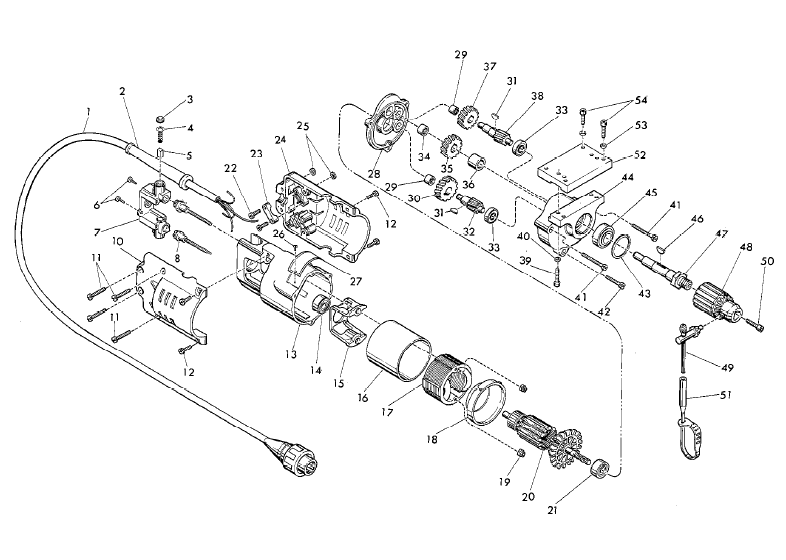

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	22-64-0760	Cord Set	$46.46
2	44-76-0050	Strain Relief	$1.63
3	23-44-0190	Brush Retailing Screw	$0.86
4	23-52-0160	Brush Spring	$1.52
5	22-16-0275	Carbon Brush	$8.99
5	N11	Carbon Brush Set	$8.50
10	31-15-0120	Cover Half	$6.97
11	06-81-0425	8-32x7/8 Pan Hd Screw	$0.86
16	23-16-0456	Field Insulator	$0.86
17	18-30-0100	12OV Field	$39.16
19	06-57-2975	8-32 Flexlock Hex Nut	$1.30
22	06-81-4205	6-32x3/4 Phillips Pan Hd Mach Screw	$0.86
23	31-17-0065	Cord Clamp	$4.27
24	31-15-0121	Cover Half Assembly	$9.94
25	06-55-0825	8-32 Hex Nut	$0.86
29	02-50-1640	Needle Bearing	$2.18
30	32-40-1241	Intermediate Gear	$13.18
31	06-42-0800	Woodruff Key	$0.86
32	36-66-2801	Intermediate Shaft	$24.24
33	02-04-0640	Ball Bearing	$3.94
34	02-50-2110	Needle Bearing	$8.29
35	32-75-2061	Spindle Gear	$15.82
36	45-36-0210	Spindle Gear Spacer	$1.80
37	32-75-2041	Spindle Gear	$13.57
38	36-66-2901	Intermediate Shaft	$30.75
39	06-75-3090	"1/4-20 x 7/8"" Socket Hd. Screw"	$0.86
40	06-97-4050	"1/4"" Split Ring Lock Washer"	$0.86
43	34-80-2500	Retaining Ring	$0.86
44	28-14-0761	Gear Case	$16.10
46	06-42-1600	Woodruff Key	$0.86
48	48-66-1360	l/2” Chuck (Includes Fig. 47)	$66.55
50	06-75-3150	1/4-20 x 1 LH Socket Hd. Screw	$0.86
52	42-04-0580	Adaptor Plate	$31.92
53	06-97-4050	"1/4"" Split Ring Lock Washer"	$0.86
54	06-75-3050	1/4-20x3/4 Skt. Hd. Screw	$0.86
