Milwaukee 4090 Coring Drill Motor Parts

Milwaukee 4090 Coring Drill Motor Parts Image

Milwaukee 4090 Parts
DRILL DMD 375/750 15A SHR PIN

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 4090
375/750 RPM, 15 Amp ...
$690.99
Tool Diagram    (Click image to Zoom in) View larger Image

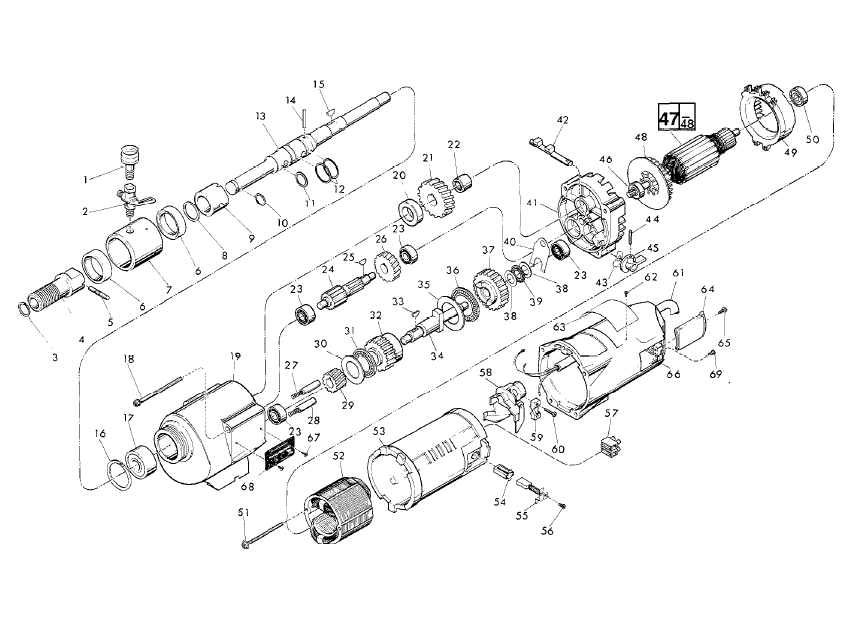

Milwaukee 4090 Coring Drill Motor Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 42-04-0600 Water Hose Adapter $9.94
2 45-80-0060 Shut Off Valve $23.30
3 34-60-1800 Retaining Ring $0.86
4 45-22-0050 Spindle Sleeve $53.85
6 45-06-0050 Trostel Seal $22.91
7 43-76-0051 Water Swivel Hsg Incl 06-83-2430 Scr $57.10
8 34-60-2115 Retainin Ring $0.97
9 42-40-0830 Spindle %u shing $12.52
10 34-40-1100 O-Ring $0.86
11 34-40-1200 O-Ring $0.86
12 34-40-1350 O-Ring $0.86
13 38-50-4555 Spindle $130.37
14 06-65-1530 1/8 X 1/2” Roll Pin $0.86
15 06-42-2400 Woodruff Key $0.86
16 34-80-3800 Retaining Ring $1.80
18 06-82-9202 "1/4-20 x 4-1/4"" Taptite T-30" $2.45
19 28-14-1870 Gear Case Assy Incl 06-65-1535 Pin $116.60
20 45-36-1245 Spindle Spacer $10.05
21 32-75-2521 Spindle Gear $48.65
22 02-50-4830 Needle Bearing $3.61
23 02-04-1205 Ball Bearing $4.38
24 36-66-3751 Pinion Shaft Assembly $60.10
25 06-42-1600 Woodruff Key $0.86
26 32-40-1581 Intermediate Gear $23.58
27 40-50-6300 Shifting Spring $0.86
28 44-70-0100 Shifting Plunger $2.13
29 32-60-1041 Pinion Gear $17.58
30 45-88-0520 Thrust Washer $1.14
31 02-80-1800 Thrust Bearing $1.41
33 06-42-2000 Woodruff Key $0.86
34 36-14-0061 Clutch Shaft $47.17
35 45-88-0530 Thrust Bearing Washer $1.63
36 02-80-5000 Thrust Bearing $2.18
37 32-10-0051 Clutch Gear Assembly $43.19
38 45-88-0510 Thrust Bearing Washer $0.86
39 02-80-1200 Thrust Bearing $1.58
40 45-98-0090 Shifting Yoke $2.95
42 30-15-0272 Shift Cam $30.34
44 06-65-0840 1/8x3/4 Groove Pin $0.86
46 02-04-1229 Ball Bearing $4.71
47 16-70-0330 120 V Armature $96.30
48 22-84-0790 Fan $4.38
49 42-14-0291 Baffl e $3.23
50 02-04-1041 Ball Bearing $4.05
51 06-82-9152 "10-24 x 2-3/4"" Pan Hd. Sem. T-25" $1.36
52 18-70-0300 120 V. Field $55.65
53 23-16-1410 Motor Insulator $40.29
54 22-20-0680 Brush Tube $1.24
55 22-18-0702 Carbon Brush Assembly $9.00
56 06-82-8835 "8-32 x 5/16"" Pan Hd. Sem. T-20" $0.86
57 22-56-0470 Terminal Block $2.07
58 22-38-0140 Wire Trap $1.52
59 31-17-0200 Cord Clamp $1.24
60 06-82-7326 "8-16 x 1"" Plastite T-20 Screw" $0.86
64 22-32-0350 Brush Cover $1.80
65 06-82-7252 "8-32 x 3/8"" Pan Hd. Slt. Tapt. T-20 Screw" $0.86
66 28-50-6360 Motor Housing $67.80
67 06-82-5266 "4-40 x 1/4"" Pan Hd. Taptite" $0.86
68 12-98-2100 Instruction Plate $1.80
69 06-95-5200 6-32 x 5/16’ Slot Hex Hd. Screw $0.86
101 45-88-0800 Water Hose Washer (For Fig. No. 1) $0.86
102 06-75-3090 "1/4-20 x 7/8"" Socket Hd. Screw" $0.86
103 06-97-4050 "1/4"" Split Ring Lock Washer" $0.86
