Milwaukee 4079 Coring Drill Motor Parts

Milwaukee 4079 Coring Drill Motor Parts Image

Milwaukee 4079 Parts
DRILL DMD 300/600 20A SHR PIN

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 4079
Diamond Coring Motor...
$718.99
Tool Diagram    (Click image to Zoom in) View larger Image

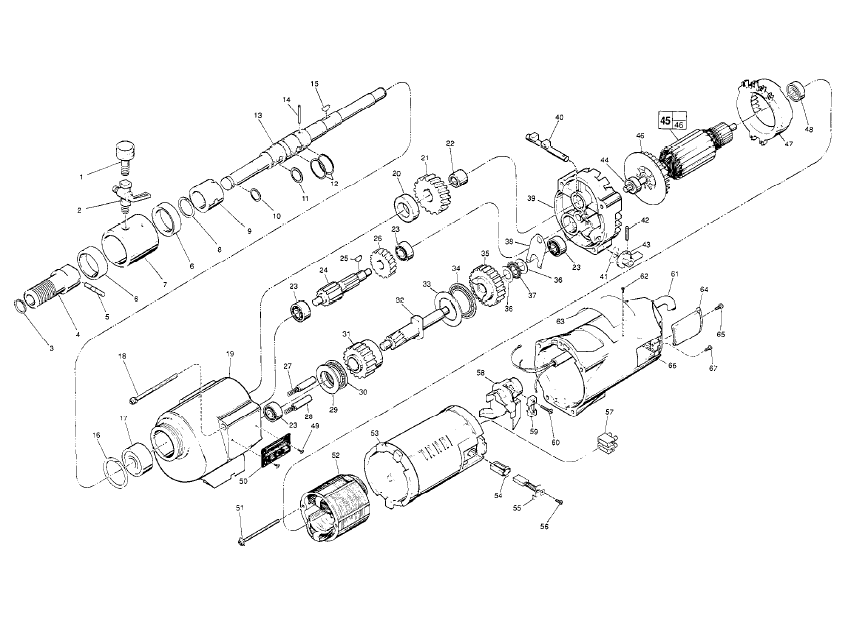

Milwaukee 4079 Coring Drill Motor Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 42-04-0600 Water Hose Adapter $9.94
2 45-80-0060 Shut Off Valve $23.30
3 34-60-1800 Retaining Ring $0.86
4 45-22-0050 Spindle Sleeve $53.85
5 44-60-0032 Shear Pin $2.18
6 45-06-0050 Trostel Seal $22.91
7 43-76-0051 Water Swivel Hsg Incl 06-83-2430 Scr $57.10
8 34-60-2115 Retainin Ring $0.97
9 42-40-0830 Spindle %u shing $12.52
10 34-40-1100 O-Ring $0.86
11 34-40-1200 O-Ring $0.86
12 34-40-1350 O-Ring $0.86
13 38-50-4555 Spindle $130.37
14 06-65-1530 1/8 X 1/2” Roll Pin $0.86
15 06-42-2400 Woodruff Key $0.86
16 34-80-3800 Retaining Ring $1.80
18 06-82-9202 "1/4-20 x 4-1/4"" Taptite T-30" $2.45
19 28-14-1870 Gear Case Assy Incl 06-65-1535 Pin $116.60
20 45-36-1245 Spindle Spacer $10.05
21 32-75-2661 Spindle Gear $64.10
22 02-50-4830 Needle Bearing $3.61
23 02-04-1205 Ball Bearing $4.38
24 36-66-3751 Pinion Shaft Assembly $60.10
25 06-42-1600 Woodruff Key $0.86
26 32-40-1581 Intermediate Gear $23.58
27 40-50-6300 Shifting Spring $0.86
28 44-70-0100 Shifting Plunger $2.13
29 45-88-0520 Thrust Washer $1.14
30 02-80-1800 Thrust Bearing $1.41
32 36-14-0720 Clutch Pinion Shaft $55.15
33 45-88-0530 Thrust Bearing Washer $1.63
34 02-80-5000 Thrust Bearing $2.18
35 32-10-0051 Clutch Gear Assembly $43.19
36 45-88-0510 Thrust Bearing Washer $0.86
37 02-80-1200 Thrust Bearing $1.58
38 45-98-0090 Shifting Yoke $2.95
39 14-13-0210 Diaphragm Assy.(Inc. 06-65-1155 Pin) $47.99
40 30-15-0272 Shift Cam $30.34
42 06-65-0840 1/8x3/4 Groove Pin $0.86
43 25-60-0056 Shifting Knob $5.26
44 02-04-1229 Ball Bearing $4.71
45 16-70-0320 120 V Armature $96.40
46 22-84-0790 Fan $4.38
47 42-14-0291 Baffl e $3.23
48 02-04-1041 Ball Bearing $4.05
49 06-82-5266 "4-40 x 1/4"" Pan Hd. Taptite" $0.86
50 12-98-2100 Instruction Plate $1.80
51 06-82-9152 "10-24 x 2-3/4"" Pan Hd. Sem. T-25" $1.36
52 18-70-0290 120 V Field $62.80
53 23-16-1410 Motor Insulator $40.29
54 22-20-0680 Brush Tube $1.24
55 22-18-0702 Carbon Brush Assembly $9.00
56 06-82-8835 "8-32 x 5/16"" Pan Hd. Sem. T-20" $0.86
57 22-56-0470 Terminal Block $2.07
58 22-38-0140 Wire Trap $1.52
59 31-17-0200 Cord Clamp $1.24
60 06-82-7326 "8-16 x 1"" Plastite T-20 Screw" $0.86
62 06-72-1720 Nameplate Rivet $0.86
63 12-99-1875 Service Nameplate $5.54
64 22-32-0350 Brush Cover $1.80
65 06-82-5316 "8-32 x 1/2"" Pan Hd. Slt. Taptite T-20" $0.86
66 28-50-6360 Motor Housing $67.80
67 06-95-5200 6-32 x 5/16’ Slot Hex Hd. Screw $0.86
100 45-88-0800 Water Hose Washer (For Fig. No. 1) $0.86
102 06-75-3090 "1/4-20 x 7/8"" Socket Hd. Screw" $0.86
103 06-97-4050 "1/4"" Split Ring Lock Washer" $0.86
