Milwaukee 2680-20 Cordless Grinder Parts

Milwaukee 2680-20 Parts

M18™ 4 1/2 CUT-OFF/GRINDER

Download Schematic

Time to buy a new tool?

Milwaukee 2680-20

M18 Cordless 4-1/2 I...

$119.00

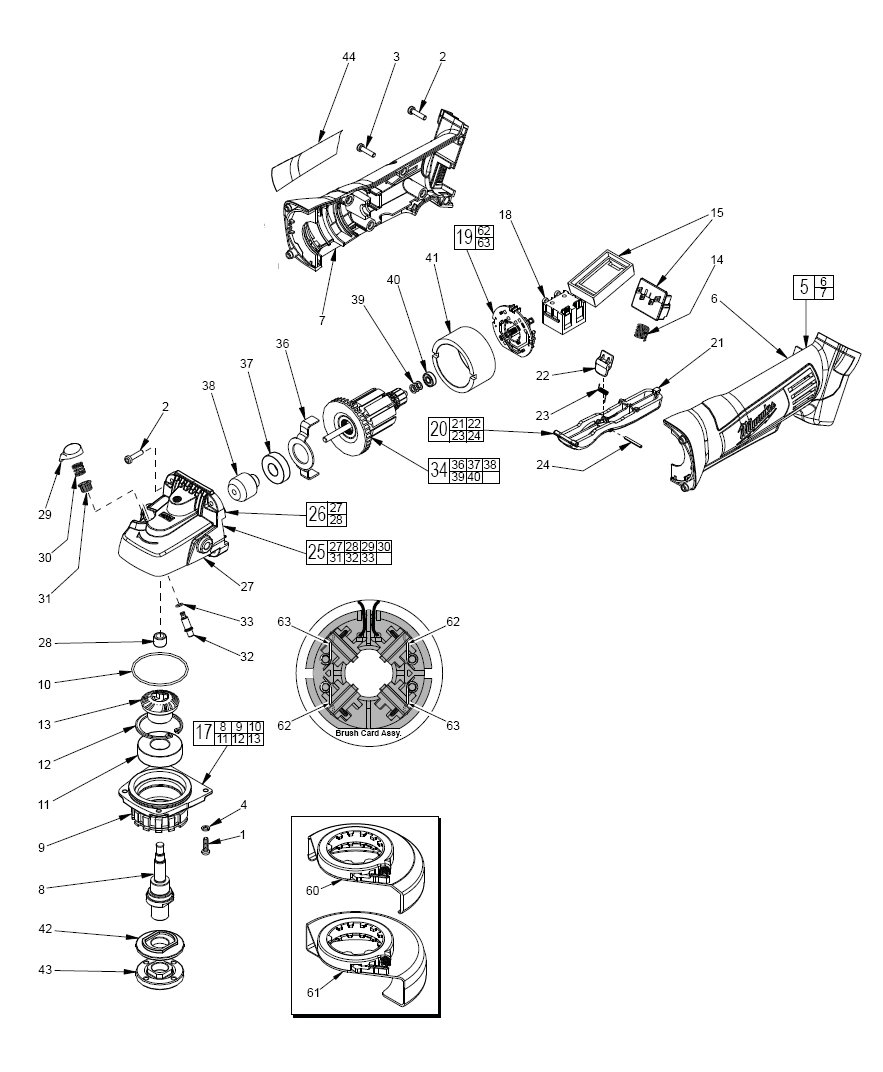

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	05-88-1210	M4 x 14mm Pan Hd. T-20 Screw	$0.86
2	05-88-1200	M4 x 16 T-20 Screw	$0.86
3	06-82-7236	#4-20 x .625 Pan Hd. Plast. T-10 Screw	$0.86
4	05-90-0225	Split Washer	$0.86
5	14-34-0900	Handle Kit	$8.34
10	34-40-0560	O-Ring	$0.86
12	34-80-2275	Internal Snap Ring	$0.86
14	40-50-1090	Compression Spring	$0.86
15	22-09-1350	Electronics Module Assembly	$33.86
17	32-05-1605	Spindle Shaft/Gear Assembly	$27.38
18	23-66-2875	Switch Assembly	$16.98
19	22-22-1600	Brush Card	$8.62
20	31-92-0530	Paddle Trigger Assembly	$1.69
22	42-42-0620	Lock-Off Lever	$0.86
23	40-50-1480	Spring	$0.86
24	06-65-0450	Roll Pin	$0.86
25	14-30-0850	Gearcase Kit	$25.89
26	28-14-2450	Gearcase Assembly	$16.48
29	42-42-1100	Spindle Lock Button	$0.86
30	40-50-1330	Spring	$0.86
31	42-42-0580	Spindle Lock Tube	$1.36
32	44-60-1690	Spindle Lock Pin	$1.80
33	34-40-0450	O-Ring	$0.86
34	16-01-3050	Armature Assembly	$55.60
39	45-36-2040	Armature Spacer	$0.86
40	02-04-1875	Ball Bearing	$1.74
41	18-01-3025	Service Field	$24.40
42	43-34-0036	Disk Flange	$3.23
43	44-40-0035	Flange Nut	$2.95
60	43-54-1070	"4.5"" T27 Guard Assembly"	$7.35
61	43-54-1090	"4.5"" T1 Guard Assembly"	$10.71
62	40-50-2170	Brush Spring - Right Handed	$0.86
63	40-50-2175	Brush Spring - Left Handed	$0.86
100	42-62-0105	Side Handle (Not Shown)	$6.36
101	49-96-7205	Spanner Wrench (Not Shown)	$5.32
