Milwaukee 2446-20 Parts
M12™ GREASE GUN TOOL ONLY

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 2446-20
M12 Grease Gun Bare ...
$129.00

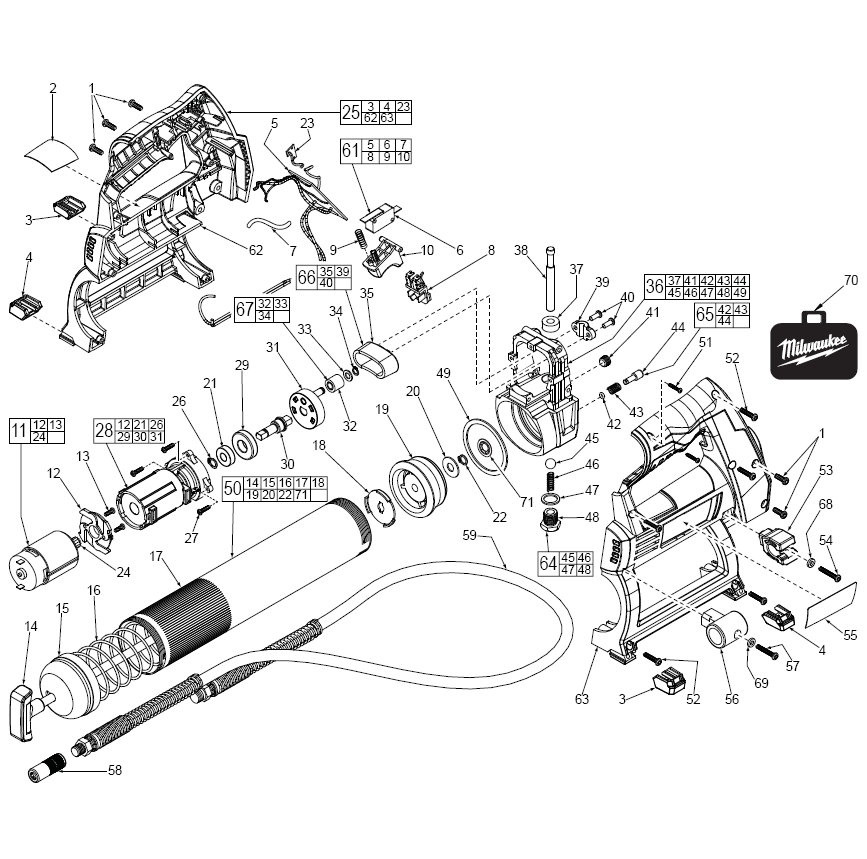

Tool Diagram    (Click image to Zoom in) View larger Image
Milwaukee 2446-20 Cordless Caulking & Grease Guns Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 05-74-0985 M4 x 12 Pan Hd. Taptite T-20 Screw $0.86
3 44-52-1060 Pad - Left Front and Right Rear (Set of 2) $0.86
4 44-52-1070 Pad - Left Rear and Right Front (Set of 2) $0.86
6 23-66-2885 Switch $5.32
9 40-50-4520 Spring $0.86
10 45-72-0300 Trigger $0.86
11 23-30-0600 Motor Assembly $10.76
13 05-81-0205 Screw $0.86
14 44-94-0650 Plunger Rod with Rod $3.39
18 44-66-1525 Stamping Plate $0.86
19 45-06-0890 Rubber Seal $1.46
20 45-88-2030 Washer $0.86
22 44-86-1380 Retaining Ring $0.86
25 31-50-2700 Housing Assembly Kit $17.58
26 44-86-1380 Retaining Ring $0.86
27 05-81-1220 M3 x 12 Pan Hd. Screw $0.86
28 14-29-0600 Gearcase Assembly $17.91
32 42-40-0725 Bushing Assembly $2.24
33 45-88-0890 Washer $0.86
34 34-80-1200 Retaining Ring $0.86
35 45-98-0250 Yoke $5.59
36 44-70-0700 Pump Body Kit $25.94
37 44-90-0600 Seal Ring $1.69
38 44-62-0325 Piston $1.14
39 31-15-0990 Yoke Cover $2.68
40 05-81-1260 M4 x 10 Pan Hd. Screw $0.86
41 05-85-0700 Hex Screw $0.86
42 34-40-0375 O-Ring $1.52
43 40-50-1660 Spring $0.86
44 42-42-1070 Air Release Button $0.97
45 02-02-0265 3/8” Ball $0.92
46 40-50-1685 Spring $0.86
47 45-88-0905 Copper Washer $0.86
48 45-04-1010 Plug Screw $1.14
49 43-44-1100 Rubber Gasket $0.86
50 30-06-0200 Barrel Assembly $22.81
51 06-82-2385 M2.6 x 14 Pan Hd. T-8 Screw $0.86
52 06-82-7470 Screw $0.86
53 43-75-0500 Grease Hose Holster $0.86
54 05-81-1275 M4 x 20 Pan Hd. Taptite T-20 Screw $0.86
56 42-90-0575 Coupler Holster $0.86
57 06-82-7475 6 x 7/8” Pan Hd. Plastite T-15 Screw $0.86
58 42-90-0700 Coupler Assembly $4.38
59 14-37-0300 Grease Hose Assembly $21.05
61 23-66-2890 Switch Assembly $24.79
64 45-04-1030 Plug Screw Kit $2.73
65 42-42-1080 Air Release Kit $2.45
66 45-98-0300 Yoke Kit $8.29
67 42-40-1150 Bushing Kit $2.40
70 42-55-2446 Soft Carrying Case $26.57
71 44-86-1400 Self-Locking Retaining Ring $0.86
