Milwaukee 2239-21 Meters & Detectors

Milwaukee 2239-21 Parts

M12™ CLAMP-GUN™ CLAMP KIT W/1 BAT

Download Schematic

Time to buy a new tool?

Milwaukee 2239-21

CLAMP-GUN M12 Cordle...

$394.99

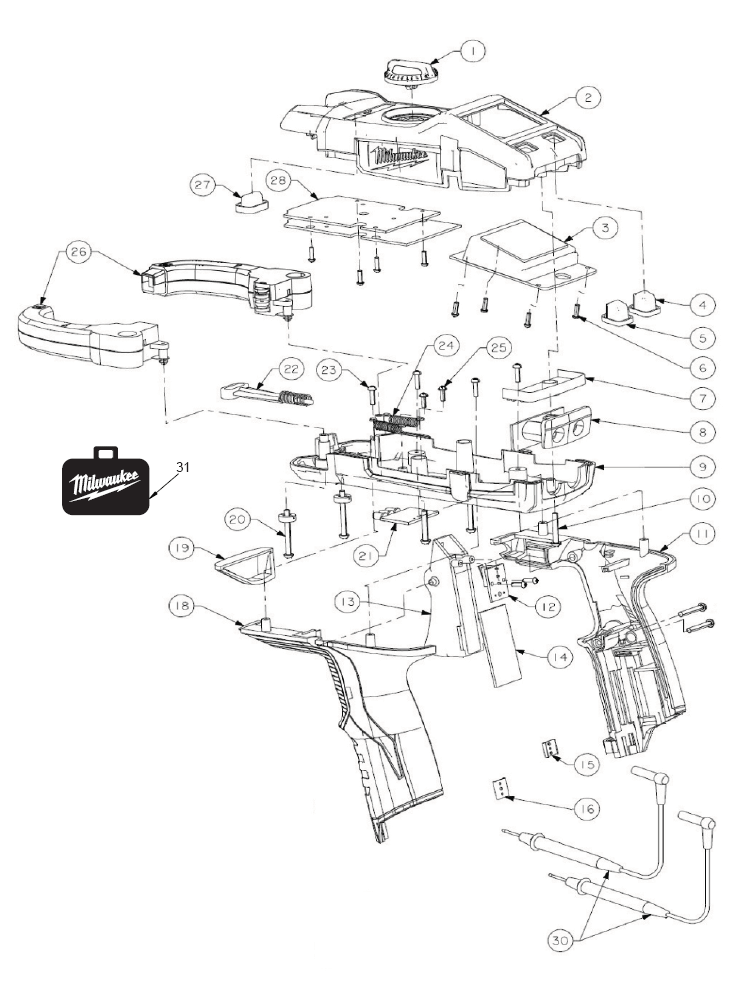

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	23-66-0565	Rotary Switch with Contact	$4.49
2	31-50-1405	Top Case	$26.47
3	44-06-0095	LCD Module	$25.78
4	42-42-0080	Button - 'Max./Min.'	$1.03
5	42-42-0935	Button - 'Hold'	$1.03
6	05-81-0325	Screw - LCD Module, Main PCA, Trigger PCA	$0.86
7	31-86-0165	Insulating Spacer - Connector	$1.36
8	22-58-0035	Input Post Module	$15.16
9	31-50-1435	Bottom Case	$24.73
10	05-81-0335	Screw - Bottom Case & Right Handle	$0.86
11	31-44-0335	Right Handle	$19.84
12	23-66-0455	Switch - Trigger	$4.16
13	31-92-0040	Trigger	$2.40
14	22-06-0110	PCA - Trigger	$26.99
15	42-70-0075	Housing Clip - 1	$0.86
16	42-70-0055	Housing Clip	$0.86
18	31-44-0365	Left Handle	$17.09
19	44-06-0105	LED Cover	$1.36
20	06-10-0100	Screw and Nut Assembly - Jaw	$2.18
21	22-06-0115	PCA - LED	$9.39
22	44-10-0165	Pole and Spring	$2.95
23	05-81-0345	Screw - Right and Left Handle	$0.86
24	40-50-0685	Plug Spring	$0.86
25	05-81-0355	Screw - Plug Spring	$0.86
26	30-55-0025	Jaw Assembly	$63.20
27	42-42-0090	Button - 'Zero'	$1.24
27a	42-42-0115	Button - 'Inrush'	$1.24
28	22-06-0135	Main PCA	$262.88
31	42-55-0010	Carrying Case, Optional	$21.76
