Milwaukee 1854-1 Electric Drill & Driver Parts

Milwaukee 1854-1 Parts

DRILL 3/4 350

Download Schematic

Time to buy a new tool?

Milwaukee 1854-1

3/4 Inch Super Hole-...

$563.99

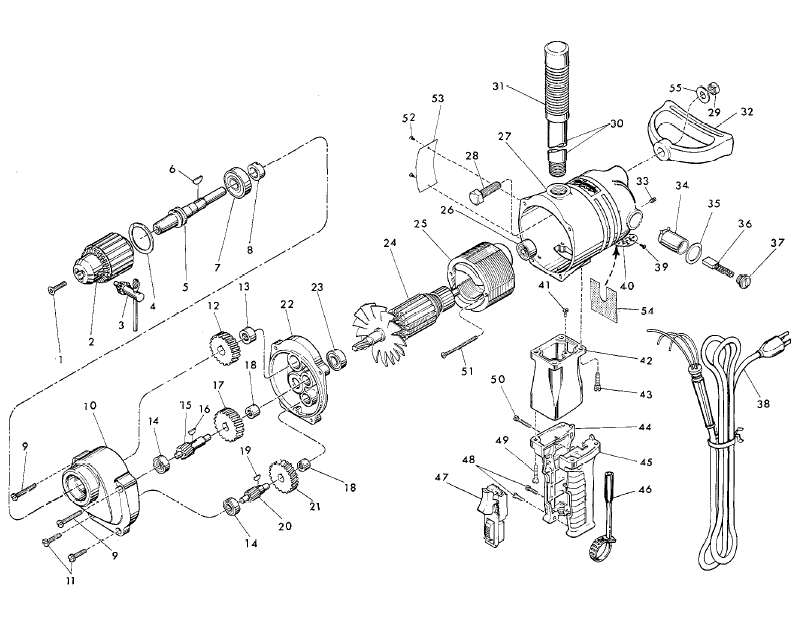

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	06-81-3100	5/1 6 x 1 Skt. Hd. Screw	$0.86
2	48-66-2080	3/4 Inch Chuck (Includes Fig. No. 3)	$120.92
4	34-80-3450	Retaining Ring	$1.36
6	06-42-2400	Woodruff Key	$0.86
8	45-36-0200	Spacer for Tapered Spindle	$11.04
12	32-75-1001	Spindle Gear	$25.56
13	02-50-4040	Needle Bearing	$4.99
14	02-04-0910	Ball Bearing	$3.56
15	36-66-0501	Intermediate Pinion Shaft	$35.65
16	06-42-1600	Woodruff Key	$0.86
17	32-44-1181	IntermediateG ear	$23.19
18	02-50-2450	Needle Bearing	$5.43
19	06-42-1200	Woodruff Key	$0.86
20	36-66-2601	IntermediateP inion Shaft	$37.89
21	32-40-1001	IntermediateG ear	$21.76
26	02-04-1070	Ball Bearing	$15.82
29	06-55-2850	1/2-l 3 Hex Nut	$0.86
33	06-83-2650	1/4-20x3/8 Knrl. Set Screw	$0.86
37	23-44-0030	Brush Retaining Screw	$2.07
39	06-81-8650	6-32x1/4 Rd. Hd. Sem	$0.86
41	06-81-8625	6-32x1/4 Ground Screw	$0.86
47	23-66-0581	DISCONTINUED PART - Switch	$62.05
