Makita UM104DWB Shear Parts

Makita UM104DWB Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

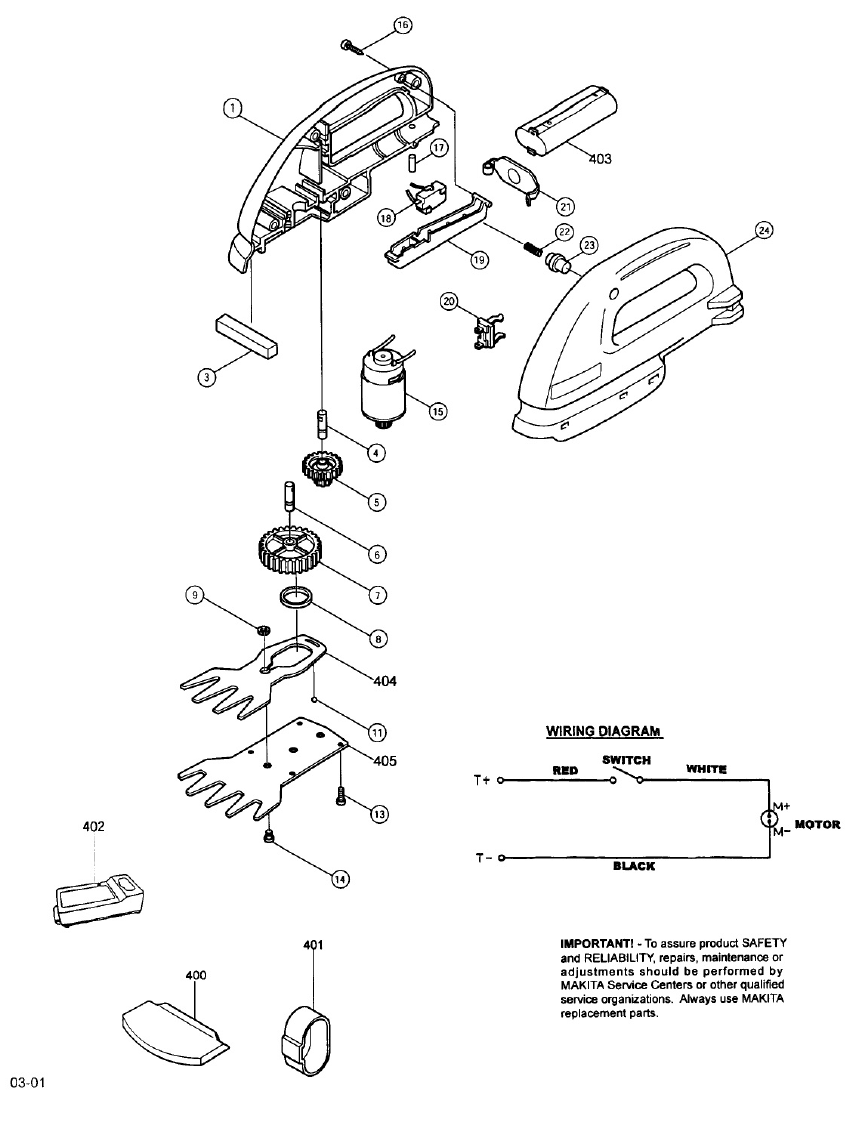

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	182609-1	HOUSING SET, UM104DWB	$36.21
3	423121-5	SPONGE SEAL, UM104DWB	$0.82
4	321835-9	SHAFT, UM104DWB	$3.50
5	226804-4	GEAR 14-34, UM104DWB	$5.37
6	321835-9	SHAFT, UM104DWB	$3.50
7	221742-5	H. GEAR 52, UM104DWB	$5.37
8	257116-4	RING 21, UM104DWB	$3.50
9	961018-5	STOP RING E-5, LS1011	$0.53
11	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
13	911128-8	P.H. SCREW M4X16, 1902	$1.48
14	256686-0	PIN 7, UM103DST	$3.50
15	629659-0	DC MOTOR 7.2V, UM104DWB	$27.15
16	265925-7	TAPPING SCREW BT4X20, 6201DW	$0.53
17	256085-6	PIN 4, 4071D	$1.96
19	414157-5	SWITCH LEVER, LS1030	$4.49
20	643909-9	BATTERY HOLDER, DA392D	$4.49
22	233077-2	COMPRESSION SPRING 4, UM104DWB	$1.96
23	415674-8	LOCK OFF BUTTON, UM140D	$1.85
24	182609-1	HOUSING SET, UM104DWB	$36.21
401	414938-7	BATTERY COVER, 6222DWE	$2.20
404	125030-1	SHEAR BLADE ASSY UM104DWB	$49.22
405	125030-1	SHEAR BLADE ASSY UM104DWB	$49.22
