Makita UM104D Trimmer Parts

Makita UM104D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

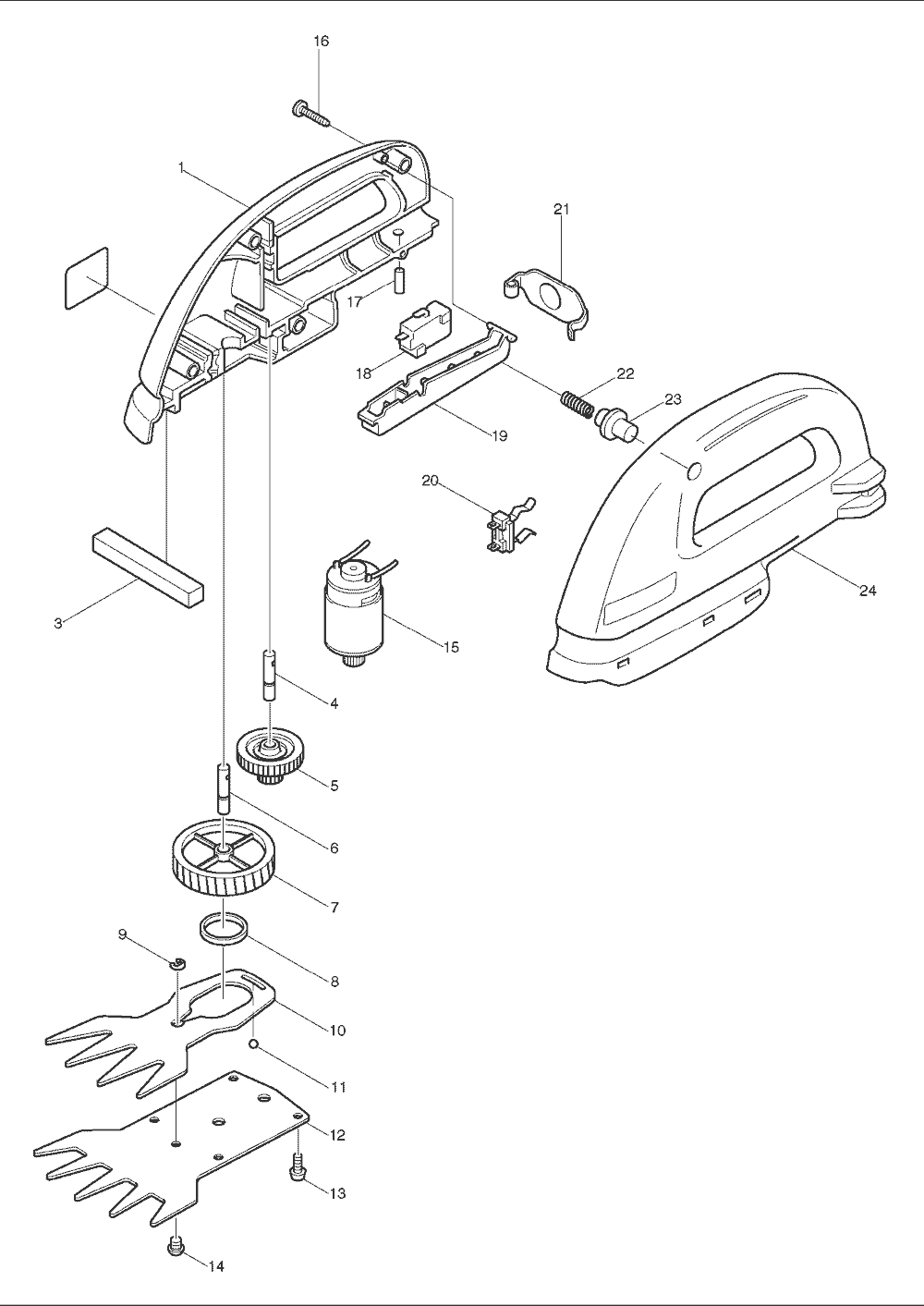

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	857618-6	NAME PLATE, UM140D	$1.12
2	251880-9	SCREW M5X33, 6891D	$3.61
3	265871-4	TAPPING SCREW BT4X16,BO4551	$0.53
4	182684-7	HANDLE SET, UM140D	$16.70
5	655409-7	INLET, 601DST	$4.16
6	231457-6	COMP. SPRING 3, HR2400	$2.07
7	415674-8	LOCK OFF BUTTON, UM140D	$1.85
8	182684-7	HANDLE SET, UM140D	$16.70
9	819063-3	MAKITA LABEL, DA3010F	$0.96
10	252042-2	SQ. NUT M5, UM140D	$3.61
11	415358-8	SIDE HANDLE, UM140D	$13.62
12	415580-7	SWITCH LEVER, UM140D	$4.71
14	262058-9	P.P RING 17, UM140D	$1.74
15	667972-8	CORD (18-2-1.38), UM140D	$6.80
16	154414-6	PIPE CPL., UM140D	$36.21
17	911243-8	P.H. SCREW M5X25, GA7911	$1.19
18	931202-6	HEX NUT M5, HR2410	$0.79
19	251878-6	SCREW M5X20, UM140D	$3.50
20	182685-5	MOTOR HOUSING SET, UM140D	$11.53
21	629673-6	DC MOTOR 12V, UM140D	$52.40
22	213556-6	O RING 42, UM140D	$3.17
23	182685-5	MOTOR HOUSING SET, UM140D	$11.53
24	265871-4	TAPPING SCREW BT4X16,BO4551	$0.53
25	911124-6	P.H. SCREW M4X14, 6402	$0.86
26	150580-7	SAFETY COVER, UM140D	$7.68
28	154415-4	BLADE HOLDER CPL., UM140D	$11.09
29	415542-5	RETAINER, UM140D	$5.15
30	415545-9	HOUSING W/O BEARING, UM140D	$3.17
31	253865-1	F. WASHER 8, HR5000	$2.18
32	210005-4	BALL BEARING 608DDW, 9031	$13.07
33	251459-6	F.H. SCREW M5X10, UM140D	$4.71
34	415544-1	CAP, UM140D	$5.15
35	265966-3	TAPPING SCREW BT3X10,601DST	$0.53
36	253948-7	W. WASHER 8, UM140D	$0.90
37	267135-2	FLAT WASHER 8, UM140D	$2.18
