Makita UH6330 Trimmer Parts

Makita UH6330 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

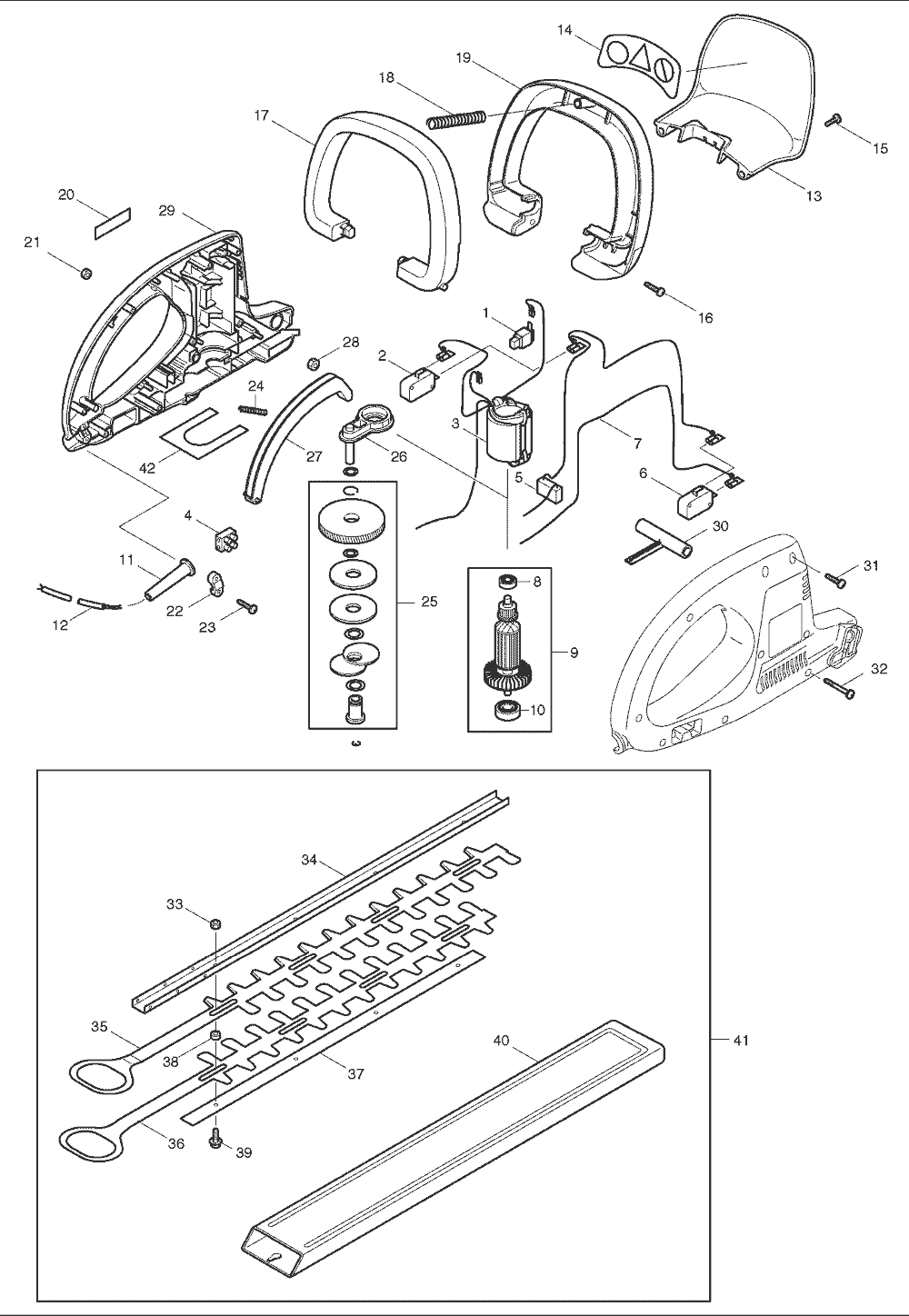

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	957-801-410	CARBON BRUSH CPL., UH5530	$9.22
2	970-001-210	SWITCH, UH6350	$6.69
3	970-801-220	STATOR ASS'Y. UH5530	$36.92
4	970-201-220	SCREW WIRE CONNECTOR, UH5530	$1.74
6	970-001-210	SWITCH, UH6350	$6.69
7	970-311-250	CONNECTING CABLE, UH5530	$3.50
8	960-101-074	BALL BEARING, UH5530	$11.09
9	970-801-820	ROTOR ASS'Y, UH5530	$45.79
10	960-101-104	BALL BEARING, UH5530	$9.77
11	204-152-010	BREAK PROTECTION, UH5530	$1.74
12	970-102-140	CABLE WITH PLUG, UH5530	$11.53
13	221-213-111	HAND GUARD, UH5530	$4.93
14	980-114-292	LABEL, UH5550	$3.24
15	913-540-205	SCREW 4.0X20, UH5530	$1.41
16	917-005-250	SCREW, UH5530	$1.48
17	221-310-110	TUBULAR HANDLE, UH5530	$8.01
18	221-145-110	PRESSURE SPRING, UH5530	$1.30
19	221-144-110	FRONT GRIP SWITCH, UH5530	$3.50
20	980-114-296	LABEL, UH5550	$1.37
21	920-204-000	HEXAGONAL NUT M4, UH6330	$0.90
22	203-152-050	TRACTION RELIEF, UH5530	$1.74
23	915-635-164	SELF CUTTING SCREW 3.5X16, UH5530	$1.48
24	221-145-120	PRESSURE SPRING, UH5530	$1.30
25	222-220-020	GEAR CPL., UH6350	$17.36
26	221-211-010	GEAR PLATE WITH AXLE, UH5530	$14.28
27	221-144-120	REAR GRIP SWITCH, UH5530	$1.74
28	920-205-000	HEX NUT M5, DCS340	$1.96
29	221-110-611	CASE COMPLETE, UH5530	$21.98
30	221-144-130	SWITCH FORK, UH5530	$1.85
31	913-540-205	SCREW 4.0X20, UH5530	$1.41
32	221-233-160	SCREW M5X14, UH5530	$1.96
33	221-233-170	SAFETY NUT, UH5530	$3.61
37	221-233-440	BAR, UH6330	$6.03
38	221-233-150	DISTANCE PIECE, UH5530	$3.17
39	221-233-160	SCREW M5X14, UH5530	$1.96
42	221-229-240	PLATE,UH6330	$3.17
43	970-311-270	CONNECTING CABLE, UH5530	$4.60
44	970-311-280	CONNECTING CABLE, UH5530	$4.93
47	221-229-210	WASHER, UH6330	$1.12
