Makita RP1800 Router Parts

Makita RP1800 Router Parts Image

Makita RP1800 Parts
3-1/4 HP Plunge Router with Electric Brake

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita RP1800
3-1/4 HP Plunge Rout...
$277.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

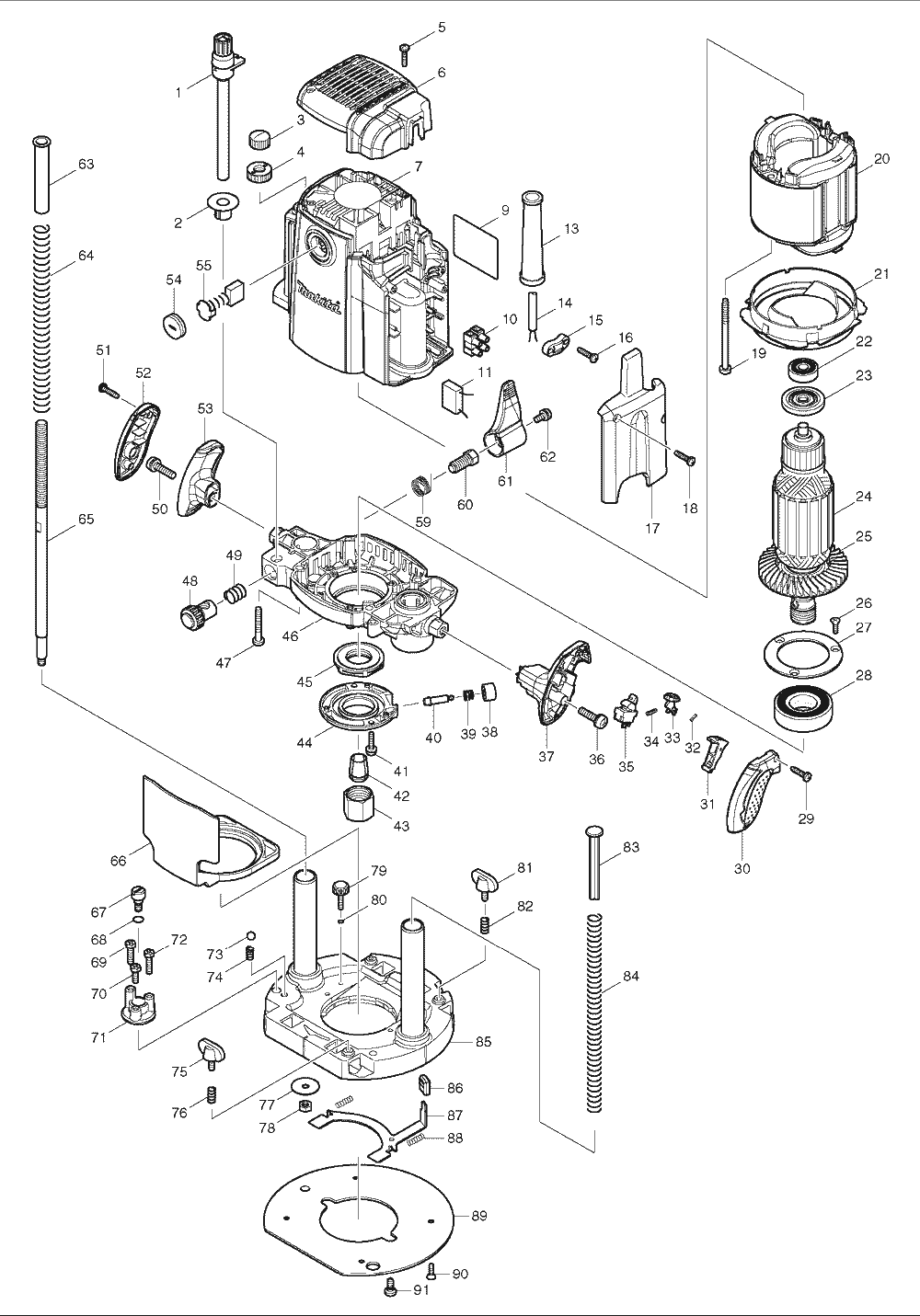

Makita RP1800 Router Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 125542-4 THUMB SCREW M10X115 ASS'Y, RP1800 $10.43
00 638647-6 SUPPORT UNIT, RP1800 $10.43
2 450946-4 DEPTH POINTER, RP1800 $1.34
9 816922-2 SCALE PLATE, RP1800 $1.34
3 252643-6 WING NUT M10, RP1101 $1.96
4 410129-8 NYLON NUT M10, 3612C $1.96
5 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
6 450948-0 REAR COVER, RP1800 $5.92
7 158999-4 MOTOR HOUSING CPL., RP1800 $64.10
9 866366-6 NAME PLATE, RP1800 $1.08
10 654531-7 TERMINAL BLOCK 2P, 5007MG $4.49
13 682505-8 CORD GUARD, 2711 $2.51
13 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
14 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
14 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
15 687052-4 STRAIN RELIEF, HM1500B $1.26
16 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
17 450949-8 COVER, RP1800 $4.71
18 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
19 266059-9 T. SCREW, FLANGE 5X75,2414B $4.93
20 636336-7 FIELD, RP1800 $46.41
21 450944-8 BUFFLE PLATE, RP1800 $2.51
22 211092-6 B. BEARING 629DDW, BO4556 $10.98
23 681671-8 INSULATION WASHER, RP1800 $1.34
24 517796-1 517796-1, RP1800 $85.70
25 240112-9 FAN 80, RP1800 $7.02
26 251295-0 F.H. SCREW M4X14, 3612BRA $1.19
27 285731-4 BEARING RETAINER 60, RP2301FC $3.61
28 211380-1 BALL BEARING 6205DDW, RP1800 $8.12
29 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
30 450937-5 GRIP COVER R, RP1800 $5.92
31 450940-6 SWITCH LEVER, RP1800 $2.51
32 233024-3 COMPRESSION SPRING 4, 6702DW $1.63
33 450941-4 LOCK OFF BUTTON, RP1800 $2.51
34 231372-4 COMP. SPRING 5, 5014NB $1.34
35 651432-0 SWITCH, RP1800 $9.22
36 911343-4 P.H. SCREW M6X25, HR2511 $1.19
37 450936-7 GRIP R, RP1800 $7.02
38 450942-2 PUSH BUTTON, RP1800 $1.34
39 233072-2 COMPRESSION SPRING 8, 9523NB $0.86
40 268234-3 COLLARED PIN 6, RP1800 $3.61
41 911133-5 P.H. SCREW M4X18, N9501B $0.86
42 763622-4 1/2 COLLET CONE, 3612BR $39.40
43 763674-5 COLLET NUT, RP1800 $3.50
44 318382-9 RETAINER COVER, RP1800 $8.12
45 285849-1 RETAINER, RP1800 $3.61
46 158971-6 MOTOR BRACKET CPL., RP1800 $27.37
47 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
48 153476-1 HALF NUT CPL., RP1800 $10.43
49 231231-2 COMP. SPRING 12, 3612BR $1.63
50 911343-4 P.H. SCREW M6X25, HR2511 $1.19
51 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
52 450939-1 GRIP COVER L, RP1800 $5.92
53 450938-3 GRIP L, RP1800 $7.02
54 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
55 194991-6 CARBON BRUSH SET CB-203, LS1211 $10.43
59 233538-2 TORSION SPRING 15, RP1800 $0.90
60 266015-9 SET BOLT M10, 3612 $7.13
61 450950-3 LOCK LEVER, RP1800 $2.51
62 911213-7 P.H. SCREW M5X12, LS1040 $0.86
63 450943-0 SILENT POLE, RP1800 $1.34
64 234106-4 TORSION SPRING 13, RP1800 $2.51
65 325652-9 SCREW M10, RP1800 $7.02
66 450953-7 CHIP DEFLECTOR, RP1800 $3.61
67 251467-7 FLAT HEAD SCREW M6,RP1101 $3.28
68 213030-4 O RING 8, AN451 $0.82
69 265587-1 + HEX BOLT M5X20, RP1800 $1.12
70 265586-3 + HEX. BOLT M5X14, RP1800 $1.12
71 315931-3 STOPPER, RP1101 $5.48
72 265587-1 + HEX BOLT M5X20, RP1800 $1.12
73 216009-4 STEEL BALL 7.1, HR2400 $0.86
74 231419-4 COMP. SPRING 5, 3620 $2.07
75 265720-5 THUMB SCREW M5X14, HR2410 $3.61
76 231240-1 COMP. SPRING 7, 2414B $0.79
77 253783-3 FLAT WASHER 6, 4131 $1.34
78 931303-0 HEX NUT M6, 2012 $0.79
79 265774-2 THUMB SCREW M4X19, RP1800 $2.51
80 213022-3 O RING 3, 5014NB $0.82
81 265720-5 THUMB SCREW M5X14, HR2410 $3.61
82 231240-1 COMP. SPRING 7, 2414B $0.79
83 417252-0 POLE, RP1101 $2.84
84 234105-6 COMPRESSION SPRING 11, RP1800 $2.51
85 158973-2 BASE CPL., RP1800 $42.22
86 424176-3 CAP 14, RP1800 $0.90
87 346032-6 LOCK PLATE, RP1800 $3.61
88 233105-3 COMPRESSION SPRING 4, 6831DWH $1.48
89 450951-1 BASE PLATE, RP1800 $12.63
90 912112-6 .C.S.H. SCREW M4X10, 3700B $0.53
91 266016-7 SET BOLT M5X10, RP1800 $3.61
1001 158980-5 KNOB 55 CPL., RP1800 $62.00
1003 763803-0 1/4 COLLET SLEEVE, 3612BR $10.00
1004 781030-7 WRENCH, 3612 $10.00
1005 941152-7 F. WASHER 6, HM1500 $0.75
