Makita RBC2510 Trimmer Parts

Makita RBC2510 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Page-4

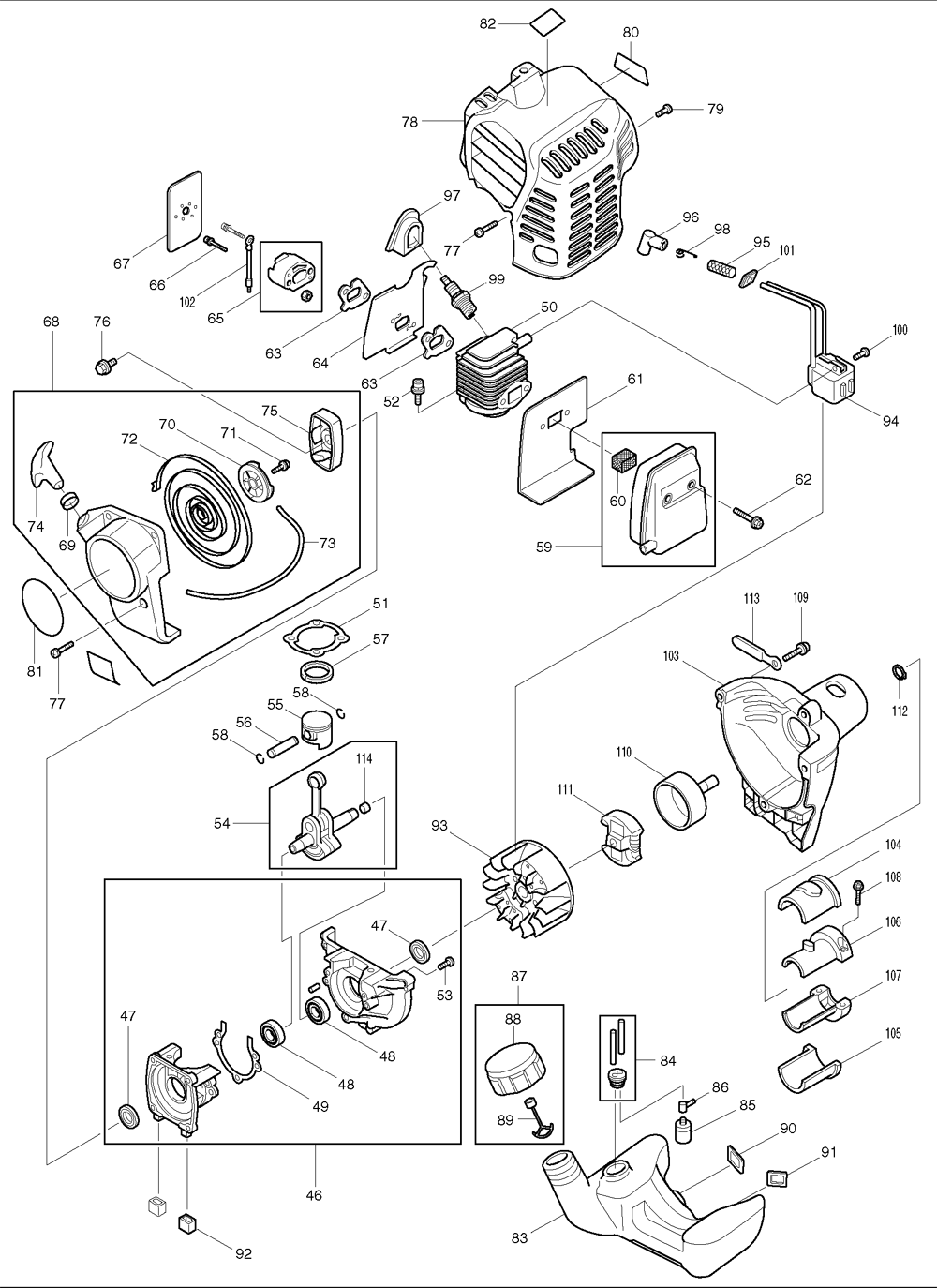

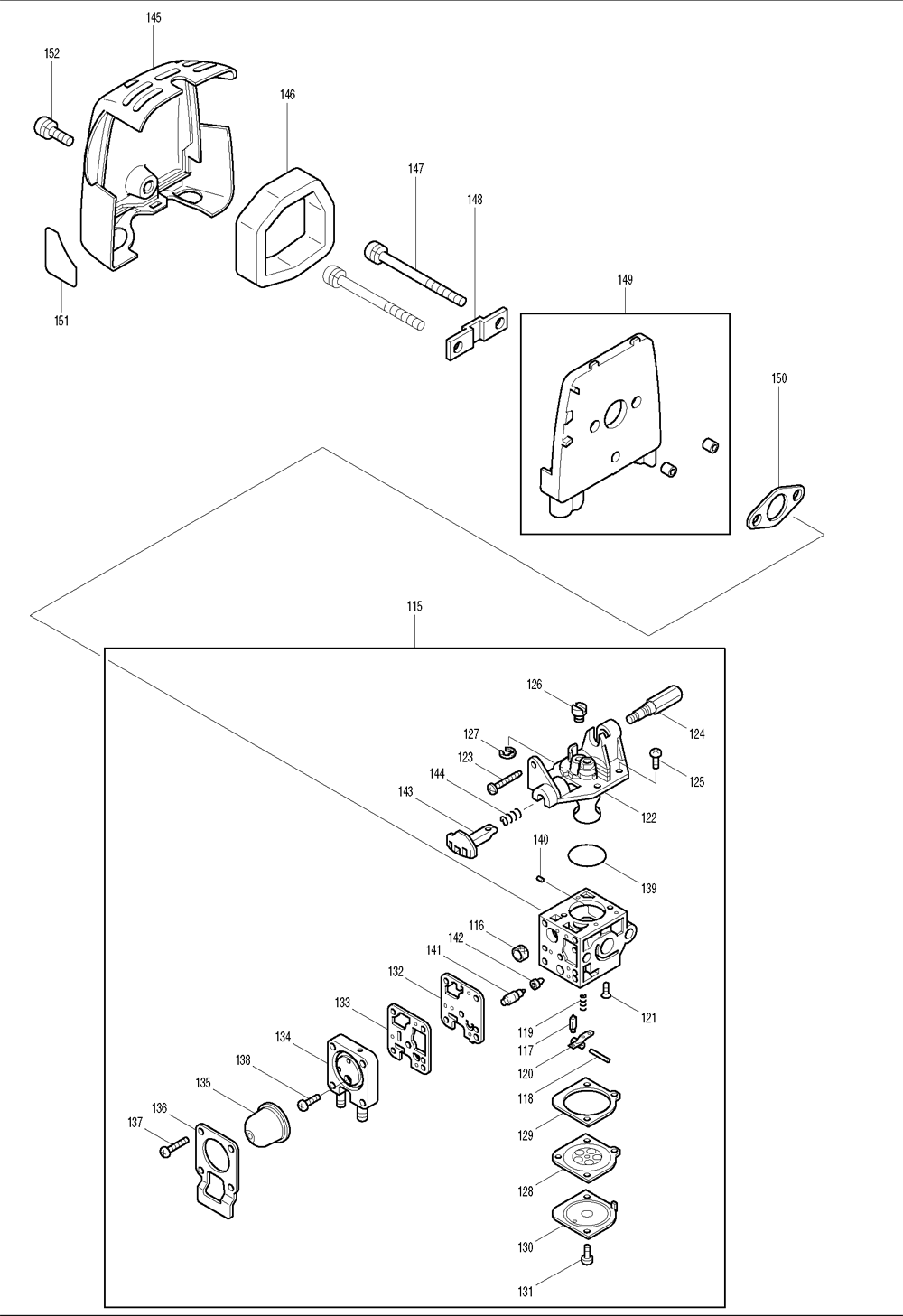

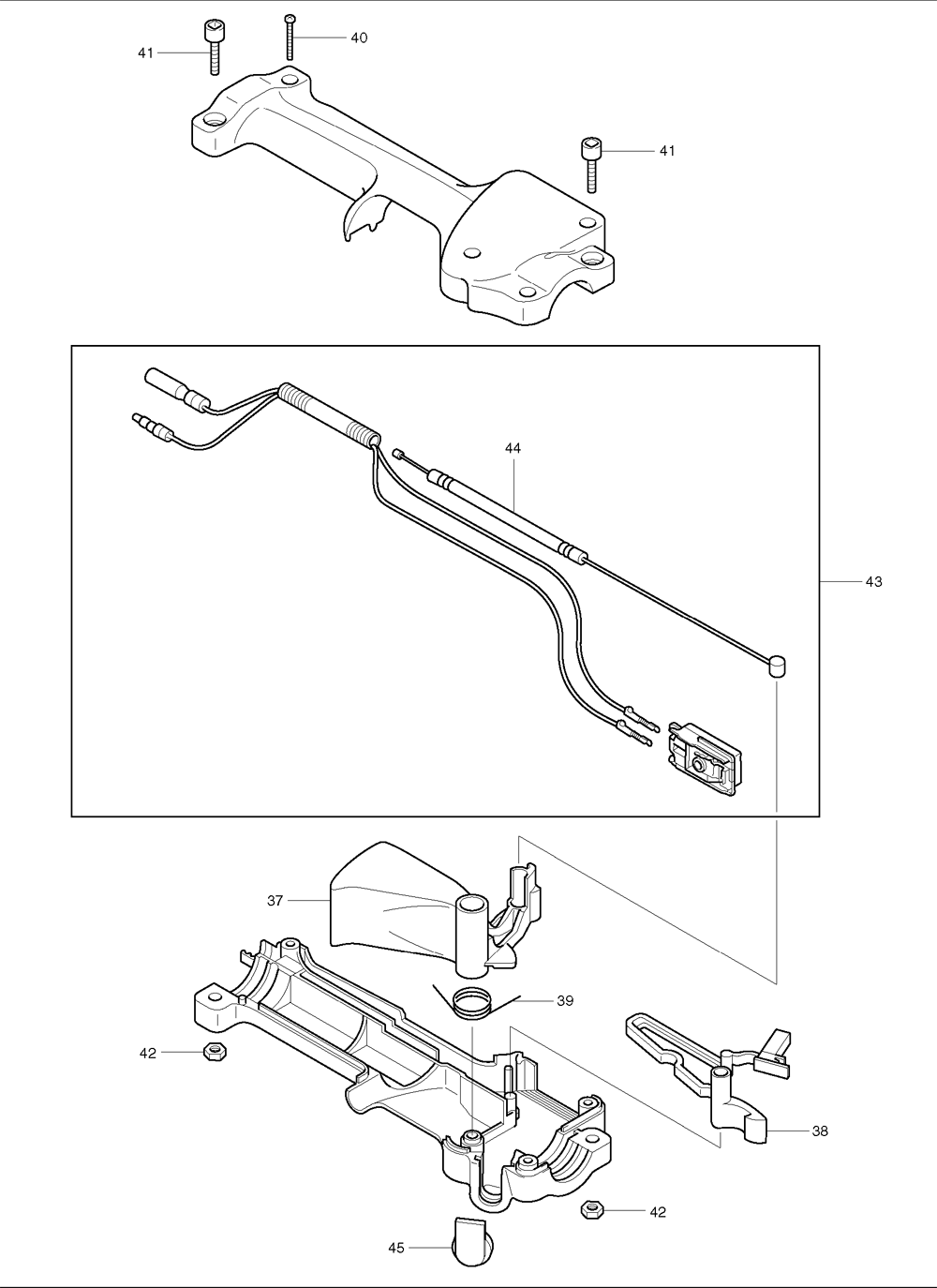

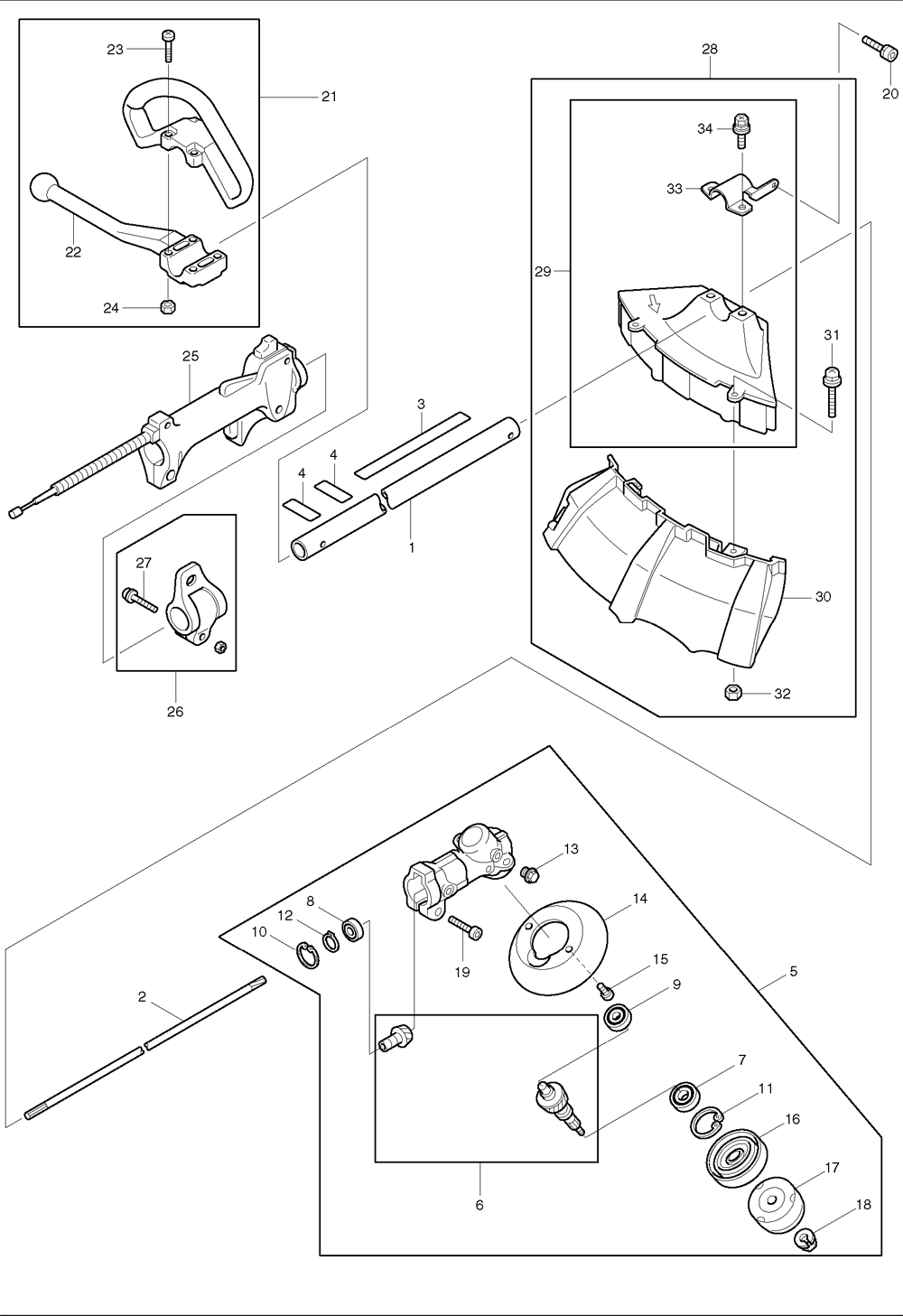

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	324893-4	SHAFT, EM2650LH	$6.80
3	621-91100-00	CAUTION LABEL CPL., RBC2510	$13.27
4	625-95147-00	CAUTION LABEL, RBC321	$4.75
6	624-30080-02	CUTTER SHAFT SET, EM4251	$64.10
7	060-01099-10	BALL BEARING 6000DDU, EM4251	$13.62
8	621-25003-00	BALL BEARING 609ZZ, EM4250	$24.18
9	060-00699-90	BALL BEARING 626ZZ, EM4251	$19.67
10	962103-7	RETAINING RING R-24, AN611	$1.08
11	003-14260-00	INNER SNAP RING, EM4251	$1.85
12	961005-4	RETAINING RING S-9, 6832	$0.86
13	625-30110-12	OIL BOLT M6X9, EM4250	$4.93
14	621-85002-00	GUARD, RBC230	$12.96
15	014-00593-90	SCREW ASSEMBLY, EM4251	$1.74
17	621-80030-01	CLAMP CPL. WASHER, EM4251	$13.62
18	625-85050-01	NUT, EM4250	$3.06
19	922241-7	H.S.H. BOLT M5X25, AN451-T2	$1.41
20	922218-2	H.S.H. BOLT M5X14 WITH WR, EM2650LH	$0.64
21	621-40160-00	HANDLE SET, EM4251	$21.10
22	621-40160-20	HANDLE HOLDER, EM4251	$9.55
23	621-40160-30	SCREW, EM4251	$3.28
24	002-27050-00	NUT M5, EM4251	$1.34
26	625-40190-00	HANGER ASSY, EM4251	$12.96
27	014-00593-60	SCREW & WASHER ASS'Y, BBX7600	$1.63
28	6258060001	PROTECTOR ASS'Y RBC2510	$58.91
29	6258061001	PROTECTOR ASS'Y RBC2510	$41.24
30	625-80530-01	PROTECTOR CPL., RBC2510	$26.52
31	014-00593-80	SCREW ASS'Y, RBC2510	$1.74
32	002-18050-00	NUT, EM4250	$1.34
33	625-85082-00	PROTECTOR CLAMP, EM4250	$6.14
34	266575-1	HEX. HEAD BOLT M6X30, EM2650LH	$1.08
37	619-50060-30	LEVER, EM4251	$10.65
38	621-50230-60	LEVER, EM4251	$13.62
39	619-50060-50	SPRING, EM4251	$3.61
40	619-50060-60	T. SCREW M4X20, EM4251	$1.74
41	011-90597-20	S.H. BOLT M5X20, EM4251	$1.41
42	641-50111-60	NUT M5, EM4251	$1.96
45	619-50061-50	TOP, RPT250	$3.28
46	523-10110-01	CRANK CASE ASS'Y, RBC256	$126.78
47	044-01299-70	OIL SEAL, RBC221	$6.69
48	060-01298-50	BALL BEARING 6001C3 UR,RPT250	$16.70
49	523-15022-02	CRANKCASE GASKET, RST250	$1.85
52	011-90597-30	S.H. BOLT M5X20, EH760	$1.85
53	014-00595-20	SCREW M5X25, RBL250	$1.48
55	525-25008-00	PISTON, RBC2510	$34.88
56	257781-9	PISTON PIN, EM2650LH	$1.30
57	524-25007-01	PISTON RING, RBC260	$8.12
58	056-50899-70	CLIP, BBX2500	$1.96
59	525-30730-00	EXHAUST MUFFLER, RBC2510	$46.00
60	525-30330-10	SPARK ARRESTER, RBC2510	$4.71
61	525-35031-00	MUFFLER GASKET, RBC2510	$15.16
62	011-90596-00	S.H. BOLT M5X45, RBE250	$3.61
63	523-35039-02	INSULATOR GASKET, RST250	$3.50
64	523-35052-01	CARBURETOR INSULATOR, RBC251	$8.12
65	542-30060-00	INSULATOR CPL., RBC2510	$15.82
66	014-00595-00	P.H. SCREW M5X25, EH760	$1.48
67	525-35003-00	GASKET SPACER, RPT250	$4.71
68	525-50110-00	REWIND STARTER ASS'Y, RBC2510	$50.50
69	424359-5	DAMPER, EM2650LH	$1.30
70	523-50240-12	REEL, RBC221	$8.12
71	542-50030-10	SET SCREW, RBC221	$4.71
72	523-50240-32	SPIRAL SPRING, RBC221	$14.61
73	525-50160-20	STARTER ROPE, RBC201	$11.09
74	424319-7	STARTER KNOB, EM2650LH	$2.40
75	523-50250-01	PULLEY, RBC251	$21.10
76	523-55047-00	BOLT, RBC251	$6.91
77	014-00594-50	SCREW M5X18, EH760	$1.85
78	525-55033-00	CYLINDER COVER, RBC2510	$36.21
79	015-00597-90	TAPPING SCREW 5X14, RBC2510	$1.74
80	627-95057-00	"TRADE MARK LABEL ""MAKITA"", RBC2510"	$6.01
81	621-95388-00	MODEL LABEL, RBC2510	$7.46
83	525-65018-01	FUEL TANK, RBC2510	$29.37
84	085-11799-61	TUBE, RBC2510	$12.19
85	523-65039-00	FILTER, RBL500	$11.42
86	056-10599-90	HOSE CLAMP, EM4251	$1.41
87	525-60590-00	FUEL TANK CAP CPL., RBC2510	$13.62
88	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
89	525-60670-00	STRAP, RBL500	$7.68
90	503-65002-00	PLATE, EM4251	$3.50
91	503-65003-00	PLATE, EM4251	$3.50
92	521-65002-00	DAMPER, RBC230	$1.85
94	525-70270-11	COIL, EH760	$116.21
95	085-10699-20	TUBE, RPT250	$3.28
96	065-50098-70	PLUG CAP, RBl500	$6.14
97	519-75001-00	PLUG CAP COVER, RBC201	$3.61
98	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
99	065-01498-10	SPARK PLUG BM7A, RBC230	$6.69
100	014-00499-20	SCREW M4X20, RST250	$1.41
101	523-75032-02	GROMMET, RST250	$3.50
102	616-55002-01	WIRE, BBX7600	$3.61
103	625-10470-03	CLUTCH CASE CPL., RBC2510	$44.57
104	625-15066-04	PIPE DAMPER 1, RPT250	$7.68
105	625-15067-03	PIPE DAMPER 2, RPT250	$6.14
106	625-15095-01	PIPE BRACKET (1), RBC251	$9.22
107	625-15096-00	PIPE BRACKET 2, RBC251	$11.42
108	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
109	014-00593-60	SCREW & WASHER ASS'Y, BBX7600	$1.63
110	625-20140-03	CLUTCH DRUM COMPL. RBC251	$26.72
111	616-20050-02	CLUTCH , RBC251	$26.72
112	961052-5	RETAINING RING S-12, 9218PBL	$0.86
113	056-60599-80	CLAMP, EM4251	$3.50
115	525-60770-00	CARBURETOR, RBC2510	$121.55
115	525-60860-00	CARBURETOR, RBC2510	$130.76
116	525-60690-10	STRAINER, RBC2510	$4.71
117	541-60432-10	INLET NEEDLE VALVE, RBL500	$23.96
118	541-60432-40	PIN, RBL500	$3.50
119	541-60432-20	METERING LEVER SPRING, RBL500	$8.12
120	541-60432-30	METERING LEVER, RBL500	$9.77
121	525-60690-20	SCREW, RBC2510	$1.74
122	525-60770-10	ROTOR COVER ASS'Y, RBC2510	$77.70
123	525-60690-40	TAS, RBC2510	$19.01
124	525-60694-30	WIRE SCREW ADJUST, RBC2510	$12.19
125	525-60691-10	SCREW (FOR COVER), RBC2510	$1.74
126	525-60700-40	POST, RBC2510	$19.01
127	525-60691-30	E-RING, RBC2510	$1.74
128	525-60691-40	DIAPHRAGM, METERING, RBC2510	$27.15
129	525-60691-50	GASKET, METERING, RBC2510	$10.65
130	525-60691-60	COVER, METERING, RBC2510	$12.74
131	525-60692-10	SCREW, RBC2510	$1.74
132	525-60692-20	DIAPHRAGM, PUMP, RBC2510	$15.16
133	525-60692-30	GASKET, PUMP, RBC2510	$10.65
134	525-60694-40	PRIMER BASE ASS'Y, RBC2510	$62.70
135	525-60700-30	SYRINGE, RBC2510	$10.65
136	525-60770-20	RETAINER, RBC2510	$6.47
137	525-60692-60	SCREW, RBC2510	$1.74
138	525-60693-10	SCREW (FOR BASE PRIMER),RBC2510	$1.74
139	525-60693-20	O-RING (FOR COVER ROTOR,RBC2510	$4.71
140	525-60693-30	ROLLER,GUIDE PIN, RBC2510	$6.47
141	525-60693-40	PLUG, KIT, RBC2510	$22.64
142	525-60693-50	JET, REMOTE, RBC2510	$16.70
143	525-60693-60	ROD STARTER, RBC2510	$16.70
144	525-60694-10	SPRING, RBC2510	$6.80
145	525-35026-00	AIR CLEANER CASE, RPT250	$7.68
146	523-35047-00	AIR CLEANER ELEMENT, RST250	$3.50
147	014-00594-70	SCREW M5X62, RBC256	$1.85
147	004-31056-00	P.H. SCREW M5X60, RBC230	$1.85
148	501-35024-00	AIR CLEANER PLATE ASS'Y, RBC321	$12.96
149	525-30210-00	CLEANER PLATE CPL., RPT250	$10.65
150	523-35042-00	CARBURETOR GASKET, RST250	$3.50
151	073-62598-80	LABEL, RBC2510	$3.10
151	073-62598-90	LABEL, RST250	$3.10
152	014-00594-80	SCREW M5X14, BBX2500	$1.41
153	523-60461-30	PUMP BODY ASSEMBLY, RBC230	$67.00
154	352010-6	INLET SCREEN, EM2650LH	$2.40
155	523-60460-60	AIR PURGE BODY ASS'Y, RST200	$23.63
156	346270-0	PRIMER PUMP COVER, EM2650LH	$3.50
157	424314-7	PRIMER PUMP, EM2650LH	$3.50
158	592-60080-10	METERING DIAPHRAGM, EM4251	$33.45
159	442154-1	METERING DIAPHRAGM GASKET, EM2650LH	$3.50
160	168575-6	PUMP DIAPHRAGM, EM2650LH	$4.60
161	524-60010-30	PUMP GASKET, RBC230	$6.14
162	525-60130-10	JET, RBL250	$14.28
163	213538-8	O RING 2, EM2650LH	$2.40
164	257964-1	STOP RING E-3, EM2650LH	$2.40
165	413140-9	WASHER, EM2650LH	$1.30
166	325922-6	SWIVEL, EM2650LH	$3.50
167	524-60012-40	THROTTLE COLLAR SCREW, BBX7600	$3.50
168	523-60520-20	BRACKET CABLE, BBX7600	$19.01
169	531-60054-50	CABLE ADJUST NUT, BBX7600	$3.61
170	531-60200-20	SCREW CABLE ADJ., RBC321	$10.65
171	523-60180-20	RING PACKING, BBX7600	$4.93
172	266582-4	TAPPING SCREW 3X24, EM2650LH	$1.30
1002	B-60143	TRIMMER HEAD RBC253 BUMP FEED	$25.66
