Makita RBC251 Trimmer Parts

Makita RBC251 Trimmer Parts Image

Makita RBC251 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image

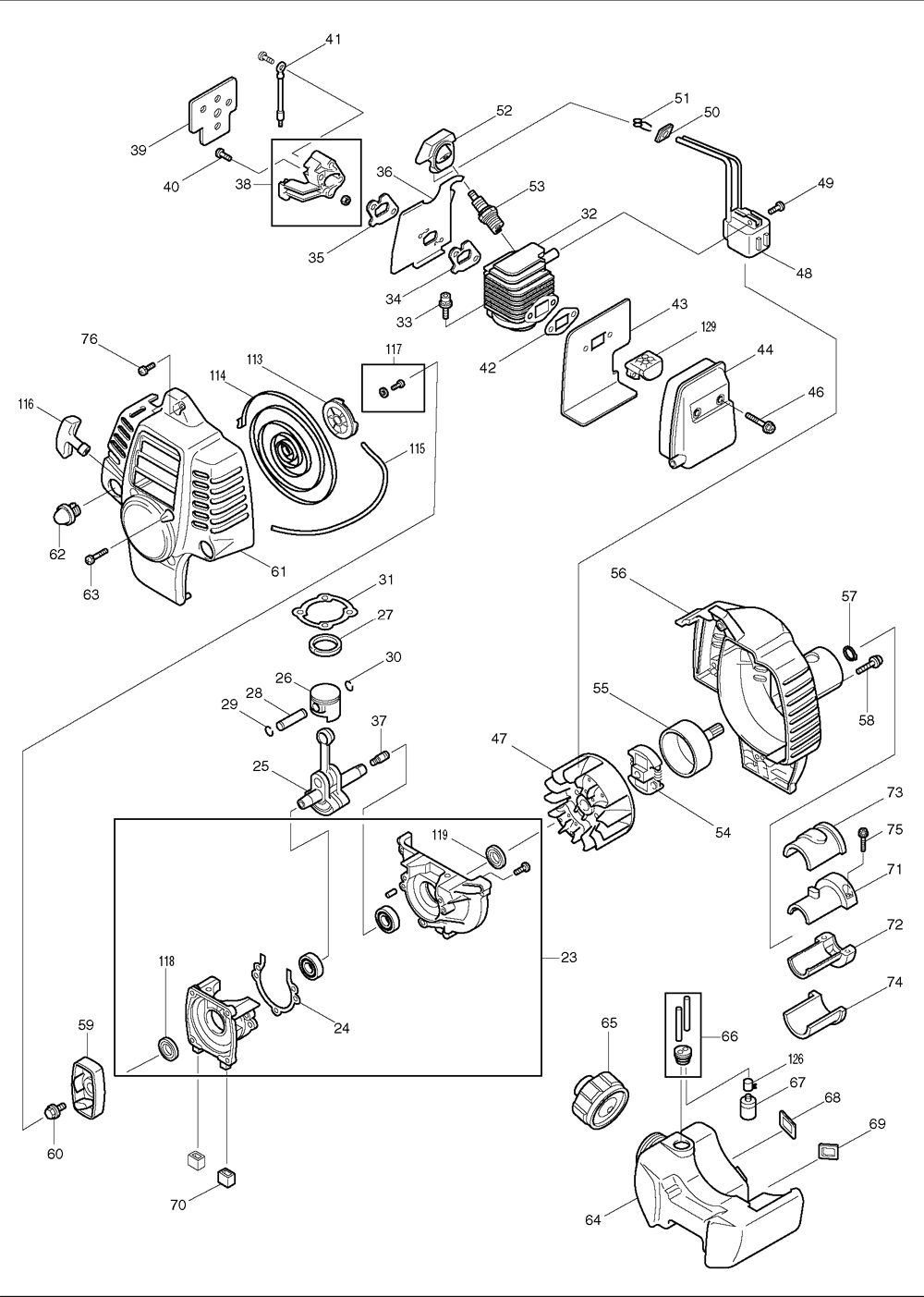

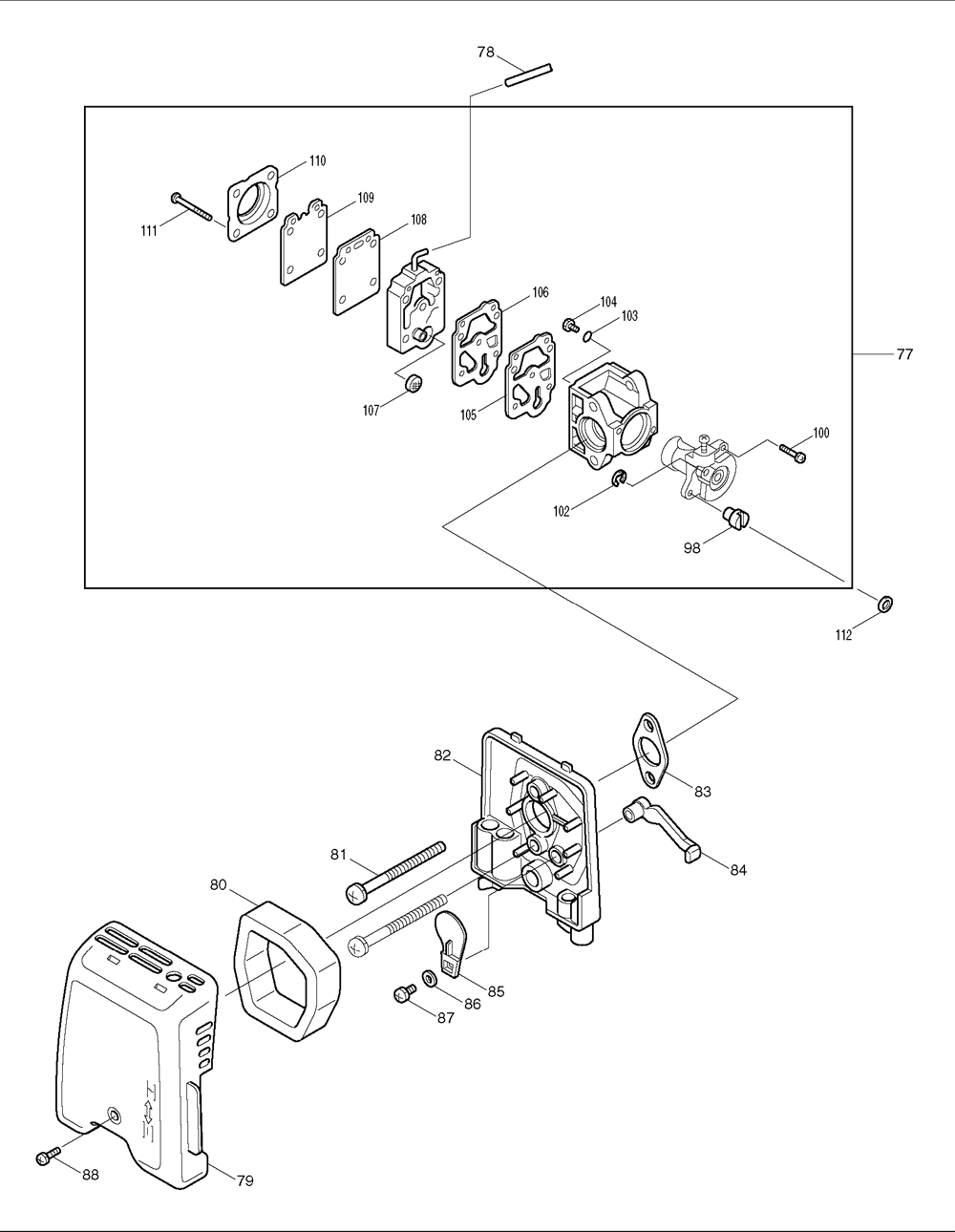

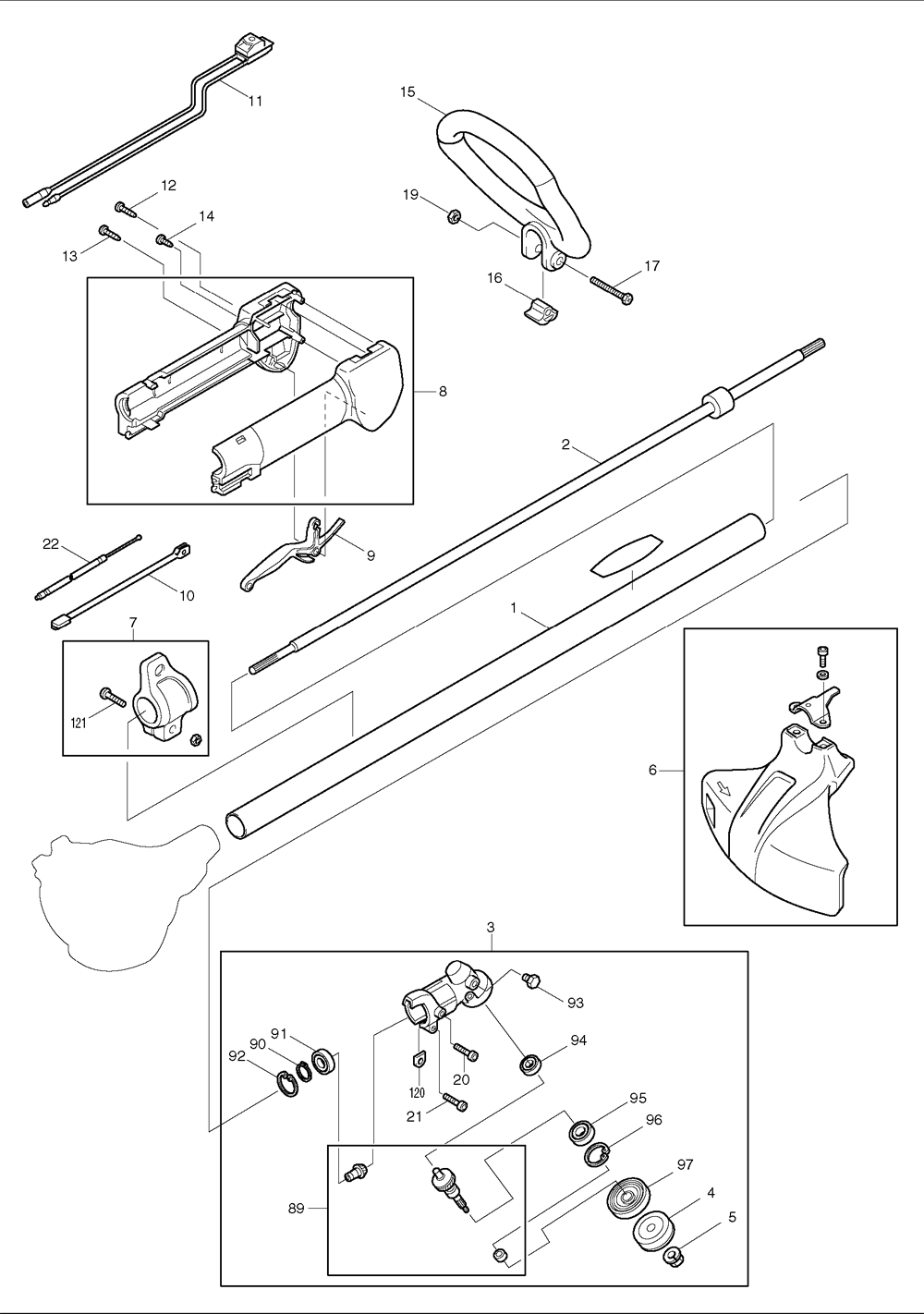

Makita RBC251 Trimmer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
15 616-40050-02 HANDLE COMPLETE, RBC251 $36.21
2 324893-4 SHAFT, EM2650LH $6.80
3 619-30010-06 GEAR CASE ASS'Y, RBC251 REPLACES 6193001006 $167.04
3 625-30140-05 GEAR CASE ASS'Y,RBC221/251,T5 $139.10
3 625-30140-06 GEAR CASE ASS'Y, RBC221/251, T6 $150.07
4 621-80030-01 CLAMP CPL. WASHER, EM4251 $13.62
4 625-85045-01 CLAMP WASHER, RBC251, T2 $14.94
4 625-85045-02 CLAMP WASHER , RBC25A, T2 $21.10
4 625-85045-00 CLAMP WASHER, RBC251,T1 $17.25
5 625-85050-01 NUT, EM4250 $3.06
5 625-85050-00 NUT, RBC221, RBC251 $2.51
6 6218008003 PROTECTOR ASS'Y EM4251 $54.92
7 625-40190-00 HANGER ASSY, EM4251 $12.96
8 616-50160-02 CONTROL LEVER, RBE250,RBC221-T1 $37.02
8 616-50160-03 CONTROL LEVER ASS'Y, RBC256 $50.50
9 616-55006-01 LEVER, RST250 $11.42
10 616-55007-01 CONNECTOR, RST250 $9.77
11 616-50090-02 SWITCH, RBE250,RBC221 $16.04
12 015-00499-20 TAPPING SCREW, RST250 $1.41
13 015-00499-20 TAPPING SCREW, RST250 $1.41
14 015-00499-11 TAPPING SCREW, RST250 $1.74
15 616-40050-02 HANDLE COMPLETE, RBC251 $36.21
16 616-45002-00 SPACER, RBC251 $4.93
17 010-00698-20 BOLT W/WASHER, RST250 $2.40
17 001-70064-50 BOLT M6X45, RST250 $1.34
18 003-11060-00 WASHER, BBX7600 $1.34
19 002-37060-00 FLANGE NUT, BBX7600 $1.96
20 922218-2 H.S.H. BOLT M5X14 WITH WR, EM2650LH $0.64
20 922211-6 HEX. SOCKET HAD BOLT M5X12, EM2650LH $0.64
21 922241-7 H.S.H. BOLT M5X25, AN451-T2 $1.41
22 063-00399-00 CONTROL CABLE, RST250 $9.77
23 523-10110-01 CRANK CASE ASS'Y, RBC256 $126.78
24 523-15022-02 CRANKCASE GASKET, RST250 $1.85
26 523-25019-02 PISTON, RST250 $32.64
27 524-25007-01 PISTON RING, RBC260 $8.12
28 257781-9 PISTON PIN, EM2650LH $1.30
29 056-50899-70 CLIP, BBX2500 $1.96
30 056-50899-70 CLIP, BBX2500 $1.96
33 011-90597-30 S.H. BOLT M5X20, EH760 $1.85
34 523-35039-02 INSULATOR GASKET, RST250 $3.50
35 523-35039-02 INSULATOR GASKET, RST250 $3.50
36 523-35052-01 CARBURETOR INSULATOR, RBC251 $8.12
37 010-50649-70 STUD, RBC251 $3.50
38 523-30380-01 INSULATOR ,RST250 $11.42
39 523-35041-03 INSULATOR GASKET, RST250 $3.50
40 014-00595-20 SCREW M5X25, RBL250 $1.48
40 014-00595-00 P.H. SCREW M5X25, EH760 $1.48
41 616-55002-01 WIRE, BBX7600 $3.61
41 616-55012-00 WIRE, RST250 $4.93
42 523-35043-02 MUFFLER GASKET, RST250 $3.50
43 523-35053-01 MUFFLER INSULATOR, RBC251 $6.69
44 525-30330-01 EXHAUST MUFFLER, RBC256 $53.20
45 003-10050-00 WASHER M5, EH760 $1.34
46 011-90596-00 S.H. BOLT M5X45, RBE250 $3.61
46 011-90596-50 S.H. BOLT, RBC230 $1.85
49 014-00499-20 SCREW M4X20, RST250 $1.41
50 523-75032-02 GROMMET, RST250 $3.50
51 065-40099-31 PLUG CAP SPRING,RBC221 $3.50
52 523-75033-01 PLUG CAP, RST250 $17.69
54 616-20050-02 CLUTCH , RBC251 $26.72
55 625-20140-03 CLUTCH DRUM COMPL. RBC251 $26.72
56 523-50290-04 ENGINE COVER CPL., RBC251-T4 $46.00
57 961052-5 RETAINING RING S-12, 9218PBL $0.86
58 014-00597-00 SCREW M5X20, RST250 $1.85
59 523-50250-01 PULLEY, RBC251 $21.10
60 523-55047-00 BOLT, RBC251 $6.91
61 523-50270-01 STARTER COVER, RBC251,T2 $76.60
62 168398-2 PRIMER PUMP, RBC221 $4.71
63 004-36051-80 SCREW ASSEMBLY, RBC230 $1.41
63 014-00594-50 SCREW M5X18, EH760 $1.85
64 523-65041-01 FUEL TANK, RST250 $26.72
65 525-60580-00 FUEL TANK CAP ASSEMBLY, RBL500 $9.22
65 531-60020-03 FUEL TANK CAP, RBC230 $7.02
67 523-65039-00 FILTER, RBL500 $11.42
68 503-65003-00 PLATE, EM4251 $3.50
69 503-65002-00 PLATE, EM4251 $3.50
70 521-65002-00 DAMPER, RBC230 $1.85
71 625-15095-01 PIPE BRACKET (1), RBC251 $9.22
71 625-15068-00 PIPE BRACKET 1, RBC251-T1 $7.46
72 625-15096-00 PIPE BRACKET 2, RBC251 $11.42
72 625-15069-01 PIPE BRACKET 2, RBC251 $11.42
73 625-15066-04 PIPE DAMPER 1, RPT250 $7.68
73 625-15066-01 PIPE DAMPER 1,RBC251-T1 $6.25
74 625-15067-03 PIPE DAMPER 2, RPT250 $6.14
75 922226-3 H. S. H. BOLT M5X18, HM0810B $1.96
76 523-55046-00 TAPPING SCREW M5X18, RST250 $1.85
77 523-60570-00 CARBURETOR, RBC221 $127.46
78 085-11499-60 TUBE 2.5X5X140, RST250,T2 $3.50
79 523-35055-03 AIR CLEANER CASE, RBC251 $8.12
80 443167-5 REPLACES 523-35047-00 AIR CLEANER ELEMENT, RST2... $3.50
81 014-00594-70 SCREW M5X62, RBC256 $1.85
82 523-30470-01 CLEANER PLATE, RBC221 $11.42
83 523-35042-00 CARBURETOR GASKET, RST250 $3.50
84 523-35048-01 CHOKE LEVER, RST250 $1.85
85 523-35050-02 CHOKE PLATE, RST250 $1.85
86 003-11040-00 WASHER, RBC251 $1.34
87 015-00499-80 TAPPING SCREW M4X8, RST250 $1.08
88 004-36051-40 SCREW M5X14, RBC251 $1.41
89 619-30030-01 CUTTER SHAFT SET, RBC201 $70.90
89 625-30130-03 GEAR SET,RBC221/251-T5 $50.70
90 003-15080-00 OUTER SNAP RING, RBC230 $1.85
90 003-15090-00 OUTER SNAP RING, RBC251 $1.85
91 621-25003-00 BALL BEARING 609ZZ, EM4250 $24.18
92 962103-7 RETAINING RING R-24, AN611 $1.08
93 625-30110-12 OIL BOLT M6X9, EM4250 $4.93
94 060-00699-90 BALL BEARING 626ZZ, EM4251 $19.67
95 060-01099-10 BALL BEARING 6000DDU, EM4251 $13.62
95 625-35037-00 BALL BEARING 608LLU,RBC251 $27.94
96 003-14260-00 INNER SNAP RING, EM4251 $1.85
96 003-14220-00 INNER SNAP RING, RBC251 $3.50
97 625-85044-01 RECEIVE WASHER, RBC251 $17.69
97 619-85001-02 RECEIVE WASHER, RBC201 $27.15
97 625-85044-00 RECEIVE WASHER, RBC221,T3 $13.84
98 325922-6 SWIVEL, EM2650LH $3.50
100 266581-6 PAN HEAD SCREW M3X8, EM2650LH $1.30
102 257964-1 STOP RING E-3, EM2650LH $2.40
103 213538-8 O RING 2, EM2650LH $2.40
104 525-60240-20 JET, EH450 $12.19
104 523-60570-10 JET, RBC221 $12.96
105 524-60010-30 PUMP GASKET, RBC230 $6.14
106 168575-6 PUMP DIAPHRAGM, EM2650LH $4.60
107 352010-6 INLET SCREEN, EM2650LH $2.40
108 501-60041-30 GASKET, RBC221 $4.93
109 531-60052-50 METERING DIAPHRAGM ASS'Y,RBC260 $27.15
110 531-60050-30 PRIMER PUMP COVER, RBC221 $10.65
111 521-60020-20 P.H. SCREW, RBC221 $3.50
112 521-95000-00 HOLDER, RBC221 $1.08
113 523-50240-12 REEL, RBC221 $8.12
114 523-50240-32 SPIRAL SPRING, RBC221 $14.61
115 523-50240-22 STARTER ROPE, RBC221 $12.96
116 521-50021-10 STARTER KNOB, RBC230 $6.69
117 542-50030-10 SET SCREW, RBC221 $4.71
118 044-01299-70 OIL SEAL, RBC221 $6.69
119 044-01299-70 OIL SEAL, RBC221 $6.69
120 003-71060-00 GASKET, RBC221 $0.82
120 625-15014-00 GASKET, RBC201 $1.48
129 523-35066-00 SPARK ARRESTER, RBC256 $14.28
1001 6207003002 BAND ASS'Y EM4251 $39.34
5009 525-60670-00 STRAP, RBL500 $7.68
5009 625-50210-02 STRAP UNIT, RBC201 $3.83
