Makita RBC230 Trimmer Parts

Makita RBC230 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

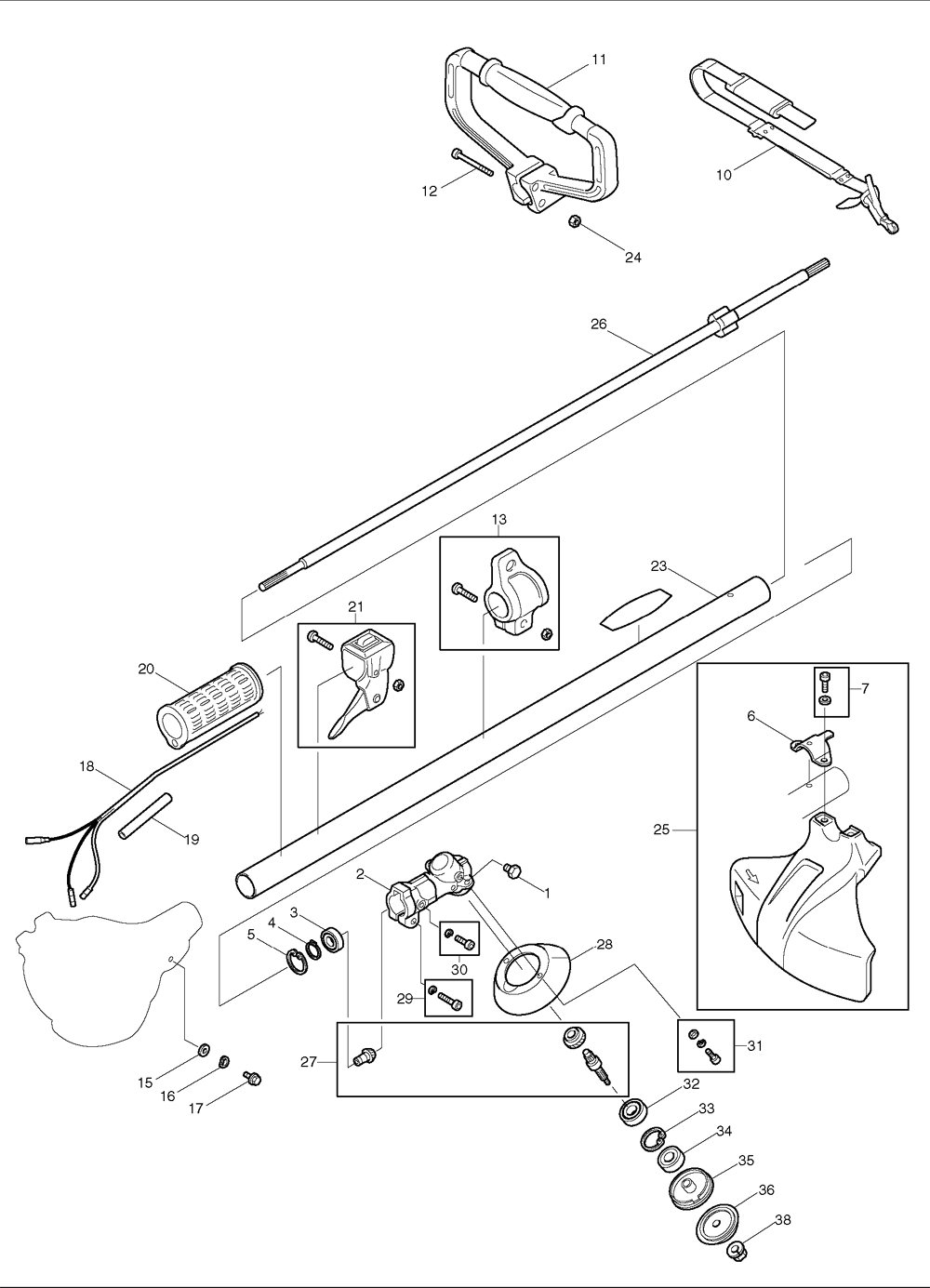

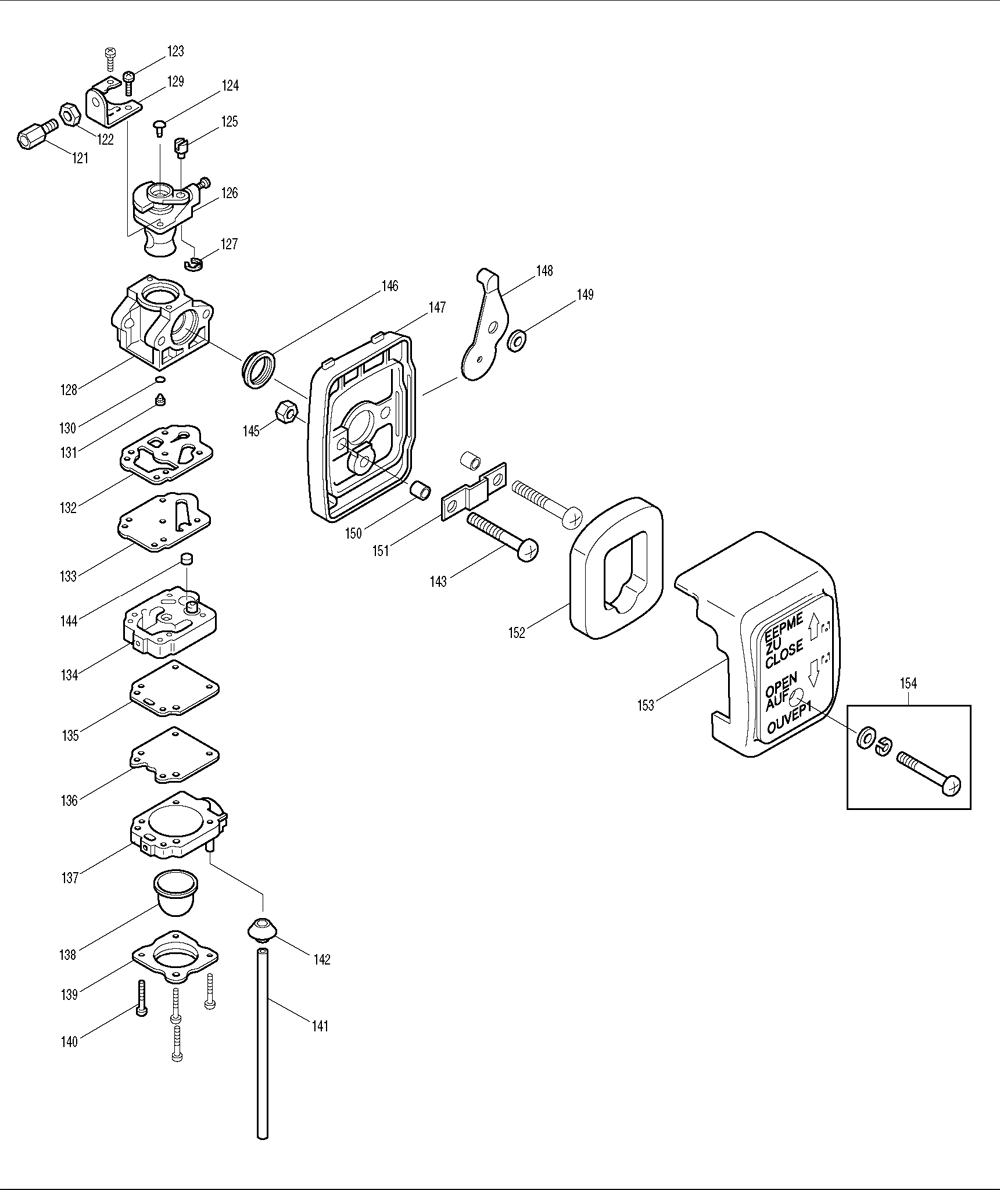

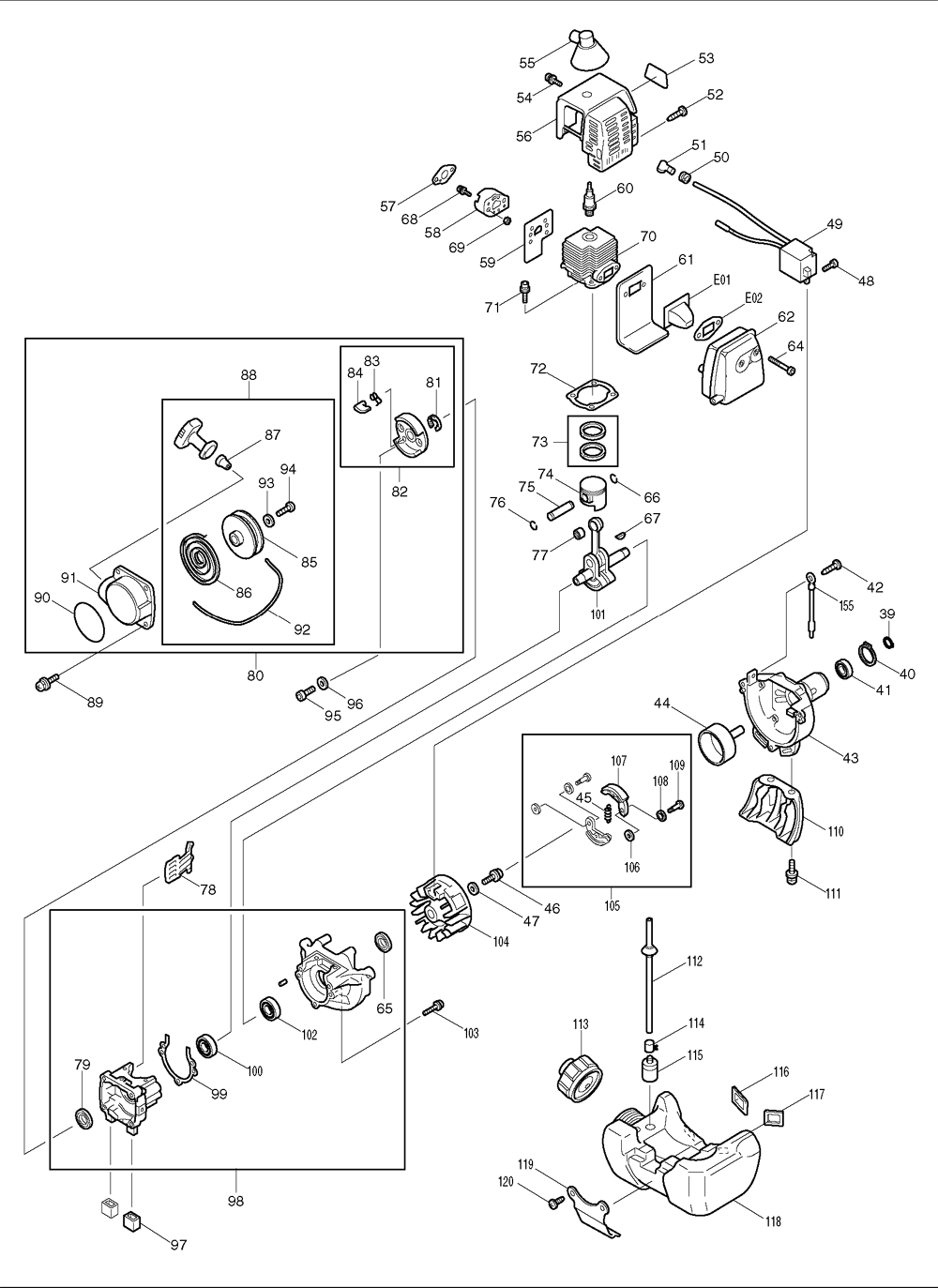

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
124	520-60081-10	PLUG, EM4250	$4.93
1	641-35006-00	OIL BOLT, RBC321	$4.93
2	621-30090-02	GEAR CASE ASSEMBLY, RBC230	$200.12
3	621-25003-00	BALL BEARING 609ZZ, EM4250	$24.18
4	003-15080-00	OUTER SNAP RING, RBC230	$1.85
5	962103-7	RETAINING RING R-24, AN611	$1.08
6	641-85003-01	PROTECT CLAMP	$4.71
6	641-85003-02	PROTECTOR CLAMP, RBC255	$5.26
7	001-17063-00	BOLT M6X30, EM4251	$1.74
8	621-10030-00	BUSH COMPLETE, RBC230	$18.35
9	621-95125-01	SERIAL LABEL M-BRAND,RBC230	$1.26
10	6207003002	BAND ASS'Y EM4251	$39.34
11	621-40170-00	HANDLE CPL., RBE250	$18.13
11	621-45000-01	HANDLE, RBC230	$14.72
12	621-40160-30	SCREW, EM4251	$3.28
12	011-90598-60	S.H. BOLT M5X33, RBC230	$1.85
13	625-40190-00	HANGER ASSY, EM4251	$12.96
13	625-40040-00	HANGER ASSEMBLY, RBC310	$27.26
14	004-31051-40	P.H. SCREW M5X14, RBE250	$1.08
15	621-95004-00	WASHER, RBC230	$3.72
16	003-22140-00	WAVE WASHER, RBC230	$1.63
17	621-10050-00	DAMPER BOLT, RBC230	$13.62
18	615-55001-00	CONTROL CABLE, RBC230	$8.12
19	009-19120-90	CLIP TUBE, RBC230	$4.71
20	621-45004-00	GRIP, RBC230	$27.94
21	621-50090-00	CONTROL LEVER, RBC230	$36.92
22	002-27050-00	NUT M5, EM4251	$1.34
23	621-10040-00	PIPE SHAFT COMP., RBC230	$146.96
24	002-27050-00	NUT M5, EM4251	$1.34
25	6218008003	PROTECTOR ASS'Y EM4251	$54.92
26	625-15050-00	SHAFT, RBC230	$41.41
27	621-30040-00	GEAR SET, RBC261	$53.80
27	621-30040-01	GEAR SET, RBC230	$68.40
28	621-85002-00	GUARD, RBC230	$12.96
29	922241-7	H.S.H. BOLT M5X25, AN451-T2	$1.41
30	922211-6	HEX. SOCKET HAD BOLT M5X12, EM2650LH	$0.64
31	011-90597-80	S.H. BOLT M5X12 W/W & SW, BHX2500	$1.85
32	060-01099-80	BALL BEARING 6000, RBC261	$12.96
33	003-14260-00	INNER SNAP RING, EM4251	$1.85
34	621-35005-00	OIL SEAL, RBC261	$3.61
35	621-85000-00	RECEIVE WASHER, RBC261	$27.15
36	621-80030-01	CLAMP CPL. WASHER, EM4251	$13.62
37	020-30899-90	SPRING WASHER, RBC260,T1	$1.12
38	625-85050-01	NUT, EM4250	$3.06
38	625-85050-00	NUT, RBC221, RBC251	$2.51
38	625-85005-01	NUT, RBC260,T1	$1.34
39	003-15080-00	OUTER SNAP RING, RBC230	$1.85
40	962103-7	RETAINING RING R-24, AN611	$1.08
41	621-25003-00	BALL BEARING 609ZZ, EM4250	$24.18
42	015-00599-90	TAPPING SCREW, RBC230	$1.41
43	621-15030-00	CLUTCH CASE, RBC230	$64.10
44	621-20010-00	CLUTCH DRUM, RBC230	$32.13
45	523-85005-00	CLUTCH SPRING, EH561	$4.93
46	001-13061-60	BOLT ASS'Y, RBL500	$1.96
47	003-12060-00	WASHER, EM4251	$1.01
49	523-70230-20	COIL, RBC230,T2	$119.03
49	523-70290-20	COIL, RBC230,T1	$97.00
50	024-10550-00	GROMMET, RBC230	$1.85
51	065-40099-31	PLUG CAP SPRING,RBC221	$3.50
52	015-00599-90	TAPPING SCREW, RBC230	$1.41
53	621-95124-00	TRADE MARK M-BRAND, RBC230	$4.27
54	004-36051-80	SCREW ASSEMBLY, RBC230	$1.41
54	014-00594-50	SCREW M5X18, EH760	$1.85
55	523-75031-00	CAP PLUG, RBC230	$13.62
56	523-55040-00	CYLINDER COVER, RBC230,T1	$27.94
56	523-55040-02	CYLINDER COVER, RBC230,T2	$29.37
57	510-35028-01	SPACER GASKET, RBC281	$1.74
58	523-30140-00	INSULATOR COMP., RBC230	$10.65
59	520-35002-00	INSULATOR GASKET, RBC230	$3.17
60	065-01498-10	SPARK PLUG BM7A, RBC230	$6.69
61	521-35002-00	MUFFLER GASKET, RBC230	$15.16
62	523-30170-00	EXHAUST MUFFLER, RBC230	$35.59
63	003-10050-00	WASHER M5, EH760	$1.34
64	011-90596-00	S.H. BOLT M5X45, RBE250	$3.61
64	011-90596-50	S.H. BOLT, RBC230	$1.85
65	044-01299-91	OIL SEAL, RBC260	$6.69
66	056-50899-70	CLIP, BBX2500	$1.96
67	254040-2	WOODRUFF KEY 3, EM2650LH	$2.40
67	005-32031-01	WOODRUFF KEY, RBL500	$1.96
68	014-00596-80	SCREW M5X25, BBX7600	$1.41
68	011-90596-40	S.H.BOLT M5X25, BBX7600	$3.28
69	002-17050-00	NUT M5, EM4251	$1.34
70	523-15000-01	CYLINDER, RBC230	$110.97
71	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
72	523-15013-00	CYLINDER GASKET, RBC230	$1.85
73	510-25010-00	PISTON RING, RBC230	$6.69
74	523-25002-01	PISTON, RBC230	$32.64
75	524-25001-00	PISTON PIN, RBC230	$6.14
76	056-50899-70	CLIP, BBX2500	$1.96
77	061-00899-90	NEEDLE R. BEARING, RBC230	$9.77
78	521-55000-00	PROTECTOR, RBC230	$3.50
79	044-01299-91	OIL SEAL, RBC260	$6.69
80	521-50010-00	REWIND STARTER, RBC230	$43.14
81	521-50030-40	E-RING, RBL500	$3.17
82	521-50030-02	PULLY, RST250	$19.67
83	521-50030-30	RETURN SPRING	$2.51
84	521-50030-20	RATCHET	$3.61
85	521-50020-20	REEL, RBC230	$7.68
86	232258-5	SPIRAL SPRING, EM2650LH	$4.60
87	502-50010-30	ROPE GUIDE, RBC230	$3.61
88	521-50021-10	STARTER KNOB, RBC230	$6.69
88	521-50020-00	REWIND STARTER	$4.71
89	004-36051-80	SCREW ASSEMBLY, RBC230	$1.41
89	014-00594-50	SCREW M5X18, EH760	$1.85
90	621-95123-01	MODEL LABEL M-BRAND,RBC230	$5.48
91	521-50020-10	STARTER CASE, RBC230	$19.67
92	521-50020-60	STARTER ROPE, RBC230	$8.12
93	521-50020-40	WASHER, RBC230	$3.72
94	510-50151-10	SCREW, RBL500	$1.85
95	001-13061-60	BOLT ASS'Y, RBL500	$1.96
96	003-12060-00	WASHER, EM4251	$1.01
97	521-65002-00	DAMPER, RBC230	$1.85
98	503-10030-00	CRANKCASE COMPL., RBC230	$142.89
99	521-15004-00	CRANKCASE GASKET, RBC230	$1.85
100	060-01299-20	BALL BEARING #6001 C3, RBC260	$7.02
100	060-01298-50	BALL BEARING 6001C3 UR,RPT250	$16.70
101	523-20030-01	CRANKSHAFT COMPL. RBC230	$138.72
102	060-01299-20	BALL BEARING #6001 C3, RBC260	$7.02
102	060-01298-50	BALL BEARING 6001C3 UR,RPT250	$16.70
103	004-35052-50	SCREW ASS'Y M5X25, RBC230	$0.90
104	523-70230-10	FLYWHEEL, RBC230,T2	$77.70
104	523-70290-10	FLYWHEEL, RBC230,T1	$79.10
105	621-20030-01	CLUTCH, RBC230	$44.57
106	620-25006-00	WASHER, RBC260	$1.63
108	267817-6	WASHER 8, EM2650LH	$0.64
109	625-25004-00	CLUTCH BOLT, RBC260	$4.93
110	521-90020-00	STAND SET, EM4251	$11.42
111	004-36051-80	SCREW ASSEMBLY, RBC230	$1.41
111	014-00594-50	SCREW M5X18, EH760	$1.85
112	085-11799-90	TUBE RBC230	$6.69
113	525-60580-00	FUEL TANK CAP ASSEMBLY, RBL500	$9.22
113	531-60140-00	FUEL TANK CAP,RBL500	$13.51
113	531-60150-00	FUEL TANK CAP,	$8.67
113	531-60020-03	FUEL TANK CAP, RBC230	$7.02
114	056-10599-90	HOSE CLAMP, EM4251	$1.41
115	523-65039-00	FILTER, RBL500	$11.42
116	503-65002-00	PLATE, EM4251	$3.50
117	503-65003-00	PLATE, EM4251	$3.50
118	523-65029-01	FUEL TANK, RBC230	$25.61
119	521-65003-00	FUEL TANK PLATE, RBC230	$4.93
120	004-36051-80	SCREW ASSEMBLY, RBC230	$1.41
120	014-00594-50	SCREW M5X18, EH760	$1.85
121	521-60080-10	CABLE ADJUST SCREW, RBL500	$4.93
122	531-60054-50	CABLE ADJUST NUT, BBX7600	$3.61
123	524-60012-40	THROTTLE COLLAR SCREW, BBX7600	$3.50
124	520-60081-10	PLUG, EM4250	$4.93
125	325922-6	SWIVEL, EM2650LH	$3.50
126	523-60180-10	THROTTLE VALVE ASS'Y, RBC230	$38.45
127	257964-1	STOP RING E-3, EM2650LH	$2.40
128	521-60100-00	CARBURETOR, RBC230	$130.28
129	523-60180-30	BRACKET CABLE, RBC230	$9.77
130	213538-8	O RING 2, EM2650LH	$2.40
131	503-60020-10	JET, RBC230	$9.77
132	524-60010-30	PUMP GASKET, RBC230	$6.14
133	168575-6	PUMP DIAPHRAGM, EM2650LH	$4.60
134	523-60461-30	PUMP BODY ASSEMBLY, RBC230	$67.00
135	442154-1	METERING DIAPHRAGM GASKET, EM2650LH	$3.50
136	531-60052-50	METERING DIAPHRAGM ASS'Y,RBC260	$27.15
137	523-60460-60	AIR PURGE BODY ASS'Y, RST200	$23.63
138	424314-7	PRIMER PUMP, EM2650LH	$3.50
139	346270-0	PRIMER PUMP COVER, EM2650LH	$3.50
140	266582-4	TAPPING SCREW 3X24, EM2650LH	$1.30
141	085-11599-90	TUBE, RBC230	$1.85
142	024-10599-40	GROMMET RBC230	$3.50
143	004-31056-00	P.H. SCREW M5X60, RBC230	$1.85
144	352010-6	INLET SCREEN, EM2650LH	$2.40
145	002-27050-00	NUT M5, EM4251	$1.34
146	523-60180-20	RING PACKING, BBX7600	$4.93
147	521-35004-00	AIR CLEANER CASE, RBC230	$4.93
148	521-35009-00	CHOKE LEVER, RBC230	$3.50
149	021-30699-90	GASKET, RBC230	$1.08
150	023-00599-70	SPACER, RBC230	$1.08
151	501-35014-00	AIR CLEANER PLATE, RBC230	$3.50
152	521-35007-00	AIR CLEANER ELEMENT, RBC260	$3.50
153	521-35005-01	AIR CLEANER CASE COVER,RBC230	$4.93
154	004-36051-20	SCREW ASSEMBLY M5X12, G1100	$1.41
155	616-55002-01	WIRE, BBX7600	$3.61
5001	521-35011-01	SPARK ARRESTER, RBC230	$22.64
5002	501-35002-00	GASKET (MUFFLER), RBC201	$3.17
5002	523-35049-00	GASKET (MUFFLER), RBC230	$3.50
5011	525-60670-00	STRAP, RBL500	$7.68
5011	625-50210-02	STRAP UNIT, RBC201	$3.83
