Makita PS-6000i Electric Saw Parts

Makita PS-6000i Electric Saw Parts Image

Makita PS-6000i Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

Page-8

Page-9

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price

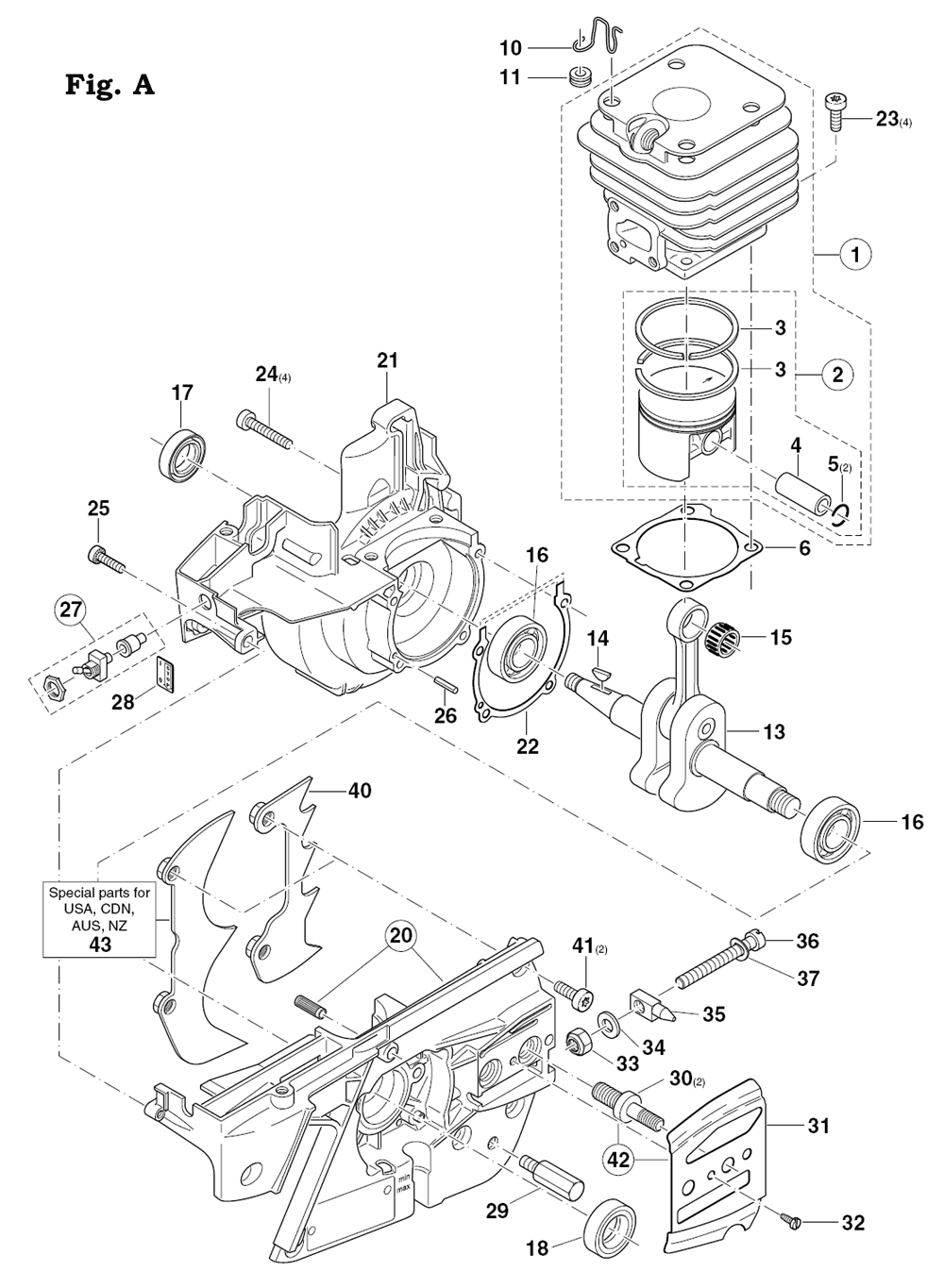

2-A	029-132-000	PISTON ASSY., DCS6000I21	$95.40
3-A	029-132-020	PISTON RING, DCS6800I	$22.64
4-A	119-132-030	PISTON PIN, DCS6421	$19.67
5-A	119-132-060	SPRING RING, DCS6000I21	$1.96
6-A	965-517-131	GASKET- DCS6800I	$3.50
10-A	001-142-012	CRAMP, DCS431	$3.50
11-A	965-401-011	RUBBER BUSH, DCS340	$3.50
13-A	030-120-010	CRANKSHAFT, DCS6800I	$226.79
14-A	939-620-371	KEY , DCS431	$1.85
16-A	960-102-159	BALL BEARING, DCS6800I	$19.34
17-A	962-900-052	RADIAL RING, DCS431	$8.12
18-A	962-900-053	RADIAL RING, DCS6800I	$8.12
20-A	030-111-210	CRANKCASE, CLUTCH SIDE, PS6800I	$79.90
21-A	030-111-060	CRANKCASE MAG SIDE	$99.80
22-A	965-517-141	GASKET, DCS6800I	$3.50
23-A	908-006-205	F.H.SCREW, DCS460	$1.85
24-A	908-005-305	TORX SCREW 5X30, DCS340	$1.85
25-A	908-405-145	TORX SCREW 5X14, DPC7301	$1.85
26-A	936-430-160	SPIRAL PIN 3X16, DCS460	$1.85
27-A	957-605-112	SHORT C.SWITCH ASSY, DCS431	$12.19
28-A	980-113-841	LABEL, DCS430	$1.65
30-A	030-232-010	BOLT, DCS6800I	$8.12
31-A	030-111-021	GUIDE PLATE, DCS6000I-21	$3.17
32-A	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
33-A	922-606-000	HEX NUT M6, DCS6000I21	$1.96
34-A	924-306-400	DISC, DCS6000I21	$1.41
35-A	030-111-040	NUT WITH PIVOT, DCS6800I	$7.68
36-A	901-506-654	F.H.SCREW, DCS6800I	$3.50
37-A	926-206-000	SPRING WASHER 6, DCS6800I	$1.96
40-A	030-250-070	SPIKE BAR, DCS6800I	$20.55
41-A	908-006-145	SCREW M6X14, DCS6800I	$1.85
42-A	010-232-010	STIHL STUD KIT FOR 116/120SI	$27.54
42-A	010-232-020	HUSKI STUD KIT FOR 116/120SI	$27.37
43-A	030-250-010	SPIKE BAR, DCS6800I	$21.10
1-A	029-130-002	CYLINDER & PISTON CPL., DCS6000I21	$199.34

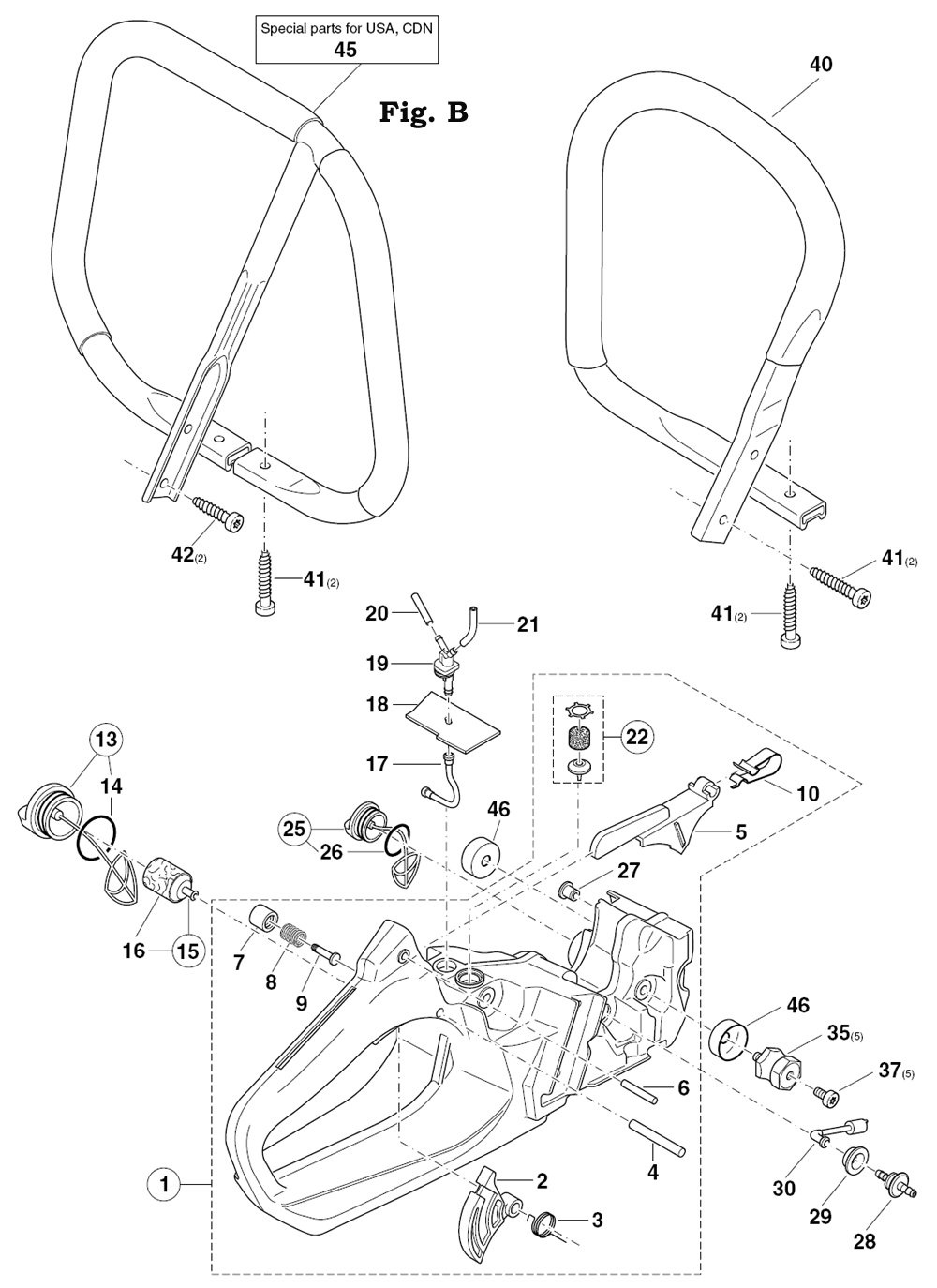

1-B	030-114-067	FUEL TANK	$82.10
2-B	030-117-010	THROTTLE LEVER, DCS6800I	$3.17
3-B	119-117-041	SPRING, DCS6000I21	$1.96
4-B	935-950-400	CYL.PIN 5M 6X40, DCS6000I21	$3.17
6-B	935-940-240	CYL.PIN 4M 6X24, DCS6000I21	$1.74
7-B	965-451-750	BUTTON, DCS6000I21	$1.85
8-B	965-551-160	PRESSURE SPRING, DCS6000I21	$1.96
9-B	965-551-150	STOP PIN, DCS6000I21	$4.60
10-B	119-117-052	SPRING, DCS6800I	$4.71
13-B	965-451-901	FUEL TANK PLUG AY, DCS540 REPLACES 965-450-301	$8.12
14-B	963-232-045	PACKING RING 32X4.5, DCS431	$3.17
16-B	963-601-240	FELT, DCS340	$4.93
17-B	965-402-402	SUCTION LINE, DCS6000I21	$8.12
18-B	965-404-850	GASKET, DCS6800I	$1.85
19-B	965-451-185	FUEL NIPPLE, DCS6800I	$3.50
21-B	965-452-470	FUEL LINE (105MM), DCS6800I	$11.42
22-B	957-114-010	VENT VALVE ASS'Y, DCS6000I21	$3.50
27-B	010-245-010	VENT VALVE, DCS431	$6.69
28-B	965-451-500	HOSE STEM, DCS6800I	$3.17
29-B	965-402-910	RUBBER BUSH, DCS6800I	$3.50
30-B	965-451-350	SUCTION LINE, DCS6800I	$17.69
35-B	965-403-430	RUBBER BUFFER, DCS520I	$9.77
37-B	908-005-095	SCREW M5X9, DCS5200I	$1.85
41-B	913-455-304	SCREW M5.5X30, DCS6000I21	$1.85
42-B	913-455-204	SCREW M5.5X20, DCS6800I	$1.85
45-B	030-310-170	WRAP AROUND HANDLE, DCS6800I	$77.50

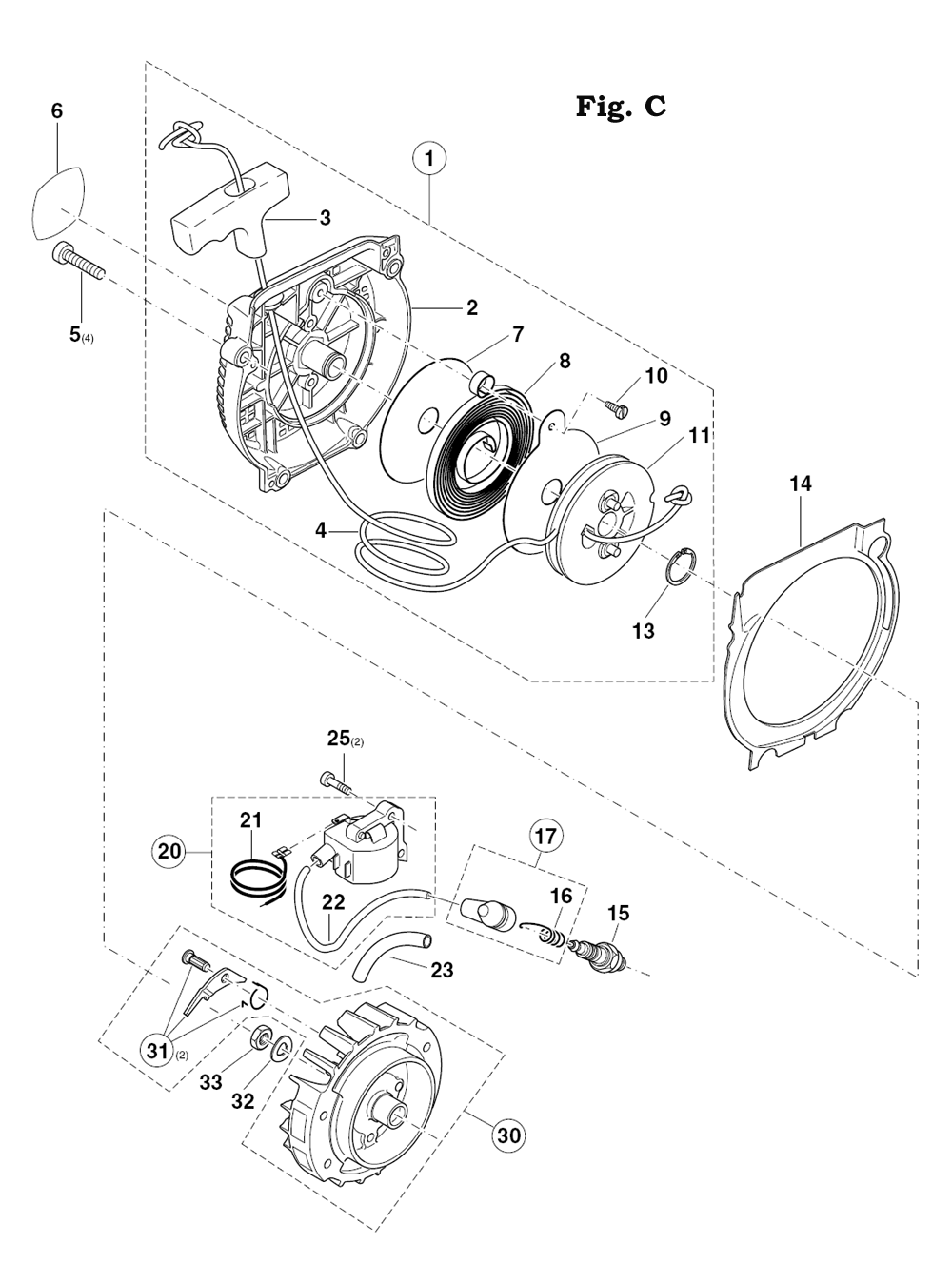

1-C	114-112-630	STARTER ASSEMBLY	$60.50
2-C	112-112-540	FAN HOUSING	$25.17
3-C	965-402-262	STARTER GRIP, DCS6800I	$6.69
4-C	122-164-010	START ROPE 1000MM, DCS6800I	$4.93
5-C	908-005-205	SCREW M5X20, DCS460	$1.85
6-C	980-114-142	LABEL DOLMAR	$1.41
7-C	900-004-363	SPACER, DCS6000I21	$3.50
8-C	123-163-013	REWIND SPRING, DCS6000I21	$15.16
9-C	123-163-020	SPRING COVER, DCS6000I21	$1.96
10-C	907-204-102	THREAD FORMING SCREW, DCS6000I21	$3.50
13-C	929-314-100	SNAP RING, 14 X 1, DCS6000I21	$1.85
14-C	112-112-331	AIR DUCT, DCS6800I	$4.93
15-C	965-603-021	SPARK PLUG,WSR5F DPC6200	$6.14
16-C	965-604-180	SPRING, DCS431	$3.61
17-C	957-604-260	PLUG CAP ASSY, DPC7331	$6.14
21-C	001-147-000	SHORT-CIRCUIT CABLE, DCS5200I	$9.77
22-C	970-310-200	IGNITION CABLE(150 MM), DCS6401	$8.12
23-C	970-502-110	INSULATING HOSE (43 MM), DCS340	$8.12
25-C	908-304-205	F.H.SCREW DCS6800I	$1.85
30-C	030-141-020	FLYWHEEL CPL. DCS6800I	$128.92
31-C	031-166-010	STARTER RATCHET, DCS6000I21	$12.96
33-C	920-308-024	HEX NUT M8X1, DCS34	$1.96

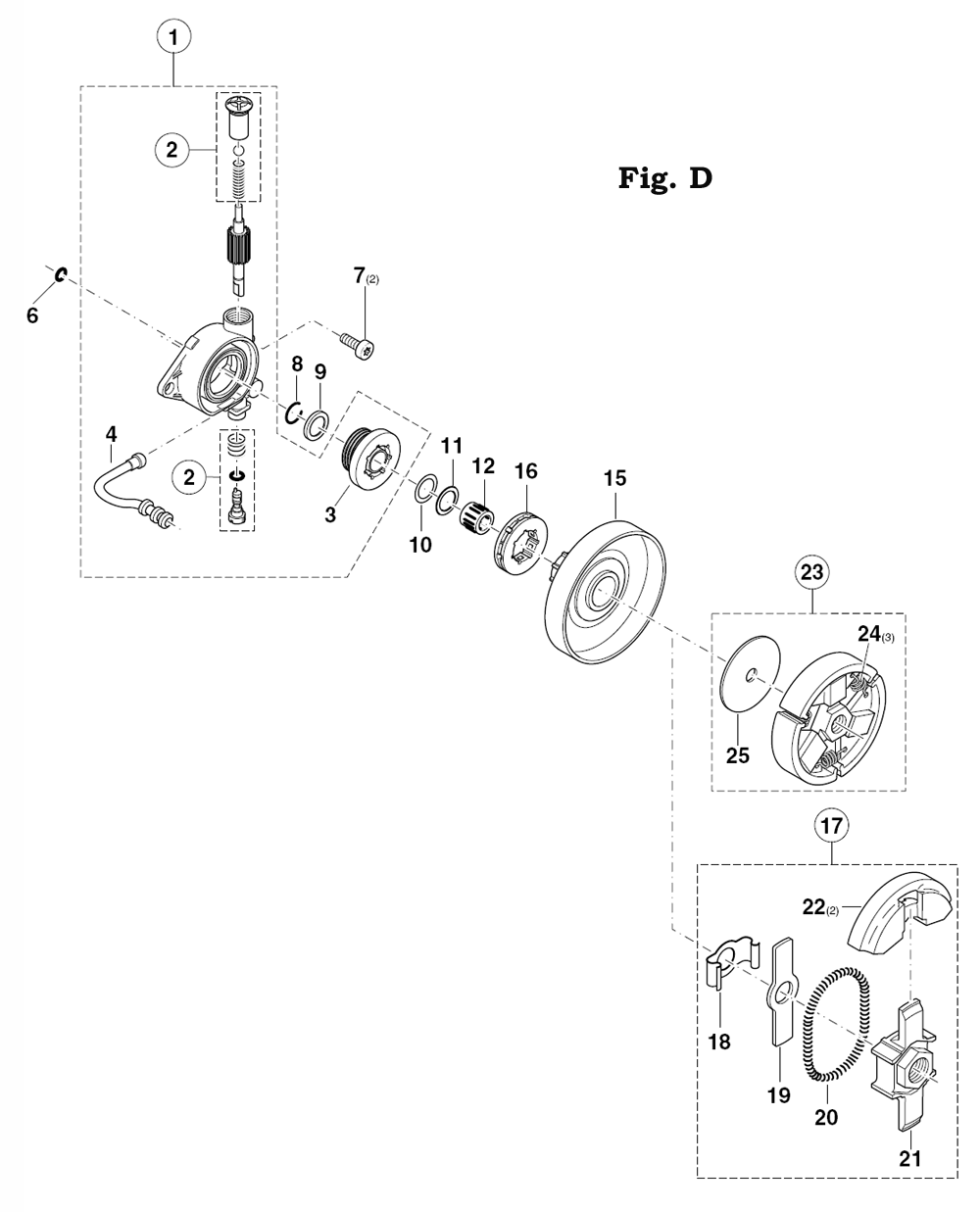

1-D	030-245-100	OIL PUMP, DCS6000I21	$53.20
2-D	030-245-070	REPAIR KIT, DCS6000I21	$13.62
3-D	030-245-051	PUMP DRIVE GEAR, DCS6800I	$12.74
4-D	965-402-402	SUCTION LINE, DCS6000I21	$8.12
6-D	963-204-015	PACKING RING (4X1.5), DCS6800I	$1.74
7-D	908-005-125	F.H. SCREW M5X12, DCS431	$1.85
8-D	930-916-160	SPRING RING, DCS431	$1.96
10-D	030-224-010	THRUST WASHER .3MM, DCS6800I	$3.72
11-D	030-224-020	STOP DISC 0.8MM, DCS6800I	$3.17
12-D	962-210-026	NEEDLE CAGE, DCS6800I	$8.12
15-D	030-223-100	CLUTCH DRUM, DCS6800I	$13.62
16-D	119-224-070	RIM SPROCKET 3/8, DCS6800I	$9.77
18-D	030-182-030	CLUTCH CRAMP, DCS6800I	$3.50
19-D	030-182-020	GUIDE PIECE, DCS6800I	$4.93
20-D	114-184-010	TENSION SPRING, DCS6800I	$8.12
21-D	030-182-010	CLUTCH HUB, DCS6800I	$10.43
22-D	114-181-021	CLUTCH SHOE, DCS6800I	$14.61
23-D	957-180-060	CLUTCH ASS'Y, DCS6000I-21	$29.37
24-D	024-184-021	TENSION SPRING, DC6401	$3.61

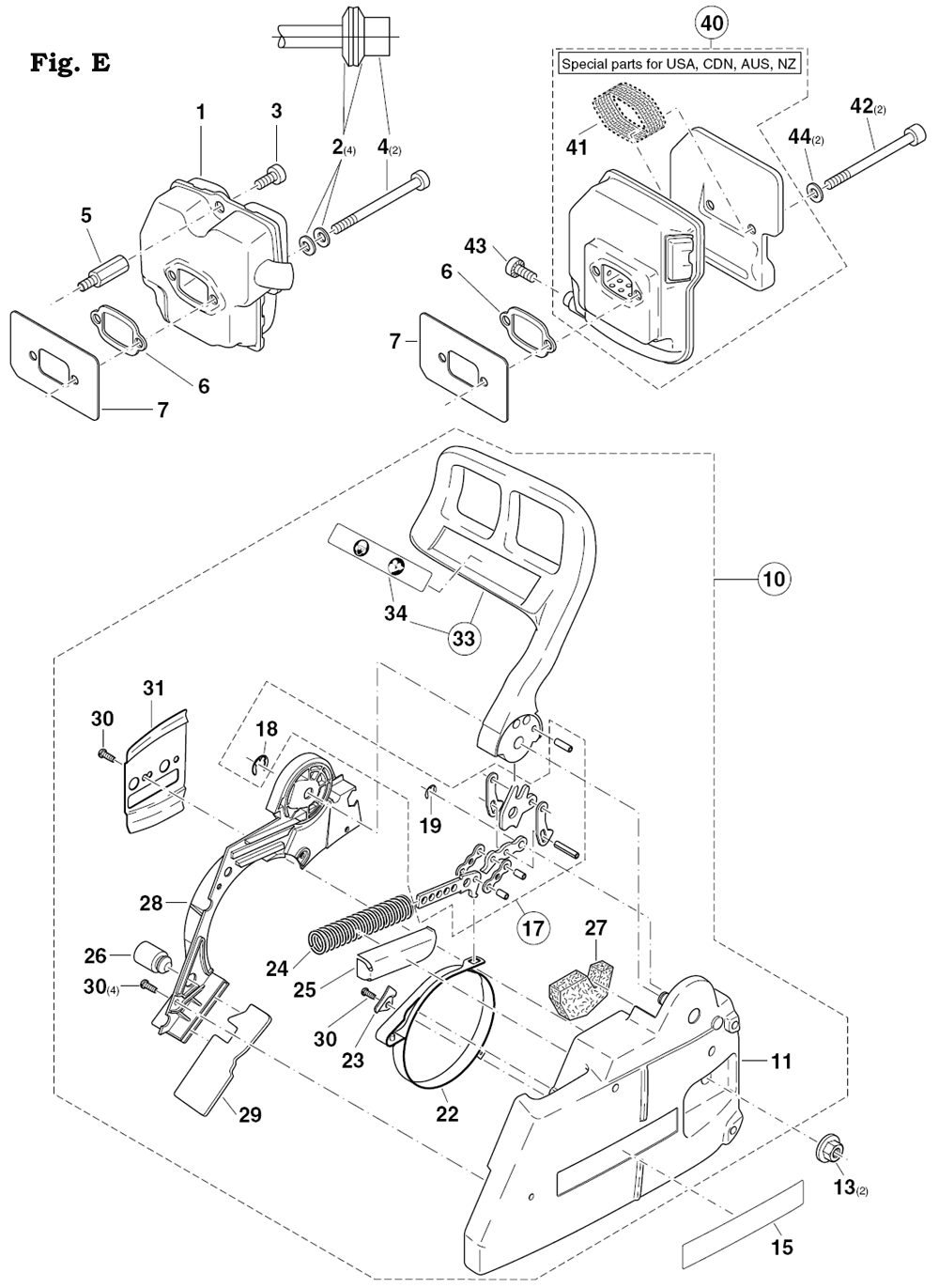

1-E	030-174-010	EURO MUFFLER	$50.28
2-E	928-406-000	DISC, DPC9500	$3.17
3-E	908-006-145	SCREW M6X14, DCS6800I	$1.85
4-E	908-206-708	TORX SCREW 6X70	$4.93
5-E	030-174-020	BOLT	$5.04
6-E	965-517-031	GASKET, DCS6800I	$3.50
7-E	030-174-031	COVER PLATE ,DCS6800I	$4.93
11-E	030-213-175	SPROCKET GUARD	$49.26
13-E	923-208-004	HEX NUT, DCS341	$4.16
15-E	980-114-257	LABEL, PS6000I	$2.62
17-E	010-213-021	BRAKING MECHANISM, DCS6800I	$45.79
18-E	927-306-000	SAFETY WASHER , DCS34	$1.63
19-E	927-304-000	SAFETY WASHER , DCS431	$1.63
22-E	030-213-160	BRAKE SPRING, DCS6800I	$19.67
23-E	027-213-350	BRAKE BAND HOLDER, DCS540	$3.50
24-E	024-213-321	PRESSURE SPRING, DCS6800I	$5.26
25-E	030-213-190	SPRING GUIDE, DCS6800I	$4.93
26-E	965-403-370	RUBBER BUFFER, DCS6800I	$3.50
27-E	965-404-800	COVER,FOAM PLATE, DCS6800I	$3.50
28-E	030-213-182	COVER PLATE, DCS6000I-21	$6.14
29-E	965-404-761	RUBBER PLATE, DCS9010	$4.93
30-E	915-135-100	SCREW 3.5X9.5, DCS431	$1.74
31-E	030-111-030	GUIDE PLATE, DCS6800I	$3.50
33-E	030-213-110	HAND GUARD, DCS6800I	$22.64
34-E	980-114-237	LABEL (SAFETY), DCS430	$1.80
40-E	119-174-241	MUFFLER COMPLETE, DCS6800I	$68.00
41-E	112-174-130	SPARK ARREST SCREEN, DCS6800I	$6.69
42-E	908-206-558	SCREW 6X55, DCS6800I	$3.50
43-E	908-005-095	SCREW M5X9, DCS5200I	$1.85
44-E	928-406-000	DISC, DPC9500	$3.17

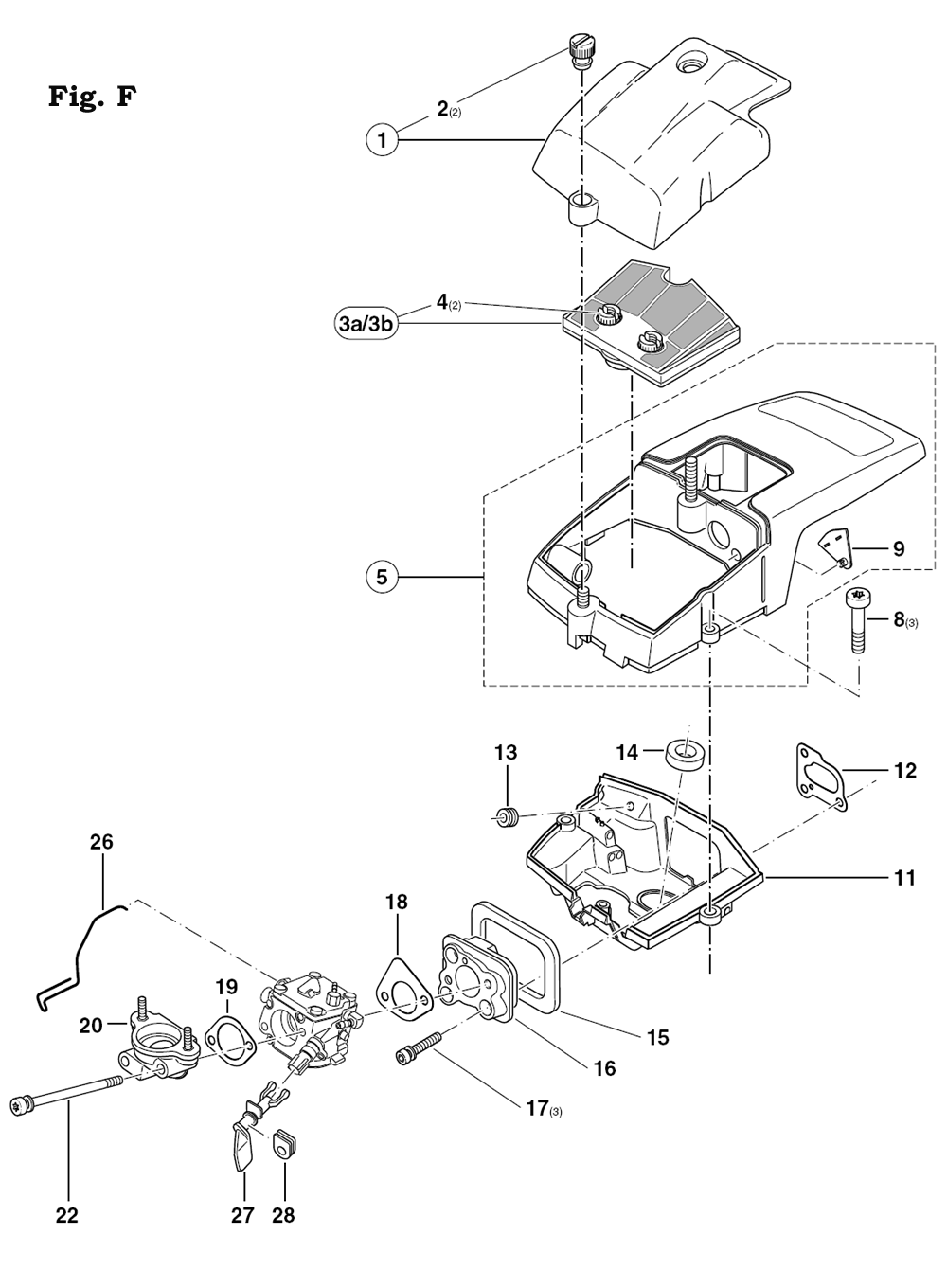

1-F	030-118-070	COVER CPL., DCS6800I	$12.19
2-F	001-118-062	NUT M5,DCS340	$5.26
3a-F	121-173-051	AIR FILTER, NYLON	$22.53
3b-F	121-173-151	AIR FILTER ROBKOFLOK, DCS6800I	$22.53
4-F	001-118-040	NUT M5, DCS6800I	$3.61
8-F	908-305-255	TORX SCREW T-27, DCS6000I21	$1.85
9-F	030-118-131	SHUTTER, DCS6800I	$1.85
11-F	030-118-082	BOTTOM, DCS6800I	$12.19
12-F	965-517-122	GASKET, DCS6800I	$3.50
13-F	965-401-014	RUBBER BUSH, DCS6800I	$3.50
14-F	030-404-460	GASKET, DCS430	$3.50
15-F	030-131-020	GASKET, DCS6800I	$1.85
16-F	030-131-012	INTERMEDIATE FLANGE, DCS6800I	$15.16
17-F	908-405-255	SCREW M5X25, DCS340	$3.50
18-F	965-517-101	GASKET, DCS6800I	$1.85
20-F	121-171-020	CONNECTING MUFF, DCS6800I	$16.04
22-F	908-205-755	SCREW M5X75, DCS6800I	$3.50
26-F	030-117-032	THROTTLE LINKAGE, DCS6800I	$4.93
27-F	030-150-030	CHOKE LEVER, DCS6800I	$3.50
28-F	965-401-016	RUBBER BUSH, DCS6800I	$3.50
5-F	030-118-060	HOOD CPL.,DCS6800I	$35.59

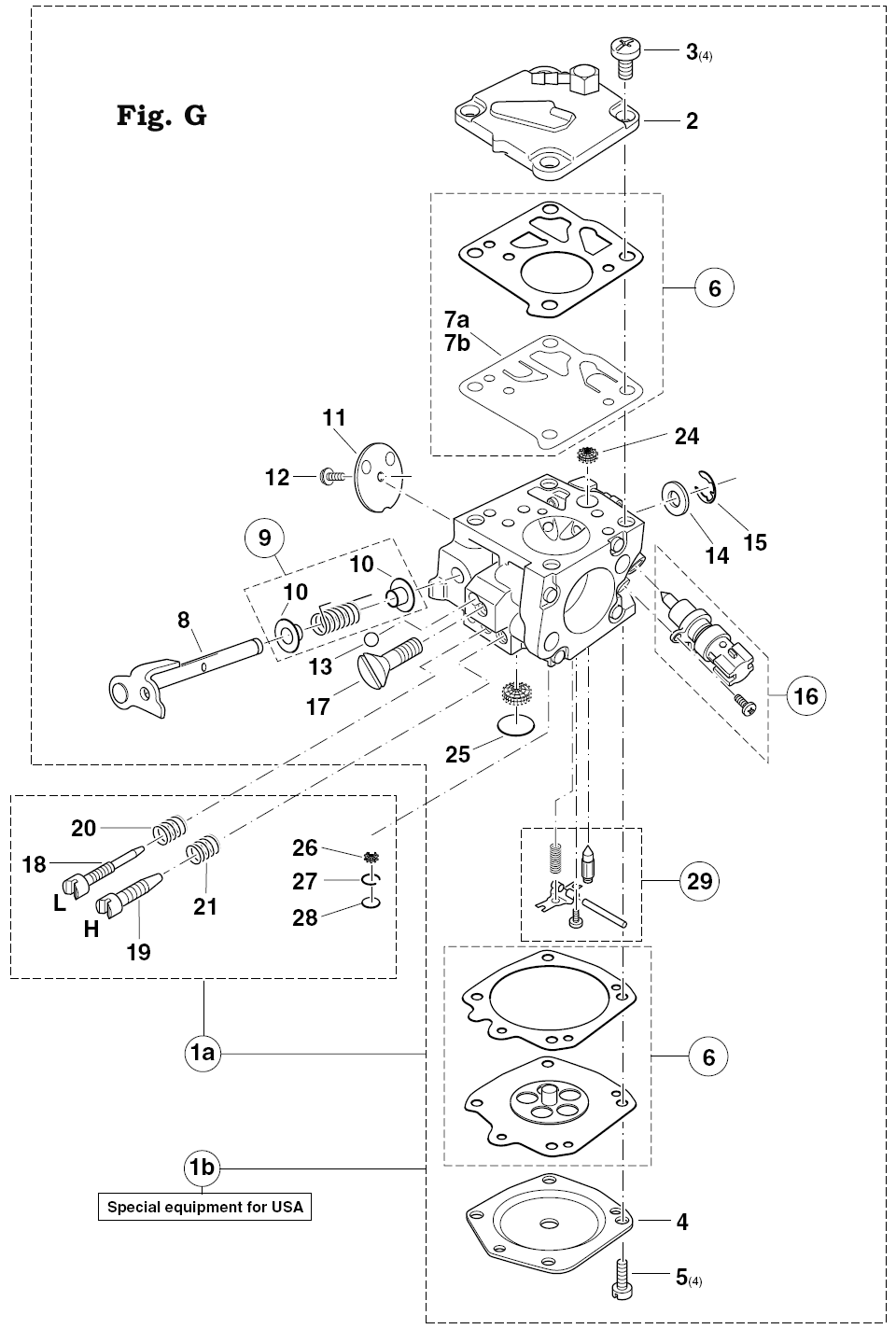

1a-G	030-150-151	CARBURETOR CPL., DCS6800I	$103.02
1b-G	030-150-170	CARBURETOR CPL., DCS6000I-21	$116.50
2-G	030-150-160	PUMP COVER, DCS6800I	$18.46
3-G	113-150-170	SCREW ,DCS6800I	$3.50
4-G	113-150-120	DIAPHRAGM COVER, DCS6800I	$6.69
5-G	001-150-520	SCREW, DCS6800I	$4.71
6-G	957-150-100	DIAPHRAGM & GASKET (TILLOTSON), DPC7311	$12.19
7a-G	113-150-150	PUMP DIAPHRAGM (237-144), DPC7311	$4.93
7b-G	001-150-151	PUMP DIAPHRAGM,RUBBER, DPC7001	$8.12
8-G	133-150-300	THROTTLE SHAFT, DCS6800I	$19.34
9-G	957-150-110	SPRING CPL. DCS6800I	$12.96
10-G	144-151-315	BUSHING, DCS6000I21	$4.93
11-G	001-150-320	THROTTLE SHUTTER, DCS6800I	$6.69
12-G	001-150-370	SCREW, DCS6800I	$3.50
12-G	001-150-650	SCREW, DCS520I	$4.27
13-G	001-150-510	FRICTION BALL, DCS6800I	$3.50
14-G	122-151-400	DISC, DCS6000I21 .	$3.50
15-G	100-150-350	SAFETY WASHER, DCS6000I21	$5.26
16-G	030-150-141	INJECTION VALVE CPL. DCS6800I	$27.26
17-G	001-150-570	IDLE STOP SCREW, DCS600I T1	$6.69
17-G	001-150-270	IDLE STOP SCREW, DCS6000I-21	$6.14
18-G	122-151-470	IDLE ADJ.SCREW(L), DCS6000I21	$22.53
19-G	122-151-510	MAIN ADJ.SCREW(H), DCS6000I21	$14.61
20-G	144-151-480	SPRING(L), DCS6000I21	$5.26
21-G	101-150-480	SPRING(H), DCS6000I21	$3.61
24-G	020-150-180	SCREEN, DCS6000I21	$4.71
25-G	113-150-040	COVER DISC, DPC7311	$3.50
26-G	107-150-230	SCREEN FOR NOZZLE, DCS6000I21	$3.50
27-G	107-150-240	SPRING RING, DCS6000I21	$3.17
28-G	113-150-030	COVER DISC, DCS6000I21	$3.50
29-G	957-150-070	SET OF CONTROL PARTS, DCS6800I	$11.42

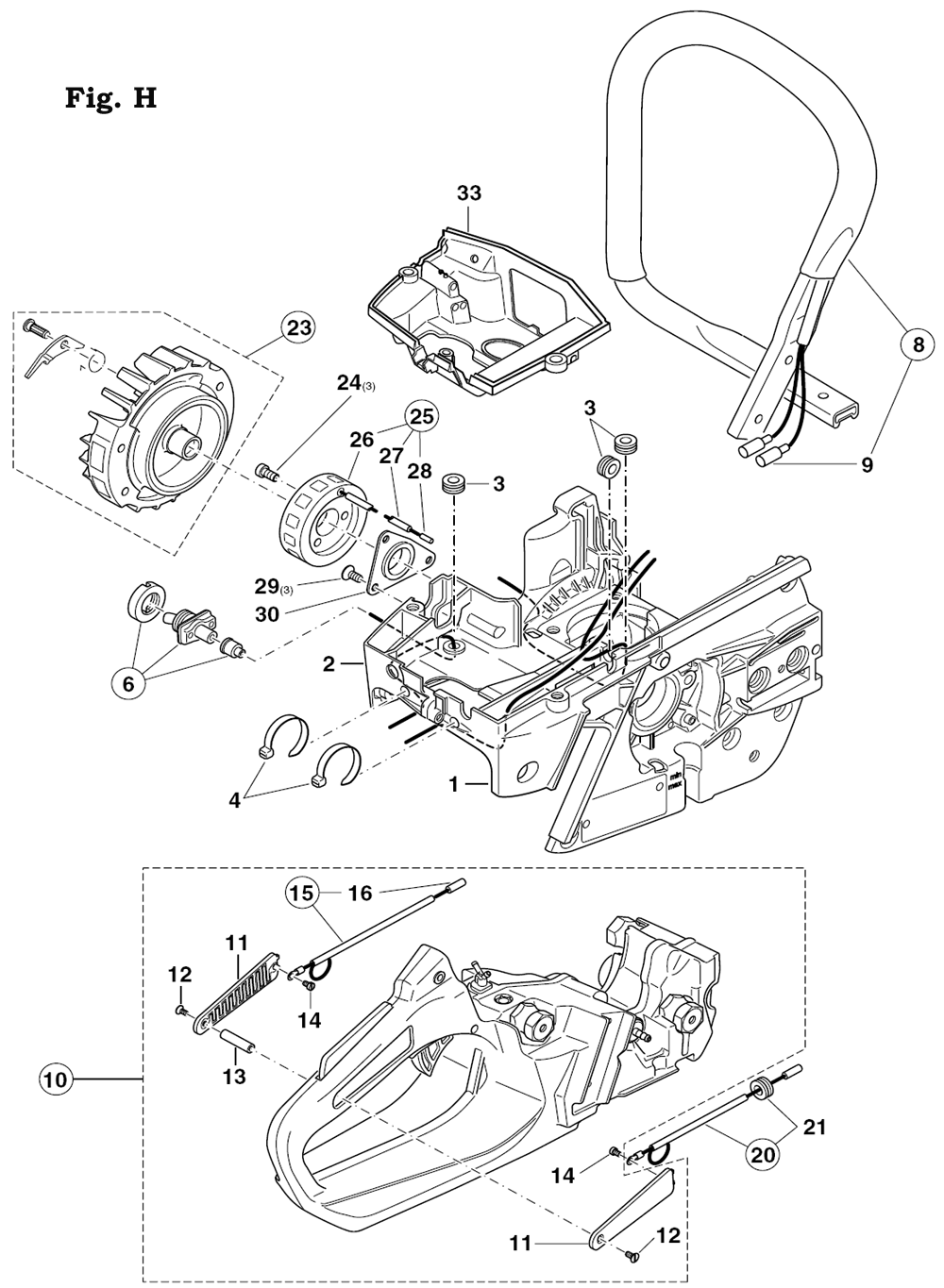

1-H	030-111-570	CRANKCASE CL.SIDE, PS-6000I18H	$86.50
2-H	030-111-581	CRANKCASE, MAG.SIDE, PS-6000I18H	$83.20
3-H	965-401-011	RUBBER BUSH, DCS340	$3.50
6-H	957-605-112	SHORT C.SWITCH ASSY, DCS431	$12.19
8-H	030-310-141	HEATED HANDLE 116/120SI	$73.40
9-H	965-605-250	RECEPTACLE	$2.51
10-H	030-114-572	FUEL TANK, PS-6000I18H	$124.17
11-H	112-114-060	GRIP COVER ASSY.,PS-6000I18H	$37.63
12-H	901-203-062	COUNTERSUNK SCREW	$1.34
13-H	114-117-100	THREADED BUSH, PS-6000I18H	$10.43
14-H	915-129-040	FILLISTER SCREW	$1.12
15-H	970-311-131	CONNECTING CABLE CPL.,PS-6000I18H	$14.72
16-H	965-605-240	CONNECTOR	$2.51
20-H	970-311-160	CONNECTING CABLE CPL., PS-6000I18H	$12.19
21-H	965-401-014	RUBBER BUSH, DCS6800I	$3.50
23-H	030-148-590	FLYWHEEL COMPLETE	$107.19
24-H	901-504-122	SCREW 4X12	$1.12
25-H	030-148-571	GENERATOR COIL	$72.30
26-H	114-148-160	GENERATOR COIL, PS-6000I18H	$70.20
27-H	970-502-050	"INSULATING HOSE,DCS431 3.94"""	$4.93
28-H	965-605-240	CONNECTOR	$2.51
29-H	901-204-082	COUNTERSUNK SCREW 4X8 (MP 25)	$1.41
30-H	114-148-180	INTERMEDIATE PLATE, PS-6000I18H	$42.53
33-H	030-118-170	BOTTOM, PS-6000I18H	$9.88

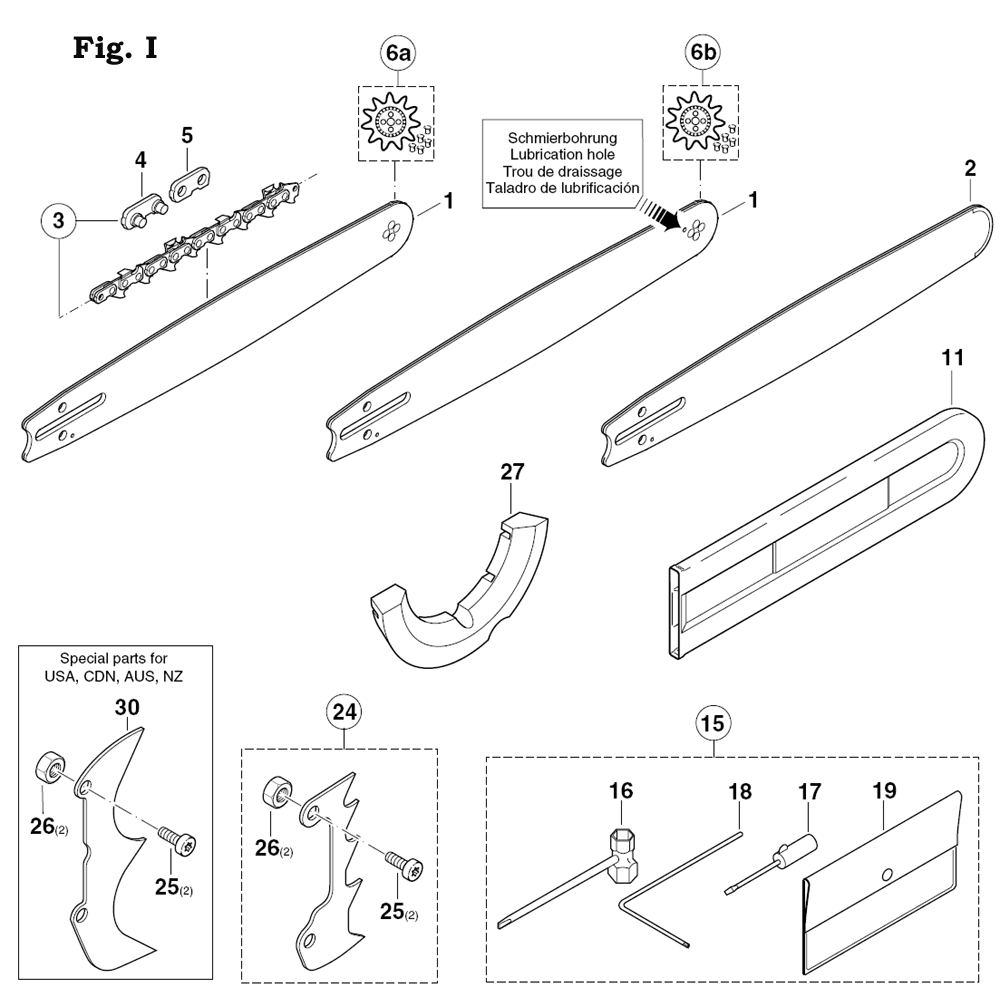

4-I	558-093-010	TIE STRAP WITH RIVETS,PS7900	$1.96
6a-I	412-308-700	"SPROCKET TIP 3/8"""	$28.56
16-I	941719131	UNIVERSAL WRENCH DCS431	$13.88
17-I	944340001	CARBURETOR SCREWDRIVER DCS6800I	$4.19
18-I	940827000	WRENCH TORX DCS431	$7.99
24-I	957-250-050	SPIKE BAR ASSY	$12.63
25-I	908-006-145	SCREW M6X14, DCS6800I	$1.85
26-I	920-406-000	HEXAGONAL NUT M6, DPC7000	$1.96
27-I	965-451-890	INSERT FOR FAN HOUSING	$13.84
30-I	030-250-030	SPIKE BAR	$16.04
0	523-102-064	"chain sprocket 18"" / 45 cm 3/8"" .050"""	$27.56
0	412-308-700	"SPROCKET TIP 3/8"""	$28.56
0	412-308-700	"SPROCKET TIP 3/8"""	$28.56
0	412-308-700	"SPROCKET TIP 3/8"""	$28.56
