Makita PC5000C Sander & Polisher Parts

Makita PC5000C Sander & Polisher Parts Image

Makita PC5000C Parts
5 Inch Concrete Planer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita PC5000C
5 Inch Concrete Plan...
$395.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

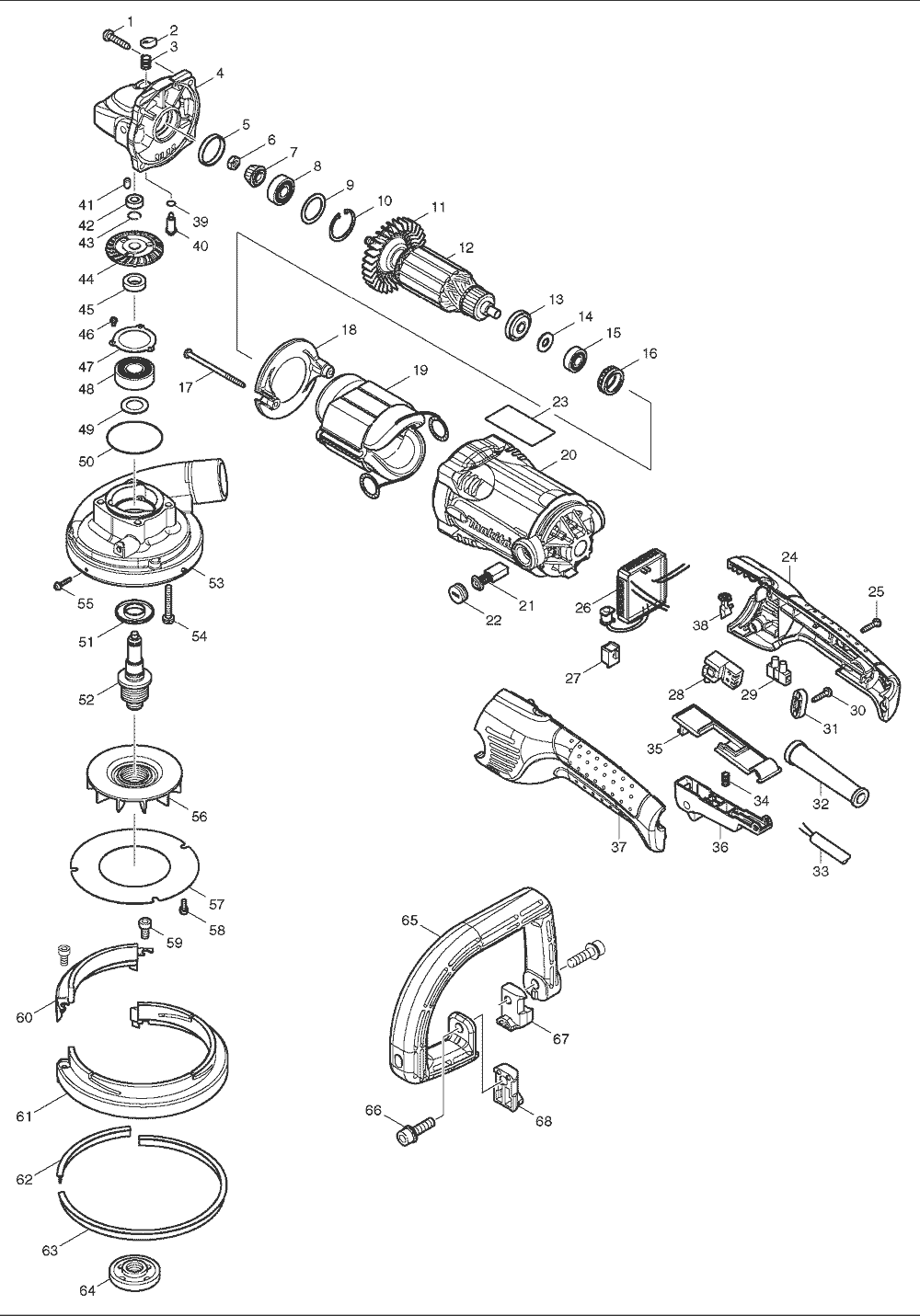

Makita PC5000C Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266459-3 TAPPING SCREW 5X25, 5477NB $0.66
00 819351-8 MAKITA LOGO LABEL, PC5000C $0.86
2 417771-6 PIN CAP, 9557NB $0.75
3 234057-1 COMPRESSION SPRING 8, GA4030 $0.79
4 318158-4 GEAR HOUSING, GA5020 $7.02
5 424051-3 RUBBER RING 26, PC5000C $4.71
6 264010-3 HEX. NUT M7, GA5020 $0.79
7 227520-1 SPIRAL BEVEL GEAR 11, GA6010Z $4.27
8 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
8 211088-7 BALL BEARING 6000DDW, 9005B $13.07
9 267352-4 FLAT WASHER 22, GA5020 $1.01
10 962107-9 RET. RING (INT) R-30, GA5020 $1.48
11 240094-5 FAN 70, GA5020 $1.52
12 513796-9 ARMATURE PC5000C $22.86
13 681660-3 INSULATION WASHER, GV7000C $5.92
14 267281-1 FLAT WASHER 8, GA7011C $1.01
15 210005-4 BALL BEARING 608DDW, 9031 $13.07
15 210044-4 BALL BEARING 608DDW, RP0900K $2.51
16 421720-7 RUBBER RING 22, GA7011C $8.01
17 266325-4 TAPPING SCREW 4X70, GA4030 $0.86
18 419961-7 BAFFLE PLATE, GA5020 $1.26
19 525781-0 FIELD ASS'Y, PC5000C $23.96

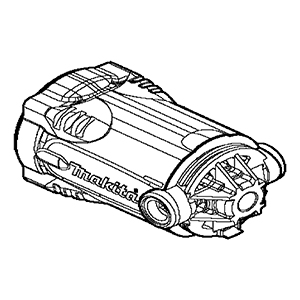

20 140219-0 MOTOR HOUSING, PC5000C $11.53
21 194994-0 CARBON BRUSH CB-253 JR3020 $4.71
22 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
23 866345-4 NAME PLATE, PC5000C $2.40
24 188630-8 HANDLE SET, PC5000C $9.22
25 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
26 631797-6 CONTROLLER, PC5000C $38.04
27 418518-1 SLEEVE, JR3070CT $1.26
28 651922-3 SWITCH, HM1303B $19.45
29 654575-7 TERMINAL BLOCK, PC5000C $3.61
30 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
31 687123-7 STRAIN RELIEF, JV0600K $0.75
32 682574-9 CORD GUARD 10-90, PC5000C $2.40
33 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
33 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
34 233117-6 COMPRESSION SPRING, AF502,SH01W $0.90
35 418519-9 SWITCH BASE, GA7011C $1.52
36 158401-7 SWITCH LEVER , PC5000C $3.61
37 188630-8 HANDLE SET, PC5000C $9.22
38 450184-8 LENZ, PC5000C $1.12
39 213977-2 O RING 7, GA5020 $0.53
40 256505-0 SHOULDER PIN 5, GA5020 $1.19
41 263002-9 RUBBER PIN 4, 5007NK $0.86
42 210033-9 BALL BEARING 696ZZ, GA4030 $4.16
43 233950-6 RING SPRING 11, GA4030 $1.63
44 227521-9 SPIRAL BEVEL GEAR 35A, GA6010Z $7.02
45 257171-6 RING 12, PC5000C $2.51
46 911003-8 P.H. SCREW M3X6, 6261DWPLE $0.86
47 285728-3 BEARING RETAINER 39, GA5020 $0.75
48 211241-5 BALL BEARING 6202DDW, BPB180 $6.03
49 253853-8 F. WASHER 15, LS1211 $1.63
50 213624-5 O RING 48, GA5020 $0.86
51 345464-4 LABYRINTH RING, GA4030 $0.75
52 325623-6 SPINDLE A, PC5000C $7.02
54 911256-9 P.H. SCREW M5X35, 6300LR $0.86
55 911024-0 PAN HEAD SCREW M3X14, LP1812C $0.75
56 240114-5 FAN 85, PC5000C $4.71
57 346045-7 SEPARATOR, PC5000C $1.34
58 911115-7 P.H. SCREW M4X10, PC5000C $1.19
59 922312-0 H.S.H. BOLT M6X12, 2414NB $1.08
60 424188-6 DUST COVER CAP, PC5000C $3.61
61 424187-8 DUST COVER, PC5000C $8.12
62 443145-5 BRUSH B, PC5000C $3.61
63 443144-7 BRUSH A, PC5000C $5.92
64 193465-4 LOCK NUT 5/8-45, 9005B REPLACES 224568-4 $12.60
65 416256-9 LOOP HANDLE, 9227C $10.32
66 922453-2 HEX. SOCKET HEAD BOLT M8X30, PC5000C $0.90
67 450189-8 SPACER A, PC5000C $1.12
68 450190-3 SPACER B, PC5000C $1.12
69 253828-7 FLAT WASHER 10, 2012NB $1.63
1001 122853-8 'DUST BAG ASS''Y PC5000C ' $10.60
1002 410047-0 WRENCH HOLDER, GV5000 $1.63
1003 782425-7 LOCK NUT WRENCH 28 PC5000C $8.40
1004 783203-8 HEX WRENCH 5, 2708 $3.24
1006 194921-7 DUST COVER BRUSH SET PC5000C $12.60
