Makita PC1100
4-1/4 Inch Concrete ...
$649.99
Tool Diagram    (Click image to Zoom in) View larger Image

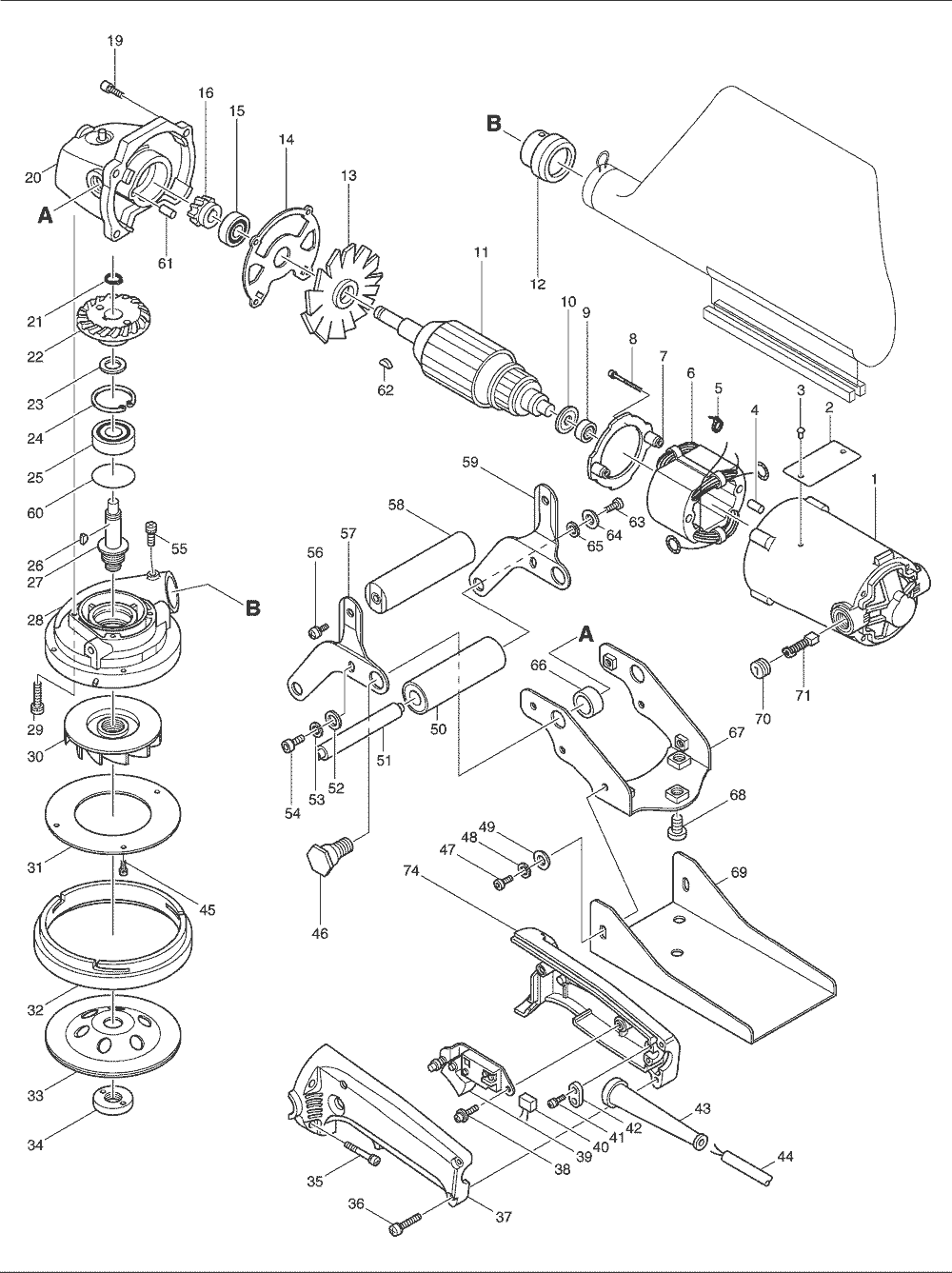

Makita PC1100 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 156844-7 MOTOR HOUSING, PC1100 $40.29
39 651033-4 SWITCH, PC1100 $27.37
2 854593-7 NAME PLATE, PC1100 $2.51
6 522561-5 FIELD, PC1100 $56.50
11 516091-6 ARMATURE ASSEMBLY,9005B $84.60
3 953101-2 RIVET 0-3, 5201NA $0.49
4 263002-9 RUBBER PIN 4, 5007NK $0.86
37 181460-6 HANDLE SET, PC1100 $16.04
5 687010-0 BAND, 9005B $0.46
37 181460-6 HANDLE SET, PC1100 $16.04
6 522561-5 FIELD, PC1100 $56.50
00 256616-1 PIN 5, PC1100 $1.19
25 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
7 411876-4 BAFFLE PLATE, JN3200 $4.49
8 911290-9 P.H. SCREW M5X65, GA7911 $1.96
9 211033-2 B. BEARING 608LB, 5091D $8.78
9 210005-4 BALL BEARING 608DDW, 9031 $13.07
10 681613-2 INS. WASHER, JN3200 $1.63
11 516091-6 ARMATURE ASSEMBLY,9005B $84.60
12 341836-1 JOINT, PC1100 $5.92
13 241517-6 FAN 70, 9005B $14.61
14 341850-7 PLATE, PC1100 $4.16
15 211088-7 BALL BEARING 6000DDW, 9005B $13.07
16 181737-9 BEVEL GEAR SET,9005B $54.90
19 911241-2 P.H. SCREW M5X25, 9005B $0.86
20 159710-7 GEAR HOUSING,9005B,T2 $36.51
21 961052-5 RETAINING RING S-12, 9218PBL $0.86
22 181737-9 BEVEL GEAR SET,9005B $54.90
23 257088-3 RING 12, PC1100 $1.63
24 962151-6 RETAINING RING R-32, 9005B $1.48
25 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
26 254002-0 WOODRUFF KEY 3, 9005B $0.97
27 321437-1 SPINDLE, PC1100 $26.92
28 156845-5 GEAR HOUSING COVER, PC1100 $52.20
29 911141-6 P.H. SCREW M4X22, 9500D $0.53
29 266040-0 TAPPING SCREW, 2012NB $0.86
30 241637-6 FAN 76, PC1100 $10.32
31 341835-3 SEPARATOR, PC1100 $4.49
32 421182-9 DUST COVER, PC1100 $26.92
33 792289-1 DIAMOND WHEEL PC1100 $494.60
34 224526-0 LOCK NUT PC1100 $8.40
35 911248-8 P.H. SCREW M5X28, HM1500 $1.19
36 911143-2 P.H. SCREW M4X22, 6211D $0.86
37 181460-6 HANDLE SET, PC1100 $16.04
38 911104-2 P.H. SCREW M4X6, PC1100 $0.86
39 651033-4 SWITCH, PC1100 $27.37
41 911133-5 P.H. SCREW M4X18, N9501B $0.86
42 687002-9 STRAIN RELIEF, 9217SPC $0.97
43 682503-2 CORD GUARD 8-90, 9005B $2.51
43 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
44 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
44 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
45 911111-5 P.H. SCREW M4X10, LS1011 $0.53
46 265264-5 HEX BOLT M12, PC1100 $5.37
47 922312-0 H.S.H. BOLT M6X12, 2414NB $1.08
48 942151-2 SPRING WASHER 6, 5007NB $0.90
49 253011-6 F. WASHER 6, 2030S $1.01
50 152179-4 FRONT ROLLER, PC1100 $14.61
51 321436-3 FRONT ROLLER SHAFT, PC1100 $11.75
52 941151-9 F. WASHER 6, 5007NB $0.75
53 942151-2 SPRING WASHER 6, 5007NB $0.90
54 922311-2 H.S.H. BOLT M6X12, 5077B $1.96
55 911202-2 P.H. SCREW M5X8, LS1011 $0.53
56 911211-1 P.H. SCREW M5X12, HM1500B $0.86
57 341838-7 GRIP HOLDER, PC1100 $10.32
58 273416-4 GRIP 25, PC1100 $7.46
59 341837-9 GRIP HOLDER (R), PC1100 $10.32
60 213459-4 O RING 32, HK1810 $1.19
61 263002-9 RUBBER PIN 4, 5007NK $0.86
62 254002-0 WOODRUFF KEY 3, 9005B $0.97
63 922312-0 H.S.H. BOLT M6X12, 2414NB $1.08
64 942151-2 SPRING WASHER 6, 5007NB $0.90
65 253011-6 F. WASHER 6, 2030S $1.01
66 257579-4 SLEEVE 16, PC1100 $1.63
67 341839-5 BASE HOLDER, PC1100 $27.59
68 251462-7 SCREW M8X14, PC1100 $1.74
69 341840-0 BASE, PC1100 $20.33
70 643600-9 BRUSH CAP 6-10, 9005B $1.63
71 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
74 181460-6 HANDLE SET, PC1100 $16.04
400 782401-1 LOCK NUT WRENCH, N9514B $8.40
402 783203-8 HEX WRENCH 5, 2708 $3.24
404 122193-4 DUST BAG PC1100 $29.00
900 810146-2 CAUTION LABEL, 6906 $1.17
