Makita N1900B Electric planer parts

Makita N1900B Electric planer parts Image

Makita N1900B Parts
3-1/4 Inch Planer Kit with Case

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita N1900B
3-1/4 Inch Planer Ki...
$149.99

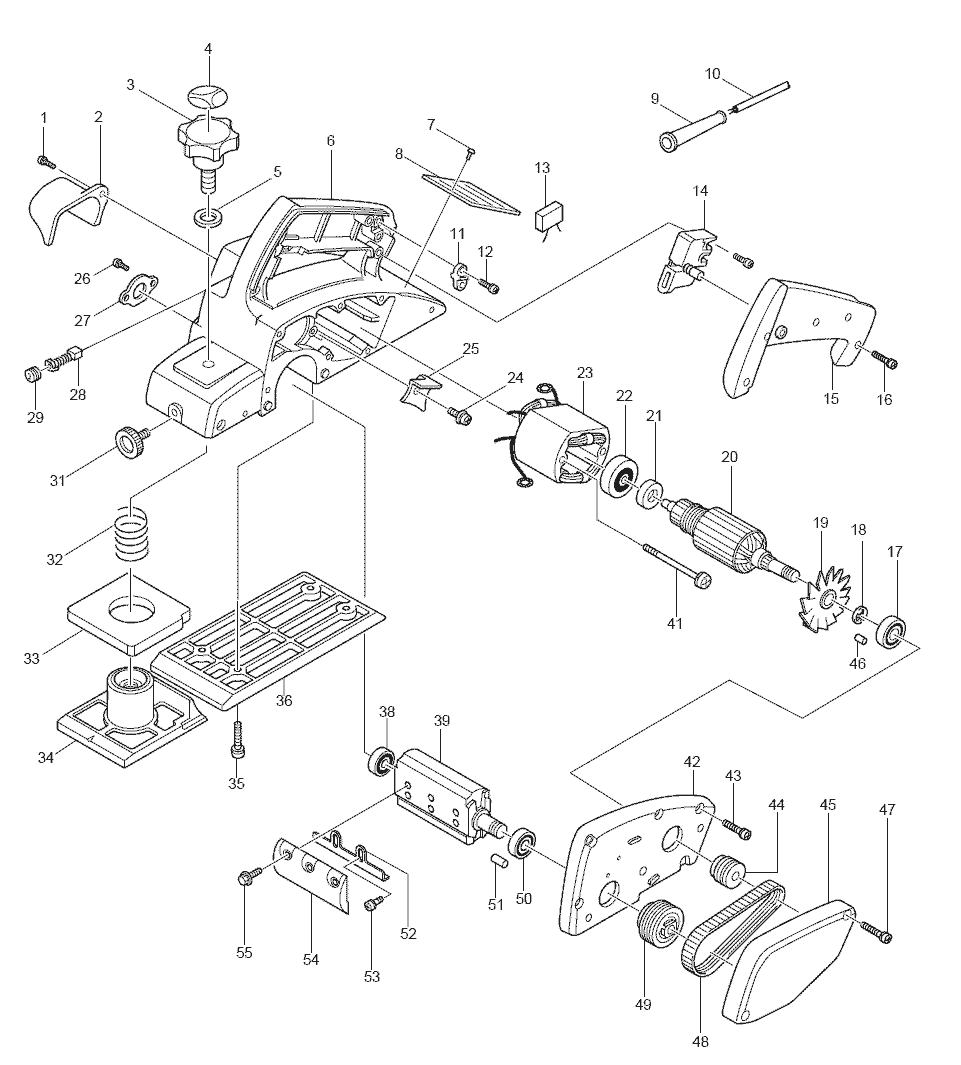

Tool Diagram    (Click image to Zoom in) View larger Image
Makita N1900B Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
12 265941-9 TAPPING SCREW M4X18, N1900B $0.86
1 265874-8 TAPPING SCREW 4X20, 6501 $0.86
2 411650-0 CHIP COVER, N1900B $3.06
3 271231-0 KNOB 46, N1900B $5.92
4 812137-9 SCALE PLATE, 1902 $0.97
5 253796-4 F. WASHER 10, N1900B $1.63
6 159858-5 MAIN FRAME COMPL. N1900B $42.94
6 643556-6 BRUSH HOLDER , 4301BV $4.49
6 817733-8 CAUTION LABEL, 1900B $0.96
8 811554-0 NAME PLATE, 1900B $2.74
9 682502-4 CORD GUARD 8-85, HP2010N $2.51
9 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
11 687063-9 STRAIN RELIEF, 4323K $1.26
12 265941-9 TAPPING SCREW M4X18, N1900B $0.86
14 651232-8 SWITCH, 9218SB $10.43
15 415676-4 HANDLE COVER, N1900B $7.46
16 265875-6 TAPPING SCREW BT4X25, N1900B $0.53
17 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
18 961015-1 STOP RING E-9, BO5021 $0.86
19 241510-0 FAN, N1900B $3.06
20 511936-3 ARMATURE ASS'Y 115V, N1900B $80.90
22 211028-5 B. BEARING 627LB, 6510LVR $8.78
23 521122-8 FIELD ASS'Y, 115V, 1900B $43.65
23 654018-9 GARTER SPRING, N1900B $0.90
23 654555-3 CONNECTOR, 9528NB $0.75
24 265871-4 TAPPING SCREW BT4X16,BO4551 $0.53
25 411153-4 BAFFLE PLATE, N1900B $1.63
28 194972-0 CARBON BRUSH 76, 6905B $8.12
29 643550-8 BRUSH CAP , 9031 $1.63
31 251812-6 SCREW M5X10, 1912B $1.96
32 231004-3 COMP. SPRING 18, 1912B $4.16
33 421007-7 RUBBER PACKING, N1900B $3.06
34 312566-1 FRONT BASE, N1900B $27.59
35 265878-0 TAPPING SCREW BT 5X16, N1900B $0.86
36 312023-9 BASE, N1900B $24.62
38 211032-4 B. BEARING 608ZZ, N1900B $8.78
39 161061-6 DRUM, N1900B $27.59
41 265877-2 TAPPING SCREW BT 4X60, M102 $1.19
43 265875-6 TAPPING SCREW BT4X25, N1900B $0.53
44 222125-2 V-PULLEY 4-20L, 1900B-T2 $7.46
45 411019-8 BELT COVER, 1902 $4.49
46 263002-9 RUBBER PIN 4, 5007NK $0.86
47 911148-2 P.H. SCREW M4X25, 5057KB $0.86
48 225007-7 POLY V-BELT, KP0800K $16.04
49 222126-0 V-PULLEY 4-37, 1900B-T2 $8.78
50 211062-5 B. BEARING 6000ZZ, LS1016L $10.98
51 263002-9 RUBBER PIN 4, 5007NK $0.86
52 342430-2 ADJUST PLATE, 1902 $1.63
53 251246-3 P.H. SCREW M4X5, 1902 $0.86
54 345007-2 DRUM PLATE SET, KP0800 $7.46
55 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
404 911228-4 P.H. SCREW M5X18, 5377MG $0.86
405 411086-3 GAUGE PLATE, HM0860C $1.52
406 123062-2 BLADE GAUGE, 1902 $6.40
410 782209-3 SOCKET WRENCH, 4200H $6.40
412 D-46230 "3-1/4"" HSS PLANER BLADE (2PCS/SET)" REPLACES D... $21.62
500 161061-6 DRUM, N1900B $27.59
901 343433-9 SET PLATE (MINI BLADE), N1900B $4.49
