Makita ML903 Flashlight Parts

Makita ML903 Parts

9.6 Volt Pod Style Rechargeable Flashlight

Download Schematic

Time to buy a new tool?

Makita ML903

9.6 Volt Pod Style R...

$49.99

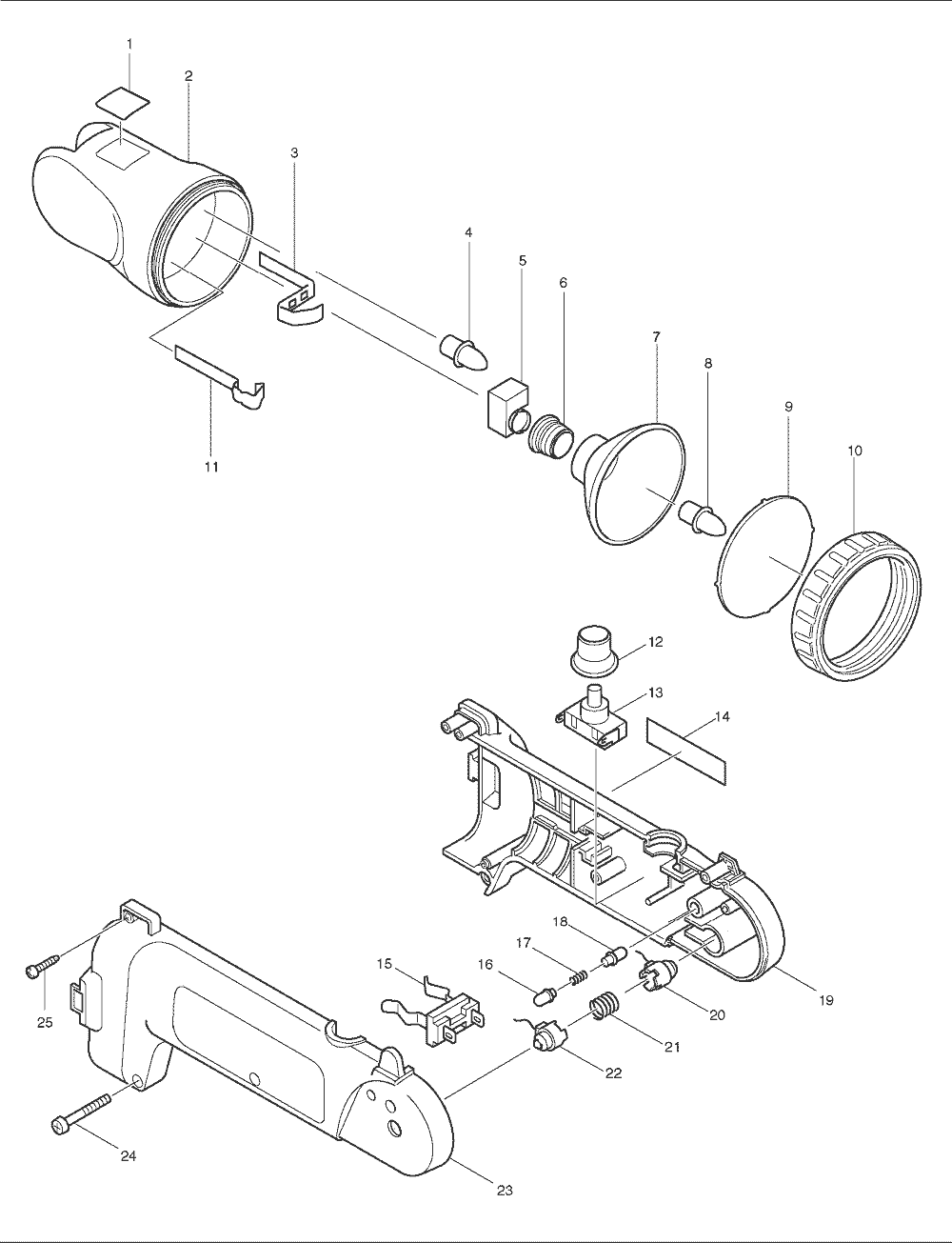

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	819088-7	MAKITA LABEL, ML140	$0.66
00	416413-9	HOUSING R, ML903	$4.49
2	415760-5	CASE HEAD, ML702	$4.49
00	416414-7	HOUSING LEFT, ML903	$4.49
3	654136-3	BULB CONTACT PLATE A, ML902	$1.26
00	82ML903	CLAMSHELL ML903	$0.30
4	192546-1	REPLACEMENT BULBS 2/PKG. ML901 902	$6.40
5	415810-6	PROTECTOR, ML702	$1.63
6	415855-4	BULB HOLDER, ML702	$1.26
7	163368-6	REFLECTOR, ML702	$3.06
8	192546-1	REPLACEMENT BULBS 2/PKG. ML901 902	$6.40
9	415866-9	LENS, ML702	$1.63
10	415807-5	REFLECTOR RETAINER, ML702	$1.63
11	654137-1	BULB CONTACT PLATE B, ML702	$1.26
12	421540-9	COVER, ML702	$0.97
13	651709-3	SWITCH, ML140	$3.61
15	643926-9	BATTERY HOLDER, ML180	$1.63
16	415811-4	KNOCK SHAFT, ML702	$0.97
17	233143-5	COMPRESSION SPRING 4, ML702	$0.79
18	415811-4	KNOCK SHAFT, ML702	$0.97
20	632523-6	PIVOT TERMINAL UNIT L, ML140	$1.63
21	233144-3	COMPRESSION SPRING 7, ML702	$0.86
22	632524-4	PIVOT TERMINAL UNIT R, BML185	$1.63
24	911143-2	P.H. SCREW M4X22, 6211D	$0.86
25	265869-1	TAPPING SCREW 3X14, ML901	$1.96
1001	GM00000330	SET PLATE, ML121	$2.84
1002	345261-8	HOOK PLATE, ML702	$1.26
1002	415812-2	HOOK BUTTON, ML702	$0.90
1003	417926-3	STRAP, ML180	$5.70
1003	415813-0	STRAP, ML702	$3.94
