Makita ML702

7.2 Volts Cordless F...

$45.99

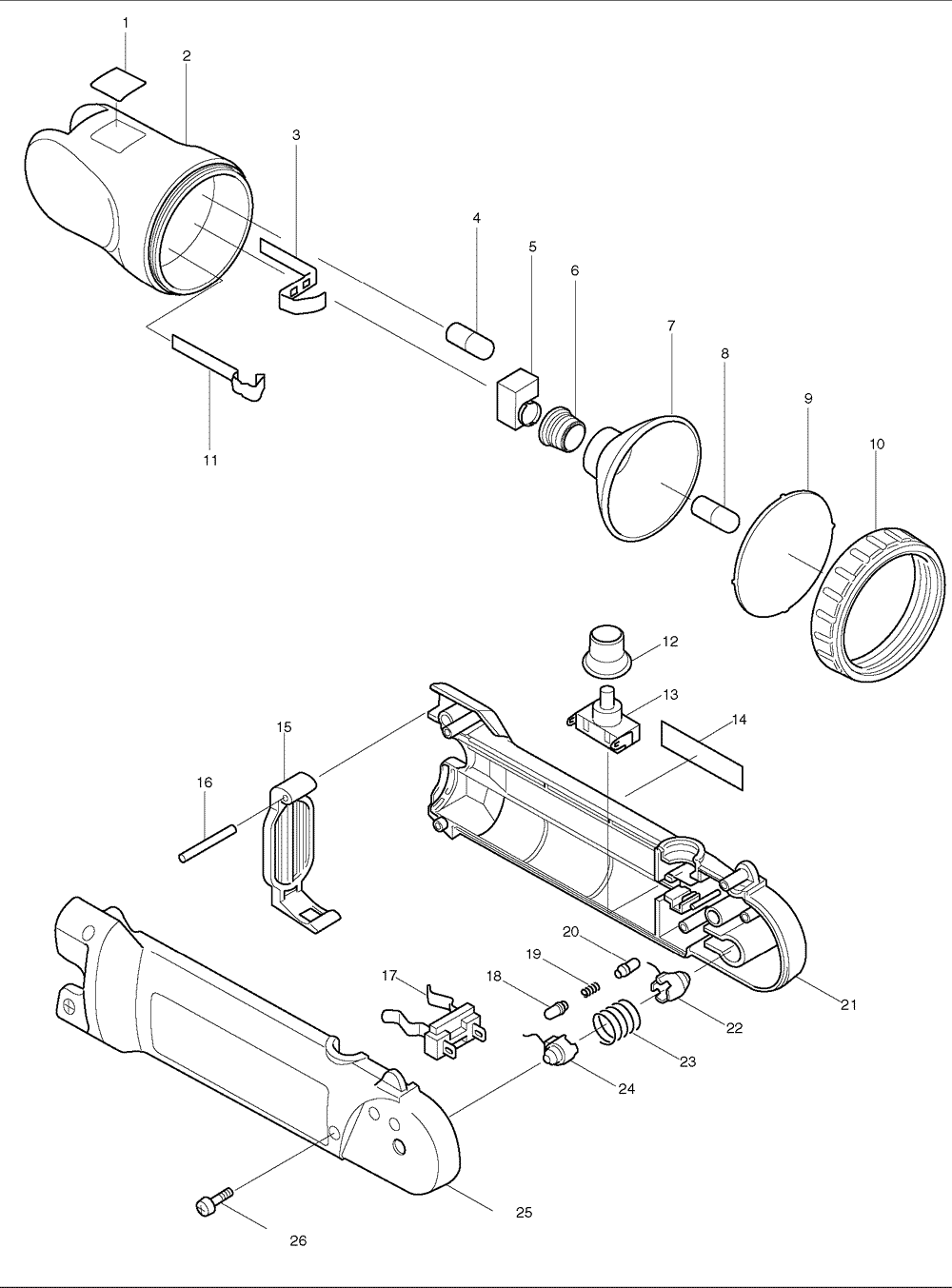

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
15	344549-3	SET PLATE, ML702	$3.06
1	819088-7	MAKITA LABEL, ML140	$0.66
2	415760-5	CASE HEAD, ML702	$4.49
3	654136-3	BULB CONTACT PLATE A, ML902	$1.26
5	415810-6	PROTECTOR, ML702	$1.63
6	415855-4	BULB HOLDER, ML702	$1.26
7	163368-6	REFLECTOR, ML702	$3.06
9	415866-9	LENS, ML702	$1.63
10	415807-5	REFLECTOR RETAINER, ML702	$1.63
11	654137-1	BULB CONTACT PLATE B, ML702	$1.26
12	421540-9	COVER, ML702	$0.97
13	651709-3	SWITCH, ML140	$3.61
14	858108-2	NAME PLATE, ML702	$1.36
15	344549-3	SET PLATE, ML702	$3.06
16	256252-3	PIN 3, 6018DW	$1.19
17	643926-9	BATTERY HOLDER, ML180	$1.63
18	415811-4	KNOCK SHAFT, ML702	$0.97
19	233143-5	COMPRESSION SPRING 4, ML702	$0.79
20	415811-4	KNOCK SHAFT, ML702	$0.97
21	415763-9	HOUSING L, ML702	$3.06
22	632533-3	PIVOT TERMINAL UNIT L, ML702	$1.63
23	233144-3	COMPRESSION SPRING 7, ML702	$0.86
24	632524-4	PIVOT TERMINAL UNIT R, BML185	$1.63
25	415764-7	HOUSING R, ML702	$3.06
26	265869-1	TAPPING SCREW 3X14, ML901	$1.96
1001	345261-8	HOOK PLATE, ML702	$1.26
1001	415812-2	HOOK BUTTON, ML702	$0.90
1002	417926-3	STRAP, ML180	$5.70
1002	415813-0	STRAP, ML702	$3.94
