Makita ML120 Flashlight Parts

Makita ML120 Parts

12 Volt Rechargeable Flashlight

Download Schematic

Time to buy a new tool?

Makita ML120

12 Volt Rechargeable...

$55.99

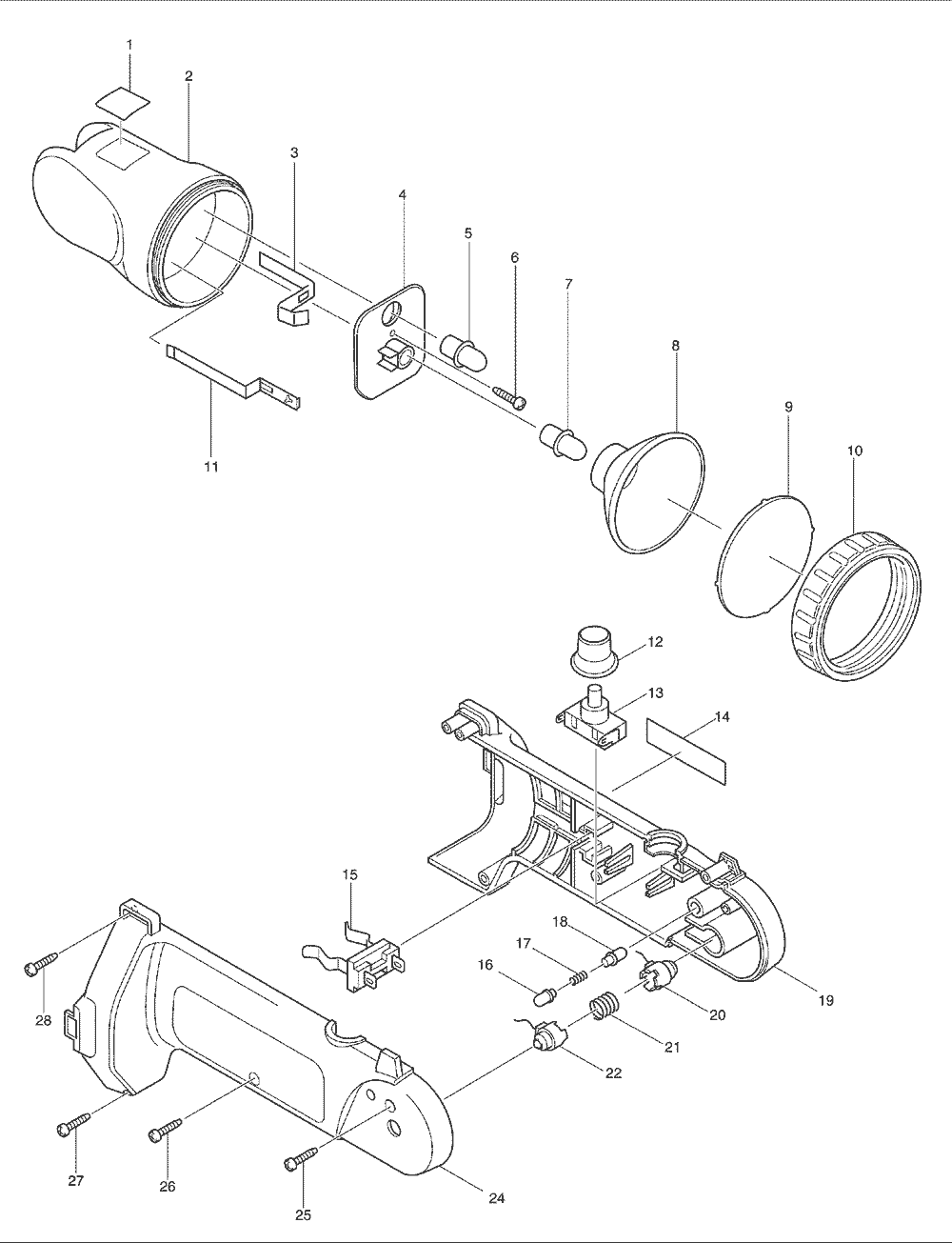

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	819088-7	MAKITA LABEL, ML140	$0.66
2	GM00000020	HEAD, ML140	$4.49
3	GM00000110	BULB CONTACT PLATE (+), ML140	$1.26
4	GM00000080	PROTECTOR FOR CONTACT, ML140	$2.84
5	A-90233	BULB 2/PKG. ML120 ML140	$6.40
6	GM00000150	SCREW 3X10, ML140	$0.86
7	A-90233	BULB 2/PKG. ML120 ML140	$6.40
8	GM00000130	REFLECTOR, ML140	$5.92
9	GM00000070	LENS, ML140	$4.49
10	GM00000010	REFLECTOR RETAINER, ML140	$4.49
11	GM00000120	BULB CONTACT PLATE (-), ML140	$1.26
12	421540-9	COVER, ML702	$0.97
13	651709-3	SWITCH, ML140	$3.61
14	859519-4	NAME PLATE, ML120	$0.66
15	643926-9	BATTERY HOLDER, ML180	$1.63
16	415811-4	KNOCK SHAFT, ML702	$0.97
17	GM00000090	COMPRESSION SPRING 4, BML185	$0.86
18	415811-4	KNOCK SHAFT, ML702	$0.97
19	GM00000040	HOUSING (L), ML120	$4.49
20	632523-6	PIVOT TERMINAL UNIT L, ML140	$1.63
21	GM00000100	COMPRESSION SPRING 7, ML140	$0.86
22	632524-4	PIVOT TERMINAL UNIT R, BML185	$1.63
24	GM00000030	HOUSING (R), ML120	$4.49
25	265869-1	TAPPING SCREW 3X14, ML901	$1.96
26	265869-1	TAPPING SCREW 3X14, ML901	$1.96
27	265869-1	TAPPING SCREW 3X14, ML901	$1.96
28	265869-1	TAPPING SCREW 3X14, ML901	$1.96
1001	345261-8	HOOK PLATE, ML702	$1.26
1001	415812-2	HOOK BUTTON, ML702	$0.90
1002	417926-3	STRAP, ML180	$5.70
1002	415813-0	STRAP, ML702	$3.94
1003	343579-1	SET PLATE, 6211D	$3.06
