Makita LS1440 Electric Saw Parts

Makita LS1440 Electric Saw Parts Image

Makita LS1440 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

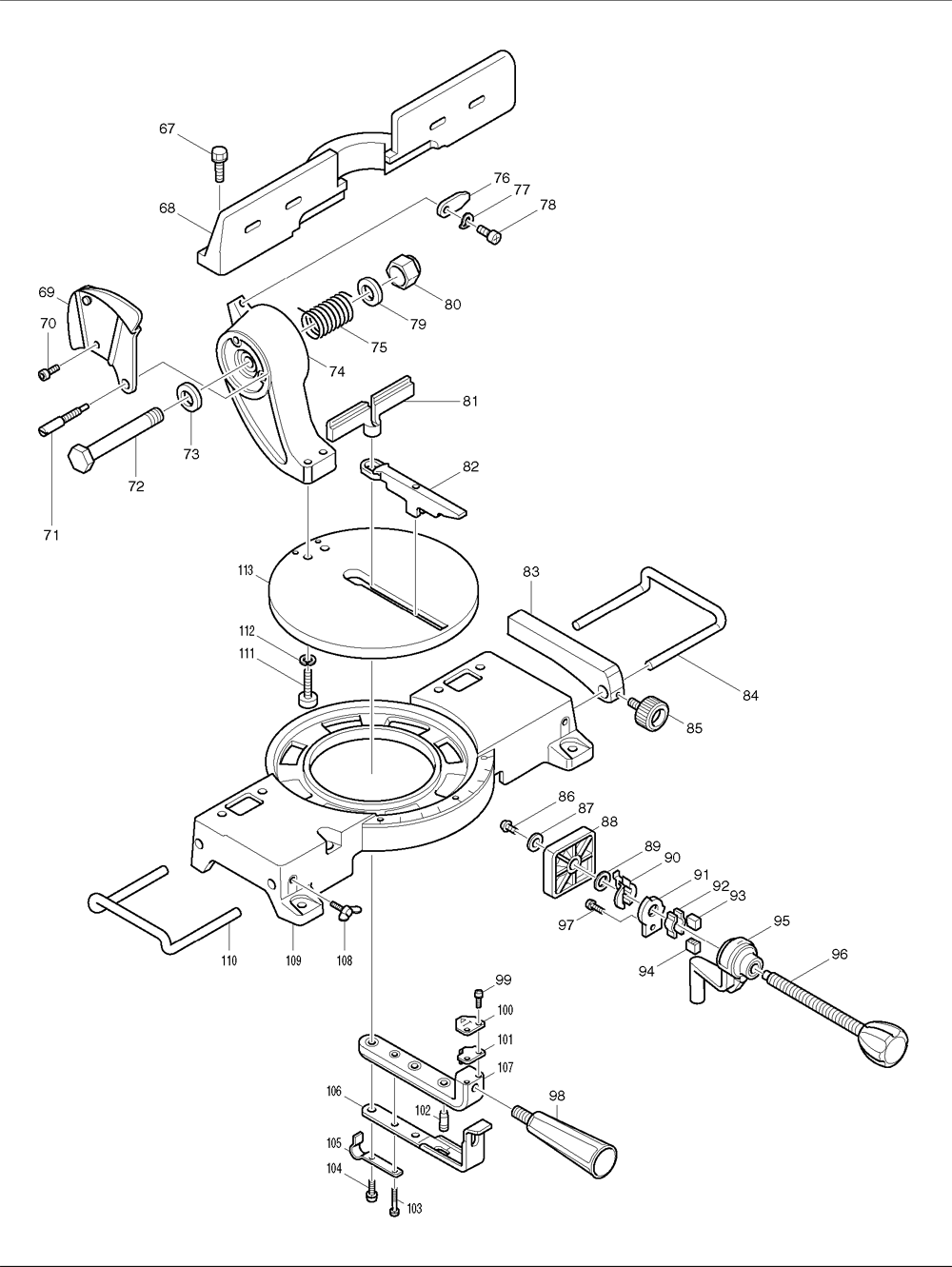

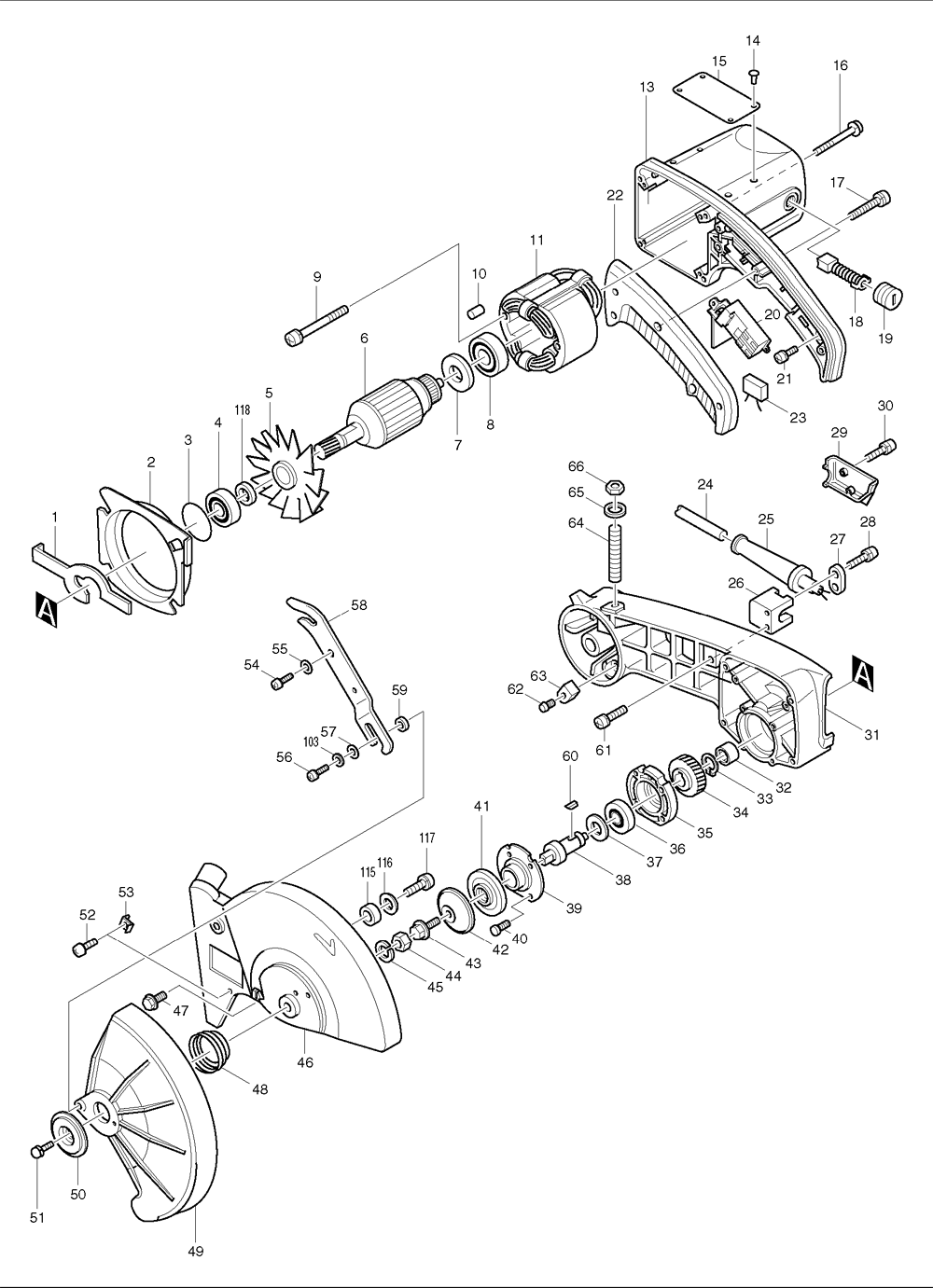

Makita LS1440 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 163100-8 SHAFT LOCK, LS1020 $4.49
31 150861-9 GEAR HOUSING COMPLETE,LS1440 $131.73
68 316030-4 GUIDE FENCE, LS1440-T2 $108.06
2 411466-3 BAFFLE PLATE, LS1020 $4.49
00 321089-8A SPINDLE, LS1440 $27.59
00 273436-8A GRIP 37, LS1430, LS1440 $8.78
3 213459-4 O RING 32, HK1810 $1.19
00 322027-3 HOLDER, LS1440 $11.97
4 211201-7 B. BEARING 6002LLB, 6510LVR $13.07
34 221707-7 H. GEAR, LS1440 $25.83
41 224264-4 INNER FLANGE 65, LS1440 $11.97
5 241514-2 FAN 92, LS1440 $4.49
6 514986-7 ARMATURE, LS1440 - T2 $125.81
7 681623-9 INS. WASHER, 2012NB $1.63
58 343792-1 GUIDE ARM, LS1440 $8.78
8 211068-3 B. BEARING 6200LB, 6820V $10.98
11 526006-5 FIELD, LS1440, T2 $88.40
9 911290-9 P.H. SCREW M5X65, GA7911 $1.96
10 263013-4 RUBBER PIN 4, 1806B $1.48
11 526006-5 FIELD, LS1440, T2 $88.40
13 152943-3 MOTOR HOUSING, LS1440 $36.61
14 953106-2 RIVET 0-5, HM1500 $0.49
15 856017-9 NAME PLATE, LS1440 $2.74
16 251335-4 P.H. SCREW M5X80, LS1020 $3.61
17 911158-9 P.H. SCREW M4X30, 9045B $0.86
18 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
19 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
20 651153-4 SWITCH, LS1440 $32.13
21 911101-8 P.H. SCREW M4X6, LS1020 $0.53
22 410860-6 HANDLE COVER, LS1440 $11.75
25 682505-8 CORD GUARD, 2711 $2.51
25 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
26 154377-6 CLAMP BASE, LS1440 $4.16
27 687031-2 STRAIN RELIEF, UH4510A $1.41
28 911133-5 P.H. SCREW M4X18, N9501B $0.86
29 411467-1 CLAMP COVER, LS1020 $1.63
30 911128-8 P.H. SCREW M4X16, 1902 $1.48
31 150861-9 GEAR HOUSING COMPLETE,LS1440 $131.73
32 212113-7 N. BEARING 1212, LS1440 $11.75
33 961060-6 RETAINING RING S-20, 2708 $1.19
34 226411-3 HELICAL GEAR, LS1440-T2 $25.28
35 315055-5 HOUSING W/O BEARING, LS1440 $14.61
36 211306-3 B. BEARING 6204LLB, 2711 $15.27
37 253327-9 T. WASHER 20, LS1440 $1.63
39 285649-9 BEARING RETAINER 72, LS1440 $4.49
40 912231-8 C.S.H. SCREW M5X20, LS1440 $1.19
41 224264-4 INNER FLANGE 65, LS1440 $11.97
42 224310-3 OUTER FLANGE, LS1440 $28.25
43 251637-8 H. BOLT M8X20, LS1020 $1.48
44 931302-2 HEX NUT M6, HR2400 $0.79
45 942151-2 SPRING WASHER 6, 5007NB $0.90
46 154925-1 BLADE CASE CPL., LS1440 $108.65
47 265324-3 H.F.H. BOLT M8X12, LS1030 $2.40
48 231939-8 SPRING 30, LS1430, LS1440 $5.37
49 419482-9 SAFETY COVER, LS1440 $29.58
50 343358-7 CENTER PLATE, LS1430, LS1440 $4.49
51 923311-5 C.S.N. BOLT M6X12, LS1430, LS1440 $1.34
52 911206-4 P.H. SCREW M5X10, 1806B $0.53
53 343492-3 BLADE STOPPER, LS1020 $1.63
54 251333-8 P.H. SCREW M8, LS1440 $3.61
55 253878-2 F. WASHER 10, 4301BV $1.63
56 251339-6 P.H. SCREW M8, LS1440 $3.61
57 257146-5 RING 10, JR180DWB $3.06
58 343792-1 GUIDE ARM, LS1440 $8.78
59 253731-2 F. WASHER 8, 2414B $1.63
60 254203-0 KEY 4, 5201NA $1.63
61 911121-2 P.H. SCREW M4X14, 9217SPC $0.53
62 251399-8 P.H.SCREW M5X22, LS1020 $1.48
63 411479-4 CUSHION, LS1000, LS1440 $3.06
64 251959-6 SCREW M10X80, LS1430, LS1440 $3.61
65 941252-3 F. WASHER 10, LS1020 $1.01
66 931501-6 HEX NUT M10, LS1020 $1.34
67 921551-9 HEX BOLT M10X30, LS1400, LS1440 $2.40
68 316030-4 GUIDE FENCE, LS1440-T2 $108.06
69 163279-5 SUPPORTER, LS1440 $11.75
70 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
71 322144-9 SET SCREW M10, LS1440 $4.49
72 251698-8 H. BOLT M16, LS1020 $8.78
73 253771-0 F. WASHER 16, LS1011 $1.63
74 154929-3 ARM CPL., LS1440 $94.20
75 231533-6 TOR. SPRING 33, LS1000, LS1440 $22.53
76 341926-0 STOPPER, LS1430, LS1440 $4.49
77 253948-7 W. WASHER 8, UM140D $0.90
78 251298-4 P.H. SCREW M8, LS1430, LS1440 $1.96
79 253771-0 F. WASHER 16, LS1011 $1.63
80 252044-8 HEX LOCK NUT M16-24, LS1020 $5.92
86 911317-5 P.H. SCREW M6X14, LS1000, LS1440 $0.86
87 253047-5 F. WASHER 6, 2708 $1.01
88 315891-9 VISE PLATE, LS1020, LS1440 $14.61
89 253744-3 F. WASHER 12, HR2410 $1.34
90 341912-1 NUT HOLDER, LS1020 $3.06
91 342967-9 SET PLATE, LS1020 $3.06
92 341911-3 PROTECTOR, LS1020 $1.63
93 321490-7 RELEASE NUT (R), LS1020 $8.12
94 321491-5 RELEASE NUT (L), LS1020 $8.12
95 151201-4 VICE ARM CPL., LS711DWBEK $27.70
96 271275-0 VISE KNOB, LS1430, LS1440 $28.25
97 911216-1 P.H. SCREW M5X14, N9501B $0.86
99 911108-4 P.H. SCREW M4X8, LS1013 $0.86
100 816173-7 INDICATION LABEL, LS1020 $1.61
101 342823-3 PLATE, LS1020 $1.63
102 321981-8 LATCH PIN, LS1430, LS1440 $3.06
103 911256-9 P.H. SCREW M5X35, 6300LR $0.86
104 921456-3 HEX BOLT M8X35, LS1440 $2.40
105 232093-1 LEAF SPRING, LS1430, LS1440 $5.37
106 343359-5 LATCH SPRING, LS1430, LS1440 $11.53
107 311795-3 TURNING STAY, LS1430, LS1440 $37.53
109 151248-8 BASE COMPLETE, LS1430, LS1440 $266.76
111 922562-7 H.S.H. BOLT M10X40, LS1430 $2.40
112 942251-8 SPRING WASHER 10, 2711 $1.34
113 311796-1 TURN TABLE, LS1430, LS1440 $165.20
114 253878-2 F. WASHER 10, 4301BV $1.63
115 262044-0 RUBBER RING 12, HM1500 $1.96
116 253011-6 F. WASHER 6, 2030S $1.01
117 911216-1 P.H. SCREW M5X14, N9501B $0.86
118 267710-4 THIN WASHER, LS1440 $4.16
402 122330-0 DUST BAG ASSY LS1430 LS1440 $25.00
403 410602-8 FASTENER, 9900B $3.06
405 411478-6 SWITCH BUTTON, LS1011 $1.63
500 122563-7 'VISE ASS''Y LS1430 ' $70.20
901 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
902 411477-8 STOPPER, LS1020 $1.26
903 411478-6 SWITCH BUTTON, LS1011 $1.63
