Makita LS0714 Electric Saw Parts

Makita LS0714 Electric Saw Parts Image

Makita LS0714 Parts
7-1/2 Inch Four Pole Slide Compound Miter Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita LS0714
7-1/2 Inch Four Pole...
$484.99
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

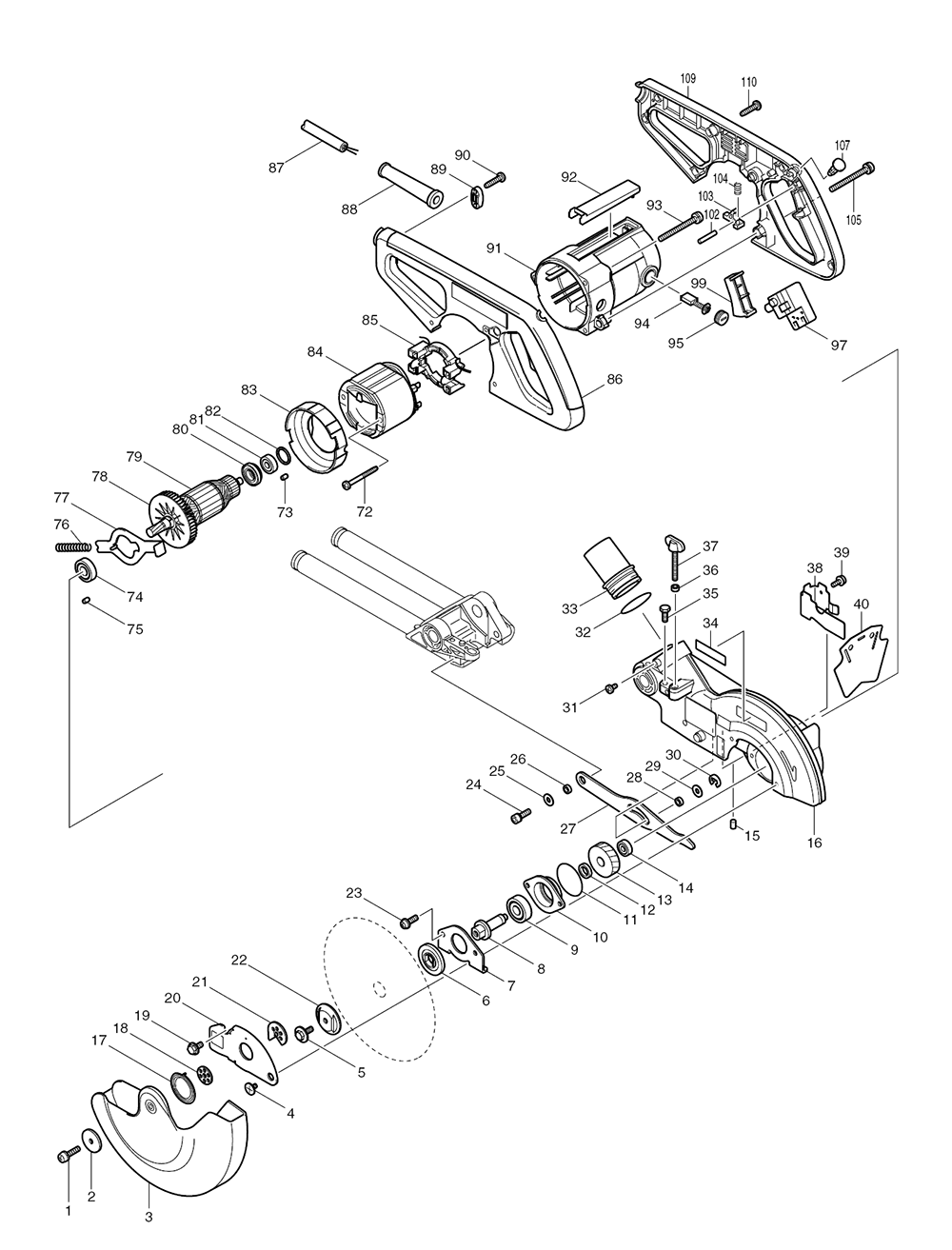

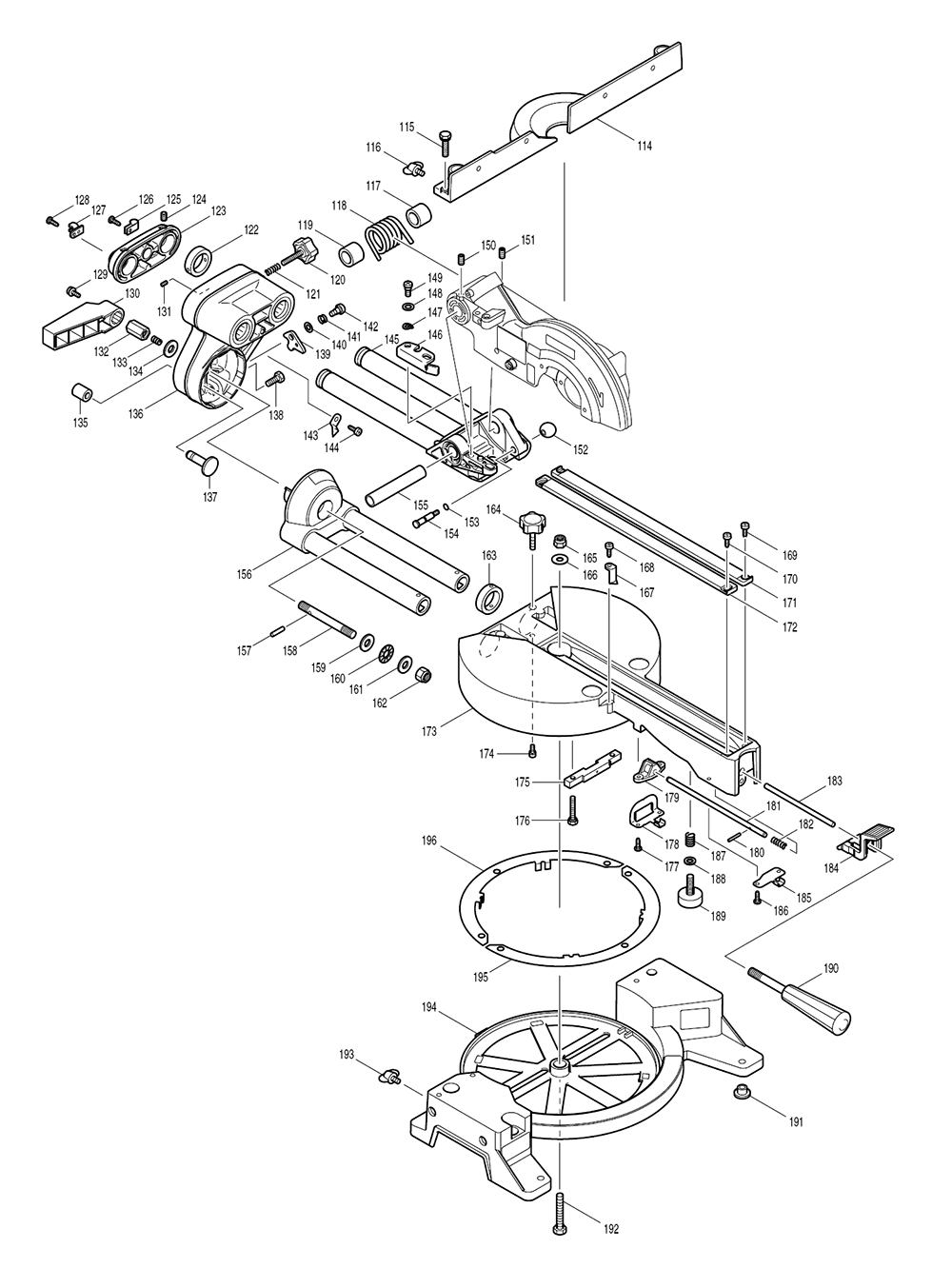

Makita LS0714 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911228-4 P.H. SCREW M5X18, 5377MG $0.86
00 816339-9 MITER SCALE PLATE, LS0714, LXSL01 $4.49
2 267136-0 FLAT WASHER 5, 9046 $2.18
00 211376-2 LINEAR BALL BEARING, LS0714 $40.18

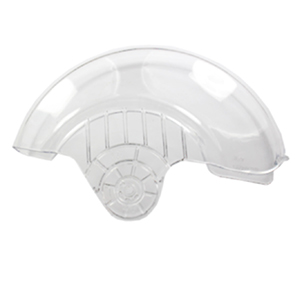

3 453297-4 SAFETY COVER, LS0714 $12.63
4 265008-3 .SCREW M5, LS1011 $3.61
5 265461-3 HEX. BOLT M6X18, LS711DWBEK $5.37
6 224151-7 INNER FLANGE, 5007FK $7.46
7 285715-2 BEARING RETAINER 55, LS0714 $1.52
8 323798-5 SPINDLE, LS711DWBEK $14.61
9 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
10 317037-3 HOUSING W/O BEARING, LS0711Z $8.78
11 213565-5 O-RING, LS0714 $1.48
12 257010-0 RING 12, 5600B, 5620DWA $2.84
13 226497-7 HELICAL GEAR 47, LS0711Z $11.20
14 211021-9 BALL BEARING 607LLB, LS1013 $8.78
15 263005-3 RUBBER PIN 6, BHP452 $0.86
16 188246-9 BLADE CASE, LS0714 $46.41
17 231934-8 SPIRAL SPRING 26, LS711DWBEK $5.37
18 344639-2 CENTER WASHER, LS711DWBEK $2.18
19 265473-6 HEX BOLT M6X14, LS0711Z $1.48
20 344641-5 .CENTER COVER, LS711DWBEK $4.49
22 224275-9 OUTER FLANGE, 5620DWA $5.92
23 911223-4 P.H. SCREW M5X16, 5007NK $0.86
24 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
25 253804-1 F. WASHER 6, 6012HDW $1.34
26 257163-5 RING 6, LS1011 $1.63
27 345411-5 LINK PLATE, BLS712SFK $6.80
28 257163-5 RING 6, LS1011 $1.63
29 253804-1 F. WASHER 6, 6012HDW $1.34
30 961018-5 STOP RING E-5, LS1011 $0.53
31 266061-2 T. SCREW BIND CT4X8, JN1601 $0.53
32 213460-9 O RING 35, HM1500 $1.19
33 419277-0 DUST NOZZLE, LS1013 $2.84
34 819063-3 MAKITA LABEL, DA3010F $0.96
34 819197-2 MAKITA LOGO LABEL, LS0714 $0.96
35 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
36 262001-8 RING 5, 6906 $3.61
37 265717-4 SCREW M6X43, LS1211 $3.61
38 345438-5 GUARD PLATE, LS0714 $1.34
39 911113-1 P.H. SCREW M4X10, 4301BV $0.86
40 423333-0 GUARD, LS0714 $2.51
72 266046-8 T. SCREW FLANGE PT5X50,HR2010 $1.96
73 263002-9 RUBBER PIN 4, 5007NK $0.86
74 211101-1 BALL BEARING 6001LLB,9218PB $13.07
75 263002-9 RUBBER PIN 4, 5007NK $0.86
76 233092-6 COMP. SPRING 5, 5740NB $0.86
77 344642-3 SHAFT LOCK, LS0711Z $4.16
78 240030-1 FAN 70, LS0714 $12.63
79 510063-3 ARMATURE ASS'Y, LS0714 $88.90
80 681644-1 INSULATED WASHER, 9227C $1.63
81 211031-6 BALL BEARING 608LLB, 9227C $10.98
82 261110-0 URETHANE WASHER 18, LS0711Z $4.16
83 416537-1 BAFFLE PLATE, LS0711Z $4.16
84 634306-0 FIELD 115V, LS0711Z $24.95
85 632847-0 SUPPORT COMPLETE, LS0711Z $5.92
86 183878-7 HANDLE SET, LS0711Z $16.37
87 664074-1 CORD (2X18X16 SJ), HR2010 $24.18
88 682503-2 CORD GUARD 8-90, 9005B $2.51
88 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
89 687063-9 STRAIN RELIEF, 4323K $1.26
90 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
91 151821-4 MOTOR HOUSING CPL., LS0711Z $25.17
92 416538-9 UPPER COVER, LS0711Z $3.06
93 911273-9 P.H. SCREW M5X50, HR2400 $1.19
94 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.12
95 643755-0 BRUSH HOLDER CAP, JR3020 $3.06
96 862821-6 NAME PLATE, LS0714 $1.21
97 651923-1 SWITCH, LS1040 $20.55
99 416534-7 SWITCH LEVER, LS711DWBEK $3.06
102 256098-7 PIN 5, LC1230 $1.96
103 416533-9 LOCK OFF LEVER, LS711DWBEK $3.06
104 231026-3 COMP. SPRING 4, LS1016L $0.79
105 911273-9 P.H. SCREW M5X50, HR2400 $1.19
107 411478-6 SWITCH BUTTON, LS1011 $1.63
109 183878-7 HANDLE SET, LS0711Z $16.37
110 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
114 317948-2 GUIDE FENCE, LS0714 $41.20
115 265489-1 HEX. BOLT M6 X 25, LS0714 $1.34
116 251887-5 SCREW M6X10, LS1030 $3.61
117 416535-5 SLEEVE 17, LS711DWBEK $3.06
118 231638-2 TORSION SPRING 28, LS711DWBEK $7.02
119 416535-5 SLEEVE 17, LS711DWBEK $3.06
120 251897-2 SCREW M6X33, LS1211 $7.13
121 231325-3 COMPRESSION SPRING 6, LS1220 $1.48
122 257214-4 RING 26, LS711DWBEK $7.46
123 317617-5 PIPE HOLDER, LS0714 $22.86
124 266208-8 HEX SOCKET HEAD BOLT M6X8, LS1016L $1.96
125 687042-7 STRAIN RELIEF, 2711 $1.26
125 687095-6 STRAIN RELIEF, LS1220 $0.75
126 266026-4 TAPPING SCREW 4X12,5477NB $0.86
127 416536-3 WRENCH HOLDER, LS711DWBEK $2.84
128 266026-4 TAPPING SCREW 4X12,5477NB $0.86
129 911113-1 P.H. SCREW M4X10, 4301BV $0.86
130 416006-2 LEVER 100, LS1040 $5.92
131 913106-4 SET SCREW M4X8, LS0714 $1.48
132 252144-4 HEX. NUT M10-17, LS1013 $5.92
133 231266-3 COMP. SPRING 5, LS711DWBEK $1.48
134 253024-7 F. WASHER 10, LS0714 $1.34
135 286236-7 CAP 16, LS1211 $1.63
136 153463-0 ARM CPL., LS0714 $98.27
137 324295-4 RELEASE PIN, LS0714 $4.16
138 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
139 345299-3 STOPPER PLATE, LS0714 $2.84
140 253726-5 F. WASHER 6, 6000LR $1.34
141 231663-3 TORSION SPRING 8, LS0714 $1.63
142 265113-6 + PAN HEAD SCREW M5, LS0714 $1.48
143 343678-9 INDICATION PLATE, LS1011 $1.63
144 266026-4 TAPPING SCREW 4X12,5477NB $0.86
145 153462-2 FRONT ARM CPL., LS0714 $70.40
146 344643-1 STOPPER ARM, LS711DWBEK $3.06
147 253948-7 W. WASHER 8, UM140D $0.90
148 253835-0 F. WASHER 8, LS1016L $1.34
149 251267-5 P.H. SCREW M6, LS1013 $1.96
150 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
151 251961-9 H.S.H. SCREW M6X10, LS1040 $0.86
152 271601-3 KNOB 20,LS1030 $1.63
153 213021-5 O RING 5, JR3070CT $0.53
154 324183-5 STOPPER PIN, LS0714 $1.52
155 331350-5 PIPE 16-90, LS1030 $5.92
156 153482-6 ARM HOLDER CPL., LS0714 $64.40
157 256100-6 PIN 5, LS711DWBEK $1.96
158 266320-4 SCREW M10, BLS712SFK $4.93
159 253024-7 F. WASHER 10, LS0714 $1.34
161 253024-7 F. WASHER 10, LS0714 $1.34
162 252130-5 HEX LOCK NUT M10 LS1211 $4.16
163 257214-4 RING 26, LS711DWBEK $7.46
164 251897-2 SCREW M6X33, LS1211 $7.13
165 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
166 253731-2 F. WASHER 8, 2414B $1.63
167 416355-7 INDICATION PLATE, LS1220 $1.26
168 266026-4 TAPPING SCREW 4X12,5477NB $0.86
169 266026-4 TAPPING SCREW 4X12,5477NB $0.86
170 266026-4 TAPPING SCREW 4X12,5477NB $0.86
171 417993-8 KERF BOARD, LS0714 $2.84
172 417993-8 KERF BOARD, LS0714 $2.84
173 154688-9 TURN BASE CPL., LS0714 $135.22
174 922111-0 H.S.H. BOLT M4X10, LS1011 $1.34
175 153580-6 SQUARE ROD CPL., LS0714 $12.63
176 925251-3 HEX. BOLT M5X30, LS711DWBEK $2.40
177 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
178 344601-7 LOCK PLATE, LXSL01 $1.63
179 317616-7 PIN HOLDER, LS0714 $9.33
180 256158-5 PIN 3, BJR181 $1.19
181 324288-1 LOCK PIN, LS0714 $4.16
182 231325-3 COMPRESSION SPRING 6, LS1220 $1.48
183 324289-9 ROD 6, LS0714 $1.52
184 416450-3 LOCK LEVER, LS1045 $3.06
185 345272-3 LOCK LEVER PLATE, LS0714 $2.84
186 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
187 231418-6 COMP. SPRING 9, LC1230 $1.48
188 253731-2 F. WASHER 8, 2414B $1.63
189 266432-3 ADJUST BOLT M8X27, LXSL01 $2.40
190 273515-2 GRIP 32, LS711DWBEK $4.49
191 286212-1 CAP 20, LS1013FL $0.97
192 921472-5 HEX BOLT M8X50,8401 $1.48
193 251887-5 SCREW M6X10, LS1030 $3.61
194 154690-2 BASE CPL., LS0714 $82.30
195 344646-5 SLIDE PLATE, LS711DWBEK $4.49
196 344646-5 SLIDE PLATE, LS711DWBEK $4.49
1002 122571-8 .VICE ASS'Y, LS711DWBEK $72.40
1003 411478-6 SWITCH BUTTON, LS1011 $1.63
1005 322312-4 HOLDER LS1040 $12.60
1006 A-90629 7-1/2 T.C. BLADE 40T WOOD LS0711Z $41.40
1007 782223-9 BOX WRENCH, LS0714 $6.40
