Makita JR3030T Electric Saw Parts

Makita JR3030T Electric Saw Parts Image

Makita JR3030T Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

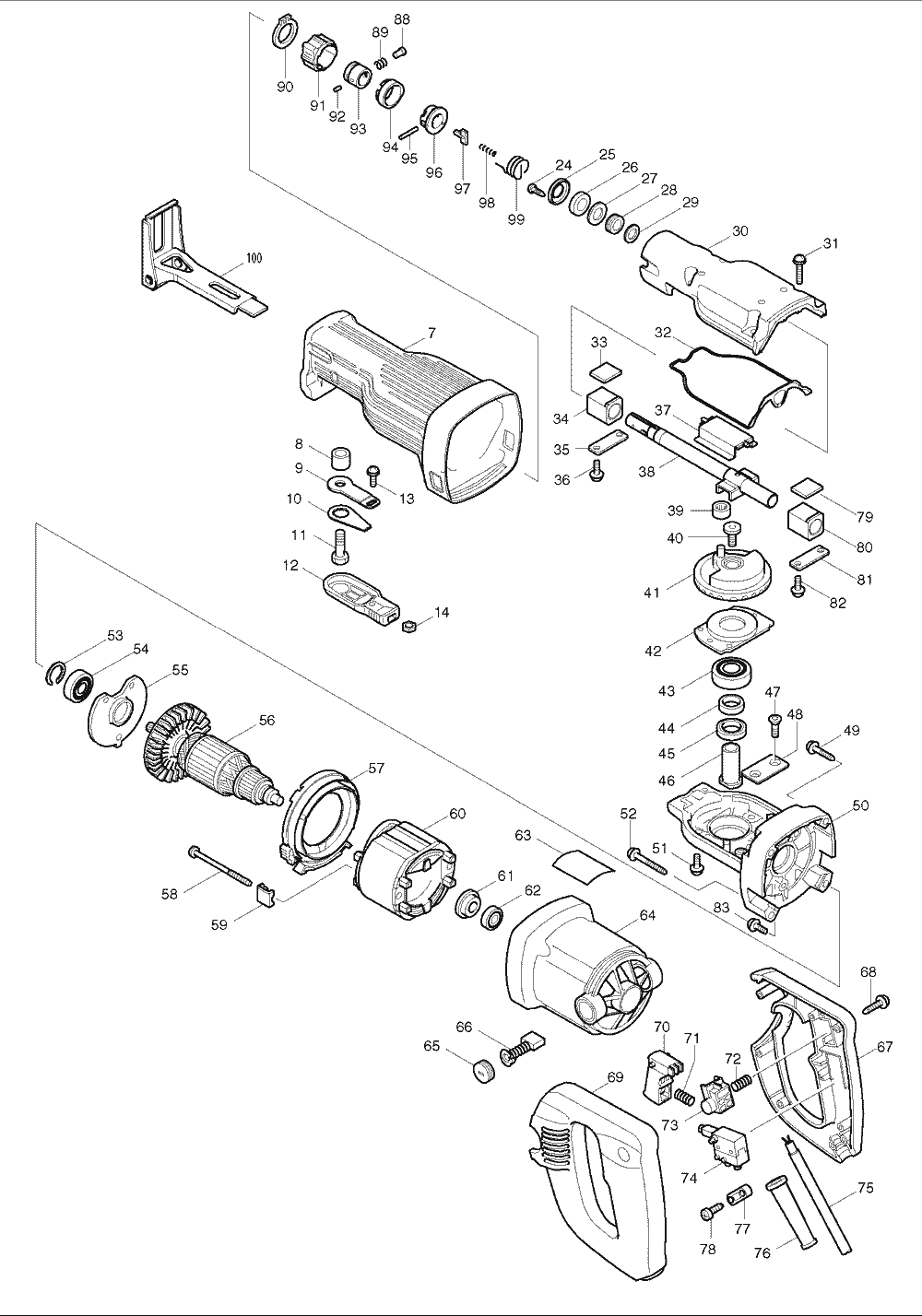

Makita JR3030T Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 344801-9 SHOE PLATE, JR3030T-T1 $4.49
00 240023-8 FAN 70, JR3030T $4.16
2 266241-0 HEX. S.H.BOLT M5X50, JR3000VT-T1 $1.34
2 922911-8 H.S.H. BOLT M5X50,JR3030T-T1 $1.12
3 252103-8 HEX. LOCK NUT M5-8, 5007FK $2.29
4 268044-8 PIN 4, JR3030T $1.48
5 961017-7 STOP RING E-3, 4304, SH01 $0.53
6 344813-2 SHOE SUPPORTER, JR140DWA-T1 $6.47
6 344925-1 SHOE SUPPORTER, JR3000VT-T1 $9.33
7 421665-9 INSULATION COVER, JR3030 $8.01
8 257558-2 SLEEVE 9, BJR240 $1.63
9 344732-2 INNER PLATE, JR3030 $1.63
10 344733-0 LOCK PLATE, JR3030 $1.63
11 921442-4 HEX BOLT M8X25,JR3030T $1.34
12 272240-2 LEVER 60, BJR240 $3.06
13 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
15 310138-6 CLAMP, JR3000VT-T2 $15.27
16 216002-8 STEEL BALL 4.8, NHP1310 $0.53
17 256454-1 PIN 5.5-6,JR3030T-T1 $3.61
18 266272-9 TORX S.H.S BOLT M5X10 JR3000VT-T2 (Replacement o... $1.74
19 323916-5 PUSH PIN, JR3030T-T1 $4.49
20 233018-8 COMPRESSION SPRING 3, JR3030T-T1 $1.48
21 162215-8 PUSH BUTTON, JR3030T-T1 $16.04
22 233247-3 COMPRESSION SPRING 16, JR3030T-T1 $1.48
23 257226-7 RING 13, JR3030T-T1 $3.06
24 266035-3 TAPPING SCREW BIND CT5X12, 9031 $0.86
25 344729-1 FELT RETAINER, JR3030 $1.26
26 262545-8 FELT RING 14 , JR3030 $0.86
27 253797-2 F. WASHER 14,JR3030T $1.63
28 213174-0 X RING 14, JR3030 $5.37
29 253707-9 F. WASHER 16, 6802BV $1.34
30 317139-5 GEAR HOUSING COVER, JR3030 $26.72
30 317640-0 GEAR HOUSING COVER, JR3030T $29.37
31 911253-5 P.H. SCREW M5X30, 2030S $1.19
32 421666-7 PACKING, JR3030 $4.49
33 443070-0 FELT PAD, JR3000V $1.26
34 214169-6 PLANE BEARING 14, JR3030 $2.84
35 341462-6 PLATE, JR3000V $0.97
36 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
37 344777-0 SLIDE PLATE, JR3030 $1.63
38 168332-2 SLIDER, JR3030T-T1 $34.88
38 168368-1 SLIDER, JR3030T $51.20
39 212001-8 N. BEARING 708, JR3000V $14.61
40 266210-1 H.S.H.BOLT M10X18, JR3030 $3.61
41 153268-8 GEAR COMPLETE, JR3030 $33.66
42 285692-8 BEARING RETAINER 56, JR3030 $4.49
43 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
44 257064-7 RING 15, 5037NB $1.63
45 211221-1 BALL BEARING 6902,HR2511 $26.21
46 323844-4 GEAR SHAFT, JR3030 $6.25
47 251969-3 C.H. BOLT M5X12, JR3020 $1.08
48 343981-8 PLATE (C), JR3030 $3.06
49 266173-1 T. SCREW FLANGE PT5X3, GA7011c $1.19
50 317140-0 GEAR HOUSING, JR3030 $30.60
51 911601-8 PAN HEAD SCREW M5X8, JR3020 $1.48
52 266056-5 T. SCREW FLANGE PT5X45,9046 $3.28
53 961052-5 RETAINING RING S-12, 9218PBL $0.86
54 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
55 285693-6 BEARING RETAINER, JR3030 $4.49
56 516371-0 ARMATURE ASS'Y 115V, JR3030 $84.60
57 416856-5 BAFFLE PLATE, JR3030 $4.49
58 266044-2 T. SCREW FLANGE 5X60, 5037NB $1.96
59 343657-7 RETAINER, JR3000V $1.26
60 594331-2 FIELD ASS'Y 115V, JR3030 $36.61
61 681644-1 INSULATED WASHER, 9227C $1.63
62 210005-4 BALL BEARING 608DDW, 9031 $13.07
63 851802-5 NAME PLATE, JR3030T $1.21
64 151841-8 MOTOR HOUSING COMPLETE, JR3030 $17.47
65 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
66 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.12
67 183101-0 HANDLE SET, JR3030 $13.18
68 266045-0 TAPPING SCREW 4X20, 9046 $1.19
69 183101-0 HANDLE SET, JR3030 $13.18
70 416851-5 SWITCH LEVER, JR3030 $3.06
71 233251-2 COMPRESSION SPRING 5, JR3030 $1.48
72 231230-4 COMP. SPRING 4, BO6040 $1.48
72 231342-3 COMP. SPRING 4, 6920B, JR3020 $1.48
73 416850-7 LOCK-ON BUTTON, JR3030-T1 $1.34
73 417323-3 LOCK-ON BUTTON, JR3030 $1.52
74 651918-4 SWITCH, HR2400 $41.20
75 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
75 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
76 682503-2 CORD GUARD 8-90, 9005B $2.51
76 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
77 687063-9 STRAIN RELIEF, 4323K $1.26
78 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
79 443070-0 FELT PAD, JR3000V $1.26
80 214169-6 PLANE BEARING 14, JR3030 $2.84
81 341462-6 PLATE, JR3000V $0.97
82 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
83 911601-8 PAN HEAD SCREW M5X8, JR3020 $1.48
84 942101-7 SPRING WASHER 5, 9005B $0.90
85 942101-7 SPRING WASHER 5, 9005B $0.90
86 941102-2 F. WASHER 5, HM1100C $0.75
87 267758-6 SPRING WASHER 5, JR3000VT (Replacement of 266247... $0.90
88 256492-3 SHOULDER PIN 5, JR3050T $1.48
89 233345-3 COMPRESSION SPRING 6, JR3050T $1.63
90 961078-7 RETAINING RING S-18,BHR200SH $1.19
91 162228-9 DRIVING SLEEVE. BJR240SH $28.15
92 268094-3 PIN 3, JR3050T $3.28
93 331639-1 GUIDE SLEEVE, JR180D $6.80
94 417791-0 DRIVING SLEEVE GUIDE, JR3050T $2.84
95 256158-5 PIN 3, BJR181 $1.19
96 418311-3 SLEEVE, JR3050T $1.52
97 345214-7 PUSH PLATE, BJR240SH $1.52
98 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
99 231687-9 TORSION SPRING 17, JR3050T $0.86
100 163442-0 SHOE, JR3000VT $4.71
