Makita JR180D Cordless Saw Parts

Makita JR180D Cordless Saw Parts Image

Makita JR180D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

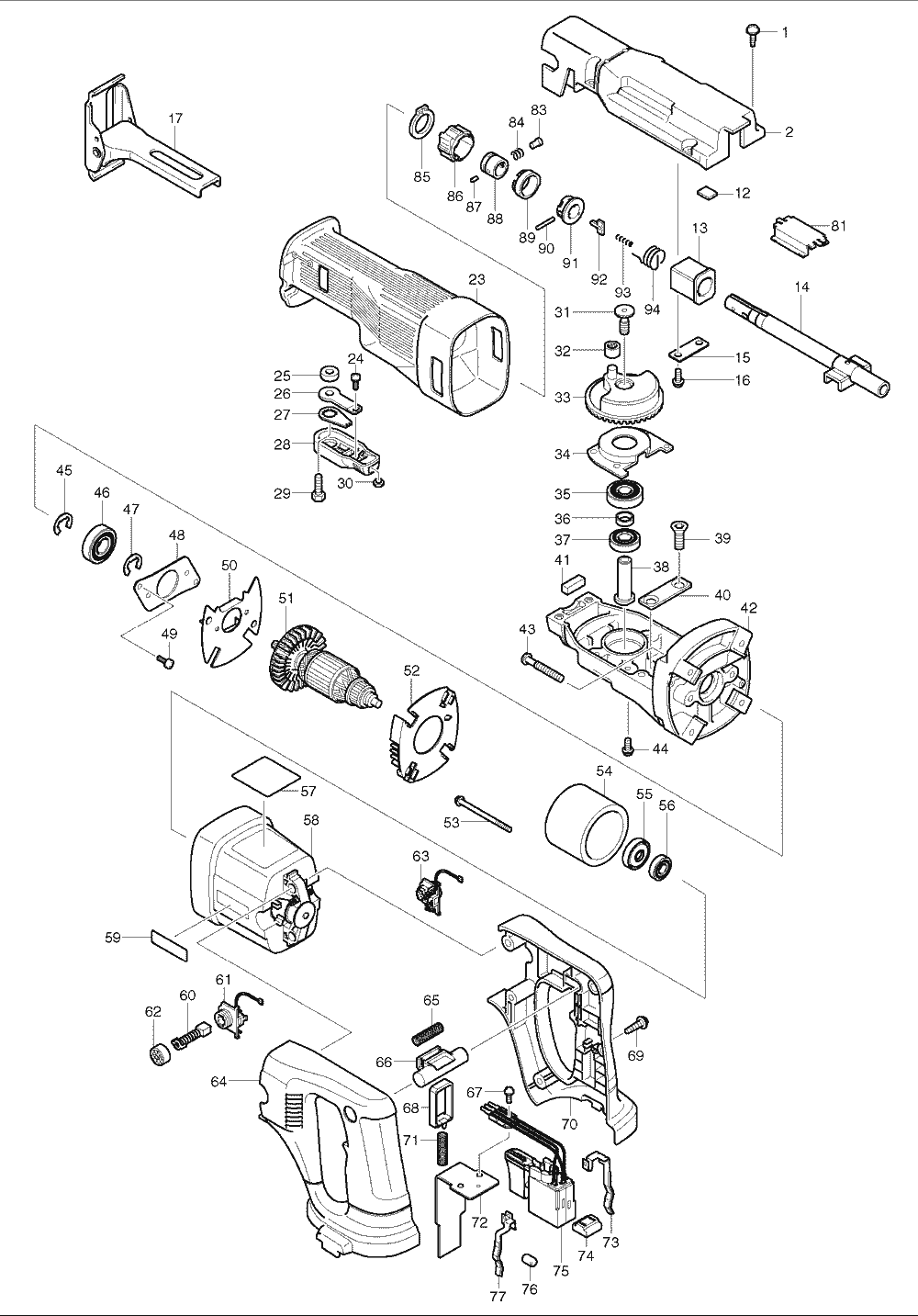

Makita JR180D Cordless Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911228-4 P.H. SCREW M5X18, 5377MG $0.86
2 151627-0 GEAR HOUSING COVER, JR180DWB $27.94
2 151941-4 GEAR HOUSING COVER, JR180D $28.15
3 216002-8 STEEL BALL 4.8, NHP1310 $0.53
4 256454-1 PIN 5.5-6,JR3030T-T1 $3.61
5 310138-6 CLAMP, JR3000VT-T2 $15.27
6 266272-9 TORX S.H.S BOLT M5X10 JR3000VT-T2 (Replacement o... $1.74
7 162215-8 PUSH BUTTON, JR3030T-T1 $16.04
8 323916-5 PUSH PIN, JR3030T-T1 $4.49
9 233018-8 COMPRESSION SPRING 3, JR3030T-T1 $1.48
10 233247-3 COMPRESSION SPRING 16, JR3030T-T1 $1.48
11 257226-7 RING 13, JR3030T-T1 $3.06
12 443070-0 FELT PAD, JR3000V $1.26
13 214169-6 PLANE BEARING 14, JR3030 $2.84
14 168328-3 SLIDER, JR180DWB-T1 $35.39
14 168376-2 SLIDER, JR180D $42.63
15 341462-6 PLATE, JR3000V $0.97
16 911225-0 PAN HEAD SCREW M5X16, JR3050T $1.19
17 344801-9 SHOE PLATE, JR3030T-T1 $4.49
17 163442-0 SHOE, JR3000VT $4.71
18 961017-7 STOP RING E-3, 4304, SH01 $0.53
19 252103-8 HEX. LOCK NUT M5-8, 5007FK $2.29
20 268044-8 PIN 4, JR3030T $1.48
21 266241-0 HEX. S.H.BOLT M5X50, JR3000VT-T1 $1.34
21 922911-8 H.S.H. BOLT M5X50,JR3030T-T1 $1.12
22 344813-2 SHOE SUPPORTER, JR140DWA-T1 $6.47
22 344925-1 SHOE SUPPORTER, JR3000VT-T1 $9.33
23 421693-4 INSULATION COVER, JR180DWB $16.04
24 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
25 257558-2 SLEEVE 9, BJR240 $1.63
26 344732-2 INNER PLATE, JR3030 $1.63
27 344733-0 LOCK PLATE, JR3030 $1.63
28 272240-2 LEVER 60, BJR240 $3.06
29 921442-4 HEX BOLT M8X25,JR3030T $1.34
31 266220-8 HEX SOCKET H.BOLTM6X15,JR180D $3.28
32 212001-8 N. BEARING 708, JR3000V $14.61
33 153267-0 GEAR COMPLETE, JR180DWB $32.33
34 285696-0 BEARING RETAINER, JR180DWB $4.49
35 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
36 257146-5 RING 10, JR180DWB $3.06
37 210057-5 BALL BEARING 6900LLB, BFL080F $11.97
37 210079-5 BALL BEARING, JR180D $4.71
38 323887-6 GEAR SHAFT, JR180DWB $4.71
39 251969-3 C.H. BOLT M5X12, JR3020 $1.08
40 344795-8 PLATE C, JR180DWB $3.06
41 443107-3 FELT 8X24, JR180DWB $1.63
42 317229-4 GEAR HOUSING, JR180DWB $33.66
43 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
44 911601-8 PAN HEAD SCREW M5X8, JR3020 $1.48
45 961016-9 STOP RING E-10, BJR182 $0.86
46 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
47 961016-9 STOP RING E-10, BJR182 $0.86
48 285697-8 BEARING RETAINER B, JR180DWB $3.06
49 911516-9 P.H. SCREW M4X12, JR180DWB $3.61
50 416960-0 FAN GUIDE, JR180DWB $1.63
51 519051-7 ARMATURE ASS'Y 18V, JR180DWB $67.70
52 416959-5 BAFFLE PLATE, JR180DWB $3.06
53 266209-6 TAPPING SCREW MT 4X60, 5620DWA $1.96
54 632828-4 YOKE UNIT, 5620DWA $34.98
55 681652-2 INSULATION WASHER, BO4556 $1.34
56 210017-7 BALL BEARING 607DDW, 420S,T2 $10.98
57 851734-6 NAME PLATE, JR180D $1.36
58 416957-9 MOTOR HOUSING, JR180DWB $11.75
59 819720-3 MAKITA LABEL, 3707fc $1.21
60 195022-4 CARBON BRUSH SET CB-441, BJR181 $4.71
61 643949-7 BRUSH HOLDER R, BJR181 $4.49
62 643941-3 HOLDER CAP, BJR181 $4.49
63 643950-2 BRUSH HOLDER L, JR180DWB $4.49
64 183141-8 HANDLE SET, JR180DWB $16.04
65 231469-9 COMP. SPRING 4, SH01W $0.86
66 416958-7 LOCK-OFF BUTTON, JR180DWB $1.63
67 911006-2 P.H. SCREW M3X8, 6233DWAE $0.53
68 416976-5 STOPPER, JR180DWB $1.26
69 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
70 183141-8 HANDLE SET, JR180DWB $16.04
71 231469-9 COMP. SPRING 4, SH01W $0.86
72 689090-2 HEAT SINK, JR180DWB $5.92
73 654195-7 SPRING TERMINAL (+), JR180DWB $4.49
74 687085-9 HOLDER, 6233DWA $1.63
75 651979-4 SWITCH, JR180DWB $39.78
76 263024-9 RUBBER PIN 4, 6918DWD $1.48
77 654196-5 SPRING TERMINAL (-), JR180DWB $4.49
78 942101-7 SPRING WASHER 5, 9005B $0.90
81 344858-0 SLIDE PLATE, JR140DWA $1.52
82 267758-6 SPRING WASHER 5, JR3000VT (Replacement of 266247... $0.90
83 256492-3 SHOULDER PIN 5, JR3050T $1.48
84 233345-3 COMPRESSION SPRING 6, JR3050T $1.63
85 961078-7 RETAINING RING S-18,BHR200SH $1.19
86 162228-9 DRIVING SLEEVE. BJR240SH $28.15
87 268094-3 PIN 3, JR3050T $3.28
88 331639-1 GUIDE SLEEVE, JR180D $6.80
89 417791-0 DRIVING SLEEVE GUIDE, JR3050T $2.84
90 256158-5 PIN 3, BJR181 $1.19
91 418311-3 SLEEVE, JR3050T $1.52
92 345214-7 PUSH PLATE, BJR240SH $1.52
93 233025-1 COMPRESSION SPRING 2, JR3050T $2.07
94 231687-9 TORSION SPRING 17, JR3050T $0.86
1001 194068-7 RECIPRO SAW BLADE SET, BJR182Z $7.00
1002 414938-7 BATTERY COVER, 6222DWE $2.20
1003 824565-6 PLASTIC TOOL CASE JR180DWB $40.20
1004 193159-1 BATTERY 1834 18V NIMH, 8443DWDE $152.20
