Makita HR5000 Rotary Hammer Parts

Makita HR5000 Rotary Hammer Parts Image

Makita HR5000 Parts
2 Inch Spline Shank, AC/DC Rotary Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR5000
2 Inch Spline Shank,...
$841.99
Tool Diagram    (Click image to Zoom in) View larger Image

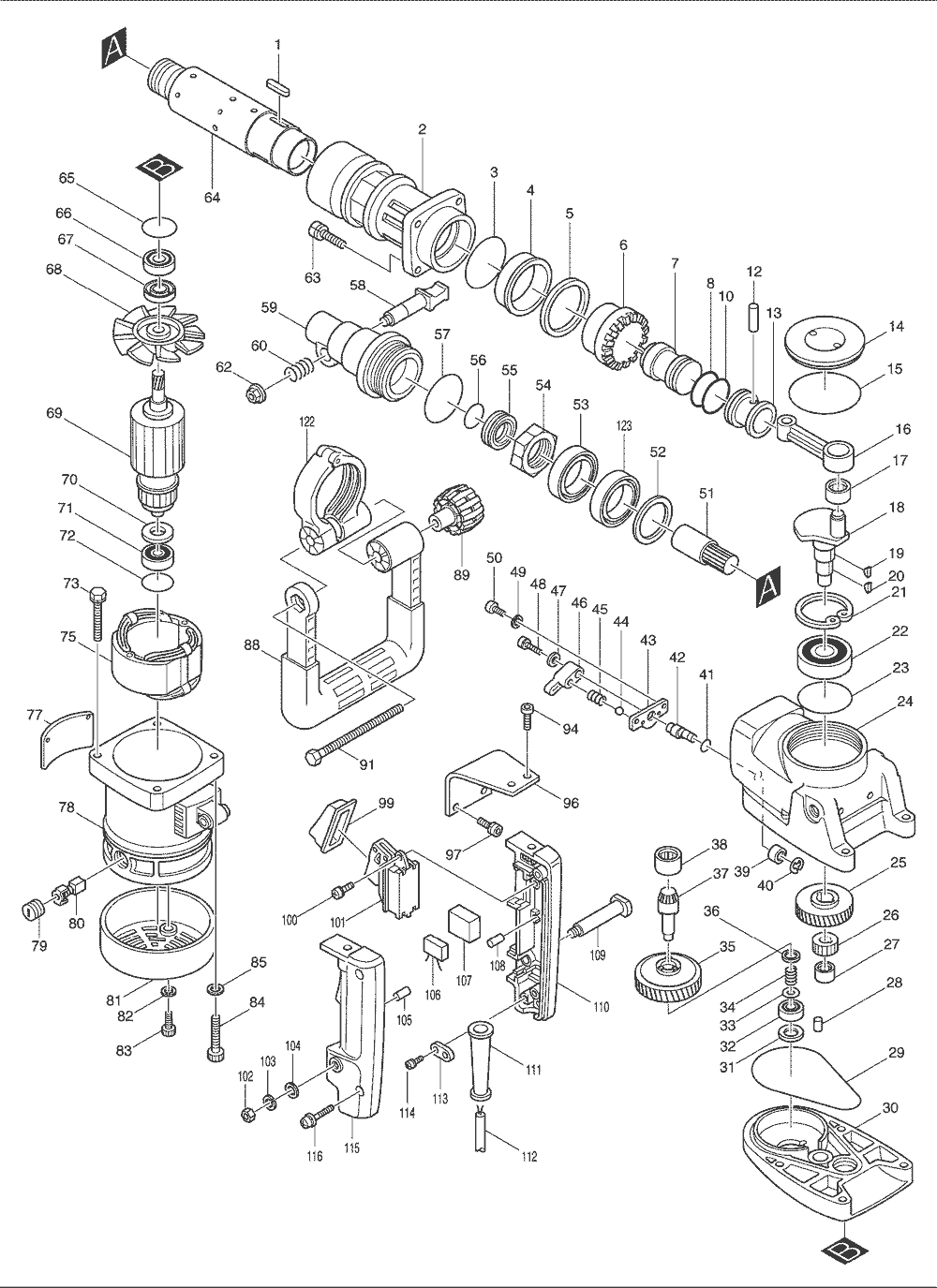

Makita HR5000 Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 254231-5 KEY 4, HR3851 $1.52
500 134887-9 SIDE HANDLE ASS'Y, HR5000 $40.29
2 316068-9 BARREL, HR5000 $116.99
69 514886-1 ARMATURE ASSY 115V, HR5000 $155.11
3 213707-1 O RING 65, HM1100C $3.61
75 524831-8 FIELD ,HR5000 $73.40
29 421690-0 SEAL RING, HR5000 $1.52
4 214653-1 P. BEARING 52, HR5000 $32.23
5 267044-5 F. WASHER 52, HR5000 $9.22
00 193284-8 HAMMER SERVICE KIT, HR5000 $23.74
6 221380-3 SPIRAL B. GEAR 41, HR5000 $49.06
7 322155-4 STRIKER, HR5000,T1 $19.45
7 323751-1 STRIKER, HR5000, T2 $18.57
8 213481-1 O-RING 32, HR5000, T2 $1.48
8 412049-2 PISTON RING 40, HM1211B $17.47
10 213481-1 O-RING 32, HR5000, T2 $1.48
10 412049-2 PISTON RING 40, HM1211B $17.47
12 256120-0 PIN 10, HM1211 $5.37
13 321441-0 PISTON, HM1211 $21.76
13 323750-3 PISTON, HR5000, T2 $14.61
14 150046-7 CRANK CAP, HR5000 $13.18
15 213754-2 O RING 71, HR5000 $3.61
16 315419-3 CONNECTING ROD, HR5000 $27.59
17 212208-6 N. BEARING 1516, HR5000 $20.33
18 153176-3 CRANKSHAFT, HR5000 $38.96
19 254001-2 WOODRUFF KEY 4, HM1810 $1.26
20 254001-2 WOODRUFF KEY 4, HM1810 $1.26
21 962251-2 RETAINING RING R-52, HR5000 $3.61
22 211327-5 BALL BEARING 63604LLU, HR5000 $21.76
23 213656-2 O RING 53, AN451 $1.85
24 158573-8 CRANK HOUSING, HR5000 $66.10
25 221761-1 H. GEAR 41, HR5000 $26.72
26 221957-4 S. GEAR 24, HR5000 $16.81
27 212113-7 N. BEARING 1212, LS1440 $11.75
28 263005-3 RUBBER PIN 6, BHP452 $0.86
29 421690-0 SEAL RING, HR5000 $1.52
30 157867-8 GEAR HOUSING, HR5000 $46.30
31 253787-5 F. WASHER 16, 2030N $2.18
32 210004-6 BALL BEARING 638, HR5000 $13.07
33 253865-1 F. WASHER 8, HR5000 $2.18
34 231446-1 COMP. SPRING 12, HR5000 $4.16
35 150009-3 TORQUE LIMITER, HR5000 $127.17
36 253310-6 T. WASHER 10, HR5000 $1.01
37 153174-7 GEAR COMPLETE, HR5000 $80.90
38 212359-5 N. BEARING 2216, HR3851 $14.61
39 212011-5 N.BEARING 609,JS1600 $10.32
40 961011-9 STOP RING E-4, 4301BV $1.48
41 213055-8 O RING 10, HR3851 $0.53
42 322187-1 CHANGE SHAFT, HR5000 $23.19
43 342786-3 PLATE, HR3851 $3.06
44 216002-8 STEEL BALL 4.8, NHP1310 $0.53
45 231317-2 COMP. SPRING 3, HR3851 $0.86
46 410331-3 CHANGE LEVER, HR3851 $1.63
47 941052-1 F. WASHER 4, 9218SB $0.75
48 922126-7 H.S.H. BOLT M4X16, 4330DWA $1.34
49 942101-7 SPRING WASHER 5, 9005B $0.90
50 922212-4 H.S.H. BOLT M5X12, HR3851 $1.08
51 322156-2 IMPACT BOLT, HR5000 $32.23
52 267043-7 F. WASHER 43, HR5000 $2.18
53 211469-5 BALL BEARING 6907, HR5000 $36.10
54 252119-3 NUT M34. 8-41,HR5000 $19.34
55 213428-5 X-RING 28, HR5000 $26.05
56 213411-2 O RING 27, HR3851 $3.61
57 213663-5 O RING 55, HR5000 $1.96
58 331132-5 TOOL RETAINER, HR5000 $24.62
59 322203-9 TOOL HOLDER, HR5000 $108.06
60 231281-7 COMP. SPRING 15, HM1500 $1.48
62 252046-4 HEX NUT M8-13, HR5000 $1.96
63 922451-6 H.S.H. BOLT M8X30, LS1013FL $2.40
64 152396-6 CYLINDER LINER, HR5000 $137.26
65 213459-4 O RING 32, HK1810 $1.19
66 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
67 213160-1 OIL SEAL 14, HR3851 $20.33
68 241634-2 FAN 94, HR3851 $8.78
69 514886-1 ARMATURE ASSY 115V, HR5000 $155.11
71 211066-7 B. BEARING 6200LLB, BO4552 $10.98
72 213406-5 O RING 30, HR5000 $1.19
73 265346-3 HEX BOLT M5X55, HR5000 $3.61
75 524831-8 FIELD ,HR5000 $73.40
76 953106-2 RIVET 0-5, HM1500 $0.49
77 855983-7 NAME PLATE, HR5000 $2.74
78 159054-5 MOTOR HOUSING, HR5000 $59.10
79 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
80 194987-7 CARBON BRUSH 155, HR5000 $14.94
81 284055-5 REAR COVER, HR3851 $10.32
82 942101-7 SPRING WASHER 5, 9005B $0.90
83 922221-3 HEX BOLT M5X16, 6906 $1.34
83 922222-1 H.S.H. BOLT M5X16, HM1211B $1.08
84 922376-4 H.S.H. BOLT M6X55, HR5000 $3.61
85 941151-9 F. WASHER 6, 5007NB $0.75
88 416061-4 SIDE HANDLE, HR5000 $27.70
89 252640-2 WING NUT M8, HM1214C & HM1203C $7.02
89 259020-3 WING NUT M10, HR5000,T1 $9.33
91 265439-6 HEX BOLT M8X150, HM1100C $3.61
91 265902-9 SET BOLT M10X20, HR5000,T1 $8.78
94 922316-2 HEX BOLT M6X14, HR3851 $1.34
96 343754-9 CUSHION PLATE, HR3851 (T2) $7.46
97 265914-2 H.S.H.BOLT M6X25, HM1211B $2.40
99 421265-5 DUST COVER, HR3851 $3.06
100 911129-6 P.H. SCREW M4X16, HR5000 $0.86
101 651145-3 SWITCH, HM1211B $32.74
102 931302-2 HEX NUT M6, HR2400 $0.79
103 942151-2 SPRING WASHER 6, 5007NB $0.90
104 941151-9 F. WASHER 6, 5007NB $0.75
105 263002-9 RUBBER PIN 4, 5007NK $0.86
108 263002-9 RUBBER PIN 4, 5007NK $0.86
109 321210-9 HANDLE SHAFT, HR3851 $3.06
110 182077-8 HANDLE SET, HR5000 $24.62
111 682505-8 CORD GUARD, 2711 $2.51
111 682568-4 CORD GUARD, HR5000 $4.16
111 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
112 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
112 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
113 687001-1 STRAIN RELIEF, 6013BR $0.97
114 911133-5 P.H. SCREW M4X18, N9501B $0.86
115 182077-8 HANDLE SET, HR5000 $24.62
116 911243-8 P.H. SCREW M5X25, GA7911 $1.19
117 262051-3 RUBBER RING, HR3851 $1.48
118 262052-1 RUBBER RING 9, HR3851 $1.19
119 257636-8 SLEEVE 6, HR3851 $3.06
120 414774-1 HANDLE BASE, HR5000,T1 $5.48
120 416060-6 UPPER HANDLE BASE, HR5000,T2 $3.61
120 151768-2 SIDE HANDLE 62 CPL.,HR5000 $17.47
121 416089-2 LOWER HANDLE BASE, HR5000,T2 $3.61
122 151768-2 SIDE HANDLE 62 CPL.,HR5000 $17.47
122 344387-3 HANDLE SPRING 62, HR5000,T1 $4.71
123 211469-5 BALL BEARING 6907, HR5000 $36.10
401 783202-0 HEX WRENCH 4, JR3000V $3.24
404 273472-4 GRIP 32, HR3851 $21.76
