Makita HR4510C Rotary Hammer Parts

Makita HR4510C Rotary Hammer Parts Image

Makita HR4510C Parts
1 3/4 Inch Rotary Hammer with Anti-Vibration Technology

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR4510C
1 3/4 Inch Rotary Ha...
$801.99
Tool Diagram    (Click image to Zoom in) View larger Image

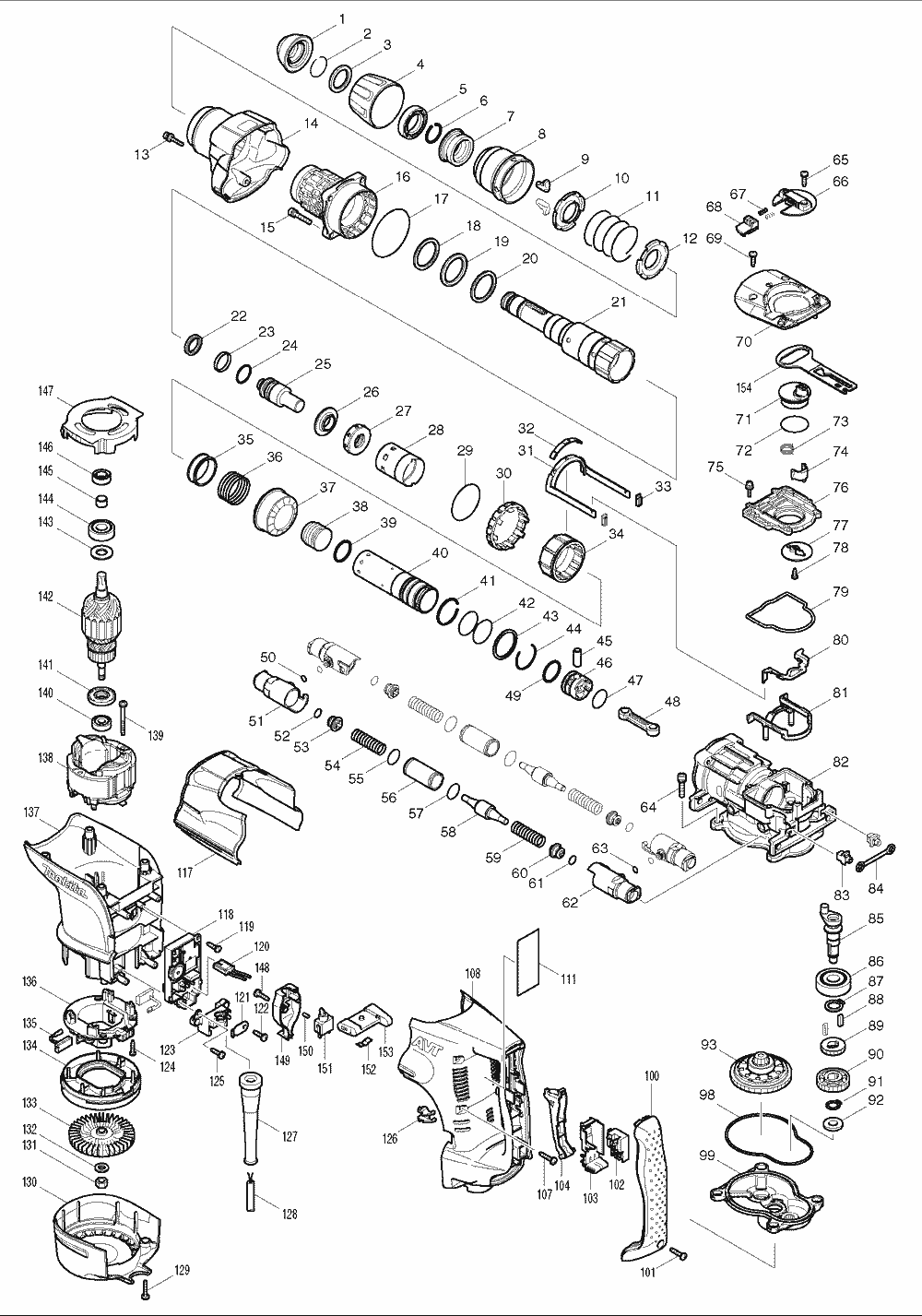

Makita HR4510C Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286272-3 TOOL HOLDER CAP, HR4002 $2.84
1 286285-4 TOOL HOLDER CAP, HR4001C $2.84

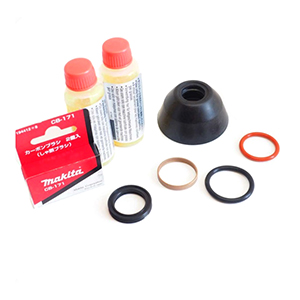

00 195210-3 HAMMER SERVICE KIT, HR4510C $25.17
2 233948-3 RING SPRING 25, HR5210C $1.96
00 214507-2 PLANE BEARING 36, HR4510C $5.15
3 257280-1 RING 29, HR5210C $4.93
00 214601-0 PLANE BEARING 48, HR4510C $5.92
4 450064-8 CHUCK COVER, HR4510C $5.92
00 233964-5 RING SPRING 50, HR4510C $4.16
5 419002-9 SPACER, HR4001C $2.84
6 233948-3 RING SPRING 25, HR5210C $1.96
7 324752-2 CHUCK RING, HR5210C $13.84
8 450030-5 RELEASE COVER, HR4510C $3.94
9 310178-4 TOOL RETAINER, HR5210C $6.80
10 345804-6 SPRING GUIDE, HR5210C $3.06
11 233496-2 COMPRESSION SPRING 49, HR5210C $3.61
12 345804-6 SPRING GUIDE, HR5210C $3.06
13 922148-7 H.S.H. BOLT M4X25, 6922NB $1.34
14 158300-3 BARREL COVER CPL, HR4510C $9.88
15 922353-6 H. S. H. BOLT M6X30,HR5001C $1.96
16 158576-2 BARREL COMPLETE, HR4510C $34.88
17 213754-2 O RING 71, HR5000 $3.61
18 267357-4 FLAT WASHER 36, HR4510C $4.38
19 262135-7 URETHAN RING 36, HR4510C $2.73
20 267357-4 FLAT WASHER 36, HR4510C $4.38
21 324872-2 TOOL HOLDER, HR4510C $115.14
22 213980-3 X-RING 21, HR4510C $4.16
23 213431-6 FLUORIDE RING 28, HR5001C $11.97
24 213394-6 O RING 23, HR5001C $1.48
25 324802-3 IMPACT BOLT, HR4510C $9.77
26 324805-7 RING 19, HR450C $4.71
27 424032-7 RUBBER RING 20, HR4510C $8.12
28 450024-0 SLIDE SLEEVE, HR4510C $2.73
29 213656-2 O RING 53, AN451 $1.85
30 450031-3 LOCK SLEEVE, HR4510C $2.73
31 165465-4 LINK ARM, HR4510C $17.25
32 450032-1 LINK ARM GUIDE, HR4510C $1.48
33 424024-6 SEAL PLATE, HR5210C $1.26
34 324800-7 DRIVING SLEEVE, HR4510C $17.25
35 331599-7 RING 38, HR4500C $9.33
36 234024-6 COMPRESSION SPRING 39, HR4510C $3.06
37 227526-9 STRAIGHT BEVEL GEAR 35, HR4510C $35.29
38 324804-9 STRIKER, HR4510C $5.37
39 213981-1 O-RING 27, HR4510C $2.73
40 324803-1 CYLINDER 34, HR4510C $38.35
41 233956-4 RING SPRING 37, HR4510C $1.34
42 213460-9 O RING 35, HM1500 $1.19
43 257283-5 RING 38, HR4510C $3.94
44 233955-6 RING SPRING 36, HR4510C $1.34
45 331598-9 PIPE 10, HR4500C $4.16
46 450025-8 PISTON, HR4510C $2.73
47 213407-3 O RING 26, 4200H $1.19
48 450026-6 CONNECTION ROD, HR4510C $2.73
49 213981-1 O-RING 27, HR4510C $2.73
50 213030-4 O RING 8, AN451 $0.82
51 318169-9 PIPE HOLDER, HR4510C $10.43
52 213118-0 O-RING 12, 5277NB $0.86
53 450027-4 SPRING GUIDE, HR4510C $1.96
54 234023-8 COMPRESSION SPRING 14, HR4510C $3.06
55 213373-4 O RING 22, GEO600 $1.19
56 331778-7 PIPE 20, HR4510C $3.94
57 213373-4 O RING 22, GEO600 $1.19
58 324806-5 COUNTER WIEGHT, HR4510C $12.08
59 234023-8 COMPRESSION SPRING 14, HR4510C $3.06
60 450027-4 SPRING GUIDE, HR4510C $1.96
61 213118-0 O-RING 12, 5277NB $0.86
62 318169-9 PIPE HOLDER, HR4510C $10.43
63 213030-4 O RING 8, AN451 $0.82
64 922353-6 H. S. H. BOLT M6X30,HR5001C $1.96
65 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
66 419020-7 CHANGE LEVER, HR4001C $4.71
67 233436-0 COMP. SPRING 3, HR4001C $0.79
68 419009-5 LOCK BUTTON, HR4001C $1.52
69 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
70 318171-2 CRANK CAP COVER, HR4510C $11.42
71 419784-3 CRANK LEVER, HR5210C $2.84
72 213515-0 O RING 36, 9040L $1.74
72 213534-6 O RING 36, HR4510C $1.19
73 233506-5 TORSION SPRING 16, HR5210C $1.96
74 310207-3 LINK LEVER, HR5210C $6.80
75 911133-5 P.H. SCREW M4X18, N9501B $0.86
76 450034-7 CRANK CAP, HR4510C $3.94
77 345778-1 RETAINER PLATE, HR5210C $4.16
78 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
78 265014-8 P.H. SCREW M4X12, AF501 $2.95
79 424034-3 SEAL RING, HR4510C $1.52
80 345822-4 LINK PLATE, HR4510C $4.71
81 450029-0 LINK PLATE GUIDE, HR4510C $2.73
82 158297-6 CRANK HOUSING COMPLETE, HR4510C $45.39
83 419008-7 FIX GUIDE, HR4001C $1.26
84 423345-3 CUSHION PLATE, HR4001C $1.26
85 324801-5 CRANK SHAFT, HR4510C $14.94
86 211279-0 BALL BEARING 6303LLU, HM0810B $21.76
87 961057-5 RETAINING RING S-17, LS1016L $0.86
88 254220-0 KEY 5, LP1812C $2.51
89 227181-7 SPUR GEAR 19, HR4510C $9.33
90 226655-5 HELICAL GEAR 36, HR4510C $15.16
91 961054-1 RETAINING RING S-14, 6302 $0.86
92 253180-3 F. WASHER 10, 6906 $1.63
93 125415-1 TORQUE LIMITER ASS'Y, HR4510C $85.20
98 424033-5 SEAL RING, HR4510C $1.52
99 158299-2 GEAR HOUSING CPL, HR4510C $26.82
100 419796-6 HANDLE COVER, HR5210C $13.84
101 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
102 650567-4 SWITCH, HR4010C $27.37
103 154626-1 SWITCH HOLDER CPL.,HR4001 $2.84
104 419028-1 SWITCH LEVER, HR4001C $2.84
107 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
108 450040-2 HANDLE, HR4510C $27.94
111 864092-1 NAME PLATE, HR4510C $1.30
117 450036-3 CRANK HOUSING COVER, HR4510C $8.12
118 631750-2 CONTROLLER, HR4510C $51.70
119 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
120 638510-3 LEAD UNIT, HR5210C $2.84
121 687169-3 STRAIN RELIEF, HP1621F $0.97
122 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
123 419024-9 CORD LAMP BASE, HR4001C $2.84
124 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
125 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
126 419774-6 LENS, HR5210C $1.52
127 682560-0 CORD GUARD 10, HM1202C $4.16
127 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
128 664471-1 CORD, 2X14X16;SJ, HM1500 $49.47
128 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
129 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
130 450035-5 REAR COVER, HR4510C $8.89
131 252178-7 HEX NUT M8-12, 4112H $1.34
132 253165-9 F. WASHER 8, 4303C $1.63
133 240016-5 FAN 90, HR4510C $7.46
134 419782-7 FAN GUIDE, HR5210C $2.84
136 638447-4 BRUSH HOLDER UNIT, HR5210C $6.80
137 450041-0 MOTOR HOUSING , HR4510C $25.17
138 636311-3 FIELD 115V, HR4510C $26.27
139 266046-8 T. SCREW FLANGE PT5X50,HR2010 $1.96
140 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
141 681642-5 INSULATION WASHER, LS1016L $10.32
142 517766-0 ARMATURE ASS'Y 115V, HR4510C $72.30
143 267025-9 F. WASHER 15, HR4500C $2.18
144 211238-4 BALL BEARING 6202LLU, HR4500C $9.99
145 331596-3 SLEEVE 12, HR4041C $5.48
146 213231-4 OIL SEAL 15, HR4500C $5.48
147 450033-9 BAFFLE PLATE, HR4510C $2.73
148 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
149 419786-9 SWITCH BOX, HR5210C $2.84
150 263027-3 RUBBER PIN 4, HM0860C $1.19
151 651418-4 SWITCH, 9564CV $17.25
152 232209-8 LEAF SPRING, HM0860C $1.96
153 154635-0 SLIDE LEVER CPL.,HR4001C $5.48
154 450042-8 CONTROL PLATE, HR4510C $2.73
155 331840-8 SHOULDER SLEEVE 19, HR5210C $7.90
156 819362-3 CLEAR LABEL, HR4510C $2.40
1001 158131-0 GRIP 36 CPL.,HR4010C $11.97
1003 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
1004 134890-0 SIDE HANDLE 68 ASS'Y,HR4000C $34.88
1006 265701-9 SCREW M6X14, 5177B $1.96
1007 266163-4 C.S.N.BOLT M8X80, HR4041C $3.61
1008 321248-4 DEPTH GAUGE, HR3851 $7.46
1009 344491-8 GRIP SPRING 68, HR4002 $6.47
1010 344492-6 PLATE, HR4002 $1.63
1011 416299-1 SIDE GRIP BASE 68, HR4000C $10.32
1012 931302-2 HEX NUT M6, HR2400 $0.79
