Makita HR4041C Rotary Hammer Parts

Makita HR4041C Rotary Hammer Parts Image

Makita HR4041C Parts
1-9/16 Inch Spline, Rotary Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR4041C
1-9/16 Inch Spline, ...
$455.99
Tool Diagram    (Click image to Zoom in) View larger Image

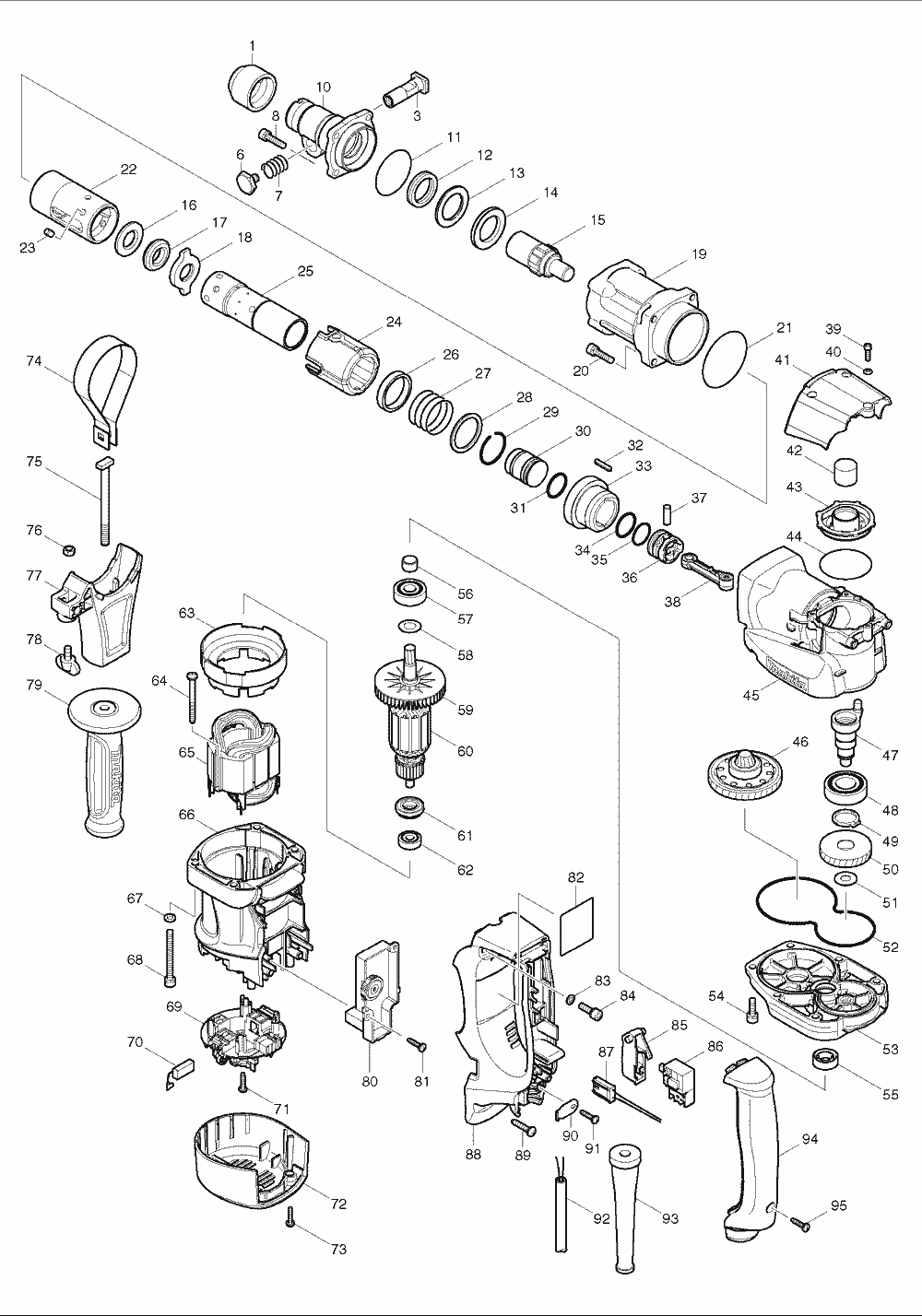

Makita HR4041C Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 421596-2 CAP, HM0810B $2.84
3 331301-8 TOOL RETAINER, HM0810B $18.90
6 265321-9 HEX BOLT M8X12, HM0810B-T2 $4.93
7 231375-8 COMP. SPRING 15, HR3851 $2.07
8 265914-2 H.S.H.BOLT M6X25, HM1211B $2.40
10 324720-5 TOOL HOLDER, HR4041C $59.70
11 213606-7 O RING 48, HR2511 $1.96
12 213428-5 X-RING 28, HR5000 $26.05
13 261133-8 NYLON WASHER 29, HR4041C $2.18
14 267338-8 FLAT WASHER 29, HR4041C $5.26
15 324721-3 IMPACT BOLT, HR4041C $28.05
16 324726-3 WASHER 17, HR4041C $5.26
17 262119-5 RUBBER RING 18, HR4041C $4.93
18 324724-7 SLIDE PLATE, HR4041C $4.16
19 158117-4 BARREL CPL.,HR4041C $34.17
20 266158-7 H.S.H. BOLT M6X30,HR4041C $1.48
21 213654-6 O RING 60, HR3851 $1.96
22 331730-5 CYLINDER A, HR4041C $41.41
23 256266-2 PIN 6, HR4041C $1.19
24 419670-8 SLIDE SLEEVE, HR4041C $2.84
25 331731-3 CYLINDER B, HR4041C $45.08
26 331732-1 RING 34, HR4041C $4.93
27 234016-5 COMP. SPRING 35, HR4041C $1.96
28 267339-6 FLAT WASHER 34, HR4041C $5.26
29 233945-9 RING SPRING 32, HR4041C $1.48
30 324725-5 STRIKER, HR4041C $5.48
31 213962-5 O RING 22, HR4002 $3.28
32 254231-5 KEY 4, HR3851 $1.52
33 227508-1 SPIRAL BEVEL GEAR 27, HR4041C $20.77
34 213962-5 O RING 22, HR4002 $3.28
35 213379-2 O RING 21, HR4041C $0.82
36 419004-5 PISTON, HR4041C $2.84
37 256197-5 PIN 7, JR3020 $1.96
38 419679-0 CONNECTING ROD, HR4041C $2.84
39 266148-0 H.S.H. BOLT M4X14, 9005B $1.96
40 941052-1 F. WASHER 4, 9218SB $0.75
41 419672-4 CRANK CAP COVER, HR4041C $5.48
42 443127-7 FILTER, HR4041C $1.26
43 419671-6 CRANK CAP, HR4041C $2.84
44 213604-1 O RING 50, 6911D $3.61
45 158118-2 CRANK HOUSING CPL.,HR4041C $52.50
46 125375-7 TORQUE LIMITER ASS'Y, HR4041C $74.00
47 324550-4 CRANK SHAFT, HR4001C $8.12
48 211332-2 BALL BEARING 6004LLU, HR4002 $9.99
49 961060-6 RETAINING RING S-20, 2708 $1.19
50 226642-4 HELICAL GEAR 38, HR4041C $10.21
51 253180-3 F. WASHER 10, 6906 $1.63
52 421976-2 SEAL RING, HR4041C $1.52
53 158119-0 GEAR HOUSING CPL.,HR4041C $30.60
54 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
55 213231-4 OIL SEAL 15, HR4500C $5.48
56 331596-3 SLEEVE 12, HR4041C $5.48
57 211137-0 BALL BEARING 6201LLU,4140 $9.99
58 253084-9 F. WASHER 12, 5014NB $1.63
59 241863-7 FAN 70, JR3050T $11.75
60 513691-3 ARMATURE ASS'Y 115V, HR4041C $62.00
61 681650-6 INSULATION WASHER, HR4000C $11.75
62 210005-4 BALL BEARING 608DDW, 9031 $13.07
63 419673-2 BAFFLE PLATE, HR4041C $2.84
64 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
65 625756-0 FIELD 115V, HR4041C $22.86
66 419674-0 MOTOR HOUSING, HR4041C $17.25
67 941151-9 F. WASHER 6, 5007NB $0.75
68 922381-1 H.S.H. BOLT M6X60, HR4041C $3.61
69 638501-4 BRUSH HOLDER UNIT,HR4041C $6.80
70 195004-6 CARBON BRUSH CB-350 HR4001C $5.92
71 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
72 419675-8 REAR COVER, HR4041C $5.48
73 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
74 345763-4 GRIP SPRING 66, HR4041C $8.01
75 266322-0 SQUARE BOLT M8X80, HM0860C $3.28
75 266406-4 SQ. BOLT M8X85, HR4041C $3.28
76 931302-2 HEX NUT M6, HR2400 $0.79
77 419678-2 SIDE GRIP BASE 66, HR4041C $6.80
77 450332-9 SIDE GRIP BASE 66, HR4041C $7.02
78 265701-9 SCREW M6X14, 5177B $1.96
79 158131-0 GRIP 36 CPL.,HR4010C $11.97
80 631741-3 CONTROLLER, HR4041C $42.63
81 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
82 863287-3 NAME PLATE, HR4041C $1.12
83 941152-7 F. WASHER 6, HM1500 $0.75
84 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
85 418549-0 SWITCH LEVER, HR4041C $2.84
86 651922-3 SWITCH, HM1303B $19.45
87 638509-8 LEAD UNIT, HR4041C $2.84
88 158263-3 HANDLE CPL., HR4041C $15.93
89 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
90 687169-3 STRAIN RELIEF, HP1621F $0.97
91 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
92 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
92 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
93 682560-0 CORD GUARD 10, HM1202C $4.16
93 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
94 419677-4 HANDLE COVER, HR4041C $14.61
95 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
1002 321248-4 DEPTH GAUGE, HR3851 $7.46
1003 805220-9 MODEL NO. LABEL, HR4041C $0.96
