Makita HR4040C Rotary Hammer Parts

Makita HR4040C Rotary Hammer Parts Image

Makita HR4040C Parts
1-9/16 Inch Spline Shank Rotary Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR4040C
1-9/16 Inch Spline ...
$399.99
Tool Diagram    (Click image to Zoom in) View larger Image

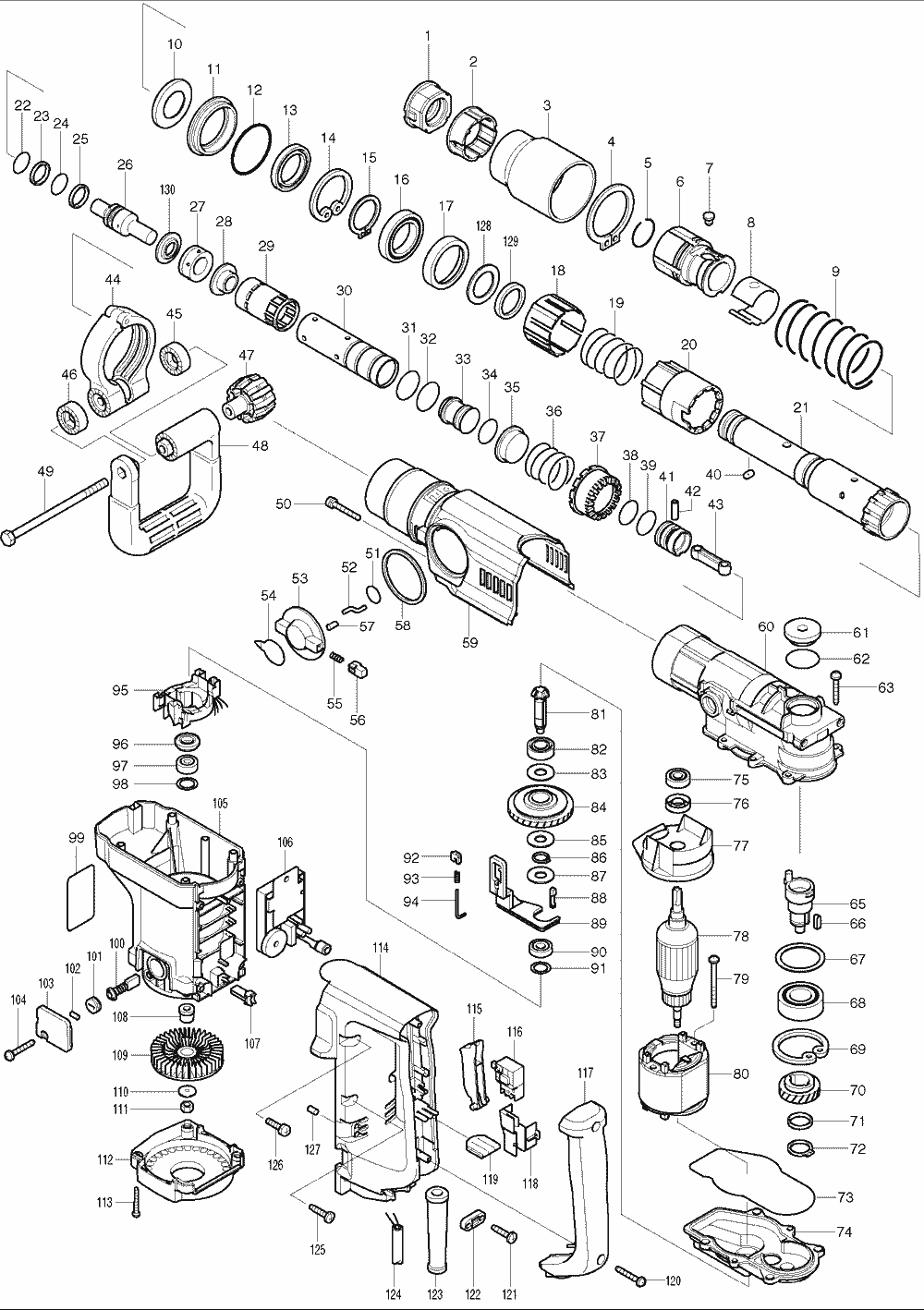

Makita HR4040C Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
75 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
1 286254-5 TOOL HOLDER CAP, HR4040C $4.49
2 417055-2 SLEEVE 46, HR4040C $4.49
3 417054-4 CHUCK COVER, HR4040C $5.92
4 961224-2 RETAINING RING S-50, HR4040C $3.61
5 231992-4 RING SPRING 29, HR4040C $3.61
6 323934-3 CHUCK RING, HR4040C $46.92
7 323941-6 PIN 8, HR4040C $3.06
8 232196-1 LEAF SPRING 39, HR4040C $9.55
9 233256-2 COMPRESSION SPRING 50, HR4040C $4.16
10 344488-7 CUP WASHER 32, HR4000C $2.18
11 416283-6 SEAL CASE, HR4000C $3.06
12 213601-7 O RING 50, N1900B $3.61
13 213480-3 OIL SEAL 35, HR4000C $4.49
14 962253-8 RETAINING RING R-56, HR4000C $5.37
15 961153-9 RETAINING RING S-35, HR4000C $1.96
16 211469-5 BALL BEARING 6907, HR5000 $36.10
17 331510-9 BEARING HOLDER, HR4000C $5.92
18 416325-6 LOCK SLEEVE B, HR4000C $3.06
19 233177-8 COMPRESSION SPRING 44, HR4000C $2.07
20 416125-4 LOCK SLEEVE A, HR4000C $4.49
21 323933-5 TOOL HOLDER, HR4040C $134.25
22 213317-4 O RING 20, HR4000C $1.48
23 213392-0 FLUORIDE RING 25, HR4000C $7.46
24 213317-4 O RING 20, HR4000C $1.48
25 213392-0 FLUORIDE RING 25, HR4000C $7.46
26 323942-4 IMPACT BOLT, HR4040C $14.39
27 421730-4 RUBBER RING 19, HR4040C $4.49
28 331505-2 SLEEVE 16, HR4000C $5.92
28 331582-4 SLEEVE 16, HR4040C $5.48
29 416282-8 SLIDE SLEEVE, HR4000C $4.49
30 331508-6 CYLINDER 28.5, HR4000C $24.62
31 213406-5 O RING 30, HR5000 $1.19
32 213406-5 O RING 30, HR5000 $1.19
33 322960-9 STRIKER, HR4000C $8.78
34 213370-0 O RING 22, AF502 $1.08
35 331509-4 RING 33, HR4000C $7.46
36 233176-0 COMPRESSION SPRING 37, HR4000C $1.63
37 226745-4 STRAIGHT BEVEL GEAR 33, HR4000C $43.45
38 213370-0 O RING 22, AF502 $1.08
39 213370-0 O RING 22, AF502 $1.08
40 323940-8 ROLLER 12, HR4040C $4.49
41 416122-0 PISTON, HR4040C $4.49
42 256197-5 PIN 7, JR3020 $1.96
43 416123-8 ROD, HR4000C $3.06
45 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
46 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
47 252640-2 WING NUT M8, HM1214C & HM1203C $7.02
48 417003-1 SIDE HANDLE, HM1214C & HM1203C $13.18
49 265439-6 HEX BOLT M8X150, HM1100C $3.61
50 911128-8 P.H. SCREW M4X16, 1902 $1.48
51 213304-3 O RING 20, 6904VH $1.19
52 322962-5 CRANK PIN 4, HR4000C $3.06
53 416287-8 CHANGE LEVER, HR4000C $3.06
54 816329-2 INDICATION LABEL, HR4000C $1.61
55 233188-3 COMPRESSION SPRING 2.4, HR4000C $0.86
56 417340-3 LOCK BUTTON,HR4040C $1.52
57 256122-6 PIN 4, HR1821 $1.19
58 421698-4 DUSTPROFF WASHER 55, HR4040C $5.26
59 151761-6 CRANK HOUSING COVER CPL., HR4040C $14.61
60 159948-4 CRANK HOUSING COMPLETE, HR4000C $63.00
61 416124-6 CRANK CAP, HR4000C $3.06
62 213406-5 O RING 30, HR5000 $1.19
63 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
65 323929-6 CRANK SHAFT, HR4040C $36.21
66 254229-2 KEY 5, HR4000C $1.63
67 267169-5 FLAT WASHER 42, HR4000C $2.18
68 211373-8 BALL BEARING 6205LLU, HM1304B $17.47
69 962251-2 RETAINING RING R-52, HR5000 $3.61
70 226479-9 HELICAL GEAR 37, HR4000C $17.47
71 267121-3 FLAT WASHER 20, 6940D $2.18
72 961060-6 RETAINING RING S-20, 2708 $1.19
73 421613-8 SEAL RING, HR4000C $3.06
74 159949-2 GEAR HOUSING COMPLETE, HR4000C $30.90
75 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
76 213112-2 OIL SEAL 12, HR2400 $8.78
77 416987-0 BAFFLE PLATE, HR4040C $4.49
78 516326-5 ARMATURE ASS'Y 115V, HR4000C $127.56
79 266044-2 T. SCREW FLANGE 5X60, 5037NB $1.96
80 634296-7 FIELD 115V, HR4000C $32.74
81 226746-2 STRAIGHT BEVEL GEAR 10, HR4000C $27.26
82 211121-5 BALL BEARING 1207, HR4000C $15.82
83 267113-2 FLAT WASHER 12, GA4030 $1.63
84 159947-6 TORQUE LIMITER COMPLETE, HR4040C $65.60
85 267113-2 FLAT WASHER 12, GA4030 $1.63
86 961052-5 RETAINING RING S-12, 9218PBL $0.86
87 253810-6 F. WASHER 12, HR4000C $2.18
88 322951-0 CHANGE KEY, HR4000C $5.92
89 416288-6 CHANGE LINK, HR4000C $3.06
90 211031-6 BALL BEARING 608LLB, 9227C $10.98
91 253314-8 THIN WASHER 15, 6906 $1.63
92 416289-4 SLIDE PLATE, HR4000C $1.26
93 233180-9 COMPRESSION SPRING 3, HR4000C $0.86
94 322963-3 GUIDE PIN 2, HR4000C $0.75
95 632699-9 SUPPORT COMPLETE, HR4000C $7.46
96 681650-6 INSULATION WASHER, HR4000C $11.75
97 210005-4 BALL BEARING 608DDW, 9031 $13.07
98 253343-1 THIN WASHER 18, 6310 $3.72
99 851832-6 NAME PLATE, HR4040C $2.74
100 194997-4 A.C. CARBON BRUSH CB-304 HM1100C $12.63
101 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
102 263002-9 RUBBER PIN 4, 5007NK $0.86
103 416292-5 BRUSH HOLDER COVER, HR4000C $3.06
104 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
105 159950-7 MOTOR HOUSING COMPLETE, HR4000C $38.96
106 631591-6 CONTROLLER, HR4040C $45.08
107 415695-0 FIX ROD, HM1100C $3.06
107 417715-6 FIX ROD, HR4040C $1.52
108 322961-7 SLEEVE 7, HR4000C $3.06
109 241876-8 FAN 76, HM1100C $4.49
110 253804-1 F. WASHER 6, 6012HDW $1.34
111 931302-2 HEX NUT M6, HR2400 $0.79
112 416295-9 REAR COVER, HR4000C $7.46
113 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
115 416284-4 SWITCH LEVER, HR4000C $3.06
116 651922-3 SWITCH, HM1303B $19.45
117 417165-5 HANDLE COVER,HR4040C $27.70
118 416126-2 LEAD GUIDE, HR4000C $3.06
119 421583-1 SPONGE SHEET, HR5001C $0.75
120 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
121 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
122 687063-9 STRAIN RELIEF, 4323K $1.26
123 682560-0 CORD GUARD 10, HM1202C $4.16
123 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
124 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
124 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
125 266021-4 TAPPING SCREW PT5X20, BPB180 $1.48
126 911233-1 P.H. SCREW M5X20, TW1000 $0.86
127 416285-2 ACRYLIC PIN 5, HR4000C $1.26
128 267206-5 FLAT WASHER 35, HR4040C $4.16
129 262089-8 URETHANE RING 35, HR4040C $4.93
130 331572-7 WASHER 16, HR4040C $5.26
1003 152554-4 GRIP 36 COMPLETE, HR4000C $13.18
1004 265701-9 SCREW M6X14, 5177B $1.96
1005 266163-4 C.S.N.BOLT M8X80, HR4041C $3.61
1006 321248-4 DEPTH GAUGE, HR3851 $7.46
1007 344491-8 GRIP SPRING 68, HR4002 $6.47
1008 344492-6 PLATE, HR4002 $1.63
1009 416299-1 SIDE GRIP BASE 68, HR4000C $10.32
1010 931302-2 HEX NUT M6, HR2400 $0.79
2001 134803-1 GRIP 36 ASS'Y, HR4040C $29.58
2002 134890-0 SIDE HANDLE 68 ASS'Y,HR4000C $34.88
5001 810134-9 CAUTION LABEL, 3709 $0.93
