Makita HR2432 Rotary Hammer Parts

Makita HR2432 Rotary Hammer Parts Image

Makita HR2432 Parts
1 Inch Rotary Hammer (with Dust Collector)

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR2432
1 Inch Rotary Hammer...
$271.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

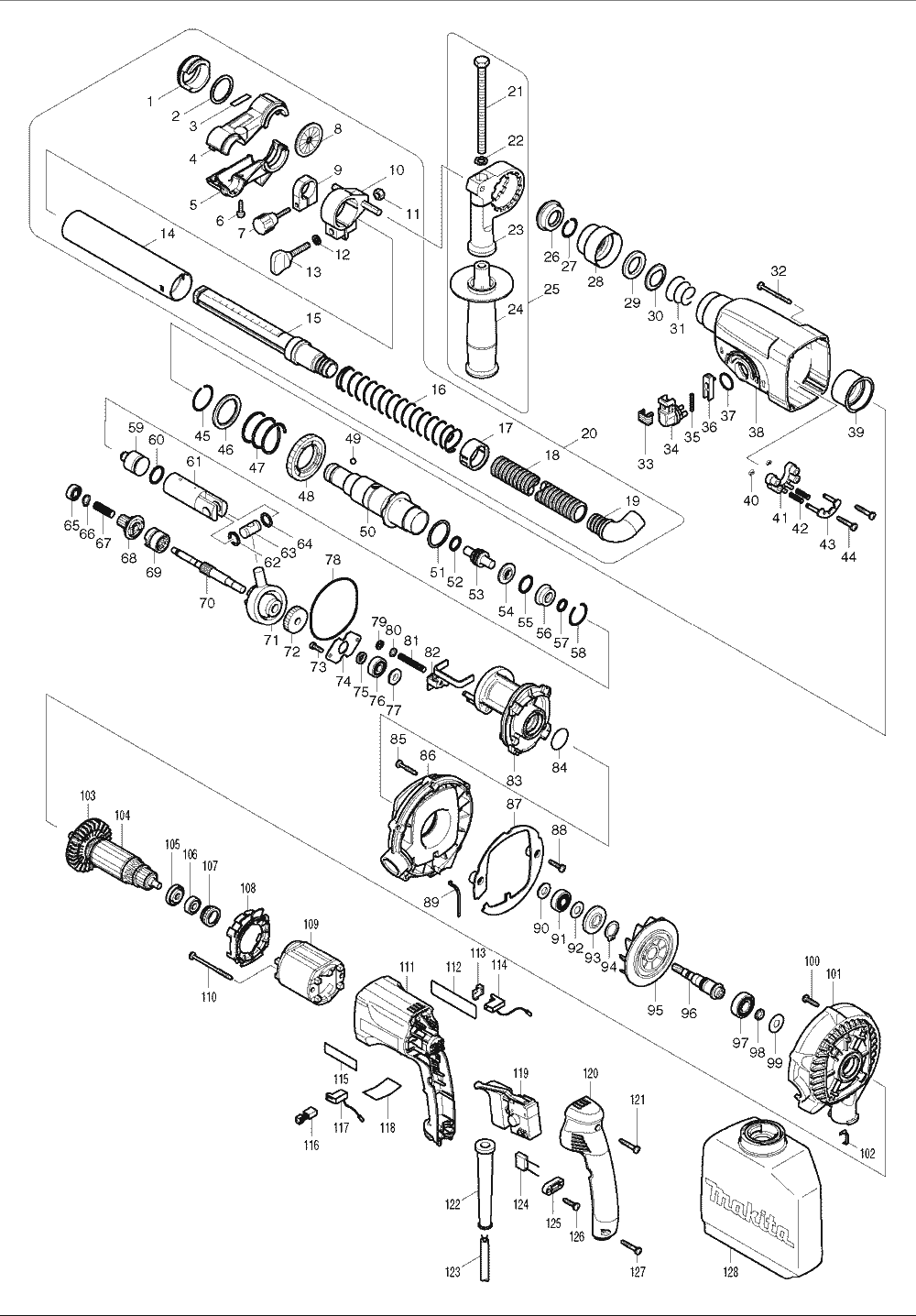

Makita HR2432 Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 421396-0 FITTING RUBBER, HR2432 $2.84
00 417154-0 FRAME CAP, HR2432 $1.26
2 267091-6 FLAT WASHER 28, HR2431 $3.72
00 417154-0 FRAME CAP, HR2432 $1.26
3 819071-4 MAKITA LABEL, HR2431 $0.89
89 654128-2 EARTH TERMINAL, HR2432 $0.97
4 414799-5 COLLECTOR 25R, HR2431 $8.01
5 414800-6 COLLECTOR 25L, HR2431 $8.01
6 265926-5 TAPPING SCREW 4X16, 420S $1.48
7 265706-9 THUMB SCREW M4X24, HR2431 $4.93
8 421384-7 SEALING CAP 40, HR2431 $2.84
9 414795-3 STOPPER RING, HR2431 $6.80
10 417156-6 PIPE HOLDER, HR2431 $6.80
11 931302-2 HEX NUT M6, HR2400 $0.79
12 941151-9 F. WASHER 6, 5007NB $0.75
13 265705-1 THUMB SCREW M6X30, HR2431 $3.28
14 414797-9 SUPPORT PIPE, HR2431 $6.80
15 414796-1 SLIDE PIPE, HR2432 $8.01
16 233015-4 COMPRESSION SPRING 25, HR2431 $4.93
17 414794-5 SPRING STOPPER, HR2431 $7.02
18 414898-3 HOSE 19, HR2431 $4.16
19 417153-2 CUFF 19-22, HR2431 $4.16
21 921923-8 HEX. BOLT M8 X 120, HP2050F $1.96
22 345280-4 HEX. WASHER, HP2050F $1.01
23 417630-4 GRIP BASE, HP1640 $2.84
24 152521-9 GRIP 36 CPL., DP4002 $4.49
24 153503-4 GRIP 36 CPL., HP2050F $2.84
25 135302-6 GRIP 36 ASS'Y, HR2450F $4.16
26 286263-4 CAP 35, HR2450F $1.52
27 233940-9 RING SPRING 19, HR2450F $0.86
28 417629-9 CHUCK COVER,HR2450F $5.92
29 257241-1 RING 21, HR2450F $1.52
30 345187-4 GUIDE WASHER, HR2450F $1.63
31 233916-6 CONICAL COMP. SPRING 21-29, HR2450F $1.96
32 266069-6 T. SCREW FLANGE PT4X45 HR2410 $1.74
33 417794-4 CAP, HR2455 $0.97
34 162229-7 CHANGE LEVER,HR2455 $2.84
35 233341-1 COMP. SPRING 3, HR2450F $0.86
36 417795-2 LOCK BUTTON, HR2455 $0.97
37 213278-8 O RING 17,HR2450F $0.86
38 183441-6 GEAR HOUSING SET,HR2455 $17.25
39 153290-5 NEEDLE BEARING CPL., HR2450F $7.02
40 961017-7 STOP RING E-3, 4304, SH01 $0.53
41 417796-0 GUIDE BASE, HR2455 $0.97
42 233344-5 COMP. SPRING 4, HR2450F $0.86
43 163430-7 LOCK PLATE CPL., HR2450F $1.52
45 233918-2 RING SPRING 28, HR2450F $0.86
46 267228-5 WASHER 30, HR2450F $2.18
47 233328-3 COMP. SPRING 31, HR2450F $1.96
48 227028-5 SPUR GEAR 51, HR2450F $12.52
49 216022-2 STEEL BALL 7.0, HR2400 $0.86
50 153365-0 TOOL HOLDER CPL., HR2450F $35.39
51 267229-3 FLAT WASHER 28, BHR240 $1.34
52 213128-7 O RING 12,HR2450F $1.74
53 324396-8 .IMPACT BOLT, HR2455 $5.92
54 324218-2 RING 9, HR2450F $1.52
55 213232-2 O RING 15,HR2450F $3.28
56 324216-6 O RING CASE, HR2455 $5.48
57 213073-6 O RING 9,HR2455 $1.74
58 233917-4 RING SPRING 28, HR2450F $0.86
59 324214-0 STRIKER, HR2450F $4.16
60 213227-5 O RING 16M, HR2455 $3.61
61 331632-5 PISTON CYLINDER, HR2450F $22.42
62 267104-3 FLAT WASHER 12, HR2400 $2.16
63 324215-8 PISTON JOINT, HR2450F $2.84
64 267104-3 FLAT WASHER 12, HR2400 $2.16
65 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
66 961003-8 RETAINING RING S-7, 9015B $0.53
67 233343-7 COMP. SPRING 7, HR2450F $0.86
68 226399-7 SPUR GEAR 10, BHR200SH $20.77
70 324248-3 CAM SHAFT, HR2432 $10.65
71 219014-0 SWASH BEARING 10, HR2455 $34.17
72 226550-9 HELICAL GEAR 26,HR2450F $7.35
73 266273-7 H.S.H. BOLT M4X12, HR2450F $1.34
74 345179-3 BEARING RETAINER, HR2450F $0.97
75 267234-0 FLAT WASHER 8, HM1304B $1.01
76 211032-4 B. BEARING 608ZZ, N1900B $8.78
77 324212-4 RING 8, HR2450F $4.16
78 213725-9 O RING 68,HR2450F $1.74
79 961011-9 STOP RING E-4, 4301BV $1.48
80 941102-2 F. WASHER 5, HM1100C $0.75
81 233342-9 COMP. SPRING 6, HR2450F $0.86
82 345363-0 CHANGE PLATE, HR2450F $2.84
83 153687-8 INNER HOUSING, HR2450F $8.01
84 213380-7 O RING 24, 6805BV $1.96
86 418807-4 FAN HOUSING A, HR2432 $5.48
87 418809-0 DUST COVER PLATE, HR2432 $2.84
88 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
89 345483-0 EARTH PLATE A, HR2432 $0.75
90 267271-4 FLAT WASHER 9, HR2445 $1.34
91 210060-6 BALL BEARING 609LLU, HR2431 $6.03
92 267231-6 FLAT WASHER 9, HR2450F $1.01
93 324500-9 DUST GUARD, HR2432 $2.84
94 961055-9 RETAINING RING S-15, 5007F $1.19
95 241668-5 FAN 81, HR2432 $9.99
96 226596-5 HELICAL GEAR 5, HR2432 $8.56
96 226619-9 HELICAL GEAR 5, HR2432 $10.21
97 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
98 262115-3 URETHANE RING 8, HR2432 $1.19
99 253741-9 F. WASHER 9, 4200N $2.18
99 253733-8 F. WASHER 9, HR2432 $1.34
100 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
102 345484-8 EARTH PLATE B, HR2432 $0.75
103 240047-4 FAN 60, HR2450F $1.52
104 515671-5 ARMATURE ASS'Y, HR2432 $26.52
105 681636-0 INSULATION WASHER, GA4030 $3.72
106 211021-9 BALL BEARING 607LLB, LS1013 $8.78
107 421494-0 LABYRINTH RUBBER RING,HR2455, DA3010F $4.49
108 419201-3 BAFFLE PLATE, HR2450F $0.97
109 633491-6 FIELD 115V, HR2432 $12.63
111 183409-2 MOTOR HOUSING, HR2432 $10.43
112 861193-6 NAME PLATE, HR2432 $2.74
113 689111-0 SPACER, HP2050F $1.26
114 643988-7 BRUSH HOLDER, HP2050F $2.84
115 819063-3 MAKITA LABEL, DA3010F $0.96
116 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
117 643989-5 BRUSH HOLDER,HP2050F $2.84
118 803356-8 S/N LABEL, HR2432 $0.71
119 650508-0 SWITCH, HR2450F $27.37
120 153284-0 HANDLE COVER CPL., HP2050F $8.01
122 682559-5 CORD GUARD 8, 6824 $2.51
122 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
125 687063-9 STRAIN RELIEF, 4323K $1.26
126 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
128 122708-7 'DUST BAG ASS''Y HR2432 ' $20.80
129 257273-8 RING 8, HR2432 $2.84
1002 421727-3 CAP HR2431 $2.20
5001 810134-9 CAUTION LABEL, 3709 $0.93
